C4D40120D
Cree Wolfspeed
Manufacturer : Cree/Wolfspeed
Packaging : Tube
Series : Z-Rec®
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Max) : 1200V
Current - Average Rectified (Io) (per Diode) : 27A
Voltage - Forward (Vf) (Max) @ If : 1.8V @ 20A
Speed : No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr) : 0ns
Current - Reverse Leakage @ Vr : 200µA @ 1200V
Operating Temperature - Junction : -55°C ~ 175°C
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
Packaging : Tube
Series : Z-Rec®
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Max) : 1200V
Current - Average Rectified (Io) (per Diode) : 27A
Voltage - Forward (Vf) (Max) @ If : 1.8V @ 20A
Speed : No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr) : 0ns
Current - Reverse Leakage @ Vr : 200µA @ 1200V
Operating Temperature - Junction : -55°C ~ 175°C
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
0
1350 in stock

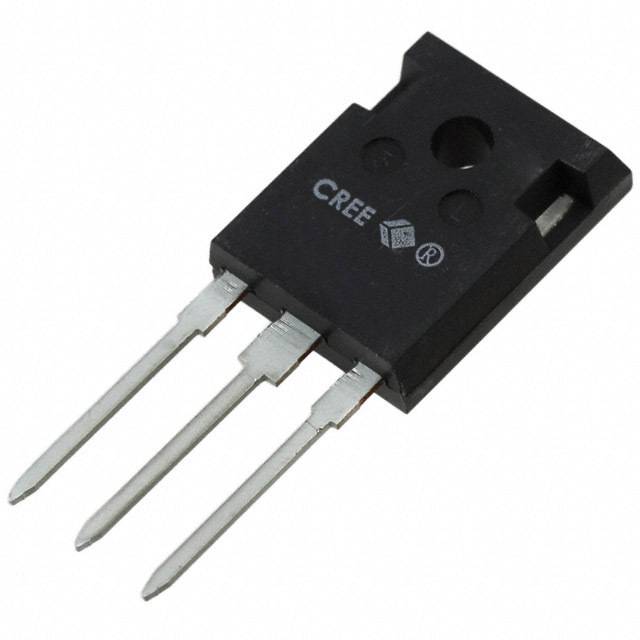

C5D50065D
Cree Wolfspeed
Manufacturer : Cree/Wolfspeed
Packaging : Bulk
Series : Z-Rec®
Part Status : Active
Diode Type : Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Max) : 650V
Current - Average Rectified (Io) : 100A (DC)
Voltage - Forward (Vf) (Max) @ If : 1.8V @ 50A
Speed : No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr) : 0ns
Current - Reverse Leakage @ Vr : 500µA @ 650V
Capacitance @ Vr, F : 1970pF @ 0V, 1MHz
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
Operating Temperature - Junction : -55°C ~ 175°C
Packaging : Bulk
Series : Z-Rec®
Part Status : Active
Diode Type : Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Max) : 650V
Current - Average Rectified (Io) : 100A (DC)
Voltage - Forward (Vf) (Max) @ If : 1.8V @ 50A
Speed : No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr) : 0ns
Current - Reverse Leakage @ Vr : 500µA @ 650V
Capacitance @ Vr, F : 1970pF @ 0V, 1MHz
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
Operating Temperature - Junction : -55°C ~ 175°C
0
281 in stock

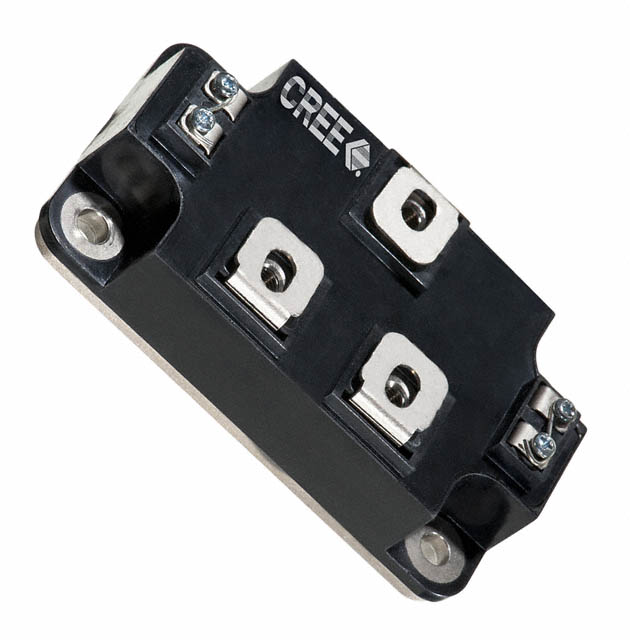

CAS100H12AM1
Cree Wolfspeed
Manufacturer : Cree/Wolfspeed
Packaging : Bulk
Series : Z-FET™
Part Status : Obsolete
FET Type : 2 N-Channel (Half Bridge)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 1200V (1.2kV)
Current - Continuous Drain (Id) @ 25°C : 168A
Rds On (Max) @ Id, Vgs : 20 mOhm @ 20A, 20V
Vgs(th) (Max) @ Id : 3.1V @ 50mA
Gate Charge (Qg) (Max) @ Vgs : -
Input Capacitance (Ciss) (Max) @ Vds : 9500pF @ 800V
Power - Max : 568W
Operating Temperature : -
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
Packaging : Bulk
Series : Z-FET™
Part Status : Obsolete
FET Type : 2 N-Channel (Half Bridge)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 1200V (1.2kV)
Current - Continuous Drain (Id) @ 25°C : 168A
Rds On (Max) @ Id, Vgs : 20 mOhm @ 20A, 20V
Vgs(th) (Max) @ Id : 3.1V @ 50mA
Gate Charge (Qg) (Max) @ Vgs : -
Input Capacitance (Ciss) (Max) @ Vds : 9500pF @ 800V
Power - Max : 568W
Operating Temperature : -
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
0
100 in stock

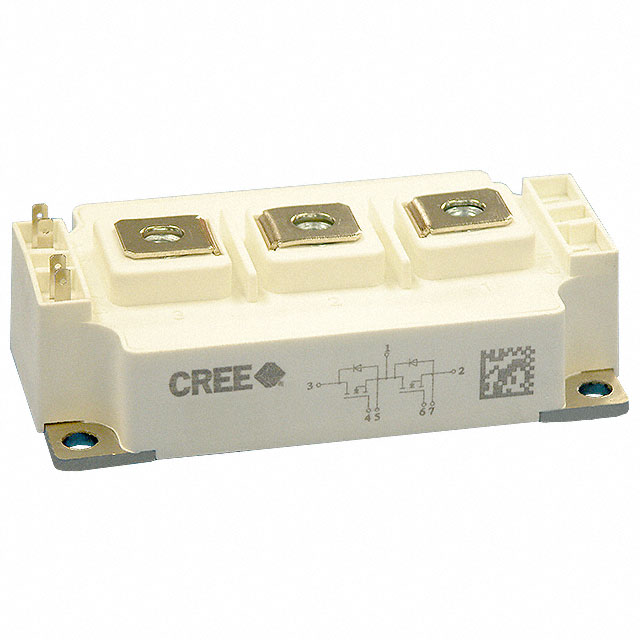

CAS120M12BM2
Cree Wolfspeed
Manufacturer : Cree/Wolfspeed
Packaging : Bulk
Series : Z-Rec®
Part Status : Active
FET Type : 2 N-Channel (Half Bridge)
FET Feature : Silicon Carbide (SiC)
Drain to Source Voltage (Vdss) : 1200V (1.2kV)
Current - Continuous Drain (Id) @ 25°C : 193A (Tc)
Rds On (Max) @ Id, Vgs : 16 mOhm @ 120A, 20V
Vgs(th) (Max) @ Id : 2.6V @ 6mA (Typ)
Gate Charge (Qg) (Max) @ Vgs : 378nC @ 20V
Input Capacitance (Ciss) (Max) @ Vds : 6300pF @ 1000V
Power - Max : 925W
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
Packaging : Bulk
Series : Z-Rec®
Part Status : Active
FET Type : 2 N-Channel (Half Bridge)
FET Feature : Silicon Carbide (SiC)
Drain to Source Voltage (Vdss) : 1200V (1.2kV)
Current - Continuous Drain (Id) @ 25°C : 193A (Tc)
Rds On (Max) @ Id, Vgs : 16 mOhm @ 120A, 20V
Vgs(th) (Max) @ Id : 2.6V @ 6mA (Typ)
Gate Charge (Qg) (Max) @ Vgs : 378nC @ 20V
Input Capacitance (Ciss) (Max) @ Vds : 6300pF @ 1000V
Power - Max : 925W
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
0
100 in stock

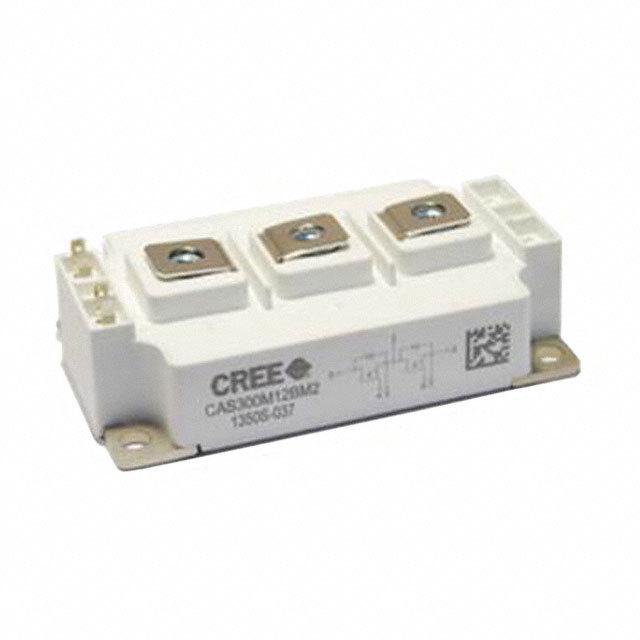

CAS300M12BM2
Cree Wolfspeed
Manufacturer : Cree/Wolfspeed
Packaging : Bulk
Series : Z-FET™
Part Status : Active
FET Type : 2 N-Channel (Half Bridge)
FET Feature : Silicon Carbide (SiC)
Drain to Source Voltage (Vdss) : 1200V (1.2kV)
Current - Continuous Drain (Id) @ 25°C : 423A (Tc)
Rds On (Max) @ Id, Vgs : 5.7 mOhm @ 300A, 20V
Vgs(th) (Max) @ Id : 2.3V @ 15mA (Typ)
Gate Charge (Qg) (Max) @ Vgs : 1025nC @ 20V
Input Capacitance (Ciss) (Max) @ Vds : 11700pF @ 600V
Power - Max : 1660W
Operating Temperature : 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module, Screw Terminals
Supplier Device Package : Module
Packaging : Bulk
Series : Z-FET™
Part Status : Active
FET Type : 2 N-Channel (Half Bridge)
FET Feature : Silicon Carbide (SiC)
Drain to Source Voltage (Vdss) : 1200V (1.2kV)
Current - Continuous Drain (Id) @ 25°C : 423A (Tc)
Rds On (Max) @ Id, Vgs : 5.7 mOhm @ 300A, 20V
Vgs(th) (Max) @ Id : 2.3V @ 15mA (Typ)
Gate Charge (Qg) (Max) @ Vgs : 1025nC @ 20V
Input Capacitance (Ciss) (Max) @ Vds : 11700pF @ 600V
Power - Max : 1660W
Operating Temperature : 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module, Screw Terminals
Supplier Device Package : Module
0
100 in stock

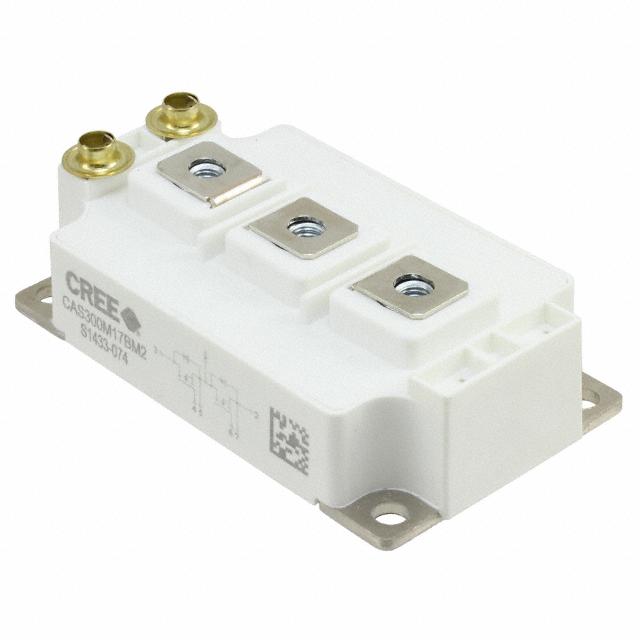

CAS300M17BM2
Cree Wolfspeed
Manufacturer : Cree/Wolfspeed
Packaging : Tray
Series : Z-Rec®
Part Status : Active
FET Type : 2 N-Channel (Half Bridge)
FET Feature : Silicon Carbide (SiC)
Drain to Source Voltage (Vdss) : 1700V (1.7kV)
Current - Continuous Drain (Id) @ 25°C : 325A (Tc)
Rds On (Max) @ Id, Vgs : 10 mOhm @ 225A, 20V
Vgs(th) (Max) @ Id : 2.3V @ 15mA (Typ)
Gate Charge (Qg) (Max) @ Vgs : 1076nC @ 20V
Input Capacitance (Ciss) (Max) @ Vds : 20000pF @ 1000V
Power - Max : 1760W
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
Packaging : Tray
Series : Z-Rec®
Part Status : Active
FET Type : 2 N-Channel (Half Bridge)
FET Feature : Silicon Carbide (SiC)
Drain to Source Voltage (Vdss) : 1700V (1.7kV)
Current - Continuous Drain (Id) @ 25°C : 325A (Tc)
Rds On (Max) @ Id, Vgs : 10 mOhm @ 225A, 20V
Vgs(th) (Max) @ Id : 2.3V @ 15mA (Typ)
Gate Charge (Qg) (Max) @ Vgs : 1076nC @ 20V
Input Capacitance (Ciss) (Max) @ Vds : 20000pF @ 1000V
Power - Max : 1760W
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
0
27 in stock

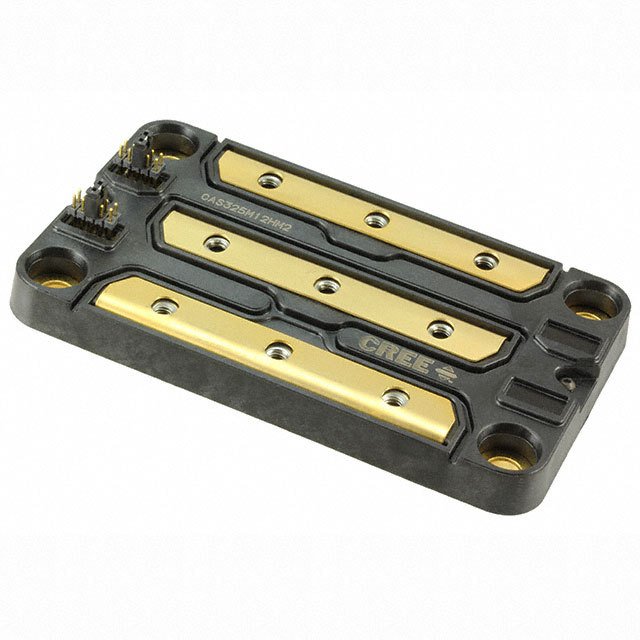

CAS325M12HM2
Cree Wolfspeed
Manufacturer : Cree/Wolfspeed
Packaging : Bulk
Series : Z-REC™
Part Status : Active
FET Type : 2 N-Channel (Half Bridge)
FET Feature : Silicon Carbide (SiC)
Drain to Source Voltage (Vdss) : 1200V (1.2kV)
Current - Continuous Drain (Id) @ 25°C : 444A (Tc)
Rds On (Max) @ Id, Vgs : 4.3 mOhm @ 400A, 20V
Vgs(th) (Max) @ Id : 4V @ 105mA
Gate Charge (Qg) (Max) @ Vgs : 1127nC @ 20V
Input Capacitance (Ciss) (Max) @ Vds : -
Power - Max : 3000W
Operating Temperature : 175°C (TJ)
Mounting Type : -
Package / Case : Module
Supplier Device Package : Module
Packaging : Bulk
Series : Z-REC™
Part Status : Active
FET Type : 2 N-Channel (Half Bridge)
FET Feature : Silicon Carbide (SiC)
Drain to Source Voltage (Vdss) : 1200V (1.2kV)
Current - Continuous Drain (Id) @ 25°C : 444A (Tc)
Rds On (Max) @ Id, Vgs : 4.3 mOhm @ 400A, 20V
Vgs(th) (Max) @ Id : 4V @ 105mA
Gate Charge (Qg) (Max) @ Vgs : 1127nC @ 20V
Input Capacitance (Ciss) (Max) @ Vds : -
Power - Max : 3000W
Operating Temperature : 175°C (TJ)
Mounting Type : -
Package / Case : Module
Supplier Device Package : Module
0
64 in stock
CCS020M12CM2
Cree Wolfspeed
Manufacturer : Cree/Wolfspeed
Packaging : Tray
Series : Z-Rec®
Part Status : Active
FET Type : 6 N-Channel (3-Phase Bridge)
FET Feature : Silicon Carbide (SiC)
Drain to Source Voltage (Vdss) : 1200V (1.2kV)
Current - Continuous Drain (Id) @ 25°C : 29.5A (Tc)
Rds On (Max) @ Id, Vgs : 98 mOhm @ 20A, 20V
Vgs(th) (Max) @ Id : 2.2V @ 1mA (Typ)
Gate Charge (Qg) (Max) @ Vgs : 61.5nC @ 20V
Input Capacitance (Ciss) (Max) @ Vds : 900pF @ 800V
Power - Max : 167W
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
Packaging : Tray
Series : Z-Rec®
Part Status : Active
FET Type : 6 N-Channel (3-Phase Bridge)
FET Feature : Silicon Carbide (SiC)
Drain to Source Voltage (Vdss) : 1200V (1.2kV)
Current - Continuous Drain (Id) @ 25°C : 29.5A (Tc)
Rds On (Max) @ Id, Vgs : 98 mOhm @ 20A, 20V
Vgs(th) (Max) @ Id : 2.2V @ 1mA (Typ)
Gate Charge (Qg) (Max) @ Vgs : 61.5nC @ 20V
Input Capacitance (Ciss) (Max) @ Vds : 900pF @ 800V
Power - Max : 167W
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
0
100 in stock

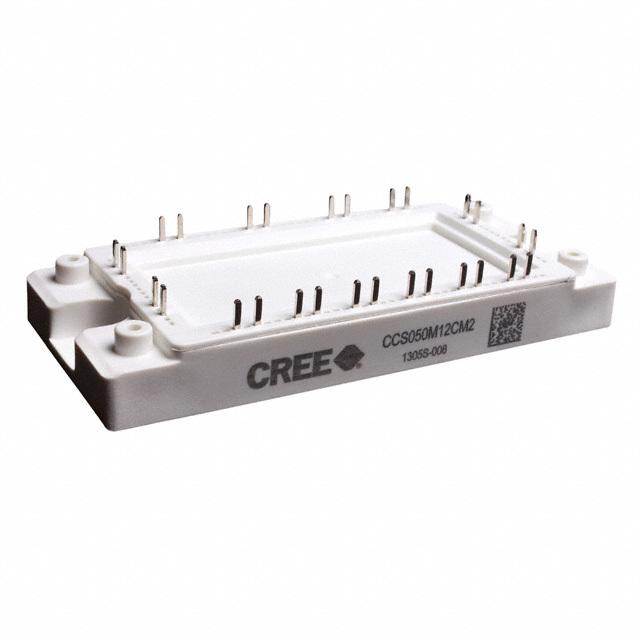

CCS050M12CM2
Cree Wolfspeed
Manufacturer : Cree/Wolfspeed
Packaging : Bulk
Series : Z-FET™Z-Rec™
Part Status : Active
FET Type : 6 N-Channel (3-Phase Bridge)
FET Feature : Silicon Carbide (SiC)
Drain to Source Voltage (Vdss) : 1200V (1.2kV)
Current - Continuous Drain (Id) @ 25°C : 87A (Tc)
Rds On (Max) @ Id, Vgs : 34 mOhm @ 50A, 20V
Vgs(th) (Max) @ Id : 2.3V @ 2.5mA
Gate Charge (Qg) (Max) @ Vgs : 180nC @ 20V
Input Capacitance (Ciss) (Max) @ Vds : 2.810nF @ 800V
Power - Max : 337W
Operating Temperature : 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
Packaging : Bulk
Series : Z-FET™Z-Rec™
Part Status : Active
FET Type : 6 N-Channel (3-Phase Bridge)
FET Feature : Silicon Carbide (SiC)
Drain to Source Voltage (Vdss) : 1200V (1.2kV)
Current - Continuous Drain (Id) @ 25°C : 87A (Tc)
Rds On (Max) @ Id, Vgs : 34 mOhm @ 50A, 20V
Vgs(th) (Max) @ Id : 2.3V @ 2.5mA
Gate Charge (Qg) (Max) @ Vgs : 180nC @ 20V
Input Capacitance (Ciss) (Max) @ Vds : 2.810nF @ 800V
Power - Max : 337W
Operating Temperature : 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
0
100 in stock

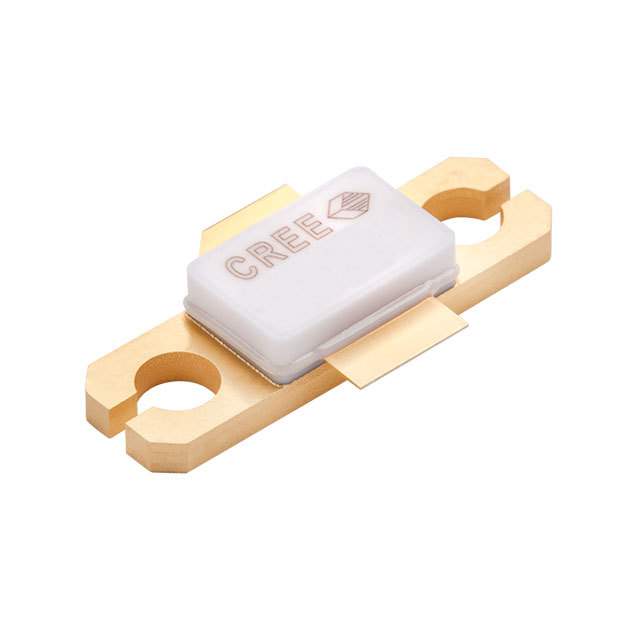

CG2H30070F
Cree Wolfspeed
Manufacturer : Cree/Wolfspeed
Packaging : -
Series : GaN
Part Status : Active
Transistor Type : HEMT
Frequency : -
Gain : -
Voltage - Test : 28V
Current Rating : -
Noise Figure : -
Current - Test : -
Power - Output : 75W
Voltage - Rated : -
Package / Case : -
Supplier Device Package : -
Packaging : -
Series : GaN
Part Status : Active
Transistor Type : HEMT
Frequency : -
Gain : -
Voltage - Test : 28V
Current Rating : -
Noise Figure : -
Current - Test : -
Power - Output : 75W
Voltage - Rated : -
Package / Case : -
Supplier Device Package : -
0
100 in stock
CG2H30070F-TB2
Cree Wolfspeed
Manufacturer : Cree/Wolfspeed
Series : -
Part Status : Active
Type : HEMT
Frequency : 0Hz ~ 2GHz
For Use With/Related Products : CG2H30070
Supplied Contents : Partially Populated Board - Main IC Not Included
Series : -
Part Status : Active
Type : HEMT
Frequency : 0Hz ~ 2GHz
For Use With/Related Products : CG2H30070
Supplied Contents : Partially Populated Board - Main IC Not Included
0
100 in stock

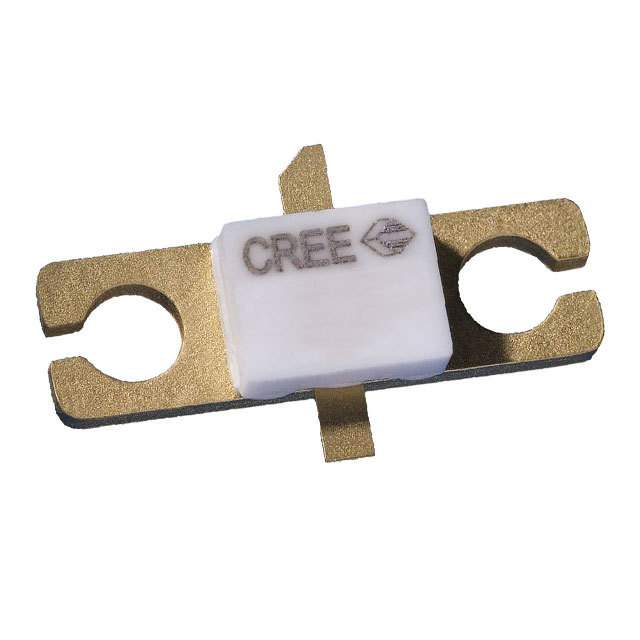

CG2H40010F
Cree Wolfspeed
Manufacturer : Cree/Wolfspeed
Packaging : Tray
Series : GaN
Part Status : Active
Transistor Type : HEMT
Frequency : 8GHz
Gain : 16.5dB
Voltage - Test : 28V
Current Rating : -
Noise Figure : -
Current - Test : 100mA
Power - Output : -
Voltage - Rated : 120V
Package / Case : 440166
Supplier Device Package : 440166
Packaging : Tray
Series : GaN
Part Status : Active
Transistor Type : HEMT
Frequency : 8GHz
Gain : 16.5dB
Voltage - Test : 28V
Current Rating : -
Noise Figure : -
Current - Test : 100mA
Power - Output : -
Voltage - Rated : 120V
Package / Case : 440166
Supplier Device Package : 440166
0
215 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
