Wakefield-Vette
- Established in 1957, Wakefield Engineering designs efficient, affordable and reliable thermal management solutions for a diverse range of commercial, industrial, and military markets. Recognized as a worldwide leader, Wakefield Engineering has grown with the market while expanding into others, responding to technological advances and anticipating industry demands. Wakefield Engineering is a wholly owned subsidiary of Alpha Technologies Group, Inc.
Part Number
Manufacturer
Description
Unit Price
In Stock

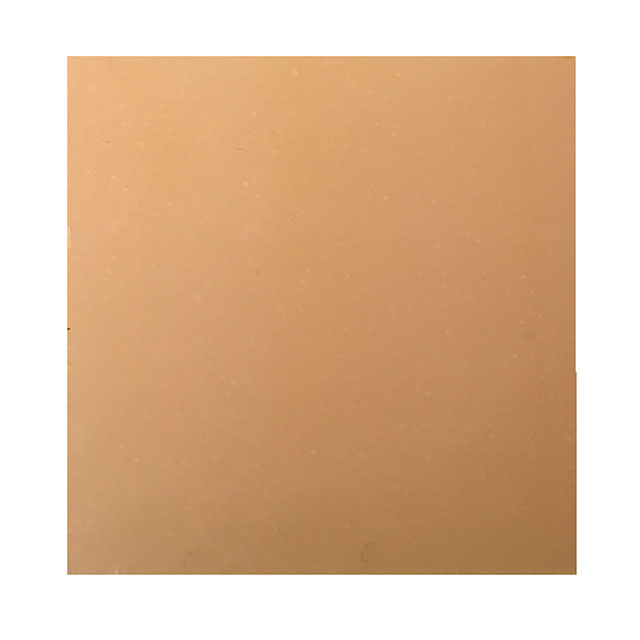

Wakefield-Vette
Manufacturer : Wakefield-Vette
Series : ulTIMiFlux™
Part Status : Active
Usage : -
Type : Pad, Sheet
Shape : Square
Outline : 53.49mm x 53.49mm
Thickness : 0.0030" (0.076mm)
Material : Phase Change Compound
Adhesive : -
Backing, Carrier : Polyimide
Color : Orange
Thermal Resistivity : -
Thermal Conductivity : -
0
250 in stock

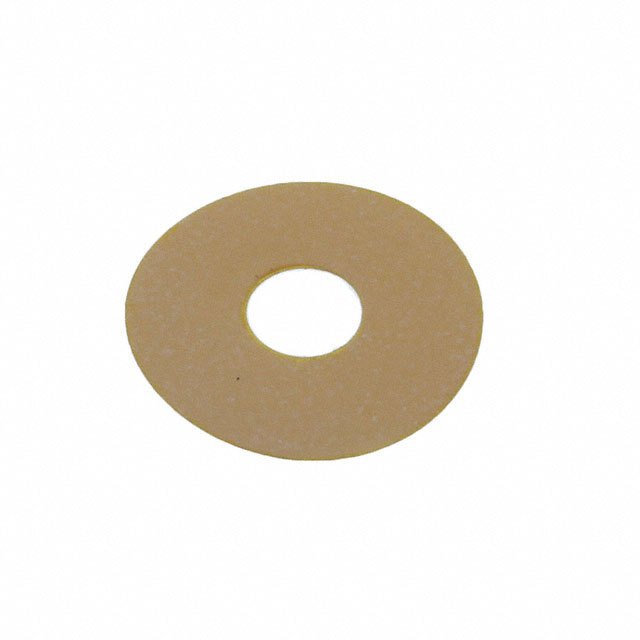

Wakefield-Vette
Manufacturer : Wakefield-Vette
Series : ulTIMiFlux™
Part Status : Active
Usage : DO-4
Type : Pad, Sheet
Shape : Round
Outline : 15.88mm Dia
Thickness : 0.0030" (0.076mm)
Material : Phase Change Compound
Adhesive : -
Backing, Carrier : Polyimide
Color : Orange
Thermal Resistivity : -
Thermal Conductivity : -
0
500 in stock

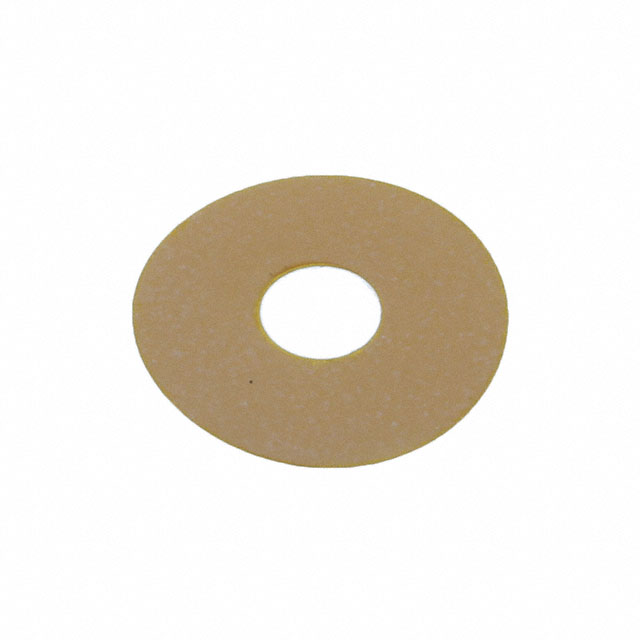

Wakefield-Vette
Manufacturer : Wakefield-Vette
Series : ulTIMiFlux™
Part Status : Active
Usage : DO-4, DO-5
Type : Pad, Sheet
Shape : Round
Outline : 20.32mm Dia
Thickness : 0.0030" (0.076mm)
Material : Phase Change Compound
Adhesive : -
Backing, Carrier : Polyimide
Color : Orange
Thermal Resistivity : -
Thermal Conductivity : -
0
500 in stock
Wakefield-Vette
Manufacturer : Wakefield-Vette
Series : ulTIMiFlux™
Part Status : Active
Usage : DO-5
Type : Pad, Sheet
Shape : Round
Outline : 25.40mm Dia
Thickness : 0.0030" (0.076mm)
Material : Phase Change Compound
Adhesive : -
Backing, Carrier : Polyimide
Color : Orange
Thermal Resistivity : -
Thermal Conductivity : -
0
494 in stock

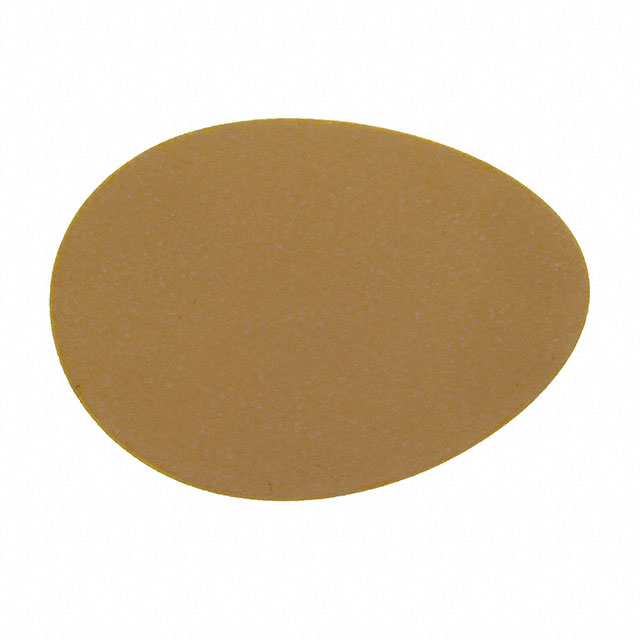

Wakefield-Vette
Manufacturer : Wakefield-Vette
Series : ulTIMiFlux™
Part Status : Active
Usage : LED
Type : Pad, Sheet
Shape : Round
Outline : 25.40mm Dia
Thickness : 0.0030" (0.076mm)
Material : Phase Change Compound
Adhesive : -
Backing, Carrier : Polyimide
Color : Orange
Thermal Resistivity : -
Thermal Conductivity : -
0
490 in stock
Wakefield-Vette
Manufacturer : Wakefield-Vette
Series : ulTIMiFlux™
Part Status : Active
Usage : LED
Type : Pad, Sheet
Shape : Round
Outline : 50.80mm Dia
Thickness : 0.0030" (0.076mm)
Material : Phase Change Compound
Adhesive : -
Backing, Carrier : Polyimide
Color : Orange
Thermal Resistivity : -
Thermal Conductivity : -
0
50 in stock
Wakefield-Vette
Manufacturer : Wakefield-Vette
Series : ulTIMiFlux™
Part Status : Active
Usage : Rectifier
Type : Pad, Sheet
Shape : Square
Outline : 28.49mm x 28.49mm
Thickness : 0.0030" (0.076mm)
Material : Phase Change Compound
Adhesive : -
Backing, Carrier : Polyimide
Color : Orange
Thermal Resistivity : -
Thermal Conductivity : -
0
500 in stock

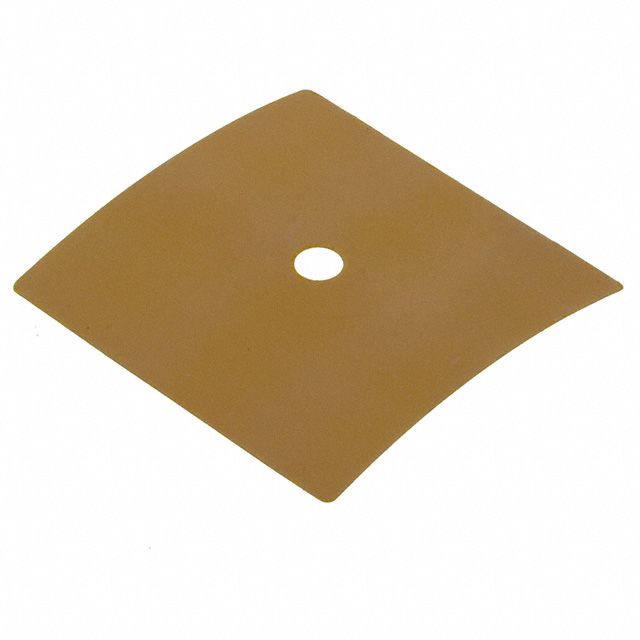

Wakefield-Vette
Manufacturer : Wakefield-Vette
Series : ulTIMiFlux™
Part Status : Active
Usage : Rectifier
Type : Pad, Sheet
Shape : Square
Outline : 31.75mm x 31.75mm
Thickness : 0.0030" (0.076mm)
Material : Phase Change Compound
Adhesive : -
Backing, Carrier : Polyimide
Color : Orange
Thermal Resistivity : -
Thermal Conductivity : -
0
500 in stock
Wakefield-Vette
Manufacturer : Wakefield-Vette
Series : ulTIMiFlux™
Part Status : Active
Usage : Rectifier
Type : Pad, Sheet
Shape : Square
Outline : 31.75mm x 31.75mm
Thickness : 0.0030" (0.076mm)
Material : Phase Change Compound
Adhesive : -
Backing, Carrier : Polyimide
Color : Orange
Thermal Resistivity : -
Thermal Conductivity : -
0
500 in stock

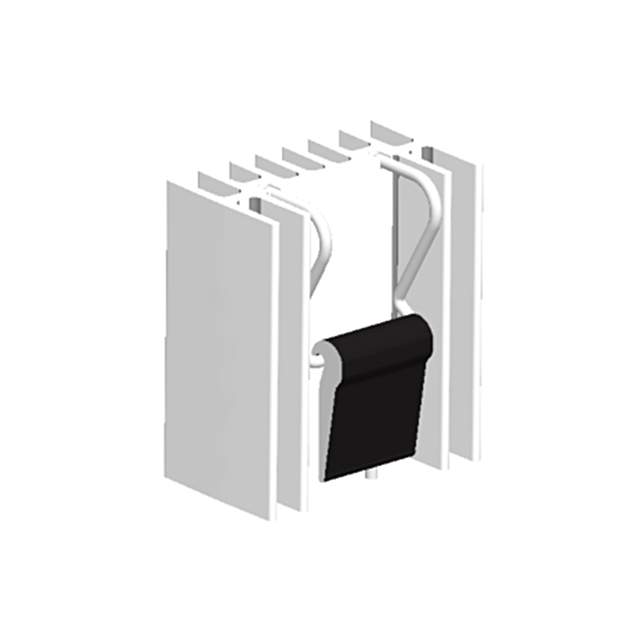

Wakefield-Vette
Manufacturer : Wakefield-Vette
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220, TO-247
Attachment Method : Solderable Feet
Shape : Rectangular, Fins
Length : 0.803" (20.40mm)
Width : 1.339" (34.00mm)
Diameter : -
Height Off Base (Height of Fin) : 1.512" (38.40mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : 3.80°C/W @ 200 LFM
Thermal Resistance @ Natural : 7.00°C/W
Material : Ceramic
Material Finish : -
0
352 in stock

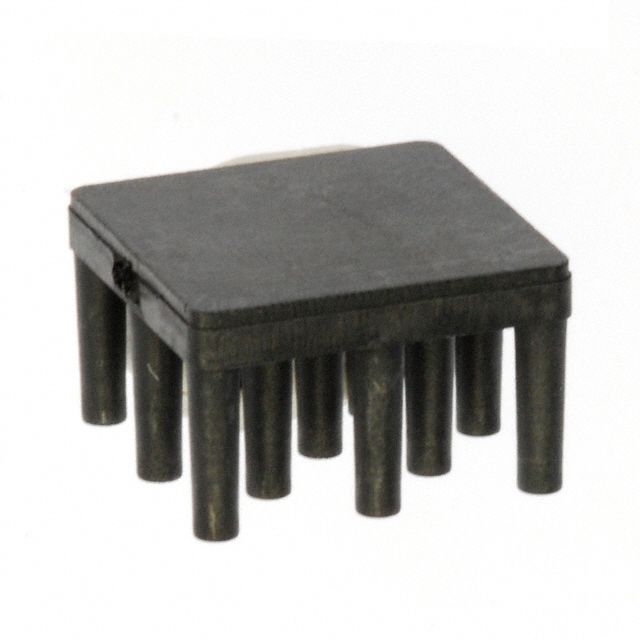

Wakefield-Vette
Manufacturer : Wakefield-Vette
Series : Deltem™
Part Status : Active
Type : Top Mount
Package Cooled : BGA
Attachment Method : Thermal Tape, Adhesive (Not Included)
Shape : Square, Pin Fins
Length : 0.650" (16.51mm)
Width : 0.650" (16.51mm)
Diameter : -
Height Off Base (Height of Fin) : 0.400" (10.16mm)
Power Dissipation @ Temperature Rise : 2.0W @ 40°C
Thermal Resistance @ Forced Air Flow : 25.00°C/W @ 350 LFM
Thermal Resistance @ Natural : -
Material : Composite
Material Finish : -
0
3130 in stock

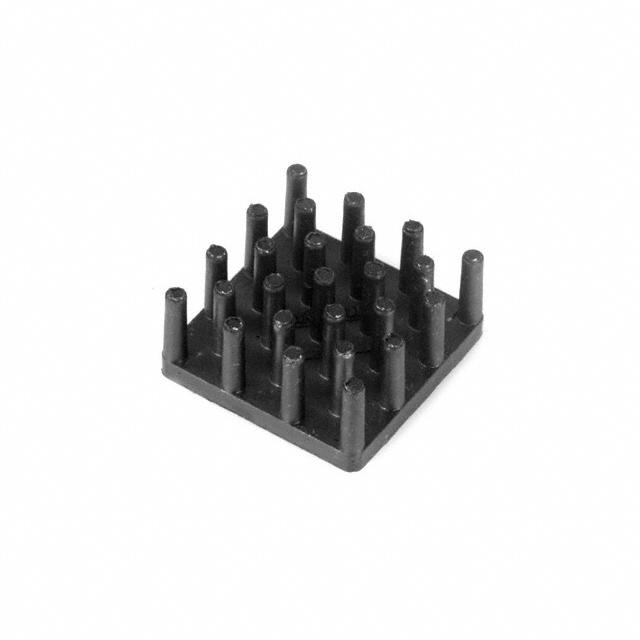

Wakefield-Vette
Manufacturer : Wakefield-Vette
Series : Deltem™
Part Status : Active
Type : Top Mount
Package Cooled : BGA
Attachment Method : Thermal Tape, Adhesive (Not Included)
Shape : Square, Pin Fins
Length : 0.850" (21.59mm)
Width : 0.850" (21.59mm)
Diameter : -
Height Off Base (Height of Fin) : 0.400" (10.16mm)
Power Dissipation @ Temperature Rise : 2.5W @ 90°C
Thermal Resistance @ Forced Air Flow : 20.00°C/W @ 100 LFM
Thermal Resistance @ Natural : -
Material : Composite
Material Finish : -
0
1404 in stock
