Vishay
- Vishay’s product portfolio is an unmatched collection of discrete semiconductors (diodes, MOSFETs, and optoelectronics) and passive components (resistors, inductors, and capacitors). These components are used in virtually all types of electronic devices and equipment in the industrial, computing, automotive, consumer, telecommunications, military, aerospace, and medical markets. Vishay is proud to be a major partner with Digi-Key.
Part Number
Manufacturer
Description
Unit Price
In Stock
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Bulk
Series : -
Part Status : Active
Voltage - Collector Emitter Breakdown (Max) : 70V
Current - Collector (Ic) (Max) : 50mA
Current - Dark (Id) (Max) : 200nA
Wavelength : 850nm
Viewing Angle : 40°
Power - Max : 150mW
Mounting Type : Through Hole
Orientation : Top View
Operating Temperature : -40°C ~ 100°C (TA)
Package / Case : Radial, 5mm Dia (T 1 3/4)
0
2633 in stock
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Tube
Series : -
Part Status : Active
Output Type : Triac
Zero Crossing Circuit : No
Number of Channels : 1
Voltage - Isolation : 5300Vrms
Voltage - Off State : 800V
Static dV/dt (Min) : 10kV/µs
Current - LED Trigger (Ift) (Max) : 2mA
Current - On State (It (RMS)) (Max) : 300mA
Current - Hold (Ih) : 500µA
Turn On Time : -
Voltage - Forward (Vf) (Typ) : 1.1V
Current - DC Forward (If) (Max) : 20mA
Operating Temperature : -40°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 6-DIP (0.300", 7.62mm)
Supplier Device Package : 6-DIP
Approvals : CQC, UL
0
981 in stock
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 63% @ 10mA
Current Transfer Ratio (Max) : 125% @ 10mA
Turn On / Turn Off Time (Typ) : 3µs, 2.3µs
Rise / Fall Time (Typ) : 2µs, 2µs
Input Type : DC
Output Type : Transistor with Base
Voltage - Output (Max) : 70V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.39V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 110°C
Mounting Type : Through Hole
Package / Case : 6-DIP (0.400", 10.16mm)
Supplier Device Package : 6-DIP
0
15350 in stock
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 40% @ 10mA
Current Transfer Ratio (Max) : 80% @ 10mA
Turn On / Turn Off Time (Typ) : 3µs, 2.3µs
Rise / Fall Time (Typ) : 2µs, 2µs
Input Type : DC
Output Type : Transistor with Base
Voltage - Output (Max) : 70V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.39V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 110°C
Mounting Type : Through Hole
Package / Case : 6-DIP (0.300", 7.62mm)
Supplier Device Package : 6-DIP
0
584 in stock
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 40% @ 10mA
Current Transfer Ratio (Max) : 80% @ 10mA
Turn On / Turn Off Time (Typ) : 3µs, 2.3µs
Rise / Fall Time (Typ) : 2µs, 2µs
Input Type : DC
Output Type : Transistor with Base
Voltage - Output (Max) : 70V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.39V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 110°C
Mounting Type : Through Hole
Package / Case : 6-DIP (0.300", 7.62mm)
Supplier Device Package : 6-DIP
0
1852 in stock
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 40% @ 10mA
Current Transfer Ratio (Max) : 80% @ 10mA
Turn On / Turn Off Time (Typ) : 3µs, 2.3µs
Rise / Fall Time (Typ) : 2µs, 2µs
Input Type : DC
Output Type : Transistor with Base
Voltage - Output (Max) : 70V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.39V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 110°C
Mounting Type : Surface Mount
Package / Case : 6-SMD, Gull Wing
Supplier Device Package : 6-SMD
0
70 in stock
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 63% @ 10mA
Current Transfer Ratio (Max) : 125% @ 10mA
Turn On / Turn Off Time (Typ) : 3µs, 2.3µs
Rise / Fall Time (Typ) : 2µs, 2µs
Input Type : DC
Output Type : Transistor with Base
Voltage - Output (Max) : 70V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.39V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 110°C
Mounting Type : Through Hole
Package / Case : 6-DIP (0.300", 7.62mm)
Supplier Device Package : 6-DIP
0
2184 in stock
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 63% @ 10mA
Current Transfer Ratio (Max) : 125% @ 10mA
Turn On / Turn Off Time (Typ) : 3µs, 2.3µs
Rise / Fall Time (Typ) : 2µs, 2µs
Input Type : DC
Output Type : Transistor with Base
Voltage - Output (Max) : 70V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.39V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 110°C
Mounting Type : Through Hole
Package / Case : 6-DIP (0.300", 7.62mm)
Supplier Device Package : 6-DIP
0
1328 in stock

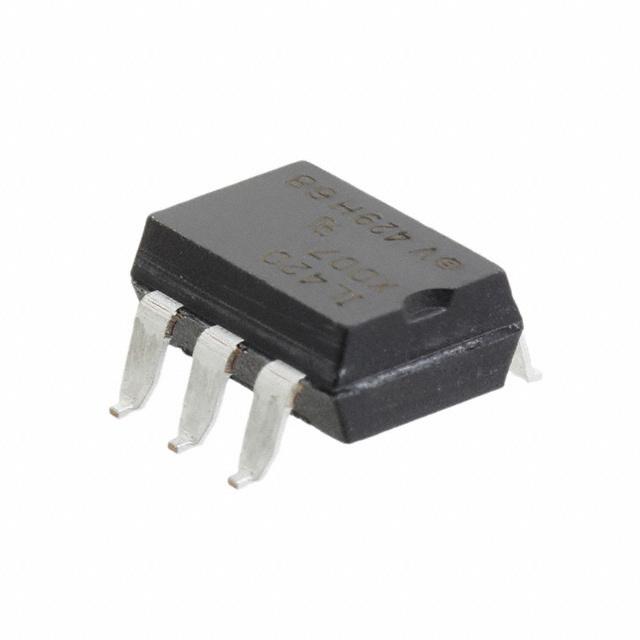

Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 63% @ 10mA
Current Transfer Ratio (Max) : 125% @ 10mA
Turn On / Turn Off Time (Typ) : 3µs, 2.3µs
Rise / Fall Time (Typ) : 2µs, 2µs
Input Type : DC
Output Type : Transistor with Base
Voltage - Output (Max) : 70V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.39V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 110°C
Mounting Type : Surface Mount
Package / Case : 6-SMD, Gull Wing
Supplier Device Package : 6-SMD
0
1923 in stock
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Tube
Series : -
Part Status : Obsolete
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 100% @ 10mA
Current Transfer Ratio (Max) : 200% @ 10mA
Turn On / Turn Off Time (Typ) : 3µs, 2.3µs
Rise / Fall Time (Typ) : 2µs, 2µs
Input Type : DC
Output Type : Transistor with Base
Voltage - Output (Max) : 70V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.39V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 110°C
Mounting Type : Through Hole
Package / Case : 6-DIP (0.300", 7.62mm)
Supplier Device Package : 6-DIP
0
428 in stock
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 100% @ 10mA
Current Transfer Ratio (Max) : 200% @ 10mA
Turn On / Turn Off Time (Typ) : 3µs, 2.3µs
Rise / Fall Time (Typ) : 2µs, 2µs
Input Type : DC
Output Type : Transistor with Base
Voltage - Output (Max) : 70V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.39V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 110°C
Mounting Type : Through Hole
Package / Case : 6-DIP (0.300", 7.62mm)
Supplier Device Package : 6-DIP
0
2229 in stock
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 100% @ 10mA
Current Transfer Ratio (Max) : 200% @ 10mA
Turn On / Turn Off Time (Typ) : 3µs, 2.3µs
Rise / Fall Time (Typ) : 2µs, 2µs
Input Type : DC
Output Type : Transistor with Base
Voltage - Output (Max) : 70V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.39V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 110°C
Mounting Type : Through Hole
Package / Case : 6-DIP (0.300", 7.62mm)
Supplier Device Package : 6-DIP
0
1973 in stock
