Vishay
- Vishay’s product portfolio is an unmatched collection of discrete semiconductors (diodes, MOSFETs, and optoelectronics) and passive components (resistors, inductors, and capacitors). These components are used in virtually all types of electronic devices and equipment in the industrial, computing, automotive, consumer, telecommunications, military, aerospace, and medical markets. Vishay is proud to be a major partner with Digi-Key.
Part Number
Manufacturer
Description
Unit Price
In Stock

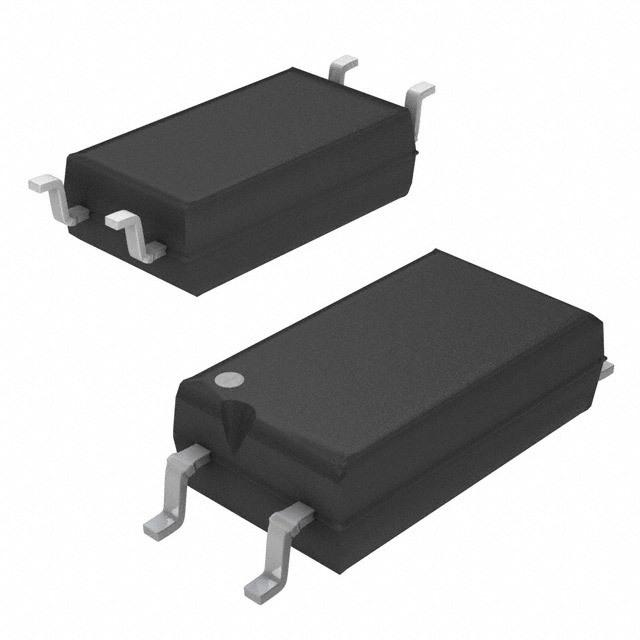

Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 63% @ 1mA
Current Transfer Ratio (Max) : 125% @ 1mA
Turn On / Turn Off Time (Typ) : 6µs, 5.5µs
Rise / Fall Time (Typ) : 3.5µs, 5µs
Input Type : AC, DC
Output Type : Transistor
Voltage - Output (Max) : 80V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.16V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 110°C
Mounting Type : Surface Mount
Package / Case : 4-SMD, Gull Wing
Supplier Device Package : 4-LSOP (2.54mm)
0
2167 in stock
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 100% @ 1mA
Current Transfer Ratio (Max) : 200% @ 1mA
Turn On / Turn Off Time (Typ) : 6µs, 5.5µs
Rise / Fall Time (Typ) : 3.5µs, 5µs
Input Type : AC, DC
Output Type : Transistor
Voltage - Output (Max) : 80V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.16V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 110°C
Mounting Type : Surface Mount
Package / Case : 4-SMD, Gull Wing
Supplier Device Package : 4-LSOP (2.54mm)
0
3831 in stock
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 100% @ 1mA
Current Transfer Ratio (Max) : 200% @ 1mA
Turn On / Turn Off Time (Typ) : 6µs, 5.5µs
Rise / Fall Time (Typ) : 3.5µs, 5µs
Input Type : AC, DC
Output Type : Transistor
Voltage - Output (Max) : 80V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.16V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 110°C
Mounting Type : Surface Mount
Package / Case : 4-SMD, Gull Wing
Supplier Device Package : 4-LSOP (2.54mm)
0
1235 in stock

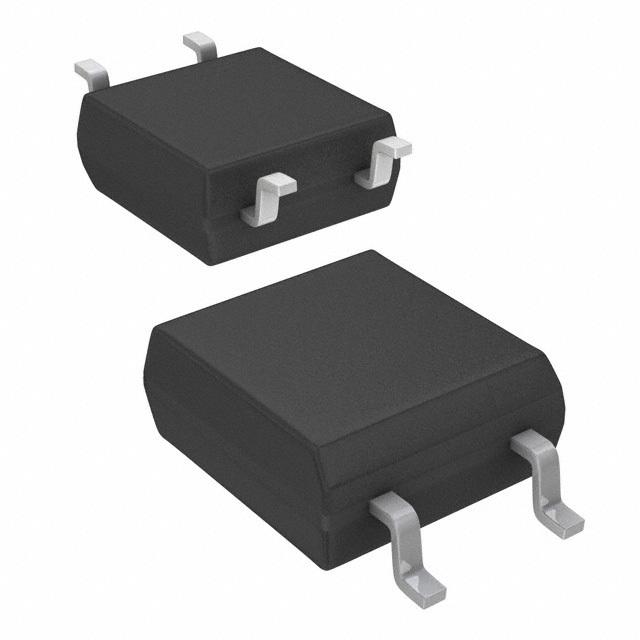

Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 4500Vrms
Current Transfer Ratio (Min) : -
Current Transfer Ratio (Max) : -
Turn On / Turn Off Time (Typ) : 53µs, 24µs
Rise / Fall Time (Typ) : -
Input Type : DC
Output Type : Photovoltaic
Voltage - Output (Max) : -
Current - Output / Channel : -
Voltage - Forward (Vf) (Typ) : 1.4V
Current - DC Forward (If) (Max) : 50mA
Vce Saturation (Max) : -
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 4-SMD, Gull Wing
Supplier Device Package : 4-SOP (2.54mm)
0
1316 in stock
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Output Type : Triac
Zero Crossing Circuit : No
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Voltage - Off State : 600V
Static dV/dt (Min) : 500V/µs
Current - LED Trigger (Ift) (Max) : 5mA
Current - On State (It (RMS)) (Max) : 70mA
Current - Hold (Ih) : 300µA (Typ)
Turn On Time : -
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 60mA
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 4-SMD, Gull Wing
Supplier Device Package : 4-SOP (2.54mm)
Approvals : CQC, cUR, UR
0
3664 in stock
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Output Type : Triac
Zero Crossing Circuit : No
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Voltage - Off State : 600V
Static dV/dt (Min) : 500V/µs
Current - LED Trigger (Ift) (Max) : 7mA
Current - On State (It (RMS)) (Max) : 70mA
Current - Hold (Ih) : 300µA (Typ)
Turn On Time : -
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 60mA
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 4-SMD, Gull Wing
Supplier Device Package : 4-SOP (2.54mm)
Approvals : CQC, cUR, UR
0
2000 in stock
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Output Type : Triac
Zero Crossing Circuit : No
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Voltage - Off State : 600V
Static dV/dt (Min) : 500V/µs
Current - LED Trigger (Ift) (Max) : 10mA
Current - On State (It (RMS)) (Max) : 70mA
Current - Hold (Ih) : 300µA (Typ)
Turn On Time : -
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 60mA
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 4-SMD, Gull Wing
Supplier Device Package : 4-SOP (2.54mm)
Approvals : CQC, cUR, UR
0
1555 in stock
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Output Type : Triac
Zero Crossing Circuit : No
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Voltage - Off State : 600V
Static dV/dt (Min) : 1.5kV/µs
Current - LED Trigger (Ift) (Max) : 10mA
Current - On State (It (RMS)) (Max) : 70mA
Current - Hold (Ih) : 300µA (Typ)
Turn On Time : -
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 60mA
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 4-SMD, Gull Wing
Supplier Device Package : 4-SOP (2.54mm)
Approvals : CQC, cUR, UR
0
2939 in stock
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Output Type : Triac
Zero Crossing Circuit : No
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Voltage - Off State : 600V
Static dV/dt (Min) : 1.5kV/µs
Current - LED Trigger (Ift) (Max) : 5mA
Current - On State (It (RMS)) (Max) : 70mA
Current - Hold (Ih) : 300µA (Typ)
Turn On Time : -
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 60mA
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 4-SMD, Gull Wing
Supplier Device Package : 4-SOP (2.54mm)
Approvals : CQC, cUR, UR
0
3936 in stock

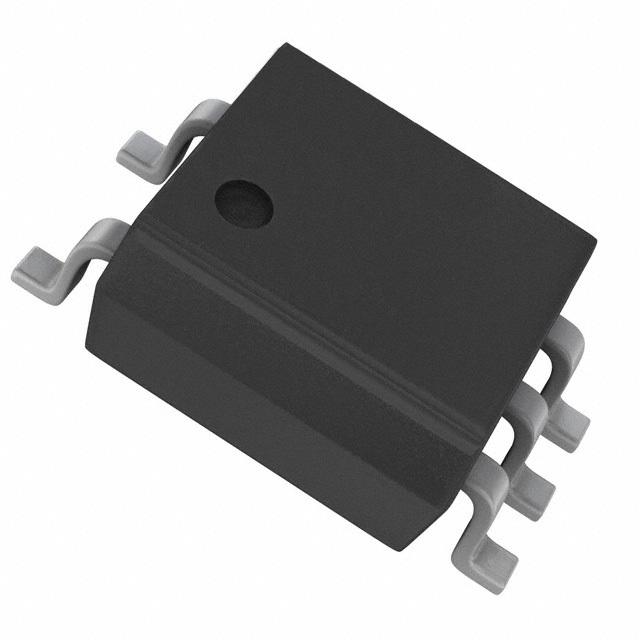

Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Current Transfer Ratio (Min) : 20% @ 16mA
Current Transfer Ratio (Max) : 50% @ 16mA
Turn On / Turn Off Time (Typ) : 200ns, 500ns
Rise / Fall Time (Typ) : -
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 25V
Current - Output / Channel : 8mA
Voltage - Forward (Vf) (Typ) : 1.4V
Current - DC Forward (If) (Max) : 25mA
Vce Saturation (Max) : -
Operating Temperature : -55°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.173", 4.40mm Width), 5 Leads
Supplier Device Package : 5-SOP
0
48347 in stock
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Current Transfer Ratio (Min) : 20% @ 16mA
Current Transfer Ratio (Max) : 50% @ 16mA
Turn On / Turn Off Time (Typ) : 200ns, 500ns
Rise / Fall Time (Typ) : -
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 25V
Current - Output / Channel : 8mA
Voltage - Forward (Vf) (Typ) : 1.4V
Current - DC Forward (If) (Max) : 25mA
Vce Saturation (Max) : -
Operating Temperature : -55°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 6-SOIC (0.173", 4.40mm Width), 5 Leads
Supplier Device Package : 5-SOP
0
18121 in stock

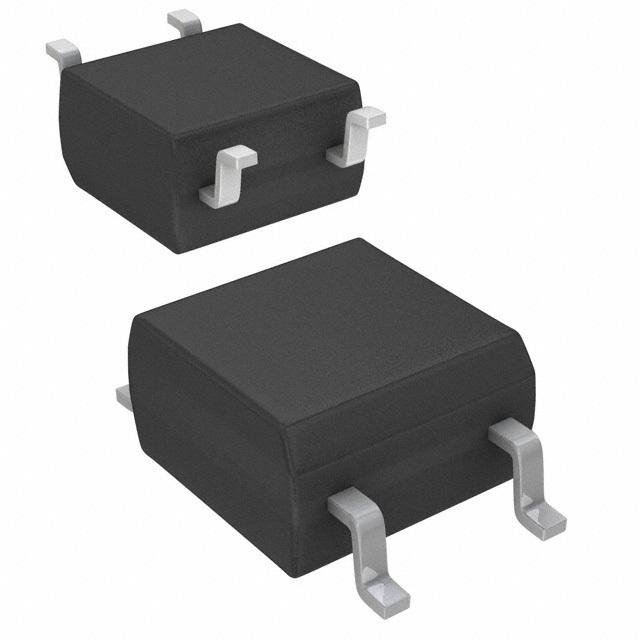

Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Current Transfer Ratio (Min) : 63% @ 5mA
Current Transfer Ratio (Max) : 125% @ 5mA
Turn On / Turn Off Time (Typ) : 6µs, 4µs
Rise / Fall Time (Typ) : 3µs, 3µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 80V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.1V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 110°C
Mounting Type : Surface Mount
Package / Case : 4-SMD, Gull Wing
Supplier Device Package : 4-SOP (2.54mm)
0
2036 in stock
