Vishay
- Vishay’s product portfolio is an unmatched collection of discrete semiconductors (diodes, MOSFETs, and optoelectronics) and passive components (resistors, inductors, and capacitors). These components are used in virtually all types of electronic devices and equipment in the industrial, computing, automotive, consumer, telecommunications, military, aerospace, and medical markets. Vishay is proud to be a major partner with Digi-Key.
Part Number
Manufacturer
Description
Unit Price
In Stock
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 130% @ 5mA
Current Transfer Ratio (Max) : 260% @ 5mA
Turn On / Turn Off Time (Typ) : 6µs, 5µs
Rise / Fall Time (Typ) : 3µs, 4.7µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 70V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.43V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 300mV
Operating Temperature : -55°C ~ 110°C
Mounting Type : Surface Mount

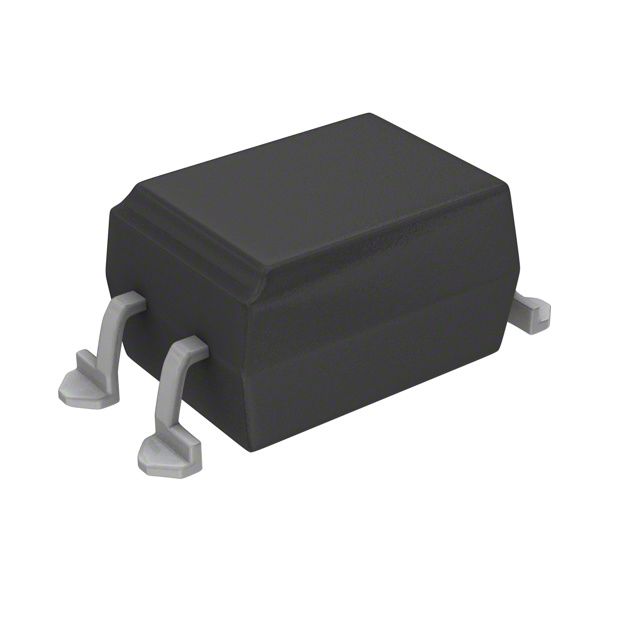

Package / Case : 4-SMD, Gull Wing
Supplier Device Package : 4-SMD
0
1983 in stock
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 200% @ 5mA
Current Transfer Ratio (Max) : 400% @ 5mA
Turn On / Turn Off Time (Typ) : 6µs, 5µs
Rise / Fall Time (Typ) : 3µs, 4.7µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 70V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.43V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 300mV
Operating Temperature : -55°C ~ 110°C
Mounting Type : Through Hole

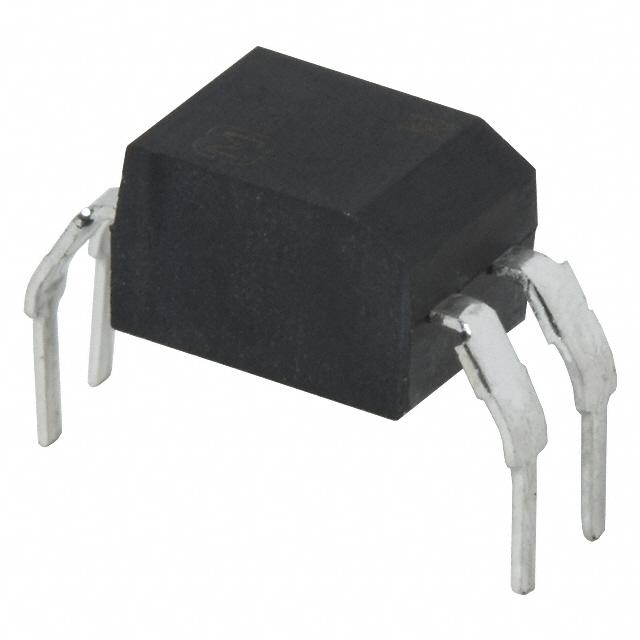

Package / Case : 4-DIP (0.300", 7.62mm)
Supplier Device Package : 4-DIP
0
6801 in stock
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 200% @ 5mA
Current Transfer Ratio (Max) : 400% @ 5mA
Turn On / Turn Off Time (Typ) : 6µs, 5µs
Rise / Fall Time (Typ) : 3µs, 4.7µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 70V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.43V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 300mV
Operating Temperature : -55°C ~ 110°C
Mounting Type : Surface Mount
Package / Case : 4-SMD, Gull Wing
Supplier Device Package : 4-SMD
0
975 in stock
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 200% @ 5mA
Current Transfer Ratio (Max) : 400% @ 5mA
Turn On / Turn Off Time (Typ) : 6µs, 5µs
Rise / Fall Time (Typ) : 3µs, 4.7µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 70V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.43V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 300mV
Operating Temperature : -55°C ~ 110°C
Mounting Type : Surface Mount
Package / Case : 4-SMD, Gull Wing
Supplier Device Package : 4-SMD
0
31491 in stock
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 50% @ 5mA
Current Transfer Ratio (Max) : 600% @ 5mA
Turn On / Turn Off Time (Typ) : 6µs, 5µs
Rise / Fall Time (Typ) : 3µs, 4.7µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 70V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.43V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 300mV
Operating Temperature : -55°C ~ 110°C
Mounting Type : Surface Mount
Package / Case : 4-SMD, Gull Wing
Supplier Device Package : 4-SMD
0
95 in stock
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5300Vrms
Current Transfer Ratio (Min) : 50% @ 5mA
Current Transfer Ratio (Max) : 600% @ 5mA
Turn On / Turn Off Time (Typ) : 3µs, 2.3µs
Rise / Fall Time (Typ) : 2µs, 2µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 80V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.35V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 110°C
Mounting Type : Through Hole
Package / Case : 4-DIP (0.300", 7.62mm)
Supplier Device Package : 4-DIP
0
3143 in stock
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5300Vrms
Current Transfer Ratio (Min) : 40% @ 5mA
Current Transfer Ratio (Max) : 80% @ 5mA
Turn On / Turn Off Time (Typ) : 3µs, 2.3µs
Rise / Fall Time (Typ) : 2µs, 2µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 80V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.35V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 110°C
Mounting Type : Through Hole
Package / Case : 4-DIP (0.300", 7.62mm)
Supplier Device Package : 4-DIP
0
3270 in stock
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5300Vrms
Current Transfer Ratio (Min) : 63% @ 5mA
Current Transfer Ratio (Max) : 125% @ 5mA
Turn On / Turn Off Time (Typ) : 3µs, 2.3µs
Rise / Fall Time (Typ) : 2µs, 2µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 80V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.35V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 110°C
Mounting Type : Through Hole
Package / Case : 4-DIP (0.300", 7.62mm)
Supplier Device Package : 4-DIP
0
532 in stock
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5300Vrms
Current Transfer Ratio (Min) : 63% @ 5mA
Current Transfer Ratio (Max) : 125% @ 5mA
Turn On / Turn Off Time (Typ) : 3µs, 2.3µs
Rise / Fall Time (Typ) : 2µs, 2µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 80V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.35V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 110°C
Mounting Type : Surface Mount
Package / Case : 4-SMD, Gull Wing
Supplier Device Package : 4-SMD
0
915 in stock
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5300Vrms
Current Transfer Ratio (Min) : 100% @ 5mA
Current Transfer Ratio (Max) : 200% @ 5mA
Turn On / Turn Off Time (Typ) : 3µs, 2.3µs
Rise / Fall Time (Typ) : 2µs, 2µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 80V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.35V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 110°C
Mounting Type : Through Hole
Package / Case : 4-DIP (0.300", 7.62mm)
Supplier Device Package : 4-DIP
0
9 in stock
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5300Vrms
Current Transfer Ratio (Min) : 100% @ 5mA
Current Transfer Ratio (Max) : 200% @ 5mA
Turn On / Turn Off Time (Typ) : 3µs, 2.3µs
Rise / Fall Time (Typ) : 2µs, 2µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 80V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.35V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 110°C
Mounting Type : Surface Mount
Package / Case : 4-SMD, Gull Wing
Supplier Device Package : 4-SMD
0
1000 in stock
Vishay / Semiconductor - Opto Division
Manufacturer : Vishay Semiconductor Opto Division
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5300Vrms
Current Transfer Ratio (Min) : 100% @ 5mA
Current Transfer Ratio (Max) : 200% @ 5mA
Turn On / Turn Off Time (Typ) : 3µs, 2.3µs
Rise / Fall Time (Typ) : 2µs, 2µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 80V
Current - Output / Channel : 50mA
Voltage - Forward (Vf) (Typ) : 1.35V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 110°C
Mounting Type : Through Hole
Package / Case : 4-DIP (0.400", 10.16mm)
Supplier Device Package : 4-DIP
0
3970 in stock
