United Chemi-Con
- A wholly owned subsidiary of Nippon Chemi-Con, United Chemi-Con (UCC) is North America's largest manufacturer and supplier of aluminum electrolytic capacitors. Established in the United States in 1970, United Chemi-Con distributes more than 8,000 products, including products manufactured both domestically in Lansing, North Carolina, and at other worldwide plants.
Because quality customer service is one of United Chemi-Con's highest priorities, we offer complete engineering and sales support at our corporate headquarters in Rosemont, Illinois, as well as sales, service and field engineering support at other sites throughout the country. UCC products are warehoused in Brea, California and Lansing, North Carolina, ensuring fast and efficient delivery of your orders.
Part Number
Manufacturer
Description
Unit Price
In Stock
Chemi-Con
Manufacturer : United Chemi-Con
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NPCAP™-PXH
Part Status : Active
Type : Polymer
Capacitance : 150µF
Tolerance : ±20%
Voltage - Rated : 16V
ESR (Equivalent Series Resistance) : 35 mOhm
Lifetime @ Temp. : 1000 Hrs @ 125°C
Operating Temperature : -55°C ~ 125°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 3.02A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.303" (7.70mm)
Surface Mount Land Size : 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
3323 in stock
Chemi-Con
Manufacturer : United Chemi-Con
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NPCAP™-PXH
Part Status : Active
Type : Polymer
Capacitance : 180µF
Tolerance : ±20%
Voltage - Rated : 16V
ESR (Equivalent Series Resistance) : 35 mOhm
Lifetime @ Temp. : 1000 Hrs @ 125°C
Operating Temperature : -55°C ~ 125°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 3.02A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.303" (7.70mm)
Surface Mount Land Size : 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
1827 in stock

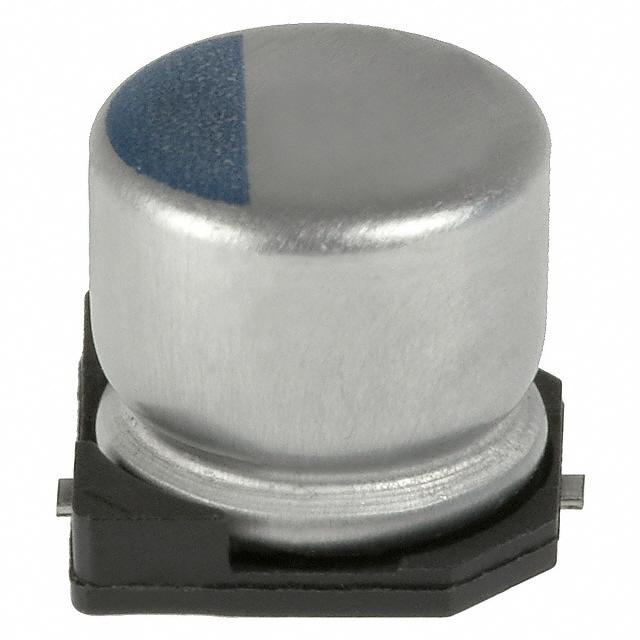

Chemi-Con
Manufacturer : United Chemi-Con
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NPCAP™-PXH
Part Status : Active
Type : Polymer
Capacitance : 39µF
Tolerance : ±20%
Voltage - Rated : 16V
ESR (Equivalent Series Resistance) : 50 mOhm
Lifetime @ Temp. : 1000 Hrs @ 125°C
Operating Temperature : -55°C ~ 125°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 2.05A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.248" Dia (6.30mm)
Height - Seated (Max) : 0.224" (5.70mm)
Surface Mount Land Size : 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
100 in stock

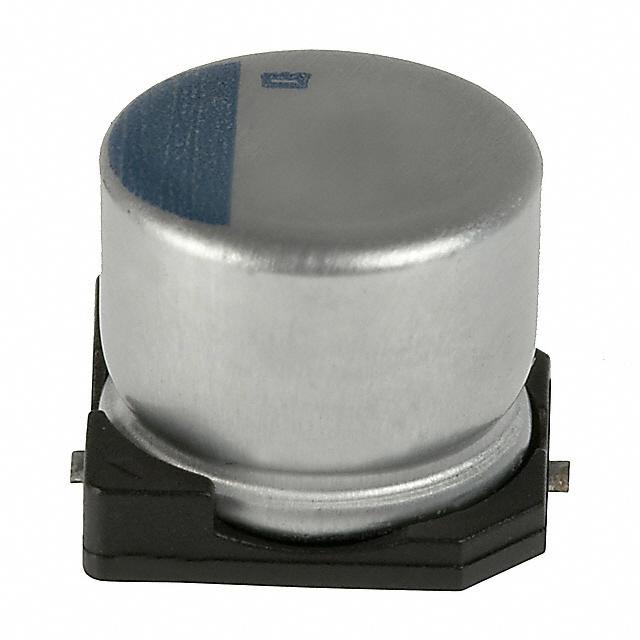

Chemi-Con
Manufacturer : United Chemi-Con
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NPCAP™-PXH
Part Status : Active
Type : Polymer
Capacitance : 82µF
Tolerance : ±20%
Voltage - Rated : 16V
ESR (Equivalent Series Resistance) : 40 mOhm
Lifetime @ Temp. : 1000 Hrs @ 125°C
Operating Temperature : -55°C ~ 125°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 2.7A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.264" (6.70mm)
Surface Mount Land Size : 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
304 in stock
Chemi-Con
Manufacturer : United Chemi-Con
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NPCAP™-PXH
Part Status : Active
Type : Polymer
Capacitance : 22µF
Tolerance : ±20%
Voltage - Rated : 20V
ESR (Equivalent Series Resistance) : 60 mOhm
Lifetime @ Temp. : 1000 Hrs @ 125°C
Operating Temperature : -55°C ~ 125°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 1.65A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.248" Dia (6.30mm)
Height - Seated (Max) : 0.224" (5.70mm)
Surface Mount Land Size : 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
13071 in stock
Chemi-Con
Manufacturer : United Chemi-Con
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NPCAP™-PXH
Part Status : Active
Type : Polymer
Capacitance : 47µF
Tolerance : ±20%
Voltage - Rated : 20V
ESR (Equivalent Series Resistance) : 45 mOhm
Lifetime @ Temp. : 1000 Hrs @ 125°C
Operating Temperature : -55°C ~ 125°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 2A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.264" (6.70mm)
Surface Mount Land Size : 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
475 in stock
Chemi-Con
Manufacturer : United Chemi-Con
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NPCAP™-PXH
Part Status : Active
Type : Polymer
Capacitance : 82µF
Tolerance : ±20%
Voltage - Rated : 20V
ESR (Equivalent Series Resistance) : 45 mOhm
Lifetime @ Temp. : 1000 Hrs @ 125°C
Operating Temperature : -55°C ~ 125°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 2.4A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.303" (7.70mm)
Surface Mount Land Size : 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
190 in stock
Chemi-Con
Manufacturer : United Chemi-Con
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NPCAP™-PXH
Part Status : Active
Type : Polymer
Capacitance : 100µF
Tolerance : ±20%
Voltage - Rated : 6.3V
ESR (Equivalent Series Resistance) : 40 mOhm
Lifetime @ Temp. : 1000 Hrs @ 125°C
Operating Temperature : -55°C ~ 125°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 2.4A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.248" Dia (6.30mm)
Height - Seated (Max) : 0.224" (5.70mm)
Surface Mount Land Size : 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
2000 in stock

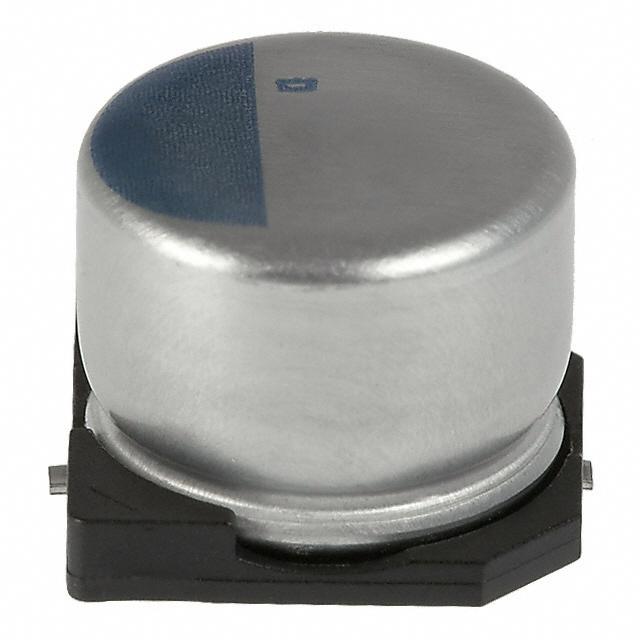

Chemi-Con
Manufacturer : United Chemi-Con
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NPCAP™-PXH
Part Status : Active
Type : Polymer
Capacitance : 470µF
Tolerance : ±20%
Voltage - Rated : 6.3V
ESR (Equivalent Series Resistance) : 25 mOhm
Lifetime @ Temp. : 1000 Hrs @ 125°C
Operating Temperature : -55°C ~ 125°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 3.7A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.303" (7.70mm)
Surface Mount Land Size : 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
1867 in stock

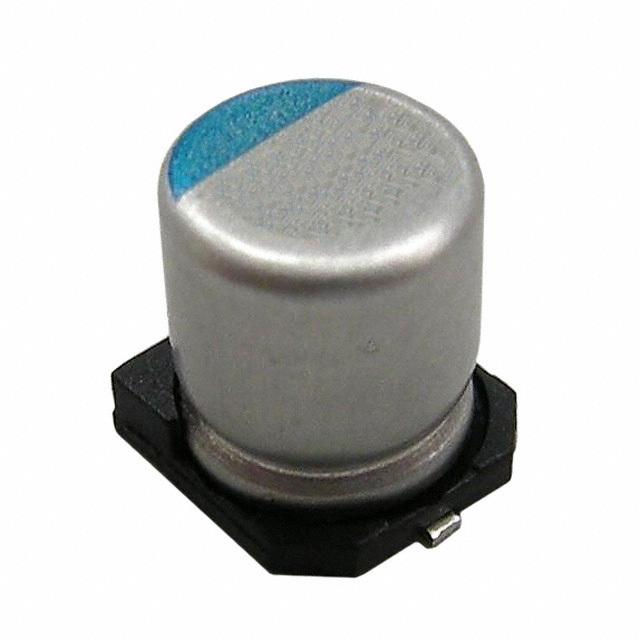

Chemi-Con
Manufacturer : United Chemi-Con
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NPCAP™-PXK
Part Status : Active
Type : Polymer
Capacitance : 100µF
Tolerance : ±20%
Voltage - Rated : 16V
ESR (Equivalent Series Resistance) : 24 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 2.49A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.248" Dia (6.30mm)
Height - Seated (Max) : 0.228" (5.80mm)
Surface Mount Land Size : 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
44 in stock
Chemi-Con
Manufacturer : United Chemi-Con
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NPCAP™-PXK
Part Status : Active
Type : Polymer
Capacitance : 220µF
Tolerance : ±20%
Voltage - Rated : 2.5V
ESR (Equivalent Series Resistance) : 19 mOhm
Lifetime @ Temp. : 1000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 2.78A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.248" Dia (6.30mm)
Height - Seated (Max) : 0.177" (4.50mm)
Surface Mount Land Size : 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
418 in stock
Chemi-Con
Manufacturer : United Chemi-Con
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NPCAP™-PXK
Part Status : Discontinued at
Type : Polymer
Capacitance : 560µF
Tolerance : ±20%
Voltage - Rated : 2.5V
ESR (Equivalent Series Resistance) : 16 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 3.5A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.248" Dia (6.30mm)
Height - Seated (Max) : 0.228" (5.80mm)
Surface Mount Land Size : 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
100 in stock
