Welcome to Weijie Semiconductor

TT Electronics/Optek Technology

- Optek Technology designs and manufactures electronic components for customers across defense and aerospace, medical, transportation, energy and industrial electronics markets.

Key applications are sensing, illumination and indication in office equipment, encoders, military and Hi-Rel applications, and medical diagnostic equipment.

Products include: optoelectronics – discrete LEDs, surface mount and thru-hole LEDs and Hall effect sensors.

Part Number
Manufacturer
Description
Unit Price
In Stock

OP131 OP131

Optek Technology / TT Electronics
Manufacturer : TT Electronics/Optek Technology
Packaging : Bulk
Series : -
Part Status : Active
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 100mA
Radiant Intensity (Ie) Min @ If : 3mW/cm² @ 100mA
Wavelength : 935nm
Voltage - Forward (Vf) (Typ) : 1.75V
Viewing Angle : 18°
Orientation : Top View
Operating Temperature : -65°C ~ 125°C (TA)
Mounting Type : Through Hole
Package / Case : TO-46-2 Lens Top Metal Can
0
266 in stock

OP131W OP131W

Optek Technology / TT Electronics
Manufacturer : TT Electronics/Optek Technology
Packaging : Bulk
Series : -
Part Status : Obsolete
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 100mA
Radiant Intensity (Ie) Min @ If : 3mW/cm² @ 100mA
Wavelength : 935nm
Voltage - Forward (Vf) (Typ) : 1.75V
Viewing Angle : 50°
Orientation : Top View
Operating Temperature : -65°C ~ 125°C (TA)
Mounting Type : Through Hole
Package / Case : TO-46-2 Metal Can
0
100 in stock

OP132 OP132

Optek Technology / TT Electronics
Manufacturer : TT Electronics/Optek Technology
Packaging : Bulk
Series : -
Part Status : Active
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 100mA
Radiant Intensity (Ie) Min @ If : 4mW/cm² @ 100mA
Wavelength : 935nm
Voltage - Forward (Vf) (Typ) : 1.75V
Viewing Angle : 18°
Orientation : Top View
Operating Temperature : -65°C ~ 125°C (TA)
Mounting Type : Through Hole
Package / Case : TO-46-2 Lens Top Metal Can
0
2922 in stock

OP132W OP132W

Optek Technology / TT Electronics
Manufacturer : TT Electronics/Optek Technology
Packaging : Bulk
Series : -
Part Status : Obsolete
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 100mA
Radiant Intensity (Ie) Min @ If : 4mW/cm² @ 100mA
Wavelength : 935nm
Voltage - Forward (Vf) (Typ) : 1.75V
Viewing Angle : 50°
Orientation : Top View
Operating Temperature : -65°C ~ 125°C (TA)
Mounting Type : Through Hole
Package / Case : TO-46-2 Metal Can
0
100 in stock

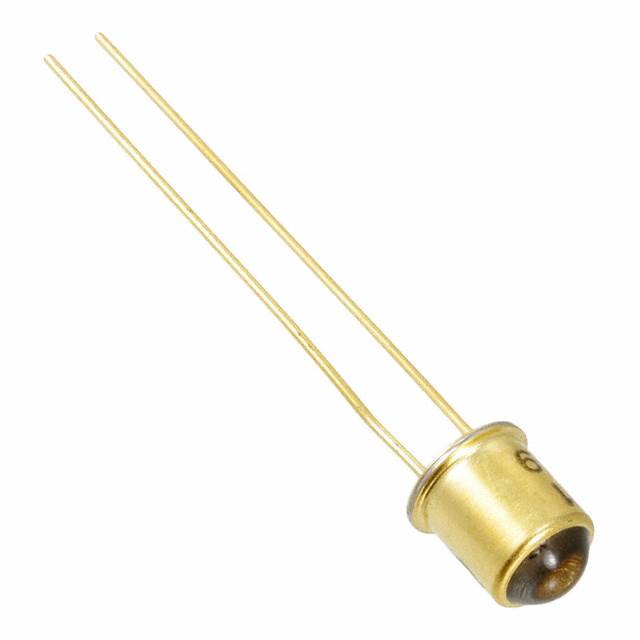

OP133 OP133

Optek Technology / TT Electronics
Manufacturer : TT Electronics/Optek Technology
Packaging : -
Series : -
Part Status : Active
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 100mA
Radiant Intensity (Ie) Min @ If : 5mW/cm² @ 100mA
Wavelength : 935nm
Voltage - Forward (Vf) (Typ) : 1.75V
Viewing Angle : 18°
Orientation : Top View
Operating Temperature : -65°C ~ 125°C (TA)
Mounting Type : Through Hole
Package / Case : TO-46-2 Lens Top Metal Can
0
1616 in stock

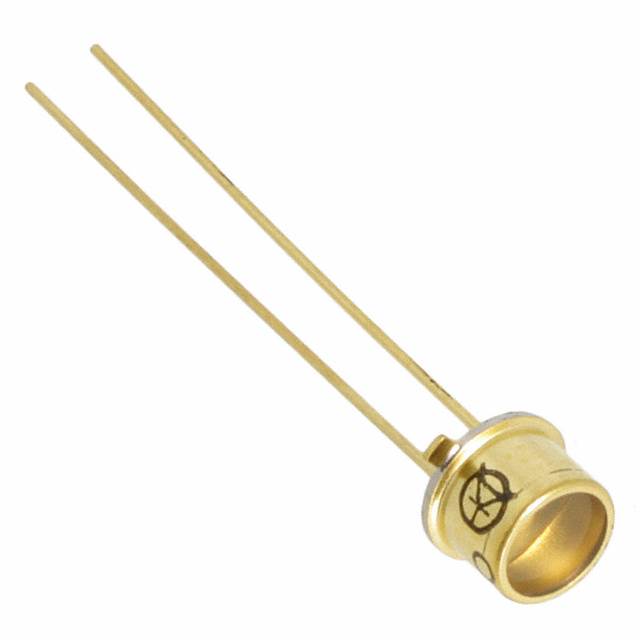

OP133W OP133W

Optek Technology / TT Electronics
Manufacturer : TT Electronics/Optek Technology
Packaging : Bulk
Series : -
Part Status : Active
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 100mA
Radiant Intensity (Ie) Min @ If : 5mW/cm² @ 100mA
Wavelength : 935nm
Voltage - Forward (Vf) (Typ) : 1.75V
Viewing Angle : 50°
Orientation : Top View
Operating Temperature : -65°C ~ 125°C (TA)
Mounting Type : Through Hole
Package / Case : TO-46-2 Metal Can
0
225 in stock

OP140A OP140A

Optek Technology / TT Electronics
Manufacturer : TT Electronics/Optek Technology
Packaging : Bulk
Series : -
Part Status : Active
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 50mA
Radiant Intensity (Ie) Min @ If : 0.4mW/cm² @ 20mA
Wavelength : 935nm
Voltage - Forward (Vf) (Typ) : 1.6V
Viewing Angle : 40°
Orientation : Side View
Operating Temperature : -40°C ~ 100°C (TA)
Mounting Type : Through Hole
Package / Case : Radial
0
10316 in stock

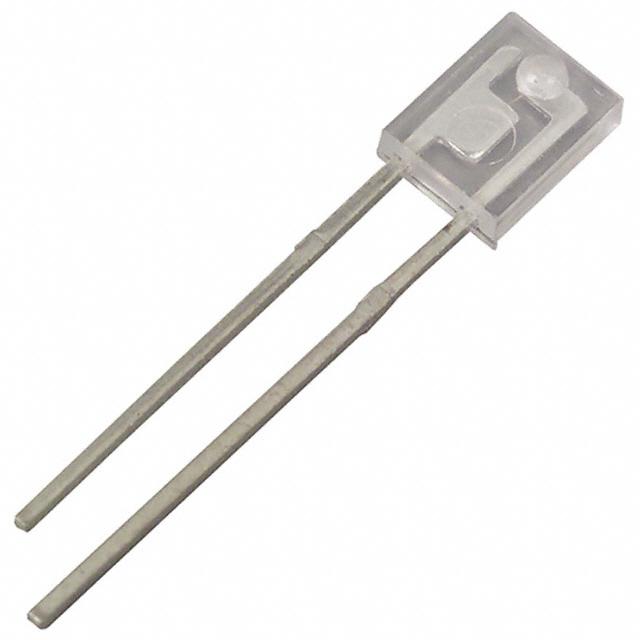

OP140B OP140B

Optek Technology / TT Electronics
Manufacturer : TT Electronics/Optek Technology
Packaging : Bulk
Series : -
Part Status : Active
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 50mA
Radiant Intensity (Ie) Min @ If : 0.3mW/cm² @ 20mA
Wavelength : 935nm
Voltage - Forward (Vf) (Typ) : 1.6V
Viewing Angle : 40°
Orientation : Side View
Operating Temperature : -40°C ~ 100°C (TA)
Mounting Type : Through Hole
Package / Case : Radial
0
869 in stock

OP140C OP140C

Optek Technology / TT Electronics
Manufacturer : TT Electronics/Optek Technology
Packaging : Bulk
Series : -
Part Status : Active
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 50mA
Radiant Intensity (Ie) Min @ If : 0.2mW/cm² @ 20mA
Wavelength : 935nm
Voltage - Forward (Vf) (Typ) : 1.6V
Viewing Angle : 40°
Orientation : Side View
Operating Temperature : -40°C ~ 100°C (TA)
Mounting Type : Through Hole
Package / Case : Radial
0
674 in stock

OP140D OP140D

Optek Technology / TT Electronics
Manufacturer : TT Electronics/Optek Technology
Packaging : Bulk
Series : -
Part Status : Active
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 50mA
Radiant Intensity (Ie) Min @ If : 0.1mW/cm² @ 20mA
Wavelength : 935nm
Voltage - Forward (Vf) (Typ) : 1.6V
Viewing Angle : 40°
Orientation : Side View
Operating Temperature : -40°C ~ 100°C (TA)
Mounting Type : Through Hole
Package / Case : Radial
0
190 in stock

OP145B OP145B

Optek Technology / TT Electronics
Manufacturer : TT Electronics/Optek Technology
Packaging : Bulk
Series : -
Part Status : Obsolete
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 50mA
Radiant Intensity (Ie) Min @ If : 0.3mW/cm² @ 20mA
Wavelength : 935nm
Voltage - Forward (Vf) (Typ) : 1.6V
Viewing Angle : 40°
Orientation : Side View
Operating Temperature : -40°C ~ 100°C (TA)
Mounting Type : Through Hole
Package / Case : Radial
0
100 in stock

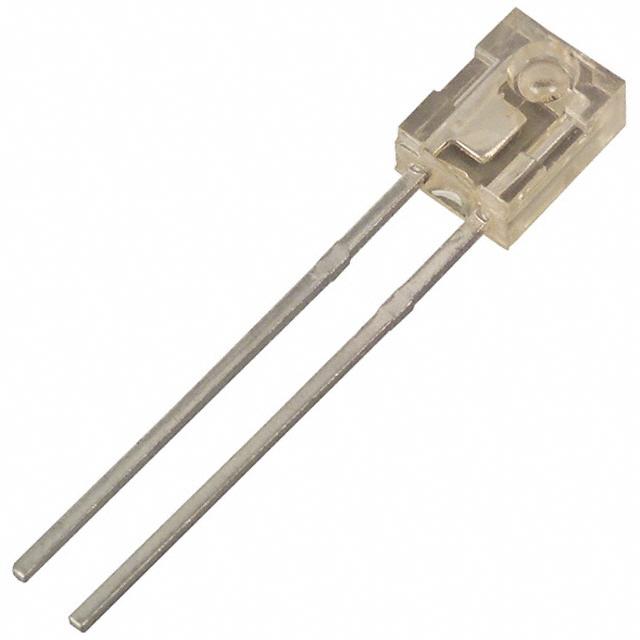

OP145D OP145D

Optek Technology / TT Electronics
Manufacturer : TT Electronics/Optek Technology
Packaging : Bulk
Series : -
Part Status : Obsolete
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 50mA
Radiant Intensity (Ie) Min @ If : 0.1mW/cm² @ 20mA
Wavelength : 935nm
Voltage - Forward (Vf) (Typ) : 1.6V
Viewing Angle : 40°
Orientation : Side View
Operating Temperature : -40°C ~ 100°C (TA)
Mounting Type : Through Hole
Package / Case : Radial
0
100 in stock
