TRINAMIC Motion Control GmbH
- TRINAMIC Motion Control GmbH provides integrated circuits and modules for motor and motion control to customers all over the world, most of them leaders in their industry. TRINAMIC products are used in leading-edge industries such as biotechnology, lab automation, semiconductor handling equipment, CCTV, factory automation, and control all kinds of embedded motion control systems.
Part Number
Manufacturer
Description
Unit Price
In Stock

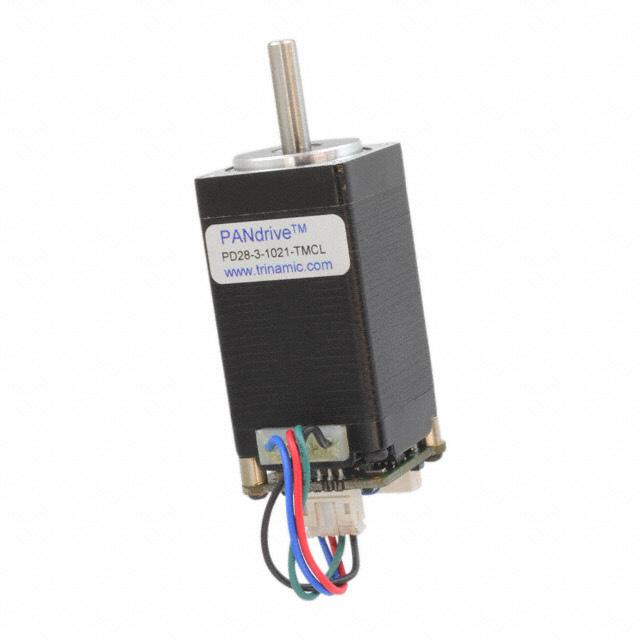

TRINAMIC Motion Control GmbH
Manufacturer : Trinamic Motion Control GmbH
Series : PANdrive™
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 700mA
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 16.99 / 120
Size / Dimension : Square - 1.100" x 1.100" (28.00mm x 28.00mm)
NEMA Frame Size : 11
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.787" (20.00mm)
Mounting Hole Spacing : 0.906" (23.00mm)
Termination Style : Wire Leads with Connector
Operating Temperature : -
Coil Resistance : -
Features : Integrated Controller, Flatted Shaft
0
79 in stock
TRINAMIC Motion Control GmbH
Manufacturer : Trinamic Motion Control GmbH
Series : PANdrive™
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 1A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 31.2 / 220
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : -
Length - Shaft and Bearing : -
Mounting Hole Spacing : 1.220" (30.99mm)
Termination Style : Connector
Operating Temperature : -20°C ~ 50°C
Coil Resistance : 1 Ohms
Features : Integrated Controller, Round Shaft
0
29 in stock
TRINAMIC Motion Control GmbH
Manufacturer : Trinamic Motion Control GmbH
Series : PANdrive™
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 2A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 31.2 / 220
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : -
Termination Style : Wire Leads with Connector
Operating Temperature : -
Coil Resistance : -
Features : Integrated Controller, Flatted Shaft
0
2 in stock
TRINAMIC Motion Control GmbH
Manufacturer : Trinamic Motion Control GmbH
Series : PANdrive™
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 2A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 31.2 / 220
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : -
Termination Style : Wire Leads with Connector
Operating Temperature : -
Coil Resistance : -
Features : Integrated Controller, Flatted Shaft
0
65 in stock
TRINAMIC Motion Control GmbH
Manufacturer : Trinamic Motion Control GmbH
Series : PANdrive™
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 2A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 38.2 / 270
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : -
Termination Style : Wire Leads with Connector
Operating Temperature : -
Coil Resistance : -
Features : Integrated Controller, Flatted Shaft
0
27 in stock
TRINAMIC Motion Control GmbH
Manufacturer : Trinamic Motion Control GmbH
Series : PANdrive™
Part Status : Active
Type : -
Coil Type : Bipolar
Voltage - Rated : 10 ~ 30VDC
Current Rating : 2A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±0.05%
Torque - Holding (oz-in / mNm) : 31.15 / 220
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Wire Leads with Connector
Operating Temperature : -20°C ~ 50°C
Coil Resistance : 1.0 Ohms
Features : Integrated Controller, Flatted Shaft
0
5 in stock
TRINAMIC Motion Control GmbH
Manufacturer : Trinamic Motion Control GmbH
Series : PANdrive™
Part Status : Active
Type : -
Coil Type : Bipolar
Voltage - Rated : 10 ~ 30VDC
Current Rating : 2A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±0.05%
Torque - Holding (oz-in / mNm) : 31.15 / 220
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Wire Leads with Connector
Operating Temperature : -20°C ~ 50°C
Coil Resistance : 1.0 Ohms
Features : Integrated Controller, Flatted Shaft
0
4 in stock
TRINAMIC Motion Control GmbH
Manufacturer : Trinamic Motion Control GmbH
Series : PANdrive™
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 1A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 31.2 / 220
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : -
Length - Shaft and Bearing : -
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Connector
Operating Temperature : -20°C ~ 50°C
Coil Resistance : 1 Ohms
Features : Integrated Controller, Round Shaft
0
29 in stock
TRINAMIC Motion Control GmbH
Manufacturer : Trinamic Motion Control GmbH
Series : PANdrive™
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 1A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 31.2 / 220
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : -
Length - Shaft and Bearing : -
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Connector
Operating Temperature : -20°C ~ 50°C
Coil Resistance : 1 Ohms
Features : Integrated Controller, Round Shaft
0
28 in stock
TRINAMIC Motion Control GmbH
Manufacturer : Trinamic Motion Control GmbH
Series : PANdrive™
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 2VDC
Current Rating : 2A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 31.16 / 220
Size / Dimension : Square - 1.665" x 1.665" (42.30mm x 42.30mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Connector
Operating Temperature : -20°C ~ 50°C
Coil Resistance : 1 Ohms
Features : Integrated Controller, Flatted Shaft
0
10 in stock
TRINAMIC Motion Control GmbH
Manufacturer : Trinamic Motion Control GmbH
Series : PANdrive™
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 1A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 51 / 360
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : -
Length - Shaft and Bearing : -
Mounting Hole Spacing : 1.220" (30.99mm)
Termination Style : Connector
Operating Temperature : -20°C ~ 50°C
Coil Resistance : 1.2 Ohms
Features : Integrated Controller, Round Shaft
0
24 in stock
TRINAMIC Motion Control GmbH
Manufacturer : Trinamic Motion Control GmbH
Series : PANdrive™
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 2A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 51 / 360
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : -
Termination Style : Wire Leads with Connector
Operating Temperature : -
Coil Resistance : -
Features : Integrated Controller, Flatted Shaft
0
100 in stock
