Triad Magnetics

- For over 70 years, consumer, commercial and industrial electronic devices have relied on innovative magnetics technology from Triad Magnetics. We offer solutions for power conversion, filtering, isolation and more. Our products include transformers for audio, gate drive, power, medical/dental, wall-mount and plug-in applications; as well as inductors for current sense, common mode, toroidal, filtering and power applications.

Today, you’ll find a wide range of Triad magnetic components in advanced computers, telecommunication systems, automation controls, audio devices and other equipment. Lewis W. Howard founded Triad during the 1940s in Venice, California. He was a UC Berkley graduate, a Wescon Trade Show cofounder and was recognized as an IEEE life member.

Part Number
Manufacturer
Description
Unit Price
In Stock

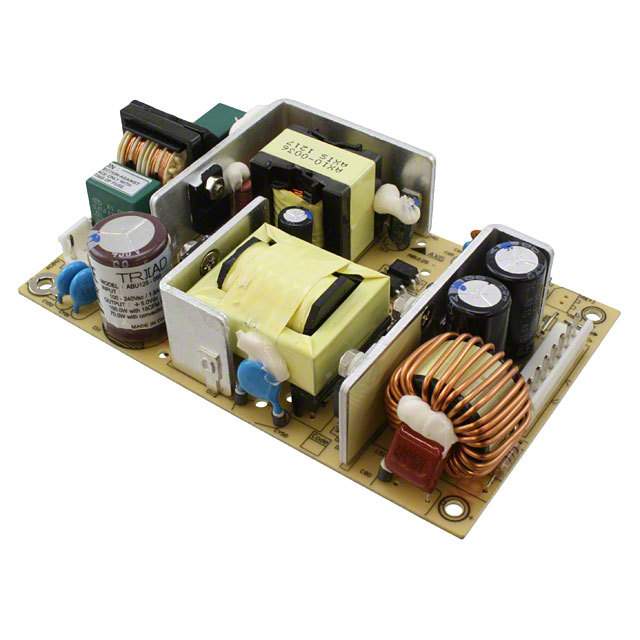

ABU125-050 ABU125-050

Triad Magnetics
Manufacturer : Triad Magnetics
Series : ABU125
Part Status : Active
Type : Open Frame
Number of Outputs : 1
Voltage - Input : 90 ~ 264 VAC
Voltage - Output 1 : 5V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 14A
Power (Watts) : 70W
Applications : ITE (Commercial)
Voltage - Isolation : 3kV
Efficiency : 87%
Operating Temperature : -20°C ~ 70°C (With Derating)
Features : Adjustable Output, DC Input Capable, PFC, Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 5.00" L x 3.00" W x 1.05" H (127.0mm x 76.2mm x 26.6mm)
0
8 in stock

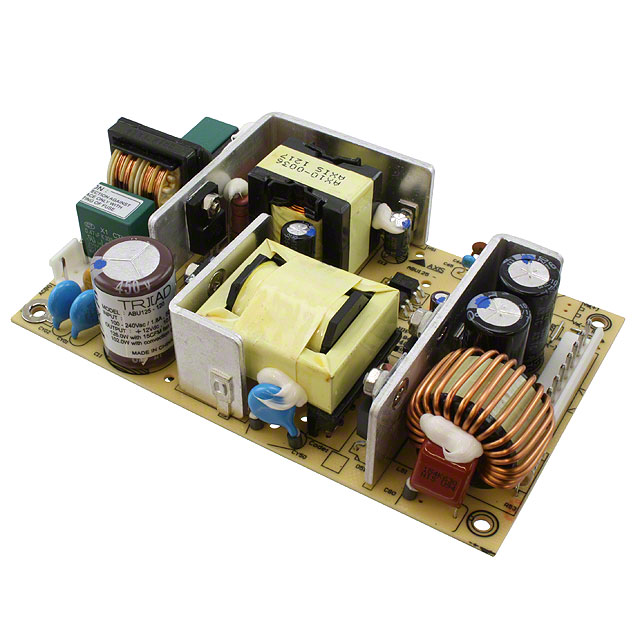

ABU125-120 ABU125-120

Triad Magnetics
Manufacturer : Triad Magnetics
Series : ABU125
Part Status : Active
Type : Open Frame
Number of Outputs : 1
Voltage - Input : 90 ~ 264 VAC
Voltage - Output 1 : 12V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 8.34A
Power (Watts) : 100W
Applications : ITE (Commercial)
Voltage - Isolation : 3kV
Efficiency : 87%
Operating Temperature : -20°C ~ 70°C (With Derating)
Features : Adjustable Output, DC Input Capable, PFC, Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 5.00" L x 3.00" W x 1.05" H (127.0mm x 76.2mm x 26.6mm)
0
19 in stock

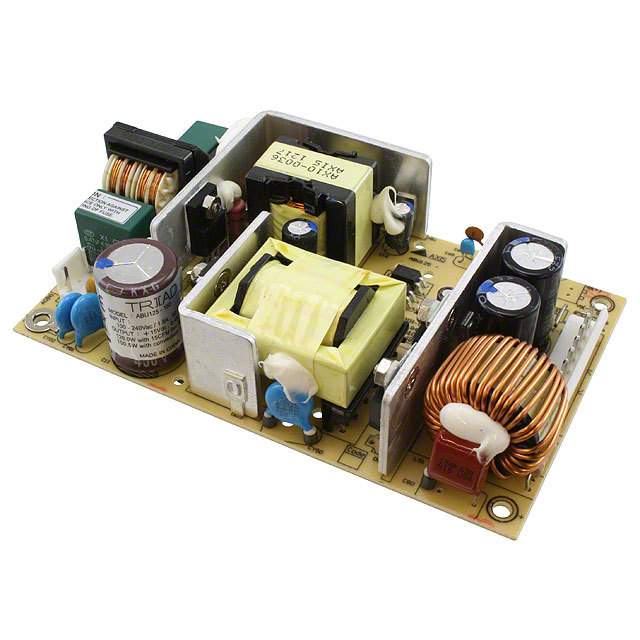

ABU125-150 ABU125-150

Triad Magnetics
Manufacturer : Triad Magnetics
Series : ABU125
Part Status : Active
Type : Open Frame
Number of Outputs : 1
Voltage - Input : 90 ~ 264 VAC
Voltage - Output 1 : 15V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 6.67A
Power (Watts) : 100W
Applications : ITE (Commercial)
Voltage - Isolation : 3kV
Efficiency : 87%
Operating Temperature : -20°C ~ 70°C (With Derating)
Features : Adjustable Output, DC Input Capable, PFC, Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 5.00" L x 3.00" W x 1.05" H (127.0mm x 76.2mm x 26.6mm)
0
3 in stock

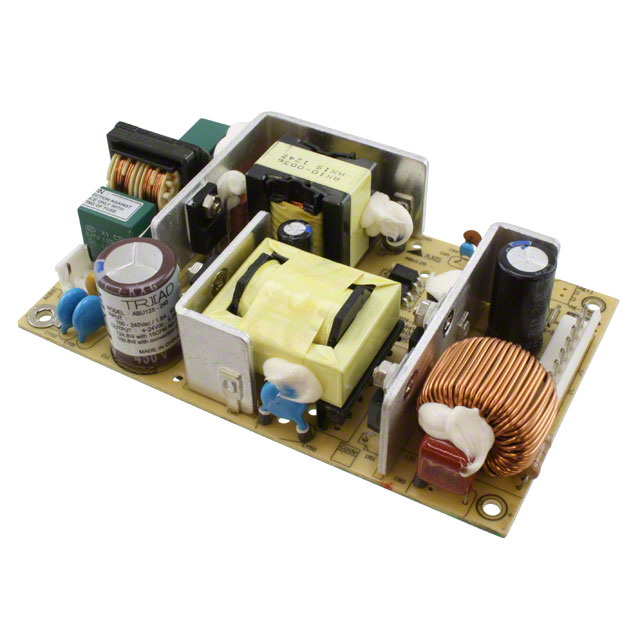

ABU125-240 ABU125-240

Triad Magnetics
Manufacturer : Triad Magnetics
Series : ABU125
Part Status : Active
Type : Open Frame
Number of Outputs : 1
Voltage - Input : 90 ~ 264 VAC
Voltage - Output 1 : 24V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 4.16A
Power (Watts) : 100W
Applications : ITE (Commercial)
Voltage - Isolation : 3kV
Efficiency : 87%
Operating Temperature : -20°C ~ 70°C (With Derating)
Features : Adjustable Output, DC Input Capable, PFC, Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 5.00" L x 3.00" W x 1.05" H (127.0mm x 76.2mm x 26.6mm)
0
112 in stock

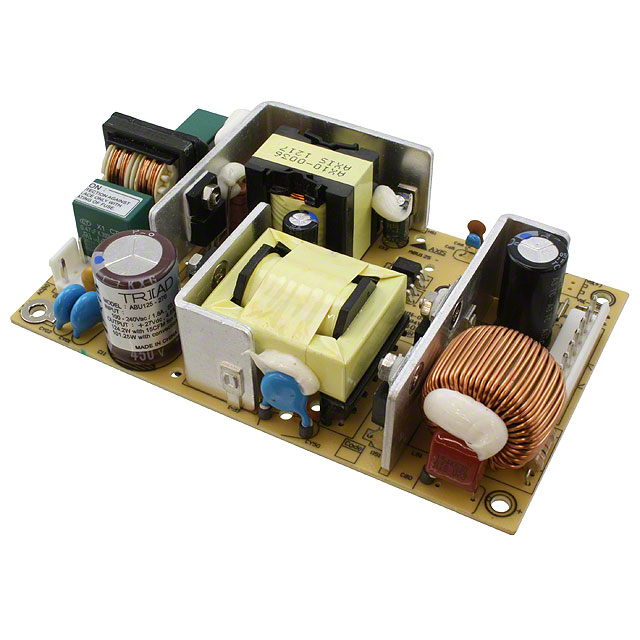

ABU125-270 ABU125-270

Triad Magnetics
Manufacturer : Triad Magnetics
Series : ABU125
Part Status : Active
Type : Open Frame
Number of Outputs : 1
Voltage - Input : 90 ~ 264 VAC
Voltage - Output 1 : 27V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 3.7A
Power (Watts) : 100W
Applications : ITE (Commercial)
Voltage - Isolation : 3kV
Efficiency : 87%
Operating Temperature : -20°C ~ 70°C (With Derating)
Features : Adjustable Output, DC Input Capable, PFC, Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 5.00" L x 3.00" W x 1.05" H (127.0mm x 76.2mm x 26.6mm)
0
9 in stock

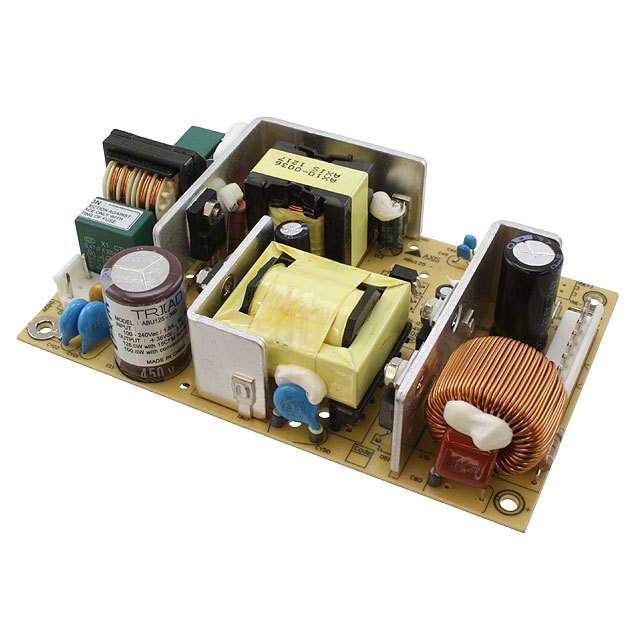

ABU125-360 ABU125-360

Triad Magnetics
Manufacturer : Triad Magnetics
Series : ABU125
Part Status : Active
Type : Open Frame
Number of Outputs : 1
Voltage - Input : 90 ~ 264 VAC
Voltage - Output 1 : 36V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 2.78A
Power (Watts) : 100W
Applications : ITE (Commercial)
Voltage - Isolation : 3kV
Efficiency : 87%
Operating Temperature : -20°C ~ 70°C (With Derating)
Features : Adjustable Output, DC Input Capable, PFC, Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 5.00" L x 3.00" W x 1.05" H (127.0mm x 76.2mm x 26.6mm)
0
25 in stock

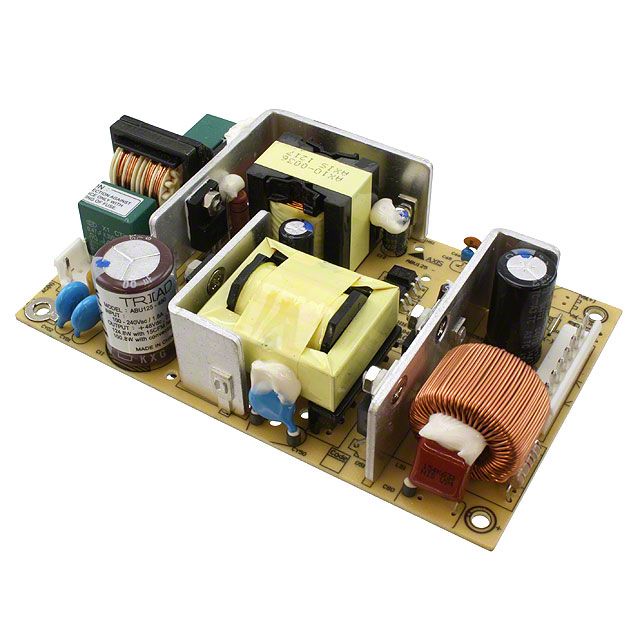

ABU125-480 ABU125-480

Triad Magnetics
Manufacturer : Triad Magnetics
Series : ABU125
Part Status : Active
Type : Open Frame
Number of Outputs : 1
Voltage - Input : 90 ~ 264 VAC
Voltage - Output 1 : 48V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 2.09A
Power (Watts) : 100W
Applications : ITE (Commercial)
Voltage - Isolation : 3kV
Efficiency : 87%
Operating Temperature : -20°C ~ 70°C (With Derating)
Features : Adjustable Output, DC Input Capable, PFC, Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 5.00" L x 3.00" W x 1.05" H (127.0mm x 76.2mm x 26.6mm)
0
5 in stock

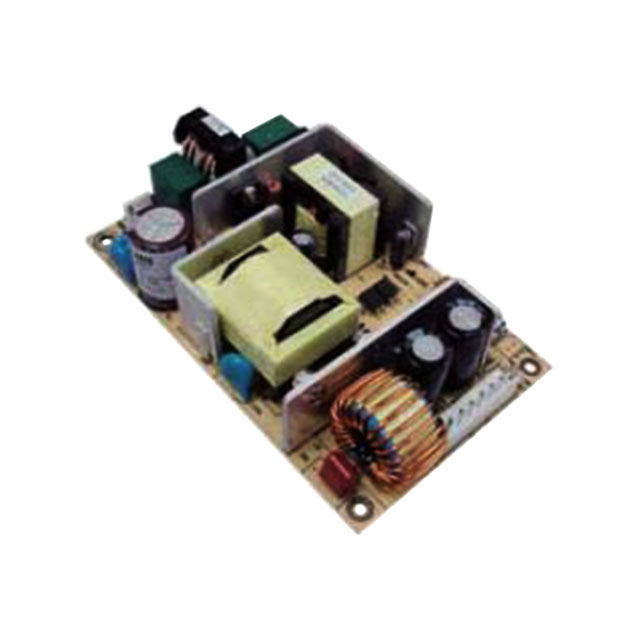

ABU125-540 ABU125-540

Triad Magnetics
Manufacturer : Triad Magnetics
Series : ABU125
Part Status : Active
Type : Open Frame
Number of Outputs : 1
Voltage - Input : 90 ~ 264 VAC
Voltage - Output 1 : 54V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 1.6A
Power (Watts) : 87W
Applications : ITE (Commercial)
Voltage - Isolation : 3kV
Efficiency : 88%
Operating Temperature : -40°C ~ 70°C (With Derating)
Features : Adjustable Output, DC Input Capable, PFC, Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 5.00" L x 3.00" W x 1.05" H (127.0mm x 76.2mm x 26.7mm)
0
18 in stock

ABU125-560 ABU125-560

Triad Magnetics
Manufacturer : Triad Magnetics
Series : ABU125
Part Status : Obsolete
Type : Open Frame
Number of Outputs : 1
Voltage - Input : 90 ~ 264 VAC
Voltage - Output 1 : 56V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 1.6A
Power (Watts) : 90W
Applications : ITE (Commercial)
Voltage - Isolation : 3kV
Efficiency : 88%
Operating Temperature : -20°C ~ 70°C (With Derating)
Features : Adjustable Output, DC Input Capable, PFC, Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 5.00" L x 3.00" W x 1.05" H (127.0mm x 76.2mm x 26.6mm)
0
100 in stock

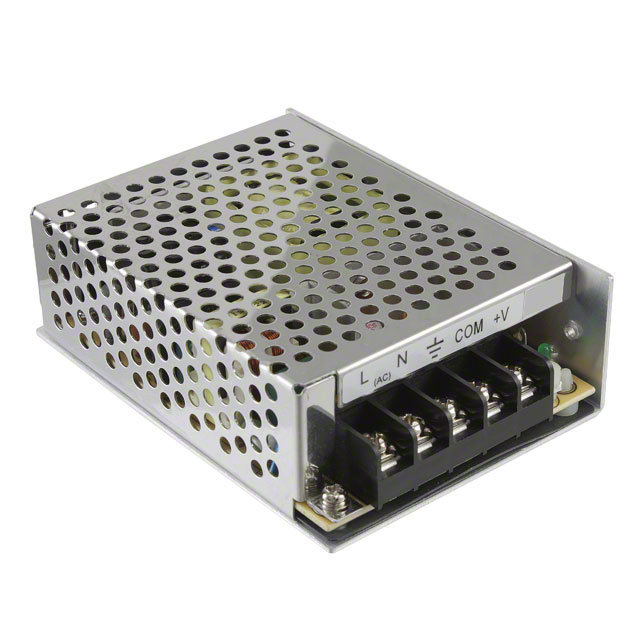

AEU65-033 AEU65-033

Triad Magnetics
Manufacturer : Triad Magnetics
Series : AEU65
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 90 ~ 264 VAC
Voltage - Output 1 : 3.3V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 10A
Power (Watts) : 33W
Applications : ITE (Commercial)
Voltage - Isolation : 3kV
Efficiency : 81%
Operating Temperature : -20°C ~ 70°C (With Derating)
Features : Adjustable Output, DC Input Capable, Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 4.33" L x 3.07" W x 1.38" H (110.0mm x 78.0mm x 35.0mm)
0
49 in stock

AEU65-050 AEU65-050

Triad Magnetics
Manufacturer : Triad Magnetics
Series : AEU65
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 90 ~ 264 VAC
Voltage - Output 1 : 5V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 10A
Power (Watts) : 50W
Applications : ITE (Commercial)
Voltage - Isolation : 3kV
Efficiency : 81%
Operating Temperature : -20°C ~ 70°C (With Derating)
Features : Adjustable Output, DC Input Capable, Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 4.33" L x 3.07" W x 1.38" H (110.0mm x 78.0mm x 35.0mm)
0
4 in stock

AEU65-120 AEU65-120

Triad Magnetics
Manufacturer : Triad Magnetics
Series : AEU65
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 90 ~ 264 VAC
Voltage - Output 1 : 12V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 5.4A
Power (Watts) : 65W
Applications : ITE (Commercial)
Voltage - Isolation : 3kV
Efficiency : 81%
Operating Temperature : -20°C ~ 70°C (With Derating)
Features : Adjustable Output, DC Input Capable, Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 4.33" L x 3.07" W x 1.38" H (110.0mm x 78.0mm x 35.0mm)
0
94 in stock
