TRACO Power

- TRACO Power has been a recognized brand name as a power specialist company for over 35 years for their design & manufacturing of high quality DC/DC and AC/DC power conversion products. TRACO Power North America is a wholly owned subsidiary of TRACO Electronic AG with headquarters in Baar, Switzerland and supports the North American distribution network as well as end customers directly for both technical and commercial requirements. Their mission is to provide our customers and distributors with optimal power supply solutions in terms of performance, quality and cost for their individual application.

Part Number
Manufacturer
Description
Unit Price
In Stock

TCL 060-124C TCL 060-124C

TRACO Power
Manufacturer : Traco Power
Series : TCL (60W)
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 85 ~ 264 VAC, 85 ~ 375 VDC
Voltage - Output 1 : 24V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 2.5A
Power (Watts) : 58W
Applications : Industrial, ITE (Commercial)
Voltage - Isolation : 3kV
Efficiency : 88%
Operating Temperature : -10°C ~ 70°C (With Derating)
Features : Adjustable Output, IP20
Mounting Type : DIN Rail
Size / Dimension : 3.94" L x 1.77" W x 2.95" H (100.1mm x 45.0mm x 74.9mm)
0
49 in stock

TCL 060-148 TCL 060-148

TRACO Power
Manufacturer : Traco Power
Series : TCL (60W)
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 85 ~ 264 VAC, 85 ~ 375 VDC
Voltage - Output 1 : 48V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 1.25A
Power (Watts) : 60W
Applications : Industrial, ITE (Commercial)
Voltage - Isolation : 3kV
Efficiency : 88%
Operating Temperature : -10°C ~ 70°C (With Derating)
Features : Adjustable Output, IP20
Mounting Type : DIN Rail
Size / Dimension : 3.94" L x 1.77" W x 2.95" H (100.1mm x 45.0mm x 74.9mm)
0
50 in stock

TCL 120-112 TCL 120-112

TRACO Power
Manufacturer : Traco Power
Series : TCL (120W)
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 85 ~ 264 VAC, 85 ~ 375 VDC
Voltage - Output 1 : 12V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 8A
Power (Watts) : 96W
Applications : Industrial, ITE (Commercial)
Voltage - Isolation : 3kV
Efficiency : 88%
Operating Temperature : -10°C ~ 70°C (With Derating)
Features : Adjustable Output, Universal Input
Mounting Type : DIN Rail
Size / Dimension : 3.94" L x 3.35" W x 2.95" H (100.1mm x 85.1mm x 74.9mm)
0
100 in stock

TCL 120-124 TCL 120-124

TRACO Power
Manufacturer : Traco Power
Series : TCL (120W)
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 85 ~ 264 VAC, 85 ~ 375 VDC
Voltage - Output 1 : 24V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 5A
Power (Watts) : 120W
Applications : Industrial, ITE (Commercial)
Voltage - Isolation : 3kV
Efficiency : 88%
Operating Temperature : -10°C ~ 70°C (With Derating)
Features : Adjustable Output, IP20
Mounting Type : DIN Rail
Size / Dimension : 3.94" L x 3.35" W x 2.95" H (100.1mm x 85.1mm x 74.9mm)
0
50 in stock

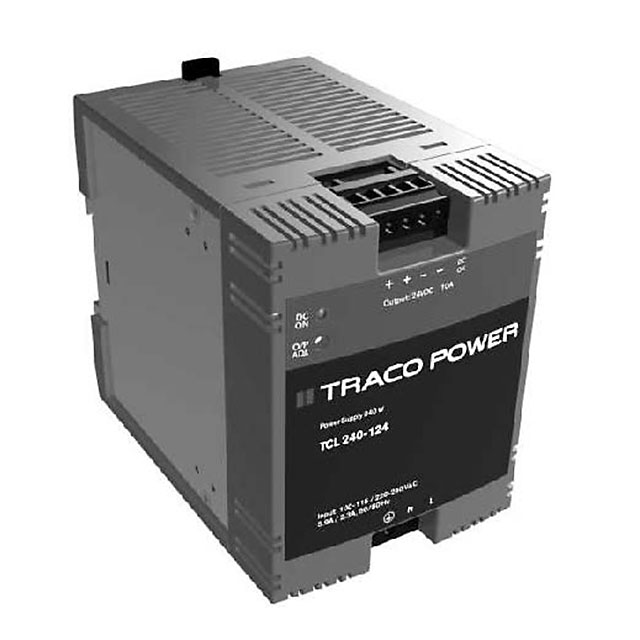

TCL 240-124 TCL 240-124

TRACO Power
Manufacturer : Traco Power
Series : TCL (240W)
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 85 ~ 132 VAC, 187 ~ 264 VAC
Voltage - Output 1 : 24V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 10A
Power (Watts) : 240W
Applications : Industrial, ITE (Commercial)
Voltage - Isolation : 3kV
Efficiency : 88%
Operating Temperature : -10°C ~ 70°C (With Derating)
Features : Adjustable Output, IP20
Mounting Type : DIN Rail
Size / Dimension : 4.92" L x 3.35" W x 4.33" H (125.0mm x 85.1mm x 110.0mm)
0
9 in stock

TCL-REM240 TCL-REM240

TRACO Power
Manufacturer : Traco Power
Series : TCL
Part Status : Active
Accessory Type : Redundancy Module
For Use With/Related Products : TCL Series
0
100 in stock

TDL 2-0510 TDL 2-0510

TRACO Power
Manufacturer : Traco Power
Packaging : -
Series : TDL 2
Part Status : Active
Type : Isolated Module
Number of Outputs : 1
Voltage - Input (Min) : 4.5V
Voltage - Input (Max) : 10V
Voltage - Output 1 : 3.3V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 400mA
Power (Watts) : 1.3W
Voltage - Isolation : 1.5kV
Applications : ITE (Commercial)
Features : SCP
Operating Temperature : -40°C ~ 70°C
Efficiency : 79%
Mounting Type : Through Hole
Package / Case : 7-DIP Module, 4 Leads
Size / Dimension : 0.55" L x 0.55" W x 0.31" H (14.0mm x 14.0mm x 8.0mm)
Supplier Device Package : -
Control Features : -
0
100 in stock

TDL 2-0511 TDL 2-0511

TRACO Power
Manufacturer : Traco Power
Packaging : -
Series : TDL 2
Part Status : Active
Type : Isolated Module
Number of Outputs : 1
Voltage - Input (Min) : 4.5V
Voltage - Input (Max) : 10V
Voltage - Output 1 : 5V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 400mA
Power (Watts) : 2W
Voltage - Isolation : 1.5kV
Applications : ITE (Commercial)
Features : SCP
Operating Temperature : -40°C ~ 70°C
Efficiency : 81%
Mounting Type : Through Hole
Package / Case : 7-DIP Module, 4 Leads
Size / Dimension : 0.55" L x 0.55" W x 0.31" H (14.0mm x 14.0mm x 8.0mm)
Supplier Device Package : -
Control Features : -
0
100 in stock

TDL 2-0512 TDL 2-0512

TRACO Power
Manufacturer : Traco Power
Packaging : -
Series : TDL 2
Part Status : Active
Type : Isolated Module
Number of Outputs : 1
Voltage - Input (Min) : 4.5V
Voltage - Input (Max) : 10V
Voltage - Output 1 : 12V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 167mA
Power (Watts) : 2W
Voltage - Isolation : 1.5kV
Applications : ITE (Commercial)
Features : SCP
Operating Temperature : -40°C ~ 70°C
Efficiency : 85%
Mounting Type : Through Hole
Package / Case : 7-DIP Module, 4 Leads
Size / Dimension : 0.55" L x 0.55" W x 0.31" H (14.0mm x 14.0mm x 8.0mm)
Supplier Device Package : -
Control Features : -
0
100 in stock

TDL 2-0513 TDL 2-0513

TRACO Power
Manufacturer : Traco Power
Packaging : -
Series : TDL 2
Part Status : Active
Type : Isolated Module
Number of Outputs : 1
Voltage - Input (Min) : 4.5V
Voltage - Input (Max) : 10V
Voltage - Output 1 : 15V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 134mA
Power (Watts) : 2W
Voltage - Isolation : 1.5kV
Applications : ITE (Commercial)
Features : SCP
Operating Temperature : -40°C ~ 70°C
Efficiency : 87%
Mounting Type : Through Hole
Package / Case : 7-DIP Module, 4 Leads
Size / Dimension : 0.55" L x 0.55" W x 0.31" H (14.0mm x 14.0mm x 8.0mm)
Supplier Device Package : -
Control Features : -
0
100 in stock

TDL 2-0521 TDL 2-0521

TRACO Power
Manufacturer : Traco Power
Packaging : -
Series : TDL 2
Part Status : Active
Type : Isolated Module
Number of Outputs : 2
Voltage - Input (Min) : 4.5V
Voltage - Input (Max) : 10V
Voltage - Output 1 : 5V
Voltage - Output 2 : -5V
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 200mA, 200mA
Power (Watts) : 2W
Voltage - Isolation : 1.5kV
Applications : ITE (Commercial)
Features : SCP
Operating Temperature : -40°C ~ 70°C
Efficiency : 83%
Mounting Type : Through Hole
Package / Case : 7-DIP Module, 5 Leads
Size / Dimension : 0.55" L x 0.55" W x 0.31" H (14.0mm x 14.0mm x 8.0mm)
Supplier Device Package : -
Control Features : -
0
100 in stock

TDL 2-0522 TDL 2-0522

TRACO Power
Manufacturer : Traco Power
Packaging : -
Series : TDL 2
Part Status : Active
Type : Isolated Module
Number of Outputs : 2
Voltage - Input (Min) : 4.5V
Voltage - Input (Max) : 10V
Voltage - Output 1 : 12V
Voltage - Output 2 : -12V
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 83mA, 83mA
Power (Watts) : 2W
Voltage - Isolation : 1.5kV
Applications : ITE (Commercial)
Features : SCP
Operating Temperature : -40°C ~ 70°C
Efficiency : 85%
Mounting Type : Through Hole
Package / Case : 7-DIP Module, 5 Leads
Size / Dimension : 0.55" L x 0.55" W x 0.31" H (14.0mm x 14.0mm x 8.0mm)
Supplier Device Package : -
Control Features : -
0
100 in stock
