TinyCircuits

- TinyCircuits is a maker of tiny open source electronics that let users create their own miniature electronic projects. The main product line is the TinyDuino platform - an Arduino compatible platform the size of a US Quarter. The TinyDuino platform is completely modular and works like tiny electronic LEGOs, so complex functions, like GPS, Wi-Fi, motor control, or graphics displays can easily be added to projects just by plugging the expandable modules (called TinyShields).

Part Number
Manufacturer
Description
Unit Price
In Stock

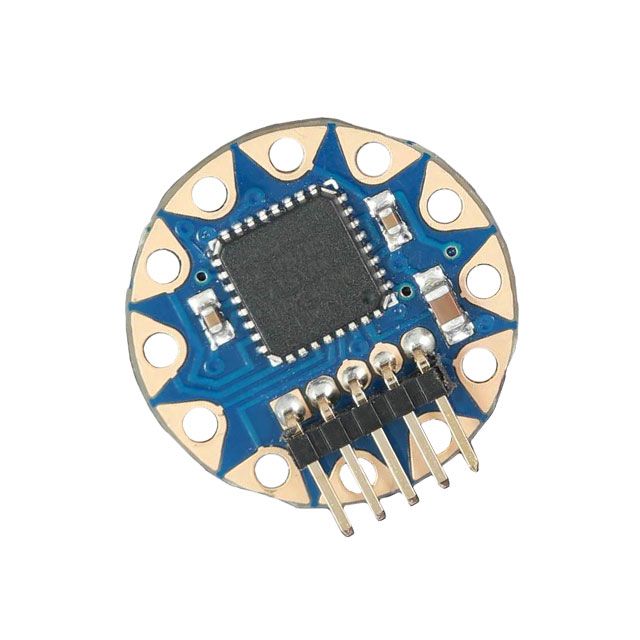

ASM2101 ASM2101

TinyCircuits
Manufacturer : TinyCircuits
Series : TinyLily
Part Status : Active
Main Purpose : MCU
Type : Atmega328P
Specifications : -
0
10 in stock

ASR00003  ASR00003

TinyCircuits
Manufacturer : TinyCircuits
Series : -
Part Status : Active
Battery Chemistry : Lithium-Ion
Battery Cell Size : -
Voltage - Rated : -
Capacity : 150mAh
Size / Dimension : 0.79" L x 0.79" W x 0.20" H (20.1mm x 20.1mm x 5.1mm)
Termination Style : JST SH Connector
0
200 in stock

ASR00007  ASR00007

TinyCircuits
Manufacturer : TinyCircuits
Series : -
Part Status : Active
Battery Chemistry : Lithium-Ion
Battery Cell Size : -
Voltage - Rated : 3.7V
Capacity : 290mAh
Size / Dimension : 0.94" L x 0.94" W x 0.23" H (23.9mm x 23.9mm x 5.8mm)
Termination Style : JST SH Connector
0
65 in stock

ASR00008  ASR00008

TinyCircuits
Manufacturer : TinyCircuits
Series : -
Part Status : Active
Battery Chemistry : Lithium-Ion
Battery Cell Size : -
Voltage - Rated : 3.7V
Capacity : 1.1Ah
Size / Dimension : 1.65" L x 1.54" W x 0.22" H (42.0mm x 39.0mm x 5.5mm)
Termination Style : JST SH Connector
0
206 in stock

ASR00011  ASR00011

TinyCircuits
Manufacturer : TinyCircuits
Series : -
Part Status : Active
Battery Chemistry : Lithium-Ion
Battery Cell Size : -
Voltage - Rated : 3.7V
Capacity : 70mAh
Size / Dimension : 0.63" L x 0.59" W x 0.20" H (16.0mm x 15.0mm x 5.0mm)
Termination Style : JST SH Connector
0
164 in stock

ASR00013 ASR00013

TinyCircuits
Manufacturer : TinyCircuits
Series : -
Part Status : Active
Accessory Type : Cable Assembly
For Use With/Related Products : TinyDuino
0
61 in stock

ASR00014-100 ASR00014-100

TinyCircuits
Manufacturer : TinyCircuits
Series : -
Part Status : Active
Accessory Type : Cable Assembly
For Use With/Related Products : TinyDuino
0
138 in stock

ASR00015-100 ASR00015-100

TinyCircuits
Manufacturer : TinyCircuits
Series : -
Part Status : Active
Accessory Type : Cable Assembly
For Use With/Related Products : TinyDuino
0
150 in stock

ASR00015-50 ASR00015-50

TinyCircuits
Manufacturer : TinyCircuits
Series : -
Part Status : Active
Accessory Type : Cable Assembly
For Use With/Related Products : TinyDuino
0
149 in stock

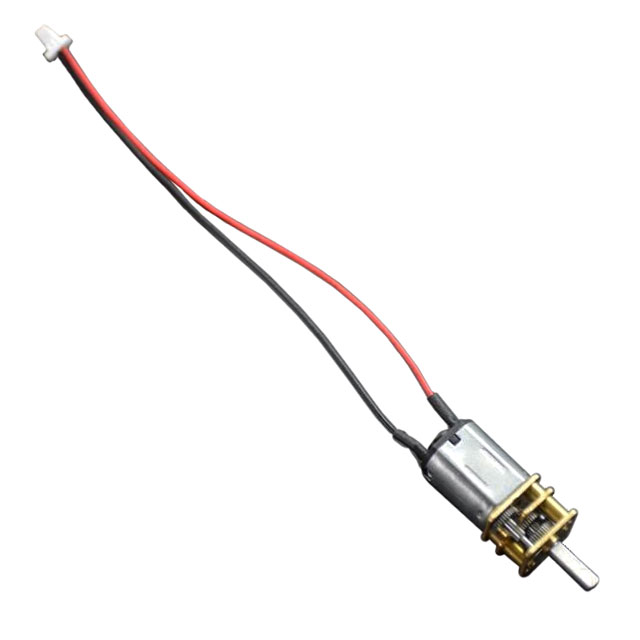

ASR00016 ASR00016

TinyCircuits
Manufacturer : TinyCircuits
Series : -
Part Status : Active
Type : DC Motor
Function : Gearmotor
Motor Type : -
Voltage - Rated : -
RPM : -
Torque - Rated (oz-in / mNm) : -
Power - Rated : -
Encoder Type : -
Size / Dimension : Rectangular - 0.394" x 0.472" (10.00mm x 12.00mm)
Diameter - Shaft : 0.118" (3.00mm)
Length - Shaft and Bearing : 0.354" (9.00mm)
Mounting Hole Spacing : -
Termination Style : Wire Leads with Connector
Features : -
Gear Reduction Ratio : 200
Torque - Max Momentary (oz-in / mNm) : -
Operating Temperature : -
0
57 in stock

ASR00017 ASR00017

TinyCircuits
Manufacturer : TinyCircuits
Series : -
Part Status : Active
Accessory Type : Wheel
For Use With/Related Products : -
0
50 in stock

ASR00018 ASR00018

TinyCircuits
Manufacturer : TinyCircuits
Series : *
Part Status : Active
Type : -
Specifications : -
0
100 in stock
