Taoglas

- Taoglas, the leading M2M antenna provider, delivers an extensive range of automotive, tracking, utility metering, and remote monitoring antenna solutions.

Additionaly Taoglas provides full wireless devices services, including antenna and device RF consultancy, custom antenna design, device noise debugging and testing services, and device certification and approval.

Founded in 2004, Taoglas has offices in Ireland, Taiwan, and the USA. Taoglas in Ireland, the USA, and Taiwan carry out Taoglas’ antenna design with production managed by Taoglas Taiwan.

Taoglas customers include top tier automotive, tracking, metering, and medical companies worldwide. For more information, visit www.taoglas.com.


Part Number

Manufacturer

Description

Unit Price

In Stock

CGGP.35.2.A.08

Taoglas

Manufacturer : Taoglas Limited
Packaging : -
Series : -
Part Status : Active
Frequency Group : UHF (1 GHz ~ 2 GHz)
Frequency (Center/Band) : 1.575GHz, 1.602GHz
Frequency Range : 1.574GHz ~ 1.576GHz, 1.598GHz ~ 1.607GHz
Antenna Type : Ceramic Patch
Number of Bands : 2
VSWR : -
Return Loss : -10dB
Gain : 4.27dBi, 4.63dBi
Power - Max : -
Features : -
Termination : Pin
Ingress Protection : -
Mounting Type : Through Hole
Height (Max) : 0.079" (2.00mm)
Applications : Galileo, GLONASS, GPS

101 in stock

CGGP.35.3.A.02

Taoglas

Manufacturer : Taoglas Limited
Packaging : Tray
Series : -
Part Status : Active
Frequency Group : UHF (1 GHz ~ 2 GHz)
Frequency (Center/Band) : 1.575GHz, 1.6GHz
Frequency Range : 1.564GHz ~ 1.586GHz, 1.591GHz ~ 1.613GHz
Antenna Type : Ceramic Patch
Number of Bands : 2
VSWR : 1.5
Return Loss : -
Gain : 2dBi
Power - Max : -
Features : -
Termination : Pin
Ingress Protection : -
Mounting Type : Adhesive
Height (Max) : 0.138" (3.50mm)
Applications : GLONASS, GPS

1153 in stock

CGIP.25.4.A.02

Taoglas

Manufacturer : Taoglas Limited
Packaging : Tray
Series : -
Part Status : Active
Frequency Group : UHF (1 GHz ~ 2 GHz)
Frequency (Center/Band) : 1.575GHz, 1.621GHz
Frequency Range : 1.575GHz ~ 1.626GHz
Antenna Type : Ceramic Patch
Number of Bands : 2
VSWR : 2
Return Loss : -
Gain : 5dBi
Power - Max : -
Features : -
Termination : Pin
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.157" (4.00mm)
Applications : GPS, Iridium™

3696 in stock

CM.02.03F21.02806

Taoglas

Manufacturer : Taoglas Limited
Packaging : Bulk
Series : Crusader
Part Status : Active
Frequency Group : Wide Band
Frequency (Center/Band) : -
Frequency Range : 700MHz ~ 6GHz
Antenna Type : Dome
Number of Bands : 6
VSWR : -
Return Loss : -
Gain : 1.6dBi, 1.9dBi, 3dBi, 3.6dBi, 3.6dBi, 4.4dBi
Power - Max : 50W
Features : -
Termination : Cable (280mm) - N Female
Ingress Protection : -
Mounting Type : Panel Mount
Height (Max) : 3.839" (97.50mm)
Applications : CDMA, GSM, LTE, WiMax™ WLAN,

17 in stock

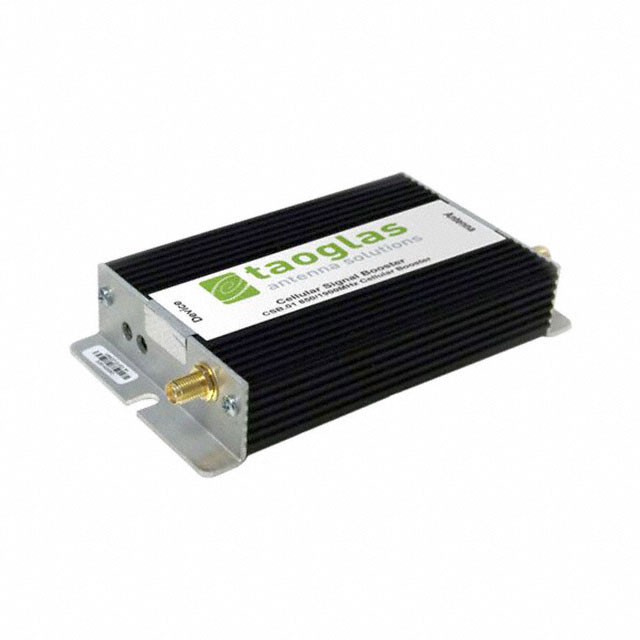

CSB.01.A.001

Taoglas

Manufacturer : Taoglas Limited
Series : -
Part Status : Active
Function : -
Modulation or Protocol : -
Frequency : 824MHz ~ 894MHz, 1.85GHz ~ 1.99GHz
Applications : General Purpose
Interface : -
Sensitivity : -
Power - Output : 27dBm
Data Rate (Max) : -
Features : -

13 in stock

DCP.5900.12.4.A.02

Taoglas

Manufacturer : Taoglas Limited
Packaging : Tray
Series : -
Part Status : Active
Frequency Group : SHF (f > 4 GHz)
Frequency (Center/Band) : 5.9GHz
Frequency Range : 5.85GHz ~ 5.925GHz
Antenna Type : Ceramic Patch
Number of Bands : 1
VSWR : 1.8
Return Loss : -
Gain : 6dBi
Power - Max : -
Features : -
Termination : Pin
Ingress Protection : -
Mounting Type : Adhesive
Height (Max) : 0.197" (5.00mm)
Applications : DSRC

565 in stock

DCP.5900.25.4.A.30

Taoglas

Manufacturer : Taoglas Limited
Packaging : -
Series : *
Part Status : Active
Frequency Group : -
Frequency (Center/Band) : -
Frequency Range : -
Antenna Type : -
Number of Bands : -
VSWR : -
Return Loss : -
Gain : -
Power - Max : -
Features : -
Termination : -
Ingress Protection : -
Mounting Type : -
Height (Max) : -
Applications : -

25 in stock

DSGP.1575.12.4.A.02

Taoglas

Manufacturer : Taoglas Limited
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Frequency Group : UHF (1 GHz ~ 2 GHz)
Frequency (Center/Band) : 1.575GHz
Frequency Range : 1.574GHz ~ 1.576GHz
Antenna Type : Ceramic Patch
Number of Bands : 1
VSWR : -
Return Loss : -10dB
Gain : 2.73dBi
Power - Max : -
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.157" (4.00mm)
Applications : Galileo, GPS

508 in stock

DSGP.1575.18.2.A.02

Taoglas

Manufacturer : Taoglas Limited
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Frequency Group : UHF (1 GHz ~ 2 GHz)
Frequency (Center/Band) : 1.575GHz
Frequency Range : 1.574GHz ~ 1.576GHz
Antenna Type : Ceramic Patch
Number of Bands : 1
VSWR : -
Return Loss : -10dB
Gain : 2.4dBi
Power - Max : -
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.079" (2.00mm)
Applications : Galileo, GPS

188 in stock

DSGP.1575.18.4.A.02

Taoglas

Manufacturer : Taoglas Limited
Packaging : Cut Tape (CT)
Alternate Packaging
Series : *
Part Status : Active
Frequency Group : -
Frequency (Center/Band) : -
Frequency Range : -
Antenna Type : -
Number of Bands : -
VSWR : -
Return Loss : -
Gain : -
Power - Max : -
Features : -
Termination : -
Ingress Protection : -
Mounting Type : -
Height (Max) : -
Applications : -

132 in stock

DSGP.1575.25.4.A.02

Taoglas

170 in stock

DTAD.01.A.50

Taoglas

Manufacturer : Taoglas Limited
Packaging : Bulk
Series : -
Part Status : Active
Frequency Group : Wide Band
Frequency (Center/Band) : 829MHz, 2.2GHz
Frequency Range : 698MHz ~ 960MHz, 1.71GHz ~ 2.7GHz
Antenna Type : PCB Trace
Number of Bands : 2
VSWR : -
Return Loss : -
Gain : 2.5dBi
Power - Max : -
Features : -
Termination : Connector, SMA Female
Ingress Protection : -
Mounting Type : Adhesive
Height (Max) : 0.197" (5.00mm)
Applications : LTE

33 in stock
