Talema

- Established in 1975, Talema has grown rapidly as a manufacturer of leading-edge toroidal transformers. Today, its workforce numbers more than 1,200, and the company is proud of their strong technical engineering expertise. The Irish headquarters, as well as Talema branch offices across East, West, and Central Europe, Scandinavia, Australia, and the Far East handle marketing, sales, and after-sales services. The United States business is handled by Talema Group LLC. Approximately 15% of Nuvotem Talema staff is assigned to these services.


Part Number

Manufacturer

Description

Unit Price

In Stock

0600MD-1-004

Talema

Manufacturer : Talema Group LLC
Series : MD
Part Status : Active
Type : Toroidal
Voltage - Primary : 100V, 120V, 200V, 240V
Voltage - Secondary (Full Load) : Parallel 120V, Series 240V
Current - Output (Max) : Parallel 5A, Series 2.5A
Primary Winding(s) : Dual, Multiple Taps
Secondary Winding(s) : Single, Multiple Taps
Center Tap : No
Power - Max : 600 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 150.00mm Dia x 70.00mm W
Height - Seated (Max) : -
Voltage - Isolation : 5000Vrms
Weight : 11 lbs (5kg)

100 in stock

0650MD-1-003

Talema

Manufacturer : Talema Group LLC
Series : MD
Part Status : Active
Type : Toroidal
Voltage - Primary : 100V, 120V, 200V, 240V
Voltage - Secondary (Full Load) : Parallel 120V, Series 240V
Current - Output (Max) : Parallel 5.42A, Series 2.71A
Primary Winding(s) : Dual, Multiple Taps
Secondary Winding(s) : Single, Multiple Taps
Center Tap : No
Power - Max : 650 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 157.00mm Dia x 70.00mm W
Height - Seated (Max) : -
Voltage - Isolation : 5000Vrms
Weight : 12 lbs (5.4kg)

100 in stock

0650MD-1-004

Talema

Manufacturer : Talema Group LLC
Series : MD
Part Status : Active
Type : Toroidal
Voltage - Primary : 100V, 120V, 200V, 240V
Voltage - Secondary (Full Load) : Parallel 120V, Series 240V
Current - Output (Max) : Parallel 5.42A, Series 2.71A
Primary Winding(s) : Dual, Multiple Taps
Secondary Winding(s) : Single, Multiple Taps
Center Tap : No
Power - Max : 650 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 157.00mm Dia x 70.00mm W
Height - Seated (Max) : -
Voltage - Isolation : 5000Vrms
Weight : 12 lbs (5.4kg)

100 in stock

0760MD-1-003

Talema

Manufacturer : Talema Group LLC
Series : MD
Part Status : Active
Type : Toroidal
Voltage - Primary : 100V, 120V, 200V, 240V
Voltage - Secondary (Full Load) : Parallel 120V, Series 240V
Current - Output (Max) : Parallel 6.33A, Series 3.17A
Primary Winding(s) : Dual, Multiple Taps
Secondary Winding(s) : Single, Multiple Taps
Center Tap : No
Power - Max : 760 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 160.00mm Dia x 71.00mm W
Height - Seated (Max) : -
Voltage - Isolation : 5000Vrms
Weight : 13 lbs (5.9kg)

100 in stock

0760MD-1-004

Talema

Manufacturer : Talema Group LLC
Series : MD
Part Status : Active
Type : Toroidal
Voltage - Primary : 100V, 120V, 200V, 240V
Voltage - Secondary (Full Load) : Parallel 120V, Series 240V
Current - Output (Max) : Parallel 6.33A, Series 3.17A
Primary Winding(s) : Dual, Multiple Taps
Secondary Winding(s) : Single, Multiple Taps
Center Tap : No
Power - Max : 760 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 160.00mm Dia x 71.00mm W
Height - Seated (Max) : -
Voltage - Isolation : 5000Vrms
Weight : 13 lbs (5.9kg)

100 in stock

0800MD-1-003

Talema

Manufacturer : Talema Group LLC
Series : MD
Part Status : Active
Type : Toroidal
Voltage - Primary : 100V, 120V, 200V, 240V
Voltage - Secondary (Full Load) : Parallel 120V, Series 240V
Current - Output (Max) : Parallel 6.67A, Series 3.33A
Primary Winding(s) : Dual, Multiple Taps
Secondary Winding(s) : Single, Multiple Taps
Center Tap : No
Power - Max : 800 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 165.00mm Dia x 72.00mm W
Height - Seated (Max) : -
Voltage - Isolation : 5000Vrms
Weight : 14 lbs (6.4kg)

100 in stock

0800MD-1-004

Talema

Manufacturer : Talema Group LLC
Series : MD
Part Status : Active
Type : Toroidal
Voltage - Primary : 100V, 120V, 200V, 240V
Voltage - Secondary (Full Load) : Parallel 120V, Series 240V
Current - Output (Max) : Parallel 6.67A, Series 3.33A
Primary Winding(s) : Dual, Multiple Taps
Secondary Winding(s) : Single, Multiple Taps
Center Tap : No
Power - Max : 800 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 165.00mm Dia x 72.00mm W
Height - Seated (Max) : -
Voltage - Isolation : 5000Vrms
Weight : 14 lbs (6.4kg)

100 in stock

1000MD-1-003

Talema

Manufacturer : Talema Group LLC
Series : MD
Part Status : Active
Type : Toroidal
Voltage - Primary : 100V, 120V, 200V, 240V
Voltage - Secondary (Full Load) : Parallel 120V, Series 240V
Current - Output (Max) : Parallel 8.33A, Series 4.17A
Primary Winding(s) : Dual, Multiple Taps
Secondary Winding(s) : Single, Multiple Taps
Center Tap : No
Power - Max : 1000 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 168.00mm Dia x 80.00mm W
Height - Seated (Max) : -
Voltage - Isolation : 5000Vrms
Weight : 18 lbs (8.2kg)

82 in stock

1000MD-1-004

Talema

Manufacturer : Talema Group LLC
Series : MD
Part Status : Active
Type : Toroidal
Voltage - Primary : 100V, 120V, 200V, 240V
Voltage - Secondary (Full Load) : Parallel 120V, Series 240V
Current - Output (Max) : Parallel 8.33A, Series 4.17A
Primary Winding(s) : Dual, Multiple Taps
Secondary Winding(s) : Single, Multiple Taps
Center Tap : No
Power - Max : 1000 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 168.00mm Dia x 80.00mm W
Height - Seated (Max) : -
Voltage - Isolation : 5000Vrms
Weight : 18 lbs (8.2kg)

100 in stock

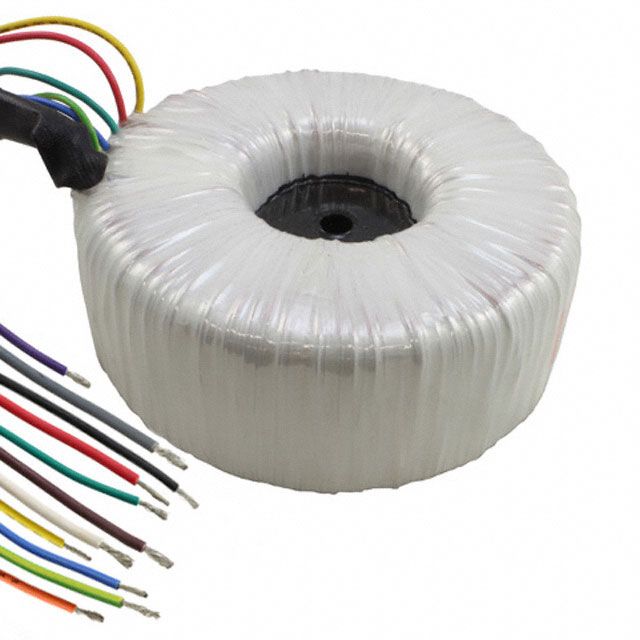

1200MD-1-003

Talema

Manufacturer : Talema Group LLC
Series : MD
Part Status : Active
Type : Toroidal
Voltage - Primary : 100V, 120V, 200V, 240V
Voltage - Secondary (Full Load) : Parallel 120V, Series 240V
Current - Output (Max) : Parallel 10A, Series 5A
Primary Winding(s) : Dual, Multiple Taps
Secondary Winding(s) : Single, Multiple Taps
Center Tap : No
Power - Max : 1200 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 183.00mm Dia x 81.00mm W
Height - Seated (Max) : -
Voltage - Isolation : 5000Vrms
Weight : 22 lbs (10kg)

100 in stock

1200MD-1-004

Talema

Manufacturer : Talema Group LLC
Series : MD
Part Status : Active
Type : Toroidal
Voltage - Primary : 100V, 120V, 200V, 240V
Voltage - Secondary (Full Load) : Parallel 120V, Series 240V
Current - Output (Max) : Parallel 10A, Series 5A
Primary Winding(s) : Dual, Multiple Taps
Secondary Winding(s) : Single, Multiple Taps
Center Tap : No
Power - Max : 1200 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 183.00mm Dia x 81.00mm W
Height - Seated (Max) : -
Voltage - Isolation : 5000Vrms
Weight : 22 lbs (10kg)

100 in stock

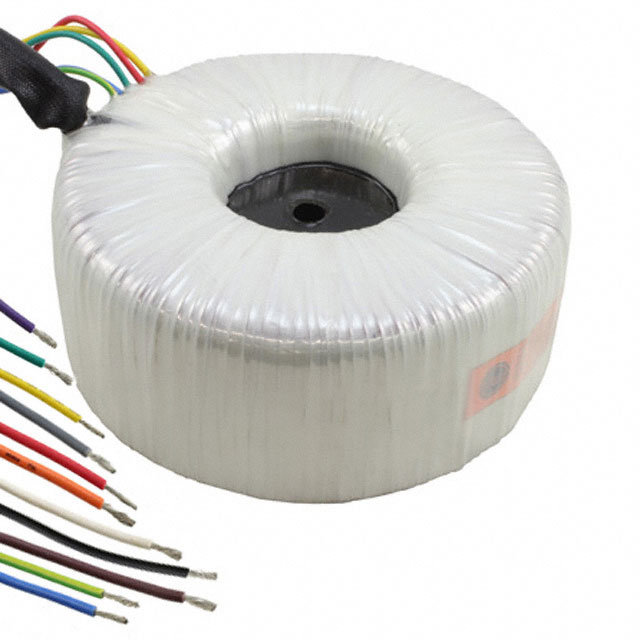

1500MD-1-003

Talema

Manufacturer : Talema Group LLC
Series : MD
Part Status : Active
Type : Toroidal
Voltage - Primary : 100V, 120V, 200V, 240V
Voltage - Secondary (Full Load) : Parallel 120V, Series 240V
Current - Output (Max) : Parallel 12.5A, Series 6.25A
Primary Winding(s) : Dual, Multiple Taps
Secondary Winding(s) : Single, Multiple Taps
Center Tap : No
Power - Max : 1500 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 200.00mm Dia x 90.00mm W
Height - Seated (Max) : -
Voltage - Isolation : 5000Vrms
Weight : 26 lbs (11.8kg)

7 in stock
