SWITCHCRAFT®
- SWITCHCRAFT®, founded in 1946, is headquartered in Chicago, IL USA and still manufactures product in Chicago today. In 1999, SWITCHCRAFT® acquired Conxall®, located in Villa Park, IL, a leading manufacturer of harsh environment connectors and custom cable assemblies, adding to the already extensive line of SWITCHCRAFT® connector products.
SWITCHCRAFT®, Inc. is a leading US based manufacturer of connectors, jacks, plugs, switches, molded cable assemblies and patchbays. SWITCHCRAFT® products are used in a variety of applications from broadcast and pro audio to medical, lighting, security, transportation and other industrial applications. Experience and attention to detail make Switchcraft a leader in Harsh Environment Connectivity Solutions.
Conxall manufactures a wide range of circular sealed plastic connectors and molded cable assemblies. In addition to their line of standard product they also specialize in custom cable assemblies and connector options. Conxall products are used in a wide variety of applications, especially those requiring protection from harsh environmental conditions. Experience and attention to detail make Conxall a leader in Harsh Environment Connectivity Solutions.
Part Number
Manufacturer
Description
Unit Price
In Stock
Conxall / Switchcraft
Manufacturer : Switchcraft Inc.
Packaging : Bulk
Series : UNIJAX®
Part Status : Active
Connector Type : Phone Jack
Gender : Female
Signal Lines : Mono
Industry Recognized Mating Diameter : 4.39mm (0.173")
Actual Diameter : 0.177" (4.48mm)
Number of Positions/Contacts : 2 Conductors, 2 Contacts
Internal Switch(s) : Does Not Contain Switch
Mounting Type : Panel Mount
Termination : Solder Eyelet(s)
Shielding : Unshielded
Features : Mounting Hardware, Thread Lock
Insulation Color : -
0
100 in stock
Conxall / Switchcraft
Manufacturer : Switchcraft Inc.
Packaging : Bulk
Series : UNIJAX®
Part Status : Active
Connector Type : Phone Jack
Gender : Female
Signal Lines : Mono
Industry Recognized Mating Diameter : 4.39mm (0.173")
Actual Diameter : 0.177" (4.48mm)
Number of Positions/Contacts : 2 Conductors, 3 Contacts
Internal Switch(s) : Single Switch
Mounting Type : Panel Mount
Termination : Solder Eyelet(s)
Shielding : Unshielded
Features : Mounting Hardware, Thread Lock
Insulation Color : -
0
100 in stock
Conxall / Switchcraft
Manufacturer : Switchcraft Inc.
Packaging : Bulk
Series : UNIJAX®
Part Status : Active
Connector Type : Phone Jack
Gender : Female
Signal Lines : Stereo (3 Conductor, TRS)
Industry Recognized Mating Diameter : 4.39mm (0.173")
Actual Diameter : 0.177" (4.48mm)
Number of Positions/Contacts : 3 Conductors, 3 Contacts
Internal Switch(s) : Does Not Contain Switch
Mounting Type : Panel Mount
Termination : Solder Eyelet(s)
Shielding : Unshielded
Features : Mounting Hardware, Thread Lock
Insulation Color : -
0
100 in stock
Conxall / Switchcraft
Manufacturer : Switchcraft Inc.
Packaging : Bulk
Series : UNIJAX®
Part Status : Active
Connector Type : Phone Jack
Gender : Female
Signal Lines : Stereo (3 Conductor, TRS)
Industry Recognized Mating Diameter : 4.39mm (0.173")
Actual Diameter : 0.177" (4.48mm)
Number of Positions/Contacts : 3 Conductors, 5 Contacts
Internal Switch(s) : Two Switches
Mounting Type : Panel Mount
Termination : Solder Eyelet(s)
Shielding : Unshielded
Features : Mounting Hardware, Thread Lock
Insulation Color : -
0
322 in stock
Conxall / Switchcraft
Manufacturer : Switchcraft Inc.
Packaging : Bulk
Series : US
Part Status : Active
Type : Standard
Circuit : SPST-NO
Switch Function : Off-Mom
Current Rating : 250mA (DC)
Voltage Rating - AC : -
Voltage Rating - DC : 28V
Actuator Type : Plunger for Cap
Color - Actuator/Cap : -
Illumination Type, Color : -
Illumination Voltage (Nominal) : -
Mounting Type : Panel Mount, Snap-In
Termination Style : Solder Lug
Ingress Protection : -
Features : -
Panel Cutout Dimensions : Square - 15.70mm²
Operating Temperature : -
0
58 in stock

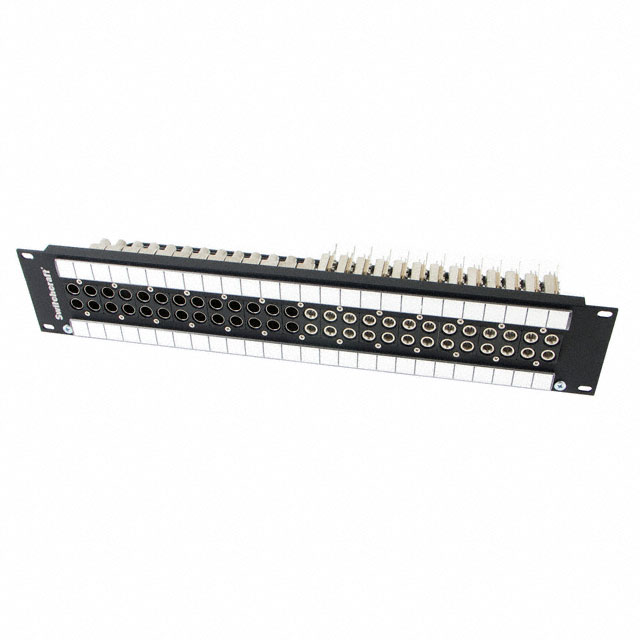

Conxall / Switchcraft
Manufacturer : Switchcraft Inc.
Series : VAP
Part Status : Active
Type : Audio/Video Panel
Connector Type : HD Jack, 75 Ohm Terminated
Number of Positions : 39
Number of Rows : 2
Termination Style : -
0
100 in stock
Conxall / Switchcraft
Manufacturer : Switchcraft Inc.
Series : -
Part Status : Active
Accessory Type : Dummy Plug, Twin
Style : 1/4" Phone Jack (Not Provided)
Includes : -
0
25 in stock
Conxall / Switchcraft
Manufacturer : Switchcraft Inc.
Packaging : Bulk
Series : -
Part Status : Active
Adapter Type : Plug to Jack
Conversion Type : Between Series
Adapter Series : BNC to WECo
Center Gender : Female to Male
Convert From (Adapter End) : BNC Jack, Female Socket
Convert To (Adapter End) : WECo, Mini Plug, Male Pin
Impedance : -
Style : Straight
Mounting Type : Free Hanging (In-Line)
Mounting Feature : -
Fastening Type : Bayonet Lock, Push-Pull
Frequency - Max : -
Ingress Protection : -
Center Contact Plating : -
Features : -
0
100 in stock
Conxall / Switchcraft
Manufacturer : Switchcraft Inc.
Series : -
Part Status : Active
Accessory Type : Dummy Plug
Style : 1/4" Phone Jack (Not Provided)
Includes : -
0
1 in stock
Conxall / Switchcraft
Manufacturer : Switchcraft Inc.
Series : -
Part Status : Active
Accessory Type : Dummy Plug, Twin
Style : 1/4" Phone Jack (Not Provided)
Includes : -
0
25 in stock
Conxall / Switchcraft
Manufacturer : Switchcraft Inc.
Packaging : Bulk
Series : -
Part Status : Active
Adapter Type : -
Conversion Type : Between Series
Adapter Series : BNC to WECo
Center Gender : -
Convert From (Adapter End) : BNC Jack, Female Socket
Convert To (Adapter End) : WECo, Standard
Impedance : -
Style : -
Mounting Type : -
Mounting Feature : -
Fastening Type : Bayonet Lock, Push-Pull
Frequency - Max : -
Ingress Protection : -
Center Contact Plating : -
Features : -
0
100 in stock
Conxall / Switchcraft
Manufacturer : Switchcraft Inc.
Series : VPP
Part Status : Active
Type : Video Pass Through Panel
Connector Type : HD Jack, 75 Ohm Terminated
Number of Positions : 24
Number of Rows : 2
Termination Style : -
0
100 in stock
