Stanley Electric
- Stanley Electric is the global leader in the design and manufacturer of LEDs offering a wide range of LEDs recognized to be the brightest in the world featuring a remarkable variety in spatial distribution, package styles and color variations.
In addition, Stanley offers a variety of other optoelectronic products including LCDs and CFLs to support the most demanding instrumental panel backlighting needs. Whether you need LEDs, LCDs, or CFLs, Stanley Electric is a one-stop resource for your optoelectronic components demand.
After serving as a sales office of II Stanley in Michigan, Stanley Electric was given an expanded role in 1998 as a dedicated subsidiary of optoelectronic components for Stanley Electric of Japan. The need to meet a growing market in North and South America paved the way for Stanley Electric to develop fully extended engineering capabilities, a state-of-the-art warehouse facility, and a sales support center tied up with its nationwide field support teams. This intricate support network allows Stanley Electric to take its customers from lighting design to prototype development to delivery.
Part Number
Manufacturer
Description
Unit Price
In Stock

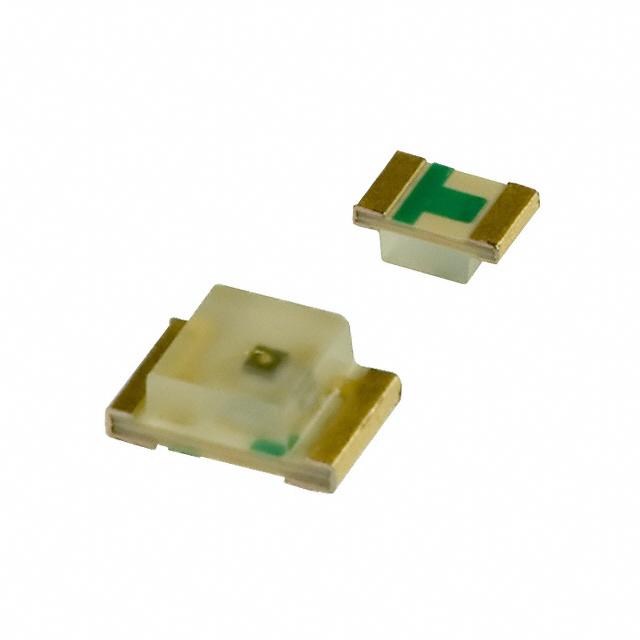

Stanley Electric
Manufacturer : Stanley Electric Co
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1112H
Part Status : Active
Color : Red
Configuration : Standard
Lens Color : White
Lens Transparency : Diffused
Millicandela Rating : 11.7mcd
Lens Style : Rectangle with Flat Top
Lens Size : 1.20mm x 1.25mm
Voltage - Forward (Vf) (Typ) : 1.7V
Current - Test : 20mA
Viewing Angle : 150°, 150°
Mounting Type : Surface Mount
Wavelength - Dominant : 647nm
Wavelength - Peak : 660nm
Features : -
Package / Case : 0805 (2012 Metric)
Supplier Device Package : 2125
Size / Dimension : 2.00mm L x 1.25mm W
Height (Max) : 0.90mm
0
144371 in stock

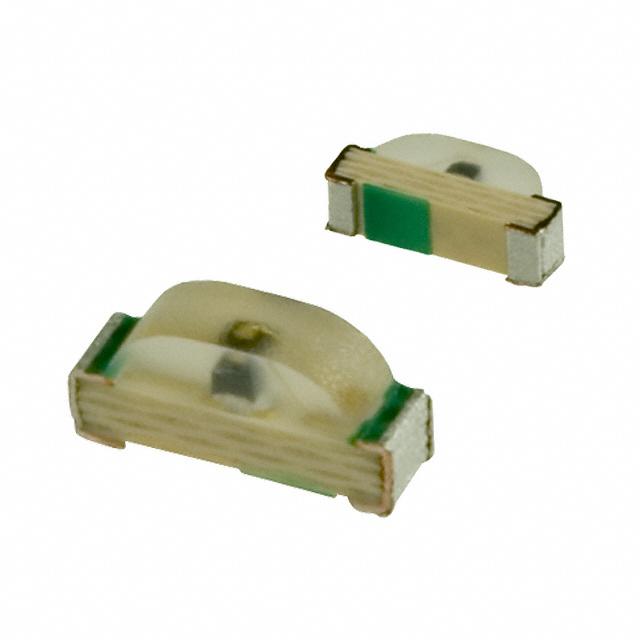

Stanley Electric
Manufacturer : Stanley Electric Co
Packaging : Tape & Reel (TR)
Series : 1113F
Part Status : Obsolete
Color : Red
Configuration : Standard
Lens Color : White
Lens Transparency : Diffused
Millicandela Rating : 11.7mcd
Lens Style : Rectangle with Domed Top
Lens Size : 1.70mm x 0.60mm
Voltage - Forward (Vf) (Typ) : 1.7V
Current - Test : 20mA
Viewing Angle : 131°, 153°
Mounting Type : Surface Mount, Right Angle
Wavelength - Dominant : 647nm
Wavelength - Peak : 660nm
Features : -
Package / Case : 2-SMD, No Lead
Supplier Device Package : -
Size / Dimension : 2.10mm L x 1.00mm W
Height (Max) : 0.60mm
0
100 in stock

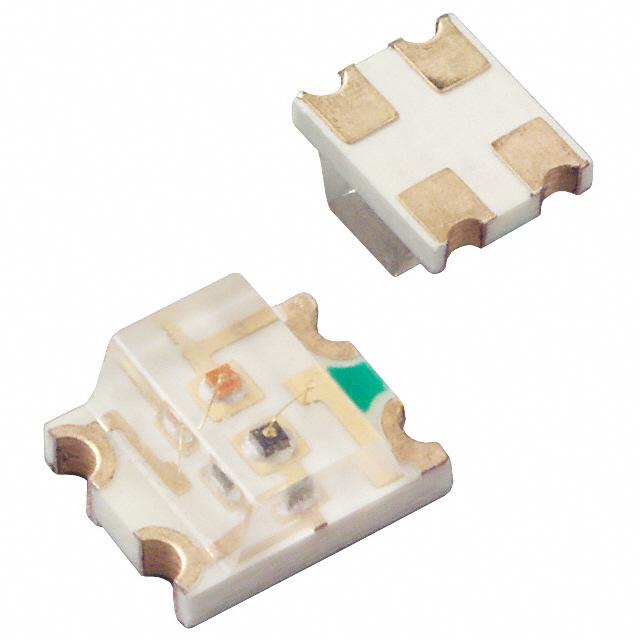

Stanley Electric
Manufacturer : Stanley Electric Co
Packaging : Tape & Reel (TR)
Series : 1201W
Part Status : Obsolete
Color : Green, Red
Configuration : Independent
Lens Color : Colorless
Lens Transparency : Clear
Millicandela Rating : 2mcd Green, 12.8mcd Red
Lens Style : Rectangle with Flat Top
Lens Size : 1.50mm x 2.50mm
Voltage - Forward (Vf) (Typ) : 2.1V Green, 1.7V Red
Current - Test : 20mA Green, 20mA Red
Viewing Angle : 156°, 149° Green, 160°, 150° Red
Mounting Type : Surface Mount
Wavelength - Dominant : 558nm Green, 647nm Red
Wavelength - Peak : 555nm Green, 660nm Red
Features : -
Package / Case : 4-SMD, No Lead
Supplier Device Package : SMD
Size / Dimension : 3.00mm L x 2.50mm W
Height (Max) : 1.90mm
0
100 in stock
Stanley Electric
Manufacturer : Stanley Electric Co
Packaging : Tape & Reel (TR)
Series : 1204W
Part Status : Obsolete
Color : Green, Red
Configuration : Independent
Lens Color : Colorless
Lens Transparency : Clear
Millicandela Rating : 4.8mcd Green, 33.6mcd Red
Lens Style : Rectangle with Flat Top
Lens Size : 1.80mm x 2.50mm
Voltage - Forward (Vf) (Typ) : 2.1V Green, 1.7V Red
Current - Test : 20mA Green, 20mA Red
Viewing Angle : 100°, 88° Green, 80°, 80° Red
Mounting Type : Surface Mount
Wavelength - Dominant : 558nm Green, 647nm Red
Wavelength - Peak : 555nm Green, 660nm Red
Features : -
Package / Case : 4-SMD, No Lead
Supplier Device Package : SMD
Size / Dimension : 3.00mm L x 2.50mm W
Height (Max) : 1.90mm
0
100 in stock
Stanley Electric
Manufacturer : Stanley Electric Co
Packaging : Tape & Reel (TR)
Series : 1211C
Part Status : Obsolete
Color : Green, Red
Configuration : Independent
Lens Color : White
Lens Transparency : Diffused
Millicandela Rating : 2.4mcd Green, 11.7mcd Red
Lens Style : Rectangle with Flat Top
Lens Size : 1.10mm x 1.50mm
Voltage - Forward (Vf) (Typ) : 2.1V Green, 1.7V Red
Current - Test : 20mA Green, 20mA Red
Viewing Angle : 168°, 139° Green, 150°, 140°, Red
Mounting Type : Surface Mount
Wavelength - Dominant : 558nm Green, 647nm Red
Wavelength - Peak : 555nm Green, 660nm Red
Features : -
Package / Case : 0606 (1616 Metric)
Supplier Device Package : -
Size / Dimension : 1.60mm L x 1.50mm W
Height (Max) : 0.80mm
0
100 in stock
Stanley Electric
Manufacturer : Stanley Electric Co
Packaging : -
Series : -
Part Status : Last Time Buy
Color : Red, Green, Blue (RGB)
Configuration : Independent
Lens Color : White
Lens Transparency : -
Millicandela Rating : 35mcd Red, 95mcd Green, 24mcd Blue
Lens Style : Rectangle with Flat Top
Lens Size : 2.10mm x 1.20mm
Voltage - Forward (Vf) (Typ) : 1.9V Red, 3.1V Green, 3.05V Blue
Current - Test : 5mA Red, 5mA Green, 5mA Blue
Viewing Angle : -
Mounting Type : Surface Mount
Wavelength - Dominant : -
Wavelength - Peak : -
Features : -
Package / Case : 6-SMD, No Lead
Supplier Device Package : -
Size / Dimension : 2.10mm L x 1.65mm W
Height (Max) : 0.47mm
0
100 in stock
Stanley Electric
Manufacturer : Stanley Electric Co
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1201W
Part Status : Active
Color : Green, Red
Configuration : Independent
Lens Color : Colorless
Lens Transparency : Clear
Millicandela Rating : 4.8mcd Green, 12.8mcd Red
Lens Style : Rectangle with Flat Top
Lens Size : 1.50mm x 2.50mm
Voltage - Forward (Vf) (Typ) : 2.1V Green, 1.7V Red
Current - Test : 20mA Green, 20mA Red
Viewing Angle : 156°, 149° Green, 160°, 150° Red
Mounting Type : Surface Mount
Wavelength - Dominant : 567nm Green, 647nm Red
Wavelength - Peak : 560nm Green, 660nm Red
Features : -
Package / Case : 4-SMD, No Lead
Supplier Device Package : SMD
Size / Dimension : 3.00mm L x 2.50mm W
Height (Max) : 1.90mm
0
14599 in stock
Stanley Electric
Manufacturer : Stanley Electric Co
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1204W
Part Status : Active
Color : Green, Red
Configuration : Independent
Lens Color : Colorless
Lens Transparency : Clear
Millicandela Rating : 12mcd Green, 33.6mcd Red
Lens Style : Rectangle with Flat Top
Lens Size : 1.80mm x 2.50mm
Voltage - Forward (Vf) (Typ) : 2.1V Green, 1.7V Red
Current - Test : 20mA Green, 20mA Red
Viewing Angle : 100°, 88° Green, 80°, 80° Red
Mounting Type : Surface Mount
Wavelength - Dominant : 567nm Green, 647nm Red
Wavelength - Peak : 560nm Green, 660nm Red
Features : -
Package / Case : 4-SMD, No Lead
Supplier Device Package : SMD
Size / Dimension : 3.00mm L x 2.50mm W
Height (Max) : 1.90mm
0
45156 in stock

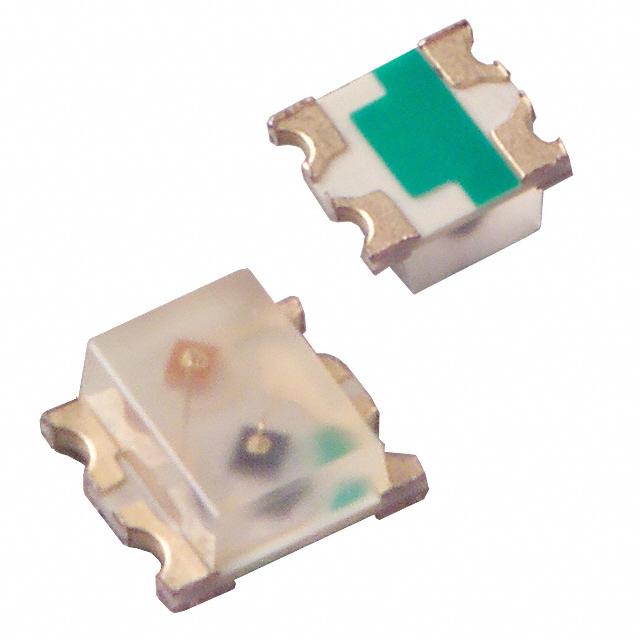

Stanley Electric
Manufacturer : Stanley Electric Co
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1211C
Part Status : Active
Color : Green, Red
Configuration : Independent
Lens Color : White
Lens Transparency : Diffused
Millicandela Rating : 6.4mcd Green, 11.7mcd Red
Lens Style : Rectangle with Flat Top
Lens Size : 1.10mm x 1.50mm
Voltage - Forward (Vf) (Typ) : 2.1V Green, 1.7V Red
Current - Test : 20mA Green, 20mA Red
Viewing Angle : 168°, 139° Green, 150°, 140°, Red
Mounting Type : Surface Mount
Wavelength - Dominant : 567nm Green, 647nm Red
Wavelength - Peak : 560nm Green, 660nm Red
Features : -
Package / Case : 0606 (1616 Metric)
Supplier Device Package : -
Size / Dimension : 1.60mm L x 1.50mm W
Height (Max) : 0.80mm
0
96212 in stock
Stanley Electric
Manufacturer : Stanley Electric Co
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1201W
Part Status : Active
Color : Green, Red
Configuration : Common Anode
Lens Color : Colorless
Lens Transparency : Clear
Millicandela Rating : 8mcd Green, 12.8mcd Red
Lens Style : Rectangle with Flat Top
Lens Size : 1.50mm x 2.50mm
Voltage - Forward (Vf) (Typ) : 2.1V Green, 1.7V Red
Current - Test : 20mA Green, 20mA Red
Viewing Angle : 156°, 149° Green, 160°, 150° Red
Mounting Type : Surface Mount
Wavelength - Dominant : 572nm Green, 647nm Red
Wavelength - Peak : 570nm Green, 660nm Red
Features : -
Package / Case : 4-SMD, No Lead
Supplier Device Package : SMD
Size / Dimension : 3.00mm L x 2.50mm W
Height (Max) : 1.90mm
0
5000 in stock
Stanley Electric
Manufacturer : Stanley Electric Co
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1211C
Part Status : Active
Color : Green, Red
Configuration : Independent
Lens Color : White
Lens Transparency : Diffused
Millicandela Rating : 11.7mcd Green, 11.7mcd Red
Lens Style : Rectangle with Flat Top
Lens Size : 1.10mm x 1.50mm
Voltage - Forward (Vf) (Typ) : 2.1V Green, 1.7V Red
Current - Test : 20mA Green, 20mA Red
Viewing Angle : 168°, 139° Green, 150°, 140° Red
Mounting Type : Surface Mount
Wavelength - Dominant : 572nm Green, 647nm Red
Wavelength - Peak : 570nm Green, 660nm Red
Features : -
Package / Case : 0606 (1616 Metric)
Supplier Device Package : -
Size / Dimension : 1.60mm L x 1.50mm W
Height (Max) : 0.80mm
0
71940 in stock

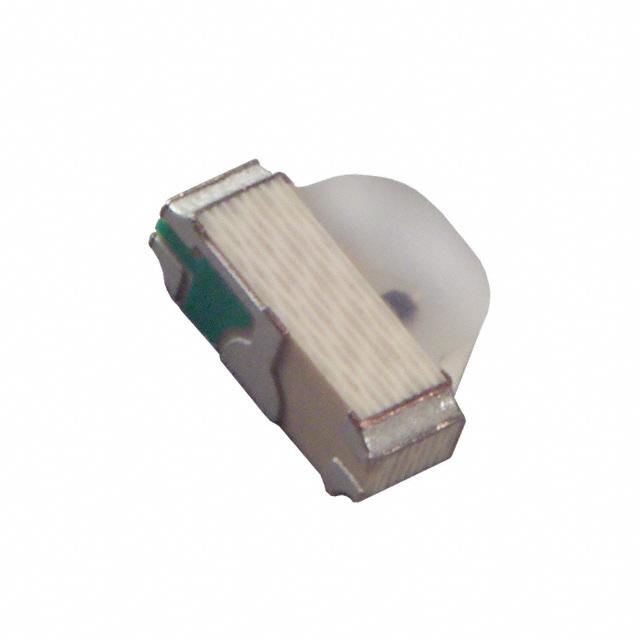

Stanley Electric
Manufacturer : Stanley Electric Co
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1211F
Part Status : Active
Color : Green, Red
Configuration : Common Anode
Lens Color : White
Lens Transparency : Diffused
Millicandela Rating : 8.8mcd Green, 17.6mcd Red
Lens Style : Rectangle with Domed Top
Lens Size : 2.00mm x 1.00mm
Voltage - Forward (Vf) (Typ) : 2.1V Green, 1.7V Red
Current - Test : 20mA Green, 20mA Red
Viewing Angle : 148°, 140° Green, 149°, 143° Red
Mounting Type : Surface Mount, Right Angle
Wavelength - Dominant : 572nm Green, 647nm Red
Wavelength - Peak : 570nm Green, 660nm Red
Features : -
Package / Case : 2-SMD, No Lead
Supplier Device Package : 2-SMD
Size / Dimension : 3.00mm L x 2.00mm W
Height (Max) : 1.15mm
0
12895 in stock
