Stanley Electric
- Stanley Electric is the global leader in the design and manufacturer of LEDs offering a wide range of LEDs recognized to be the brightest in the world featuring a remarkable variety in spatial distribution, package styles and color variations.
In addition, Stanley offers a variety of other optoelectronic products including LCDs and CFLs to support the most demanding instrumental panel backlighting needs. Whether you need LEDs, LCDs, or CFLs, Stanley Electric is a one-stop resource for your optoelectronic components demand.
After serving as a sales office of II Stanley in Michigan, Stanley Electric was given an expanded role in 1998 as a dedicated subsidiary of optoelectronic components for Stanley Electric of Japan. The need to meet a growing market in North and South America paved the way for Stanley Electric to develop fully extended engineering capabilities, a state-of-the-art warehouse facility, and a sales support center tied up with its nationwide field support teams. This intricate support network allows Stanley Electric to take its customers from lighting design to prototype development to delivery.
Part Number
Manufacturer
Description
Unit Price
In Stock
Stanley Electric
Manufacturer : Stanley Electric Co
Packaging : -
Series : 141S
Part Status : Obsolete
Number of Characters : 1
Size / Dimension : 0.51" L x 0.38" W x 0.28" H (13.0mm x 9.6mm x 7.0mm)
Digit/Alpha Size : 0.40" (10.16mm)
Display Type : 7-Segment
Common Pin : Common Cathode
Color : Red
Voltage - Forward (Vf) (Typ) : 1.7V
Current - Test : 10mA
Millicandela Rating : 3.2mcd
Wavelength - Peak : 660nm
Power Dissipation (Max) : 40mW
Package / Case : -
0
100 in stock
Stanley Electric
Manufacturer : Stanley Electric Co
Packaging : Tray
Series : -
Part Status : Obsolete
Number of Characters : 1
Size / Dimension : 0.512" H x 0.378" W x 0.276" D (13.00mm x 9.60mm x 7.00mm)
Digit/Alpha Size : 0.40" (10.16mm)
Display Type : 7-Segment
Common Pin : Common Cathode
Color : Red
Voltage - Forward (Vf) (Typ) : 1.7V
Current - Test : 10mA
Millicandela Rating : 6.4mcd
Wavelength - Peak : 660nm
Power Dissipation (Max) : 40mW
Package / Case : 10-DIP (0.300", 7.62mm)
0
100 in stock
Stanley Electric
Manufacturer : Stanley Electric Co
Packaging : Tray
Series : -
Part Status : Obsolete
Number of Characters : 1
Size / Dimension : 0.748" H x 0.492" W x 0.315" D (19.00mm x 12.50mm x 8.00mm)
Digit/Alpha Size : 0.60" (15.24mm)
Display Type : 7-Segment
Common Pin : Common Cathode
Color : Red
Voltage - Forward (Vf) (Typ) : 1.7V
Current - Test : 20mA
Millicandela Rating : 12mcd
Wavelength - Peak : 660nm
Power Dissipation (Max) : 60mW
Package / Case : 10-DIP (0.600", 15.24mm)
0
100 in stock
Stanley Electric
Manufacturer : Stanley Electric Co
Packaging : Bulk
Series : -
Part Status : Active
Number of Characters : 2
Size / Dimension : 0.748" H x 0.992" W x 0.315" D (19.00mm x 25.20mm x 8.00mm)
Digit/Alpha Size : 0.60" (15.24mm)
Display Type : 7-Segment
Common Pin : Common Cathode
Color : Red
Voltage - Forward (Vf) (Typ) : 1.7V
Current - Test : 20mA
Millicandela Rating : 12mcd
Wavelength - Peak : 660nm
Power Dissipation (Max) : 60mW
Package / Case : 18-DIP
0
915 in stock
Stanley Electric
Manufacturer : Stanley Electric Co
Packaging : Tray
Series : -
Part Status : Obsolete
Number of Characters : +/-1 (overflow)
Size / Dimension : 0.748" H x 0.492" W x 0.248" D (19.00mm x 12.50mm x 6.30mm)
Digit/Alpha Size : 0.39" (10.00mm)
Display Type : 7-Segment
Common Pin : Universal
Color : Red
Voltage - Forward (Vf) (Typ) : 1.7V
Current - Test : 20mA
Millicandela Rating : 6.4mcd
Wavelength - Peak : 660nm
Power Dissipation (Max) : 60mW
Package / Case : 10-DIP (0.600", 15.24mm)
0
100 in stock
Stanley Electric
Manufacturer : Stanley Electric Co
Packaging : Tray
Series : -
Part Status : Obsolete
Number of Characters : +/-1 (overflow)
Size / Dimension : 0.748" H x 0.492" W x 0.315" D (19.00mm x 12.50mm x 8.00mm)
Digit/Alpha Size : 0.60" (15.24mm)
Display Type : 7-Segment
Common Pin : Universal
Color : Red
Voltage - Forward (Vf) (Typ) : 1.7V
Current - Test : 20mA
Millicandela Rating : 12mcd
Wavelength - Peak : 660nm
Power Dissipation (Max) : 60mW
Package / Case : 10-DIP (0.600", 15.24mm)
0
100 in stock
Stanley Electric
Manufacturer : Stanley Electric Co
Packaging : Tray
Series : -
Part Status : Obsolete
Number of Characters : +/-1 (overflow)
Size / Dimension : 0.748" H x 0.492" W x 0.315" D (19.00mm x 12.50mm x 8.00mm)
Digit/Alpha Size : 0.60" (15.24mm)
Display Type : 7-Segment
Common Pin : Universal
Color : Red
Voltage - Forward (Vf) (Typ) : 1.7V
Current - Test : 20mA
Millicandela Rating : 12mcd
Wavelength - Peak : 660nm
Power Dissipation (Max) : 60mW
Package / Case : 10-DIP (0.600", 15.24mm)
0
100 in stock

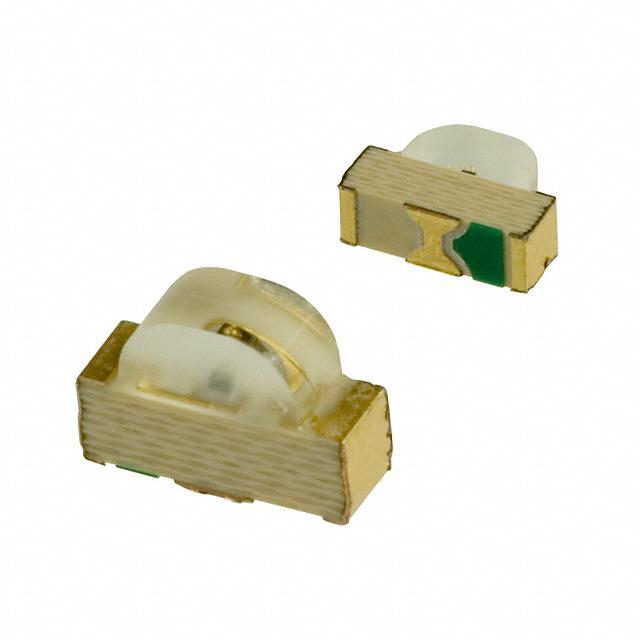

Stanley Electric
Manufacturer : Stanley Electric Co
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1101F
Part Status : Active
Color : Green
Configuration : Standard
Lens Color : Colorless
Lens Transparency : Clear
Millicandela Rating : 5.2mcd
Lens Style : Rectangle with Domed Top
Lens Size : 2.00mm x 1.00mm
Voltage - Forward (Vf) (Typ) : 2.1V
Current - Test : 20mA
Viewing Angle : 149°, 130°
Mounting Type : Surface Mount, Right Angle
Wavelength - Dominant : 567nm
Wavelength - Peak : 560nm
Features : -
Package / Case : 2-SMD, No Lead
Supplier Device Package : 2-SMD
Size / Dimension : 3.00mm L x 2.00mm W
Height (Max) : 1.00mm
0
20019 in stock

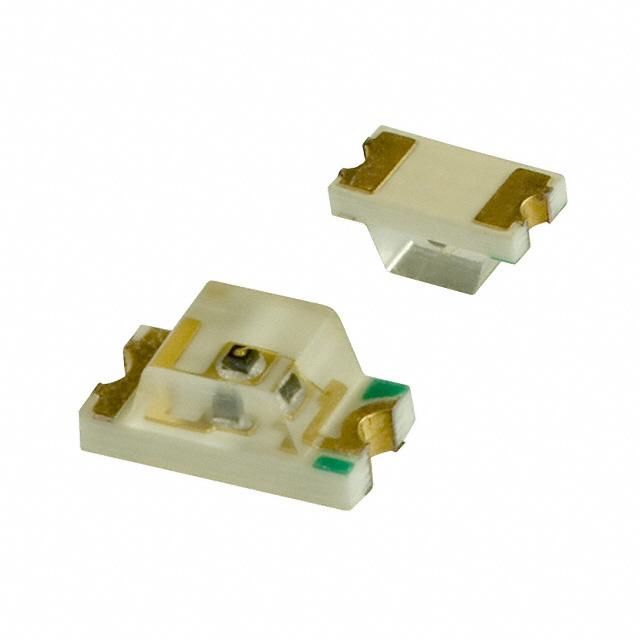

Stanley Electric
Manufacturer : Stanley Electric Co
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1101W
Part Status : Active
Color : Green
Configuration : Standard
Lens Color : Colorless
Lens Transparency : Clear
Millicandela Rating : 4.8mcd
Lens Style : Square with Flat Top
Lens Size : 1.50mm
Voltage - Forward (Vf) (Typ) : 2.1V
Current - Test : 20mA
Viewing Angle : 144°, 137°
Mounting Type : Surface Mount
Wavelength - Dominant : 567nm
Wavelength - Peak : 560nm
Features : -
Package / Case : 1206 (3016 Metric)
Supplier Device Package : 3216 Type
Size / Dimension : 3.00mm L x 1.50mm W
Height (Max) : 1.90mm
0
42533 in stock

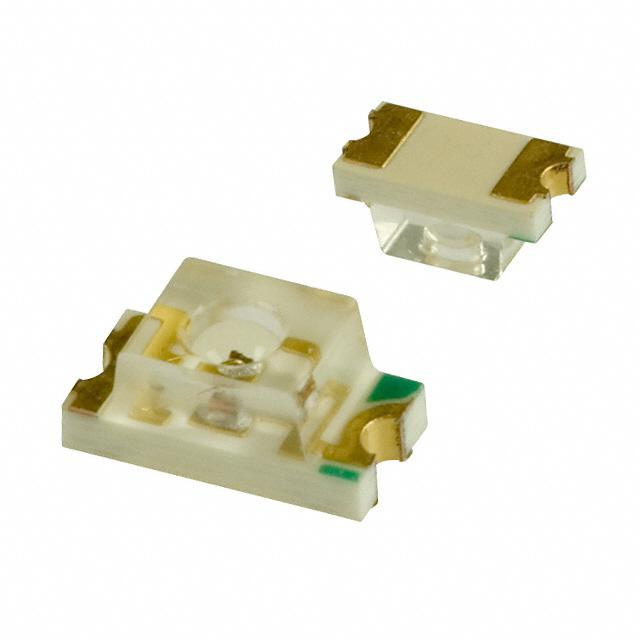

Stanley Electric
Manufacturer : Stanley Electric Co
Packaging : Tape & Reel (TR)
Series : 1102W
Part Status : Obsolete
Color : Green
Configuration : Standard
Lens Color : Colorless
Lens Transparency : Clear
Millicandela Rating : 12mcd
Lens Style : Rectangle with Flat Top
Lens Size : 1.80mm x 1.50mm
Voltage - Forward (Vf) (Typ) : 2.1V
Current - Test : 20mA
Viewing Angle : 69°, 85°
Mounting Type : Surface Mount
Wavelength - Dominant : 567nm
Wavelength - Peak : 560nm
Features : -
Package / Case : 1206 (3016 Metric)
Supplier Device Package : 3216 Type
Size / Dimension : 3.00mm L x 1.50mm W
Height (Max) : 1.90mm
0
100 in stock

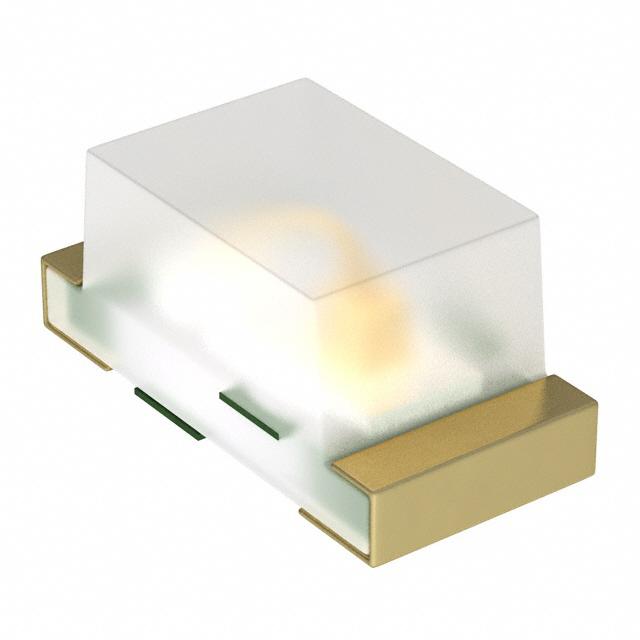

Stanley Electric
Manufacturer : Stanley Electric Co
Packaging : Tape & Reel (TR)
Series : 1111C
Part Status : Obsolete
Color : Green
Configuration : Standard
Lens Color : White
Lens Transparency : Diffused
Millicandela Rating : 6.4mcd
Lens Style : Rectangle with Flat Top
Lens Size : 1.10mm x 0.80mm
Voltage - Forward (Vf) (Typ) : 2.1V
Current - Test : 20mA
Viewing Angle : 150°, 150°
Mounting Type : Surface Mount
Wavelength - Dominant : 567nm
Wavelength - Peak : 560nm
Features : -
Package / Case : 0603 (1608 Metric)
Supplier Device Package : 1608
Size / Dimension : 1.60mm L x 0.80mm W
Height (Max) : 0.80mm
0
100 in stock

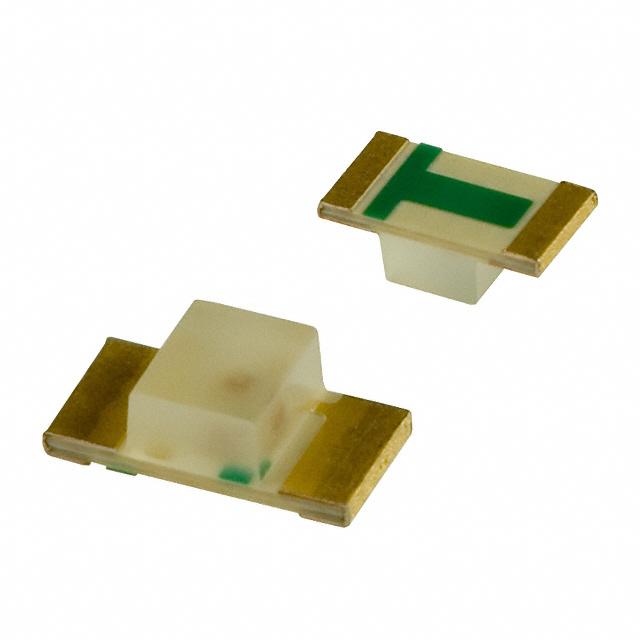

Stanley Electric
Manufacturer : Stanley Electric Co
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 1111R
Part Status : Active
Color : Green
Configuration : Standard
Lens Color : White
Lens Transparency : Diffused
Millicandela Rating : 6.9mcd
Lens Style : Rectangle with Flat Top
Lens Size : 1.40mm x 1.60mm
Voltage - Forward (Vf) (Typ) : 2.1V
Current - Test : 20mA
Viewing Angle : 145°, 149°
Mounting Type : Surface Mount, Bottom Entry
Wavelength - Dominant : 567nm
Wavelength - Peak : 560nm
Features : -
Package / Case : 1206 (3216 Metric)
Supplier Device Package : 3216 Type
Size / Dimension : 3.20mm L x 1.60mm W
Height (Max) : 1.30mm
0
11361 in stock
