Sprague Goodman
- Sprague Goodman is a globally recognized leader that designs, develops and manufactures passive components such as Non-Magnetic High Voltage Variable Capacitors, Trimmer Capacitors, Varactor Diodes, Inductors, Transformers and Tuning Elements for MRI, NMR, Cryogenic, RF, Military and Microwave applications. A dedicated Custom Products Division run by engineers to work with engineers and advise on projects from the ground up or make modifications to existing products. The production facility in Westbury, New York has been surveyed and approved by the Department of Defense, and numerous customers. Sprague-Goodman has been awarded "preferred vendor" status by many major electronic manufacturers.
Sprague Goodman offers the shortest lead times in the industry while maintaining the highest quality standards. Sprague-Goodman is an ISO 9001 registered firm. We maintain a highly trained quality department that meets the inspection requirements of MIL-I-45208. Many models have been approved to U.S. Military Specification MIL-PRF-14409, and are listed on the Qualified Products List (QPL).
Part Number
Manufacturer
Description
Unit Price
In Stock
Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : PISTONCAP®
Part Status : Active
Capacitance Range : 0.8 ~ 30pF
Adjustment Type : Side
Voltage - Rated : 750V
Dielectric Material : Glass
Q @ Freq : 350 @ 20MHz
Size / Dimension : 0.312" Dia (7.92mm)
Height - Seated (Max) : 1.640" (41.66mm)
Operating Temperature : -55°C ~ 125°C
Mounting Type : Through Hole
Features : General Purpose
0
55 in stock

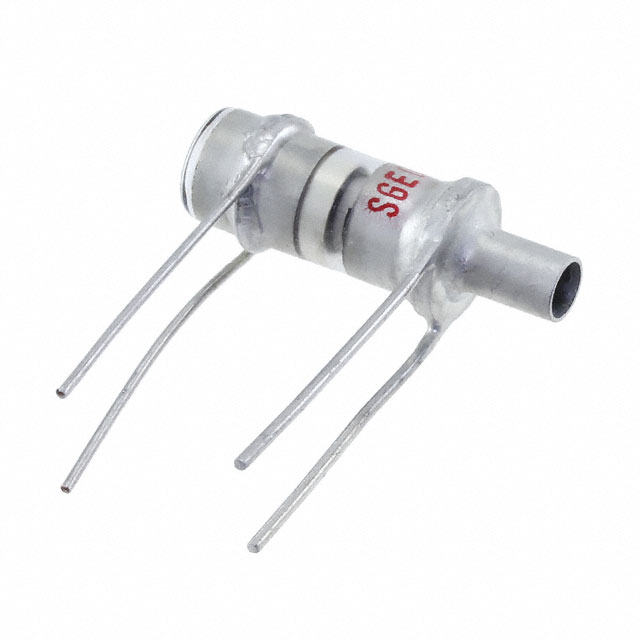

Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : PISTONCAP®
Part Status : Active
Capacitance Range : 0.8 ~ 8.5pF
Adjustment Type : Side
Voltage - Rated : 750V
Dielectric Material : Glass
Q @ Freq : 500 @ 20MHz
Size / Dimension : 0.312" Dia (7.92mm)
Height - Seated (Max) : 0.673" (17.10mm)
Operating Temperature : -55°C ~ 125°C
Mounting Type : Surface Mount
Features : General Purpose
0
20 in stock

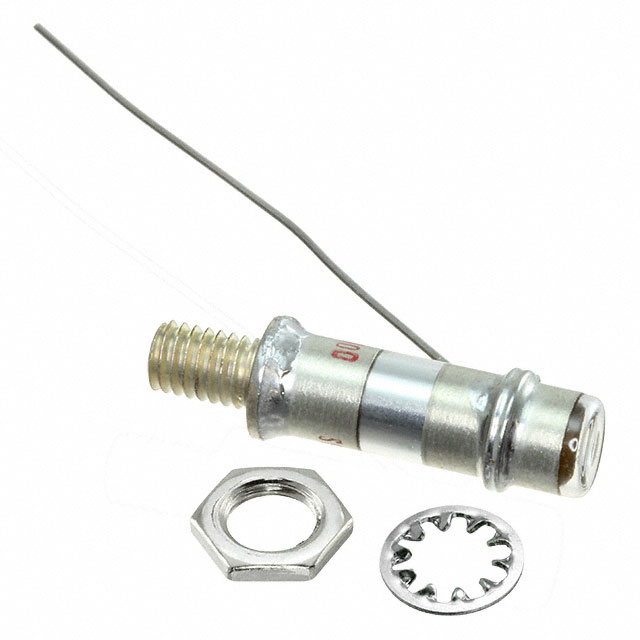

Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : PISTONCAP®
Part Status : Active
Capacitance Range : 0.8 ~ 12pF
Adjustment Type : Top
Voltage - Rated : 750V
Dielectric Material : Glass
Q @ Freq : 500 @ 20MHz
Size / Dimension : 0.312" Dia (7.92mm)
Height - Seated (Max) : 0.750" (19.05mm)
Operating Temperature : -55°C ~ 125°C
Mounting Type : User Defined
Features : General Purpose
0
40 in stock

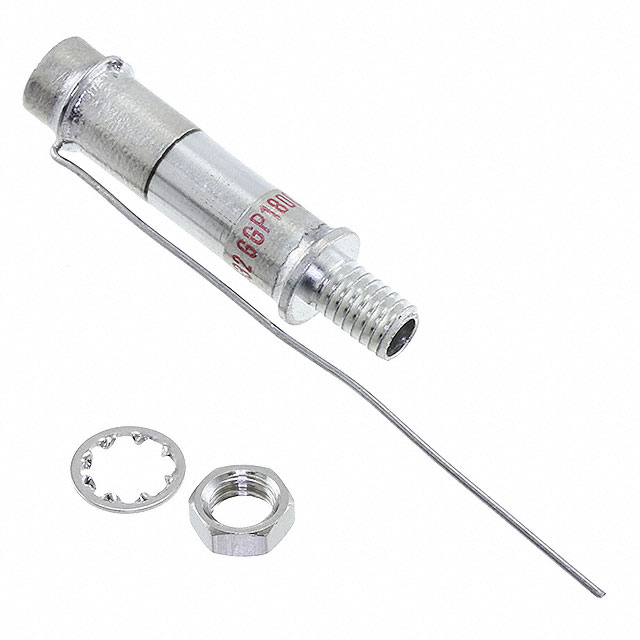

Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : PISTONCAP®
Part Status : Active
Capacitance Range : 0.8 ~ 18pF
Adjustment Type : Top
Voltage - Rated : 750V
Dielectric Material : Glass
Q @ Freq : 500 @ 20MHz
Size / Dimension : 0.312" Dia (7.92mm)
Height - Seated (Max) : 0.984" (24.99mm)
Operating Temperature : -55°C ~ 125°C
Mounting Type : User Defined
Features : General Purpose
0
94 in stock

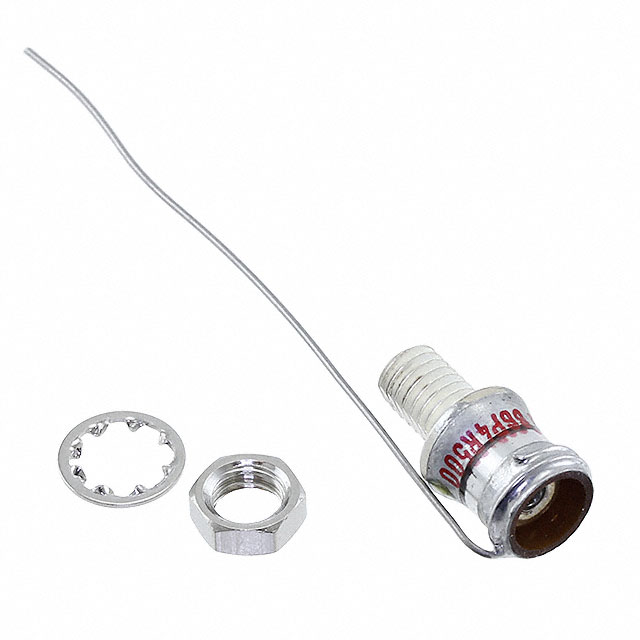

Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : PISTONCAP®
Part Status : Active
Capacitance Range : 0.8 ~ 4.5pF
Adjustment Type : Top
Voltage - Rated : 750V
Dielectric Material : Glass
Q @ Freq : 500 @ 20MHz
Size / Dimension : 0.312" Dia (7.92mm)
Height - Seated (Max) : 0.297" (7.54mm)
Operating Temperature : -55°C ~ 125°C
Mounting Type : User Defined
Features : General Purpose
0
14 in stock
Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : PISTONCAP®
Part Status : Active
Capacitance Range : 0.8 ~ 12pF
Adjustment Type : Side
Voltage - Rated : 1250V
Dielectric Material : Glass
Q @ Freq : 500 @ 20MHz
Size / Dimension : 0.312" Dia (7.92mm)
Height - Seated (Max) : 0.812" (20.62mm)
Operating Temperature : -55°C ~ 125°C
Mounting Type : User Defined
Features : General Purpose
0
9 in stock

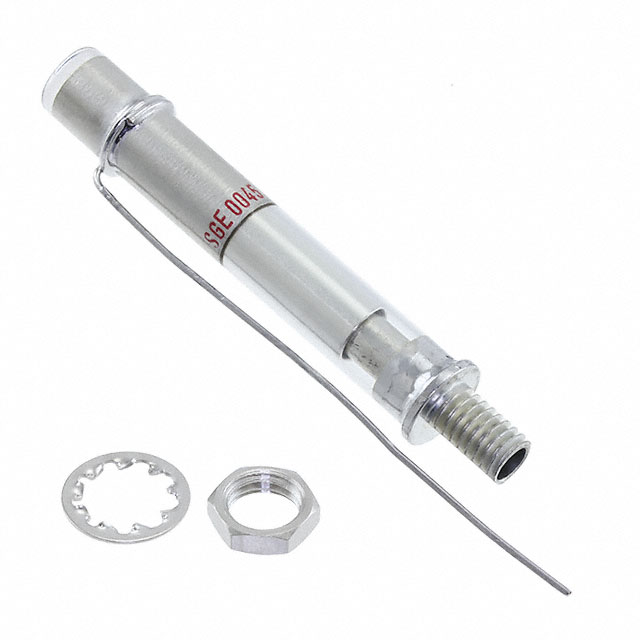

Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : PISTONCAP®
Part Status : Active
Capacitance Range : 0.8 ~ 30pF
Adjustment Type : Side
Voltage - Rated : 1250V
Dielectric Material : Glass
Q @ Freq : 350 @ 20MHz
Size / Dimension : 0.312" Dia (7.92mm)
Height - Seated (Max) : 1.656" (42.06mm)
Operating Temperature : -55°C ~ 125°C
Mounting Type : User Defined
Features : General Purpose
0
19 in stock
Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : PISTONCAP®
Part Status : Active
Capacitance Range : 0.8 ~ 4.5pF
Adjustment Type : Side
Voltage - Rated : 750V
Dielectric Material : Glass
Q @ Freq : 500 @ 20MHz
Size / Dimension : 0.312" Dia (7.92mm)
Height - Seated (Max) : 0.359" (9.12mm)
Operating Temperature : -55°C ~ 125°C
Mounting Type : User Defined
Features : General Purpose
0
99 in stock

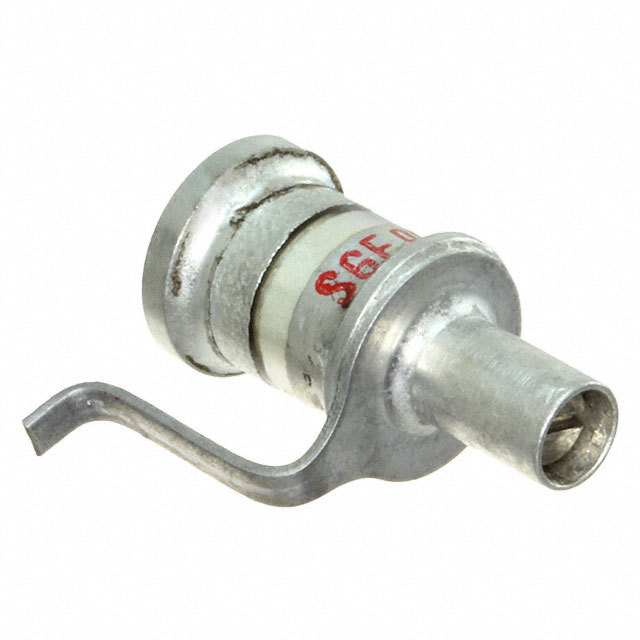

Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : PISTONCAP®
Part Status : Active
Capacitance Range : 0.8 ~ 4.5pF
Adjustment Type : Top
Voltage - Rated : 750V
Dielectric Material : Glass
Q @ Freq : 500 @ 20MHz
Size / Dimension : 0.312" Dia (7.92mm)
Height - Seated (Max) : 0.383" (9.73mm)
Operating Temperature : -55°C ~ 125°C
Mounting Type : Surface Mount
Features : Sealed
0
100 in stock
Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : PISTONCAP®
Part Status : Active
Capacitance Range : 0.8 ~ 8.5pF
Adjustment Type : Side
Voltage - Rated : 1250V
Dielectric Material : Glass
Q @ Freq : 500 @ 20MHz
Size / Dimension : 0.312" Dia (7.92mm)
Height - Seated (Max) : 0.641" (16.28mm)
Operating Temperature : -55°C ~ 125°C
Mounting Type : Through Hole
Features : Sealed
0
22 in stock
Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : PISTONCAP®
Part Status : Active
Capacitance Range : 0.8 ~ 8.5pF
Adjustment Type : Side
Voltage - Rated : 1250V
Dielectric Material : Glass
Q @ Freq : 500 @ 20MHz
Size / Dimension : 0.312" Dia (7.92mm)
Height - Seated (Max) : 0.673" (17.10mm)
Operating Temperature : -55°C ~ 125°C
Mounting Type : Surface Mount
Features : Sealed
0
8 in stock
Sprague Goodman
Manufacturer : Sprague-Goodman
Packaging : Bulk
Series : PISTONCAP®
Part Status : Active
Capacitance Range : 0.7 ~ 9pF
Adjustment Type : Top
Voltage - Rated : 750V
Dielectric Material : Glass
Q @ Freq : 500 @ 20MHz
Size / Dimension : 0.375" Dia (9.52mm)
Height - Seated (Max) : 0.656" (16.66mm)
Operating Temperature : -55°C ~ 125°C
Mounting Type : User Defined
Features : General Purpose
0
7 in stock
