Seoul Semiconductor
- Seoul Semiconductor manufacturers and packages a wide selection of light emitting diodes (LEDs) for the automotive, lighting, appliance, mobile, signage, and back lighting units (BLU) markets. The company is the world’s fifth largest LED supplier, holding more than 10, 000 patents globally, while offering a wide range of LED technology and production capacity in areas such as "nPola", deep UV LEDs, and "Acrich", the world’s first commercially produced AC LED.
Part Number
Manufacturer
Description
Unit Price
In Stock
Seoul Semiconductor
Manufacturer : Seoul Semiconductor Inc.
Packaging : Tape & Reel (TR)
Series : Z Power, P4
Part Status : Obsolete
Color : White, Cool
CCT (K) : 6300K
Flux @ 85°C, Current - Test : -
Flux @ 25°C, Current - Test : 105 lm (Typ)
Current - Test : 350mA
Voltage - Forward (Vf) (Typ) : 3.25V
Lumens/Watt @ Current - Test : 92 lm/W
CRI (Color Rendering Index) : 75 (Typ)
Current - Max : 1A
Viewing Angle : 127°
Mounting Type : Surface Mount
Package / Case : 2-SMD, Gull Wing Exposed Pad
Supplier Device Package : -
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.208" (5.28mm)
0
100 in stock

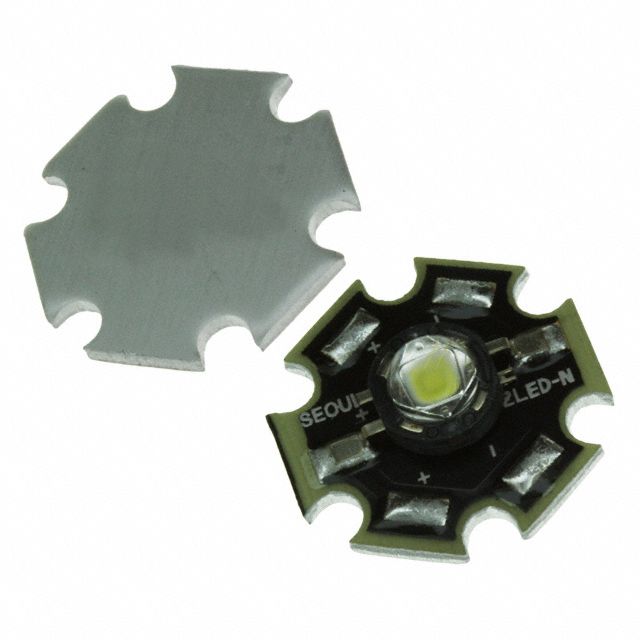

Seoul Semiconductor
Manufacturer : Seoul Semiconductor Inc.
Packaging : Tape & Reel (TR)
Series : Z Power
Part Status : Obsolete
Type : LED Module
Color : White, Cool
CCT (K) : 6300K
Wavelength : -
Configuration : Starboard
Flux @ Current/Temperature - Test : -
Current - Test : 350mA
Temperature - Test : -
Voltage - Forward (Vf) (Typ) : 3.25V
Lumens/Watt @ Current - Test : -
Current - Max : 1A
CRI (Color Rendering Index) : 70
Viewing Angle : 120°
Features : -
Size / Dimension : 19.90mm L x 19.90mm W
Height : 6.78mm
Light Emitting Surface (LES) : 6.00mm Diameter
Lens Type : Domed
0
100 in stock
Seoul Semiconductor
Manufacturer : Seoul Semiconductor Inc.
Packaging : Tape & Reel (TR)
Series : Z Power, P4
Part Status : Obsolete
Type : LED Module
Color : White, Cool
CCT (K) : 6300K
Wavelength : -
Configuration : Starboard
Flux @ Current/Temperature - Test : 100 lm (Typ)
Current - Test : 350mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 3.25V
Lumens/Watt @ Current - Test : 88 lm/W
Current - Max : 1A
CRI (Color Rendering Index) : 75 (Typ)
Viewing Angle : 127°
Features : -
Size / Dimension : 19.90mm Diameter
Height : 6.78mm
Light Emitting Surface (LES) : 5.60mm Diameter
Lens Type : Domed
0
100 in stock
Seoul Semiconductor
Manufacturer : Seoul Semiconductor Inc.
Packaging : Tape & Reel (TR)
Series : Z Power, P4
Part Status : Obsolete
Type : LED Module
Color : White, Cool
CCT (K) : 6300K
Wavelength : -
Configuration : Starboard
Flux @ Current/Temperature - Test : 100 lm (Typ)
Current - Test : 350mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 3.25V
Lumens/Watt @ Current - Test : 88 lm/W
Current - Max : 1A
CRI (Color Rendering Index) : 75 (Typ)
Viewing Angle : 127°
Features : -
Size / Dimension : 19.90mm Diameter
Height : 6.78mm
Light Emitting Surface (LES) : 5.60mm Diameter
Lens Type : Domed
0
100 in stock
Seoul Semiconductor
Manufacturer : Seoul Semiconductor Inc.
Packaging : Tape & Reel (TR)
Series : Z Power, P4
Part Status : Obsolete
Type : LED Module
Color : White, Cool
CCT (K) : 6300K
Wavelength : -
Configuration : Starboard
Flux @ Current/Temperature - Test : 100 lm (Typ)
Current - Test : 350mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 3.25V
Lumens/Watt @ Current - Test : 88 lm/W
Current - Max : 1A
CRI (Color Rendering Index) : 75 (Typ)
Viewing Angle : 127°
Features : -
Size / Dimension : 19.90mm Diameter
Height : 6.78mm
Light Emitting Surface (LES) : 5.60mm Diameter
Lens Type : Domed
0
100 in stock
Seoul Semiconductor
Manufacturer : Seoul Semiconductor Inc.
Packaging : Tape & Reel (TR)
Series : Z Power, P4
Part Status : Obsolete
Color : White, Cool
CCT (K) : 6300K
Flux @ 85°C, Current - Test : -
Flux @ 25°C, Current - Test : 96 lm (91 lm ~ 100 lm)
Current - Test : 350mA
Voltage - Forward (Vf) (Typ) : 3.3V
Lumens/Watt @ Current - Test : 83 lm/W
CRI (Color Rendering Index) : 73 (Typ)
Current - Max : 800mA
Viewing Angle : 95°
Mounting Type : Surface Mount
Package / Case : 2-SMD, Gull Wing
Supplier Device Package : -
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.255" (6.48mm)
0
100 in stock
Seoul Semiconductor
Manufacturer : Seoul Semiconductor Inc.
Packaging : Tape & Reel (TR)
Series : Z Power, P4
Part Status : Obsolete
Color : White, Cool
CCT (K) : 6300K
Flux @ 85°C, Current - Test : -
Flux @ 25°C, Current - Test : 105 lm (100 lm ~ 109 lm)
Current - Test : 350mA
Voltage - Forward (Vf) (Typ) : 3.3V
Lumens/Watt @ Current - Test : 91 lm/W
CRI (Color Rendering Index) : 73 (Typ)
Current - Max : 800mA
Viewing Angle : 95°
Mounting Type : Surface Mount
Package / Case : 2-SMD, Gull Wing
Supplier Device Package : -
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.255" (6.48mm)
0
100 in stock
Seoul Semiconductor
Manufacturer : Seoul Semiconductor Inc.
Packaging : Tape & Reel (TR)
Series : Z Power P7
Part Status : Obsolete
Color : White, Cool
CCT (K) : 6300K
Flux @ 85°C, Current - Test : -
Flux @ 25°C, Current - Test : 700 lm (Typ)
Current - Test : 2.8A
Voltage - Forward (Vf) (Typ) : 3.6V
Lumens/Watt @ Current - Test : 69 lm/W
CRI (Color Rendering Index) : 70 (Typ)
Current - Max : 2.8A
Viewing Angle : 130°
Mounting Type : Surface Mount
Package / Case : 4-SMD, Gull Wing
Supplier Device Package : -
Size / Dimension : 0.472" Dia (12.00mm)
Height - Seated (Max) : 0.265" (6.74mm)
0
100 in stock
Seoul Semiconductor
Manufacturer : Seoul Semiconductor Inc.
Packaging : Tape & Reel (TR)
Series : Z Power P7
Part Status : Obsolete
Color : White, Cool
CCT (K) : 6300K
Flux @ 85°C, Current - Test : -
Flux @ 25°C, Current - Test : 700 lm (Typ)
Current - Test : 2.8A
Voltage - Forward (Vf) (Typ) : 3.6V
Lumens/Watt @ Current - Test : 69 lm/W
CRI (Color Rendering Index) : 70 (Typ)
Current - Max : 2.8A
Viewing Angle : 130°
Mounting Type : Surface Mount
Package / Case : 4-SMD, Gull Wing
Supplier Device Package : -
Size / Dimension : 0.472" Dia (12.00mm)
Height - Seated (Max) : 0.265" (6.74mm)
0
100 in stock
Seoul Semiconductor
Manufacturer : Seoul Semiconductor Inc.
Packaging : Tape & Reel (TR)
Series : Z Power P7
Part Status : Obsolete
Color : White, Cool
CCT (K) : 6300K
Flux @ 85°C, Current - Test : -
Flux @ 25°C, Current - Test : 700 lm (Typ)
Current - Test : 2.8A
Voltage - Forward (Vf) (Typ) : 3.6V
Lumens/Watt @ Current - Test : 69 lm/W
CRI (Color Rendering Index) : 70 (Typ)
Current - Max : 2.8A
Viewing Angle : 130°
Mounting Type : Surface Mount
Package / Case : 4-SMD, Gull Wing
Supplier Device Package : -
Size / Dimension : 0.472" Dia (12.00mm)
Height - Seated (Max) : 0.265" (6.74mm)
0
100 in stock
Seoul Semiconductor
Manufacturer : Seoul Semiconductor Inc.
Packaging : Tape & Reel (TR)
Series : Z Power P9
Part Status : Obsolete
Color : White, Cool
CCT (K) : 6300K
Flux @ 85°C, Current - Test : -
Flux @ 25°C, Current - Test : 28 lm (Typ)
Current - Test : 150mA
Voltage - Forward (Vf) (Typ) : 3.65V
Lumens/Watt @ Current - Test : 51 lm/W
CRI (Color Rendering Index) : 70 (Typ)
Current - Max : 200mA
Viewing Angle : 130°
Mounting Type : Surface Mount
Package / Case : 2-SMD, J-Lead
Supplier Device Package : -
Size / Dimension : 0.197" Dia (5.00mm)
Height - Seated (Max) : 0.163" (4.15mm)
0
100 in stock
Seoul Semiconductor
Manufacturer : Seoul Semiconductor Inc.
Packaging : Tape & Reel (TR)
Series : Z Power P3-II
Part Status : Obsolete
Color : White, Cool
CCT (K) : 6375K (6050K ~ 6700K)
Flux @ 85°C, Current - Test : -
Flux @ 25°C, Current - Test : 65 lm (60 lm ~ 70 lm)
Current - Test : 350mA
Voltage - Forward (Vf) (Typ) : 3.5V
Lumens/Watt @ Current - Test : 53 lm/W
CRI (Color Rendering Index) : 70
Current - Max : 500mA
Viewing Angle : 130°
Mounting Type : Surface Mount
Package / Case : 2-SMD, Gull Wing Exposed Pad
Supplier Device Package : -
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.208" (5.28mm)
0
100 in stock
