Sensirion

- Sensirion is the leading manufacturer of high-quality sensors and sensor solutions for the measurement and control of humidity, and of gas and liquid flows worldwide. Sensirion’s sensors are used in a wide range of markets and different applications. Sensirion sensor products guarantee outstanding performance and correspondingly high customer utility. They are all based on our innovative CMOSens® Technology, which enables the sensor component to be combined with the analog and digital signal processing circuitry on a tiny CMOS silicon chip. This is implemented in advanced semiconductor technology, using specific microsystem processing steps to produce the microsensor structures on specially developed and patented semiconductor parts. The resulting sensor chips enable precise and reliable sensing of the desired physical parameters, such as relative humidity, temperature, or mass flow. CMOSens® accordingly represents a guarantee of high precision, reliability, and functionality combined with cost effectiveness.

Part Number
Manufacturer
Description
Unit Price
In Stock

SDP600-025PA SDP600-025PA

Sensirion
Manufacturer : Sensirion AG
Series : SDP600
Part Status : Not For New Designs
Pressure Type : Differential
Operating Pressure : ±0.004 (±0.025 kPa)
Output Type : I²C
Output : 16 b
Accuracy : ±3%
Voltage - Supply : 3 V ~ 3.6 V
Port Size : -
Port Style : No Port
Features : Temperature Compensated
Termination Style : PC Pin
Maximum Pressure : ±14.5 PSI (±100 kPa)
Operating Temperature : -20°C ~ 80°C
Package / Case : 3-SIP Module
Supplier Device Package : Module
0
12 in stock

SDP600-125PA SDP600-125PA

Sensirion
Manufacturer : Sensirion AG
Series : SDP600
Part Status : Not For New Designs
Pressure Type : Differential
Operating Pressure : ±0.018 PSI (± 0.125 kPa)
Output Type : I²C
Output : 16 b
Accuracy : ±3%
Voltage - Supply : 3 V ~ 3.6 V
Port Size : -
Port Style : No Port
Features : Temperature Compensated
Termination Style : PC Pin
Maximum Pressure : ±14.5 PSI (±100 kPa)
Operating Temperature : -20°C ~ 80°C
Package / Case : 3-SIP Module
Supplier Device Package : Module
0
16 in stock

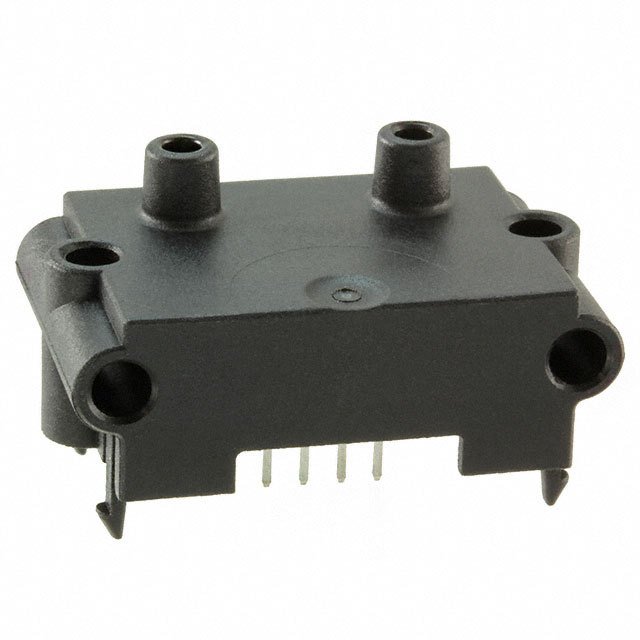

SDP600-500PA SDP600-500PA

Sensirion
Manufacturer : Sensirion AG
Series : SDP600
Part Status : Not For New Designs
Pressure Type : Differential
Operating Pressure : ± 0.072 PSI (±0.5kPa)
Output Type : I²C
Output : 16 b
Accuracy : ±3%
Voltage - Supply : 3 V ~ 3.6 V
Port Size : -
Port Style : No Port
Features : Temperature Compensated
Termination Style : PC Pin
Maximum Pressure : ±14.5 PSI (±100 kPa)
Operating Temperature : -20°C ~ 80°C
Package / Case : 3-SIP Module
Supplier Device Package : Module
0
54 in stock

SDP601 SDP601

Sensirion
Manufacturer : Sensirion AG
Series : SDP600
Part Status : Not For New Designs
Pressure Type : Differential
Operating Pressure : ± 0.072 PSI (±0.5kPa)
Output Type : I²C
Output : 16 b
Accuracy : ±3%
Voltage - Supply : 3 V ~ 3.6 V
Port Size : -
Port Style : No Port
Features : Temperature Compensated
Termination Style : PC Pin
Maximum Pressure : ±14.5 PSI (±100 kPa)
Operating Temperature : -20°C ~ 80°C
Package / Case : 3-SIP Module
Supplier Device Package : 3-SIP
0
2 in stock

SDP610-025PA SDP610-025PA

Sensirion
Manufacturer : Sensirion AG
Series : SDP600
Part Status : Not For New Designs
Pressure Type : Differential
Operating Pressure : ±0.004 (±0.025 kPa)
Output Type : I²C
Output : 16 b
Accuracy : ±3%
Voltage - Supply : 3 V ~ 3.6 V
Port Size : Male - 0.2" (5.2mm) Tube, Dual
Port Style : Barbed
Features : Temperature Compensated
Termination Style : PC Pin
Maximum Pressure : ±14.5 PSI (±100 kPa)
Operating Temperature : -20°C ~ 80°C
Package / Case : 3-SIP Module
Supplier Device Package : 3-SIP
0
95 in stock

SDP610-125PA SDP610-125PA

Sensirion
Manufacturer : Sensirion AG
Series : SDP600
Part Status : Not For New Designs
Pressure Type : Differential
Operating Pressure : ±0.018 PSI (± 0.125 kPa)
Output Type : I²C
Output : 16 b
Accuracy : ±3%
Voltage - Supply : 3 V ~ 3.6 V
Port Size : Male - 0.2" (5.2mm) Tube, Dual
Port Style : Barbed
Features : Temperature Compensated
Termination Style : PC Pin
Maximum Pressure : ±14.5 PSI (±100 kPa)
Operating Temperature : -20°C ~ 80°C
Package / Case : 3-SIP Module
Supplier Device Package : 3-SIP
0
156 in stock

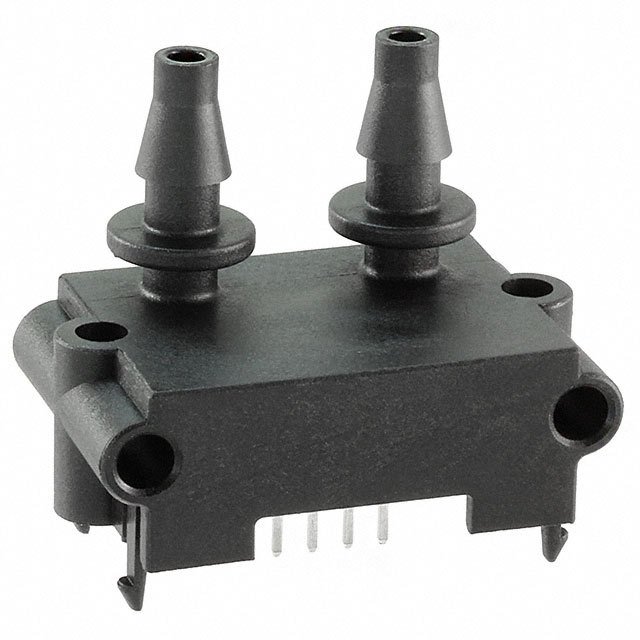

SDP610-500PA SDP610-500PA

Sensirion
Manufacturer : Sensirion AG
Series : SDP600
Part Status : Not For New Designs
Pressure Type : Differential
Operating Pressure : ± 0.072 PSI (±0.5kPa)
Output Type : I²C
Output : 16 b
Accuracy : ±3%
Voltage - Supply : 3 V ~ 3.6 V
Port Size : Male - 0.2" (5.2mm) Tube, Dual
Port Style : Barbed
Features : Temperature Compensated
Termination Style : PC Pin
Maximum Pressure : ±14.5 PSI (±100 kPa)
Operating Temperature : -20°C ~ 80°C
Package / Case : 3-SIP Module
Supplier Device Package : 3-SIP
0
144 in stock

SDP611 SDP611

Sensirion
Manufacturer : Sensirion AG
Series : SDP600
Part Status : Not For New Designs
Pressure Type : Differential
Operating Pressure : ± 0.072 PSI (±0.5kPa)
Output Type : I²C
Output : 16 b
Accuracy : ±3%
Voltage - Supply : 3 V ~ 3.6 V
Port Size : Male - 0.2" (5.2mm) Tube, Dual
Port Style : Barbed
Features : Temperature Compensated
Termination Style : PC Pin
Maximum Pressure : ±14.5 PSI (±100 kPa)
Operating Temperature : -20°C ~ 80°C
Package / Case : 3-SIP Module
Supplier Device Package : 3-SIP
0
471 in stock

SDP616 SDP616

Sensirion
Manufacturer : Sensirion AG
Series : SDP600
Part Status : Last Time Buy
Pressure Type : Differential
Operating Pressure : ±0.07 PSI (±0.5 kPa)
Output Type : I²C
Output : 16b
Accuracy : ±3%
Voltage - Supply : 2.7 V ~ 3.3 V
Port Size : Male - 0.2" (5.2mm) Tube, Dual
Port Style : Barbed
Features : Temperature Compensated
Termination Style : PC Pin
Maximum Pressure : ±72.52 PSI (±500 kPa)
Operating Temperature : -20°C ~ 80°C
Package / Case : 4-SIP Module
Supplier Device Package : 4-SIP
0
144 in stock

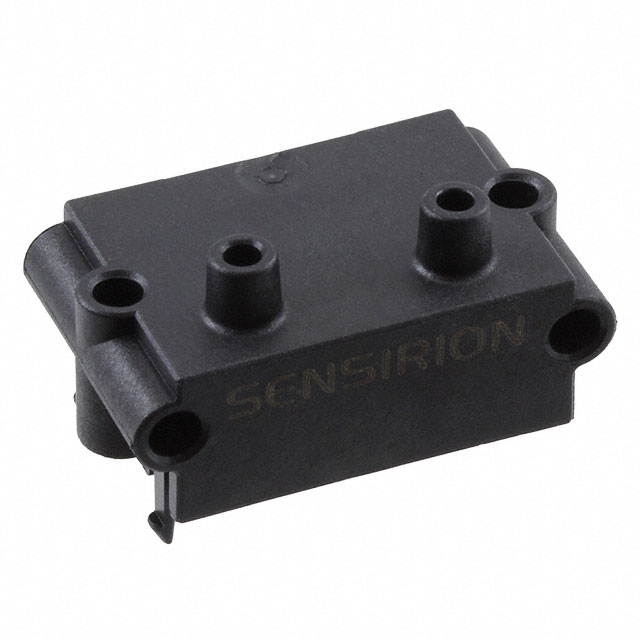

SDP800-125PA SDP800-125PA

Sensirion
Manufacturer : Sensirion AG
Series : SDP800
Part Status : Active
Pressure Type : Differential
Operating Pressure : ±0.018 PSI (± 0.125 kPa)
Output Type : I²C
Output : 16 b
Accuracy : ±3%
Voltage - Supply : 3 V ~ 5.5 V
Port Size : Male - 0.2" (5.2mm) Tube, Dual
Port Style : Barbless
Features : Temperature Compensated
Termination Style : -
Maximum Pressure : 14.5 PSI (100 kPa)
Operating Temperature : -20°C ~ 85°C
Package / Case : Module
Supplier Device Package : -
0
89 in stock

SDP800-500PA SDP800-500PA

Sensirion
Manufacturer : Sensirion AG
Series : SDP800
Part Status : Active
Pressure Type : Differential
Operating Pressure : 0.07 PSI (0.5 kPa)
Output Type : I²C
Output : 16 b
Accuracy : ±3%
Voltage - Supply : 3 V ~ 5.5 V
Port Size : Male - 0.2" (5.2mm) Tube, Dual
Port Style : Barbless
Features : Temperature Compensated
Termination Style : -
Maximum Pressure : 14.5 PSI (100 kPa)
Operating Temperature : -20°C ~ 85°C
Package / Case : Module
Supplier Device Package : -
0
73 in stock

SDP806-125PA SDP806-125PA

Sensirion
Manufacturer : Sensirion AG
Series : SDP800
Part Status : Active
Pressure Type : Differential
Operating Pressure : ±0.018 PSI (± 0.125 kPa)
Output Type : Analog Voltage
Output : 0.5 V ~ 4.5 V
Accuracy : ±3%
Voltage - Supply : 3 V ~ 5.5 V
Port Size : Male - 0.2" (5.2mm) Tube, Dual
Port Style : Barbless
Features : Temperature Compensated
Termination Style : -
Maximum Pressure : 14.5 PSI (100 kPa)
Operating Temperature : -20°C ~ 85°C
Package / Case : Module
Supplier Device Package : -
0
7 in stock
