Schurter
- SCHURTER Electronic Components is a progressive innovator and manufacturer of Fuses, Circuit Breakers, Connectors, EMC Components and Input systems, including Switches. For over 75 years, SCHURTER components have provided safe, clean power and make the interface between human and machine easier. Our primary markets include Data Communications, Industrial, Renewable Energy, Medical and Test Instrumentation.
Part Number
Manufacturer
Description
Unit Price
In Stock
PFMF.010.2
Schurter
Manufacturer : Schurter Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PFMF
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 100mA
Current - Trip (It) : 300mA
Time to Trip : 1.5s
Resistance - Initial (Ri) (Min) : 700 mOhms
Resistance - Post Trip (R1) (Max) : 15 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric), Concave
Size / Dimension : 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) : -
Thickness (Max) : 0.043" (1.10mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PFMF
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 100mA
Current - Trip (It) : 300mA
Time to Trip : 1.5s
Resistance - Initial (Ri) (Min) : 700 mOhms
Resistance - Post Trip (R1) (Max) : 15 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric), Concave
Size / Dimension : 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) : -
Thickness (Max) : 0.043" (1.10mm)
Lead Spacing : -
0
4462 in stock
PFMF.014.2
Schurter
Manufacturer : Schurter Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PFMF
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 140mA
Current - Trip (It) : 340mA
Time to Trip : 150ms
Resistance - Initial (Ri) (Min) : 400 mOhms
Resistance - Post Trip (R1) (Max) : 6.5 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric), Concave
Size / Dimension : 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) : -
Thickness (Max) : 0.043" (1.10mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PFMF
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 140mA
Current - Trip (It) : 340mA
Time to Trip : 150ms
Resistance - Initial (Ri) (Min) : 400 mOhms
Resistance - Post Trip (R1) (Max) : 6.5 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric), Concave
Size / Dimension : 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) : -
Thickness (Max) : 0.043" (1.10mm)
Lead Spacing : -
0
1153 in stock
PFMF.020.2
Schurter
Manufacturer : Schurter Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PFMF
Part Status : Active
Type : Polymeric
Voltage - Max : 30V
Current - Max : 80A
Current - Hold (Ih) (Max) : 200mA
Current - Trip (It) : 400mA
Time to Trip : 60ms
Resistance - Initial (Ri) (Min) : 400 mOhms
Resistance - Post Trip (R1) (Max) : 6 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric), Concave
Size / Dimension : 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) : -
Thickness (Max) : 0.043" (1.10mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PFMF
Part Status : Active
Type : Polymeric
Voltage - Max : 30V
Current - Max : 80A
Current - Hold (Ih) (Max) : 200mA
Current - Trip (It) : 400mA
Time to Trip : 60ms
Resistance - Initial (Ri) (Min) : 400 mOhms
Resistance - Post Trip (R1) (Max) : 6 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric), Concave
Size / Dimension : 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) : -
Thickness (Max) : 0.043" (1.10mm)
Lead Spacing : -
0
1336 in stock
PFMF.030.2
Schurter
Manufacturer : Schurter Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PFMF
Part Status : Active
Type : Polymeric
Voltage - Max : 30V
Current - Max : 10A
Current - Hold (Ih) (Max) : 300mA
Current - Trip (It) : 600mA
Time to Trip : 100ms
Resistance - Initial (Ri) (Min) : 300 mOhms
Resistance - Post Trip (R1) (Max) : 3 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric), Concave
Size / Dimension : 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) : -
Thickness (Max) : 0.043" (1.10mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PFMF
Part Status : Active
Type : Polymeric
Voltage - Max : 30V
Current - Max : 10A
Current - Hold (Ih) (Max) : 300mA
Current - Trip (It) : 600mA
Time to Trip : 100ms
Resistance - Initial (Ri) (Min) : 300 mOhms
Resistance - Post Trip (R1) (Max) : 3 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric), Concave
Size / Dimension : 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) : -
Thickness (Max) : 0.043" (1.10mm)
Lead Spacing : -
0
1500 in stock
PFMF.050.2
Schurter
Manufacturer : Schurter Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PFMF
Part Status : Active
Type : Polymeric
Voltage - Max : 15V
Current - Max : 100A
Current - Hold (Ih) (Max) : 500mA
Current - Trip (It) : 1A
Time to Trip : 150ms
Resistance - Initial (Ri) (Min) : 150 mOhms
Resistance - Post Trip (R1) (Max) : 1 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric), Concave
Size / Dimension : 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) : -
Thickness (Max) : 0.033" (0.85mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PFMF
Part Status : Active
Type : Polymeric
Voltage - Max : 15V
Current - Max : 100A
Current - Hold (Ih) (Max) : 500mA
Current - Trip (It) : 1A
Time to Trip : 150ms
Resistance - Initial (Ri) (Min) : 150 mOhms
Resistance - Post Trip (R1) (Max) : 1 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric), Concave
Size / Dimension : 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) : -
Thickness (Max) : 0.033" (0.85mm)
Lead Spacing : -
0
1476 in stock
PFMF.075.2
Schurter
Manufacturer : Schurter Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PFMF
Part Status : Active
Type : Polymeric
Voltage - Max : 13.2V
Current - Max : 100A
Current - Hold (Ih) (Max) : 750mA
Current - Trip (It) : 1.5A
Time to Trip : 200ms
Resistance - Initial (Ri) (Min) : 110 mOhms
Resistance - Post Trip (R1) (Max) : 450 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric), Concave
Size / Dimension : 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) : -
Thickness (Max) : 0.033" (0.85mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PFMF
Part Status : Active
Type : Polymeric
Voltage - Max : 13.2V
Current - Max : 100A
Current - Hold (Ih) (Max) : 750mA
Current - Trip (It) : 1.5A
Time to Trip : 200ms
Resistance - Initial (Ri) (Min) : 110 mOhms
Resistance - Post Trip (R1) (Max) : 450 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric), Concave
Size / Dimension : 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) : -
Thickness (Max) : 0.033" (0.85mm)
Lead Spacing : -
0
3935 in stock
PFMF.075.24.2
Schurter
Manufacturer : Schurter Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PFMF
Part Status : Active
Type : Polymeric
Voltage - Max : 24V
Current - Max : 40A
Current - Hold (Ih) (Max) : 750mA
Current - Trip (It) : 1.5A
Time to Trip : 200ms
Resistance - Initial (Ri) (Min) : 110 mOhms
Resistance - Post Trip (R1) (Max) : 450 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric), Concave
Size / Dimension : 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) : -
Thickness (Max) : 0.033" (0.85mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PFMF
Part Status : Active
Type : Polymeric
Voltage - Max : 24V
Current - Max : 40A
Current - Hold (Ih) (Max) : 750mA
Current - Trip (It) : 1.5A
Time to Trip : 200ms
Resistance - Initial (Ri) (Min) : 110 mOhms
Resistance - Post Trip (R1) (Max) : 450 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric), Concave
Size / Dimension : 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) : -
Thickness (Max) : 0.033" (0.85mm)
Lead Spacing : -
0
1375 in stock
PFMF.110.16.2
Schurter
Manufacturer : Schurter Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PFMF
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 1.1A
Current - Trip (It) : 2.2A
Time to Trip : 300ms
Resistance - Initial (Ri) (Min) : 40 mOhms
Resistance - Post Trip (R1) (Max) : 210 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric), Concave
Size / Dimension : 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) : -
Thickness (Max) : 0.033" (0.85mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PFMF
Part Status : Active
Type : Polymeric
Voltage - Max : 16V
Current - Max : 100A
Current - Hold (Ih) (Max) : 1.1A
Current - Trip (It) : 2.2A
Time to Trip : 300ms
Resistance - Initial (Ri) (Min) : 40 mOhms
Resistance - Post Trip (R1) (Max) : 210 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric), Concave
Size / Dimension : 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) : -
Thickness (Max) : 0.033" (0.85mm)
Lead Spacing : -
0
1955 in stock

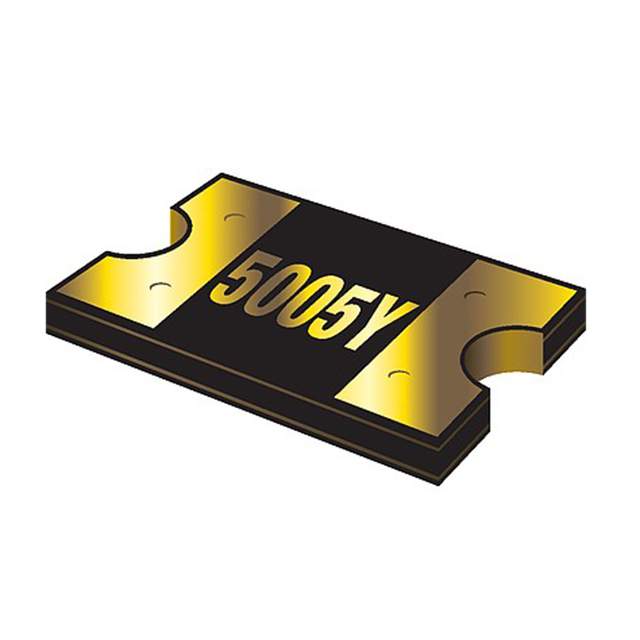

PFMF.110.2
Schurter
Manufacturer : Schurter Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PFMF
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 100A
Current - Hold (Ih) (Max) : 1.1A
Current - Trip (It) : 2.2A
Time to Trip : 300ms
Resistance - Initial (Ri) (Min) : 40 mOhms
Resistance - Post Trip (R1) (Max) : 210 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric), Concave
Size / Dimension : 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) : -
Thickness (Max) : 0.033" (0.85mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PFMF
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 100A
Current - Hold (Ih) (Max) : 1.1A
Current - Trip (It) : 2.2A
Time to Trip : 300ms
Resistance - Initial (Ri) (Min) : 40 mOhms
Resistance - Post Trip (R1) (Max) : 210 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric), Concave
Size / Dimension : 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) : -
Thickness (Max) : 0.033" (0.85mm)
Lead Spacing : -
0
1775 in stock
PFMF.125.2
Schurter
Manufacturer : Schurter Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PFMF
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 100A
Current - Hold (Ih) (Max) : 1.25A
Current - Trip (It) : 2.5A
Time to Trip : 400ms
Resistance - Initial (Ri) (Min) : 35 mOhms
Resistance - Post Trip (R1) (Max) : 140 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric), Concave
Size / Dimension : 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) : -
Thickness (Max) : 0.033" (0.85mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PFMF
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 100A
Current - Hold (Ih) (Max) : 1.25A
Current - Trip (It) : 2.5A
Time to Trip : 400ms
Resistance - Initial (Ri) (Min) : 35 mOhms
Resistance - Post Trip (R1) (Max) : 140 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric), Concave
Size / Dimension : 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) : -
Thickness (Max) : 0.033" (0.85mm)
Lead Spacing : -
0
1995 in stock
PFMF.150.2
Schurter
Manufacturer : Schurter Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PFMF
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 100A
Current - Hold (Ih) (Max) : 1.5A
Current - Trip (It) : 3A
Time to Trip : 500ms
Resistance - Initial (Ri) (Min) : 30 mOhms
Resistance - Post Trip (R1) (Max) : 120 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric), Concave
Size / Dimension : 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) : -
Thickness (Max) : 0.033" (0.85mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PFMF
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 100A
Current - Hold (Ih) (Max) : 1.5A
Current - Trip (It) : 3A
Time to Trip : 500ms
Resistance - Initial (Ri) (Min) : 30 mOhms
Resistance - Post Trip (R1) (Max) : 120 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric), Concave
Size / Dimension : 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) : -
Thickness (Max) : 0.033" (0.85mm)
Lead Spacing : -
0
1860 in stock
PFMF.160.2
Schurter
Manufacturer : Schurter Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PFMF
Part Status : Active
Type : Polymeric
Voltage - Max : 8V
Current - Max : 100A
Current - Hold (Ih) (Max) : 1.6A
Current - Trip (It) : 2.8A
Time to Trip : 2s
Resistance - Initial (Ri) (Min) : 35 mOhms
Resistance - Post Trip (R1) (Max) : 99 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric), Concave
Size / Dimension : 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) : -
Thickness (Max) : 0.033" (0.85mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PFMF
Part Status : Active
Type : Polymeric
Voltage - Max : 8V
Current - Max : 100A
Current - Hold (Ih) (Max) : 1.6A
Current - Trip (It) : 2.8A
Time to Trip : 2s
Resistance - Initial (Ri) (Min) : 35 mOhms
Resistance - Post Trip (R1) (Max) : 99 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric), Concave
Size / Dimension : 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) : -
Thickness (Max) : 0.033" (0.85mm)
Lead Spacing : -
0
3900 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2026 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
