Sanken Electric Co., Ltd.
- Sanken Electric Co., Ltd., a leading global supplier of analog power semiconductor products, designs and manufactures a wide range of power management ICs, motor control ICs, LED lighting ICs as well as high quality automotive semiconductor devices and discrete components.
Part Number
Manufacturer
Description
Unit Price
In Stock

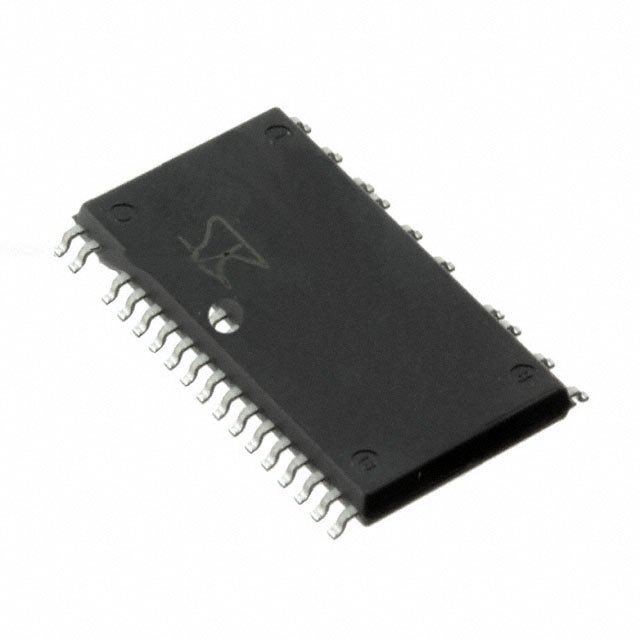

SX68003MH
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
Motor Type - Stepper : -
Motor Type - AC, DC : Brushless DC (BLDC)
Function : Driver - Fully Integrated, Control and Power Stage
Output Configuration : Half Bridge (3)
Interface : Parallel
Technology : Power MOSFET
Step Resolution : -
Applications : Appliance
Current - Output : 2.5A
Voltage - Supply : 13.5 V ~ 16.5 V
Voltage - Load : 400V (Max)
Operating Temperature : -20°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 36-SOP (0.449", 11.40mm Width), 24 Leads, Exposed Pad
Supplier Device Package : 27-SOP
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
Motor Type - Stepper : -
Motor Type - AC, DC : Brushless DC (BLDC)
Function : Driver - Fully Integrated, Control and Power Stage
Output Configuration : Half Bridge (3)
Interface : Parallel
Technology : Power MOSFET
Step Resolution : -
Applications : Appliance
Current - Output : 2.5A
Voltage - Supply : 13.5 V ~ 16.5 V
Voltage - Load : 400V (Max)
Operating Temperature : -20°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 36-SOP (0.449", 11.40mm Width), 24 Leads, Exposed Pad
Supplier Device Package : 27-SOP
0
100 in stock
SZ-10N27VL
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101
Part Status : Active
Voltage - Zener (Nom) (Vz) : 27V
Tolerance : -
Power - Max : 5W
Impedance (Max) (Zzt) : -
Current - Reverse Leakage @ Vr : 10µA @ 27V
Voltage - Forward (Vf) (Max) @ If : 1V @ 6A
Operating Temperature : -55°C ~ 175°C
Mounting Type : Surface Mount
Package / Case : Nonstandard SMD
Supplier Device Package : SZ-10
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101
Part Status : Active
Voltage - Zener (Nom) (Vz) : 27V
Tolerance : -
Power - Max : 5W
Impedance (Max) (Zzt) : -
Current - Reverse Leakage @ Vr : 10µA @ 27V
Voltage - Forward (Vf) (Max) @ If : 1V @ 6A
Operating Temperature : -55°C ~ 175°C
Mounting Type : Surface Mount
Package / Case : Nonstandard SMD
Supplier Device Package : SZ-10
0
4898 in stock
SZ-10NN27VL
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Voltage - Zener (Nom) (Vz) : 27V
Tolerance : -
Power - Max : 6W
Impedance (Max) (Zzt) : -
Current - Reverse Leakage @ Vr : 10µA @ 22V
Voltage - Forward (Vf) (Max) @ If : 980mV @ 60A
Operating Temperature : -55°C ~ 175°C
Mounting Type : Surface Mount
Package / Case : Nonstandard SMD
Supplier Device Package : SZ-10
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Voltage - Zener (Nom) (Vz) : 27V
Tolerance : -
Power - Max : 6W
Impedance (Max) (Zzt) : -
Current - Reverse Leakage @ Vr : 10µA @ 22V
Voltage - Forward (Vf) (Max) @ If : 980mV @ 60A
Operating Temperature : -55°C ~ 175°C
Mounting Type : Surface Mount
Package / Case : Nonstandard SMD
Supplier Device Package : SZ-10
0
3410 in stock

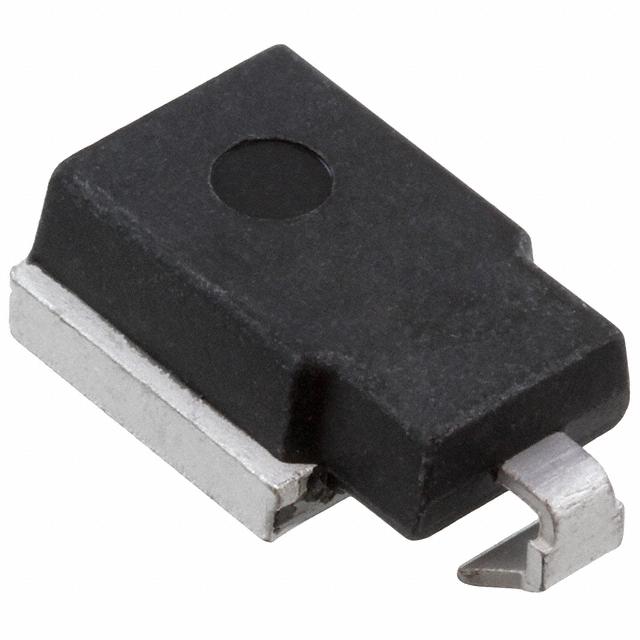

SZ-10NN40VL
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101
Part Status : Active
Voltage - Zener (Nom) (Vz) : 32V
Tolerance : ±5%
Power - Max : 6W
Impedance (Max) (Zzt) : -
Current - Reverse Leakage @ Vr : 10µA @ 32V
Voltage - Forward (Vf) (Max) @ If : 980mV @ 6A
Operating Temperature : -55°C ~ 175°C
Mounting Type : Surface Mount
Package / Case : Nonstandard SMD
Supplier Device Package : SZ-10
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101
Part Status : Active
Voltage - Zener (Nom) (Vz) : 32V
Tolerance : ±5%
Power - Max : 6W
Impedance (Max) (Zzt) : -
Current - Reverse Leakage @ Vr : 10µA @ 32V
Voltage - Forward (Vf) (Max) @ If : 980mV @ 6A
Operating Temperature : -55°C ~ 175°C
Mounting Type : Surface Mount
Package / Case : Nonstandard SMD
Supplier Device Package : SZ-10
0
80 in stock

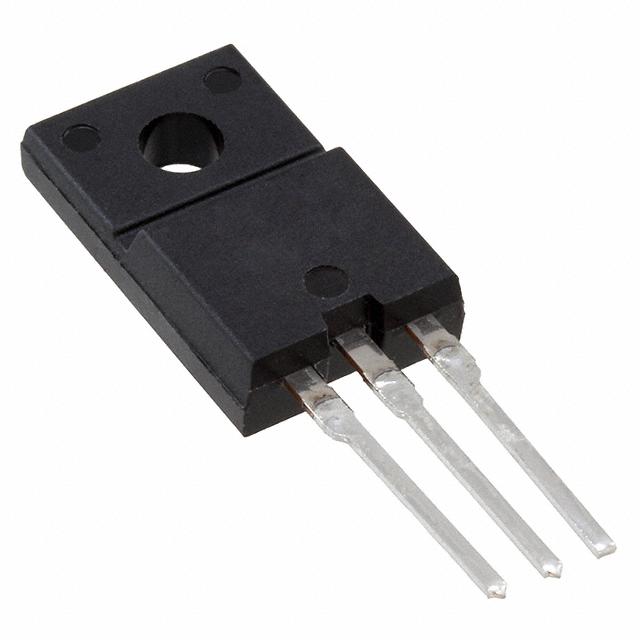

TF541S-A
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Tube
Series : -
Part Status : Active
Voltage - Off State : 400V
Voltage - Gate Trigger (Vgt) (Max) : 1.5V
Current - Gate Trigger (Igt) (Max) : 200µA
Voltage - On State (Vtm) (Max) : 1.4V
Current - On State (It (AV)) (Max) : 5A
Current - On State (It (RMS)) (Max) : 7.8A
Current - Hold (Ih) (Max) : 4mA
Current - Off State (Max) : 2mA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 80A @ 50Hz
SCR Type : Sensitive Gate
Operating Temperature : -40°C ~ 125°C
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220F
Packaging : Tube
Series : -
Part Status : Active
Voltage - Off State : 400V
Voltage - Gate Trigger (Vgt) (Max) : 1.5V
Current - Gate Trigger (Igt) (Max) : 200µA
Voltage - On State (Vtm) (Max) : 1.4V
Current - On State (It (AV)) (Max) : 5A
Current - On State (It (RMS)) (Max) : 7.8A
Current - Hold (Ih) (Max) : 4mA
Current - Off State (Max) : 2mA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 80A @ 50Hz
SCR Type : Sensitive Gate
Operating Temperature : -40°C ~ 125°C
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220F
0
1524 in stock
TF561S-A
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Tube
Series : -
Part Status : Active
Voltage - Off State : 600V
Voltage - Gate Trigger (Vgt) (Max) : 1.5V
Current - Gate Trigger (Igt) (Max) : 200µA
Voltage - On State (Vtm) (Max) : 1.4V
Current - On State (It (AV)) (Max) : 5A
Current - On State (It (RMS)) (Max) : 7.8A
Current - Hold (Ih) (Max) : 4mA
Current - Off State (Max) : 2mA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 80A @ 50Hz
SCR Type : Sensitive Gate
Operating Temperature : -40°C ~ 125°C
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220F
Packaging : Tube
Series : -
Part Status : Active
Voltage - Off State : 600V
Voltage - Gate Trigger (Vgt) (Max) : 1.5V
Current - Gate Trigger (Igt) (Max) : 200µA
Voltage - On State (Vtm) (Max) : 1.4V
Current - On State (It (AV)) (Max) : 5A
Current - On State (It (RMS)) (Max) : 7.8A
Current - Hold (Ih) (Max) : 4mA
Current - Off State (Max) : 2mA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 80A @ 50Hz
SCR Type : Sensitive Gate
Operating Temperature : -40°C ~ 125°C
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220F
0
11 in stock
TFA107S
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Tube
Series : -
Part Status : Active
Voltage - Off State : 700V
Voltage - Gate Trigger (Vgt) (Max) : 1V
Current - Gate Trigger (Igt) (Max) : 15mA
Voltage - On State (Vtm) (Max) : 1.35V
Current - On State (It (AV)) (Max) : 10A
Current - On State (It (RMS)) (Max) : 15.7A
Current - Hold (Ih) (Max) : 20mA
Current - Off State (Max) : 2mA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 160A, 176A
SCR Type : Standard Recovery
Operating Temperature : -40°C ~ 150°C
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220F
Packaging : Tube
Series : -
Part Status : Active
Voltage - Off State : 700V
Voltage - Gate Trigger (Vgt) (Max) : 1V
Current - Gate Trigger (Igt) (Max) : 15mA
Voltage - On State (Vtm) (Max) : 1.35V
Current - On State (It (AV)) (Max) : 10A
Current - On State (It (RMS)) (Max) : 15.7A
Current - Hold (Ih) (Max) : 20mA
Current - Off State (Max) : 2mA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 160A, 176A
SCR Type : Standard Recovery
Operating Temperature : -40°C ~ 150°C
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220F
0
210 in stock
TFA37S
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Tube
Series : -
Part Status : Active
Voltage - Off State : 700V
Voltage - Gate Trigger (Vgt) (Max) : 1V
Current - Gate Trigger (Igt) (Max) : 15mA
Voltage - On State (Vtm) (Max) : 1.5V
Current - On State (It (AV)) (Max) : 3A
Current - On State (It (RMS)) (Max) : 4.7A
Current - Hold (Ih) (Max) : 15mA
Current - Off State (Max) : 2mA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 60A, 66A
SCR Type : Standard Recovery
Operating Temperature : -40°C ~ 150°C
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220F
Packaging : Tube
Series : -
Part Status : Active
Voltage - Off State : 700V
Voltage - Gate Trigger (Vgt) (Max) : 1V
Current - Gate Trigger (Igt) (Max) : 15mA
Voltage - On State (Vtm) (Max) : 1.5V
Current - On State (It (AV)) (Max) : 3A
Current - On State (It (RMS)) (Max) : 4.7A
Current - Hold (Ih) (Max) : 15mA
Current - Off State (Max) : 2mA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 60A, 66A
SCR Type : Standard Recovery
Operating Temperature : -40°C ~ 150°C
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220F
0
3991 in stock
TFA57S
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Tube
Series : -
Part Status : Active
Voltage - Off State : 700V
Voltage - Gate Trigger (Vgt) (Max) : 1V
Current - Gate Trigger (Igt) (Max) : 15mA
Voltage - On State (Vtm) (Max) : 1.5V
Current - On State (It (AV)) (Max) : 5A
Current - On State (It (RMS)) (Max) : 7.8A
Current - Hold (Ih) (Max) : 15mA
Current - Off State (Max) : 2mA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 80A, 88A
SCR Type : Standard Recovery
Operating Temperature : -40°C ~ 150°C
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220F
Packaging : Tube
Series : -
Part Status : Active
Voltage - Off State : 700V
Voltage - Gate Trigger (Vgt) (Max) : 1V
Current - Gate Trigger (Igt) (Max) : 15mA
Voltage - On State (Vtm) (Max) : 1.5V
Current - On State (It (AV)) (Max) : 5A
Current - On State (It (RMS)) (Max) : 7.8A
Current - Hold (Ih) (Max) : 15mA
Current - Off State (Max) : 2mA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 80A, 88A
SCR Type : Standard Recovery
Operating Temperature : -40°C ~ 150°C
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220F
0
183 in stock
TFA58S
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Tube
Series : -
Part Status : Active
Voltage - Off State : 800V
Voltage - Gate Trigger (Vgt) (Max) : 1V
Current - Gate Trigger (Igt) (Max) : 15mA
Voltage - On State (Vtm) (Max) : 1.5V
Current - On State (It (AV)) (Max) : 5A
Current - On State (It (RMS)) (Max) : 7.8A
Current - Hold (Ih) (Max) : 15mA
Current - Off State (Max) : 2mA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 80A, 88A
SCR Type : Standard Recovery
Operating Temperature : -40°C ~ 150°C
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220F
Packaging : Tube
Series : -
Part Status : Active
Voltage - Off State : 800V
Voltage - Gate Trigger (Vgt) (Max) : 1V
Current - Gate Trigger (Igt) (Max) : 15mA
Voltage - On State (Vtm) (Max) : 1.5V
Current - On State (It (AV)) (Max) : 5A
Current - On State (It (RMS)) (Max) : 7.8A
Current - Hold (Ih) (Max) : 15mA
Current - Off State (Max) : 2mA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 80A, 88A
SCR Type : Standard Recovery
Operating Temperature : -40°C ~ 150°C
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220F
0
8 in stock
TFA87S
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Tube
Series : -
Part Status : Active
Voltage - Off State : 700V
Voltage - Gate Trigger (Vgt) (Max) : 1V
Current - Gate Trigger (Igt) (Max) : 15mA
Voltage - On State (Vtm) (Max) : 1.4V
Current - On State (It (AV)) (Max) : 8A
Current - On State (It (RMS)) (Max) : 12.6A
Current - Hold (Ih) (Max) : 20mA
Current - Off State (Max) : 2mA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 120A, 132A
SCR Type : Standard Recovery
Operating Temperature : -40°C ~ 150°C
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220F
Packaging : Tube
Series : -
Part Status : Active
Voltage - Off State : 700V
Voltage - Gate Trigger (Vgt) (Max) : 1V
Current - Gate Trigger (Igt) (Max) : 15mA
Voltage - On State (Vtm) (Max) : 1.4V
Current - On State (It (AV)) (Max) : 8A
Current - On State (It (RMS)) (Max) : 12.6A
Current - Hold (Ih) (Max) : 20mA
Current - Off State (Max) : 2mA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 120A, 132A
SCR Type : Standard Recovery
Operating Temperature : -40°C ~ 150°C
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220F
0
100 in stock
TFC563D
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Tube
Series : -
Part Status : Active
Voltage - Off State : 600V
Voltage - Gate Trigger (Vgt) (Max) : 1.5V
Current - Gate Trigger (Igt) (Max) : 30mA
Voltage - On State (Vtm) (Max) : 1.4V
Current - On State (It (AV)) (Max) : -
Current - On State (It (RMS)) (Max) : -
Current - Hold (Ih) (Max) : 12mA
Current - Off State (Max) : 1mA
Current - Non Rep. Surge 50, 60Hz (Itsm) : -
SCR Type : Standard Recovery
Operating Temperature : -40°C ~ 125°C
Mounting Type : Through Hole
Package / Case : TO-220-3, Short Tab
Supplier Device Package : TO-220S
Packaging : Tube
Series : -
Part Status : Active
Voltage - Off State : 600V
Voltage - Gate Trigger (Vgt) (Max) : 1.5V
Current - Gate Trigger (Igt) (Max) : 30mA
Voltage - On State (Vtm) (Max) : 1.4V
Current - On State (It (AV)) (Max) : -
Current - On State (It (RMS)) (Max) : -
Current - Hold (Ih) (Max) : 12mA
Current - Off State (Max) : 1mA
Current - Non Rep. Surge 50, 60Hz (Itsm) : -
SCR Type : Standard Recovery
Operating Temperature : -40°C ~ 125°C
Mounting Type : Through Hole
Package / Case : TO-220-3, Short Tab
Supplier Device Package : TO-220S
0
435 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
