Sanken Electric Co., Ltd.
- Sanken Electric Co., Ltd., a leading global supplier of analog power semiconductor products, designs and manufactures a wide range of power management ICs, motor control ICs, LED lighting ICs as well as high quality automotive semiconductor devices and discrete components.
Part Number
Manufacturer
Description
Unit Price
In Stock
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Tube
Series : -
Part Status : Obsolete
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 600V
Current - Average Rectified (Io) : 5A
Voltage - Forward (Vf) (Max) @ If : 1.25V @ 5A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 400ns
Current - Reverse Leakage @ Vr : 50µA @ 600V
Capacitance @ Vr, F : -
Mounting Type : Through Hole

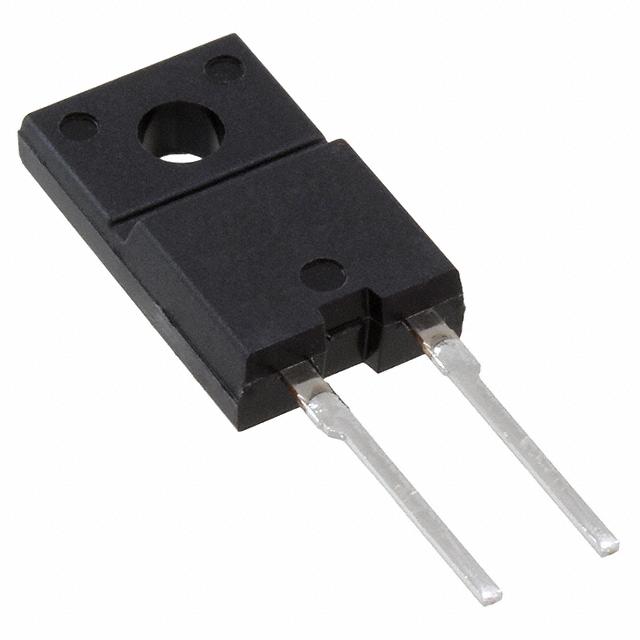

Package / Case : TO-220-2 Full Pack
Supplier Device Package : TO-220F-2L
Operating Temperature - Junction : -40°C ~ 150°C
0
482 in stock
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Tube
Series : -
Part Status : Obsolete
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 600V
Current - Average Rectified (Io) : 10A
Voltage - Forward (Vf) (Max) @ If : 1.35V @ 10A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 400ns
Current - Reverse Leakage @ Vr : 50µA @ 600V
Capacitance @ Vr, F : -
Mounting Type : Through Hole
Package / Case : TO-220-2 Full Pack
Supplier Device Package : TO-220F-2L
Operating Temperature - Junction : -40°C ~ 150°C
0
328 in stock
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Bulk
Series : -
Part Status : Obsolete
Diode Configuration : 1 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 60V
Current - Average Rectified (Io) (per Diode) : 10A
Voltage - Forward (Vf) (Max) @ If : 700mV @ 5A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 3mA @ 60V
Operating Temperature - Junction : -40°C ~ 150°C
Mounting Type : Through Hole

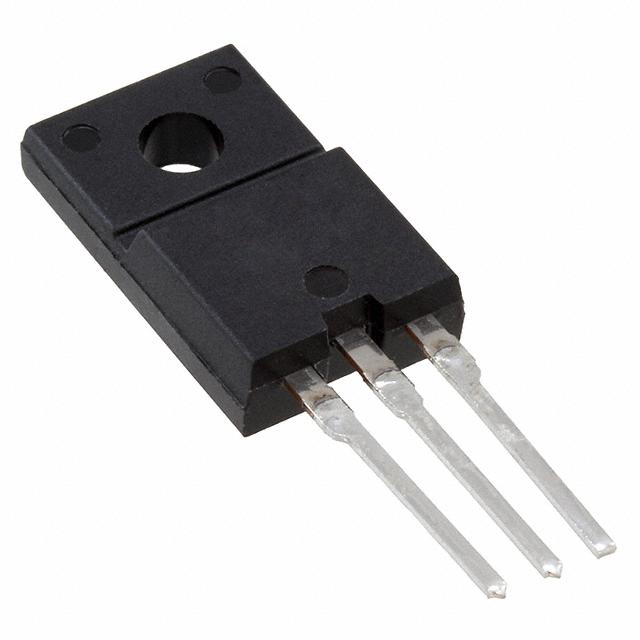

Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220F
0
364 in stock
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Bulk
Series : -
Part Status : Obsolete
Diode Configuration : 1 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 60V
Current - Average Rectified (Io) (per Diode) : 15A
Voltage - Forward (Vf) (Max) @ If : 700mV @ 7.5A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 5mA @ 60V
Operating Temperature - Junction : -40°C ~ 150°C
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220F
0
280 in stock
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Bulk
Series : -
Part Status : Obsolete
Diode Configuration : 1 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 40V
Current - Average Rectified (Io) (per Diode) : 20A
Voltage - Forward (Vf) (Max) @ If : 550mV @ 10A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 1mA @ 40V
Operating Temperature - Junction : -40°C ~ 150°C
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220F
0
493 in stock
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Bulk
Series : -
Part Status : Obsolete
Diode Configuration : 1 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 60V
Current - Average Rectified (Io) (per Diode) : 20A
Voltage - Forward (Vf) (Max) @ If : 700mV @ 10A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 1mA @ 60V
Operating Temperature - Junction : -40°C ~ 150°C
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220F
0
484 in stock
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Bulk
Series : -
Part Status : Obsolete
Diode Configuration : 1 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 40V
Current - Average Rectified (Io) (per Diode) : 10A
Voltage - Forward (Vf) (Max) @ If : 550mV @ 5A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 500µA @ 40V
Operating Temperature - Junction : -40°C ~ 150°C
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220F
0
242 in stock
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Bulk
Series : -
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 60V
Current - Average Rectified (Io) (per Diode) : 15A
Voltage - Forward (Vf) (Max) @ If : 700mV @ 15A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 3mA @ 60V
Operating Temperature - Junction : -40°C ~ 150°C
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220F-3
0
488 in stock
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Tube
Series : -
Part Status : Obsolete
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 600V
Current - Average Rectified (Io) : 10A
Voltage - Forward (Vf) (Max) @ If : 1.5V @ 5A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 30ns
Current - Reverse Leakage @ Vr : 50µA @ 600V
Capacitance @ Vr, F : -
Mounting Type : Through Hole
Package / Case : TO-220-2 Full Pack
Supplier Device Package : TO-220F-2L
Operating Temperature - Junction : -40°C ~ 150°C
0
271 in stock
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Bulk
Series : -
Part Status : Obsolete
Diode Configuration : 1 Pair Common Cathode
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 200V
Current - Average Rectified (Io) (per Diode) : 5A
Voltage - Forward (Vf) (Max) @ If : 980mV @ 2.5A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 30ns
Current - Reverse Leakage @ Vr : 50µA @ 200V
Operating Temperature - Junction : -40°C ~ 150°C
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220F
0
4243 in stock
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Bulk
Series : -
Part Status : Obsolete
Diode Configuration : 1 Pair Common Cathode
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 200V
Current - Average Rectified (Io) (per Diode) : 10A
Voltage - Forward (Vf) (Max) @ If : 980mV @ 5A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 30ns
Current - Reverse Leakage @ Vr : 100µA @ 200V
Operating Temperature - Junction : -40°C ~ 150°C
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220F-3
0
293 in stock
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Bulk
Series : -
Part Status : Obsolete
Diode Configuration : 1 Pair Common Cathode
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 200V
Current - Average Rectified (Io) (per Diode) : 15A
Voltage - Forward (Vf) (Max) @ If : 980mV @ 7.5A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 30ns
Current - Reverse Leakage @ Vr : 150µA @ 200V
Operating Temperature - Junction : -40°C ~ 150°C
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220F-3
0
2491 in stock
