RECOM Power
- When it comes to power conversion, RECOM Power’s attentiveness to customers’ needs and wishes is reflected in the framework that shapes their business. Over the past decade, millions have been invested in product development, growing their quality assurance lab, and expanding the scope of worldwide distribution activities. This means they are always close to customers’ production facilities around the globe, offering the most reliable products available in today’s market ... with top-notch support – and, of course, competitive prices.
Part Number
Manufacturer
Description
Unit Price
In Stock
RV-1524S
RECOM Power
Manufacturer : Recom Power
Packaging : Tube
Series : ECONOLINE RV
Part Status : Discontinued at
Type : Isolated Module
Number of Outputs : 1
Voltage - Input (Min) : 13.5V
Voltage - Input (Max) : 16.5V
Voltage - Output 1 : 24V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 83mA
Power (Watts) : 2W
Voltage - Isolation : 6kV
Applications : ITE (Commercial), Medical
Features : SCP
Operating Temperature : -40°C ~ 85°C
Efficiency : 75%
Mounting Type : Through Hole
Package / Case : 24-DIP Module, 14 Leads
Size / Dimension : 1.27" L x 0.58" W x 0.45" H (32.4mm x 14.7mm x 11.4mm)
Supplier Device Package : -
Control Features : -
Packaging : Tube
Series : ECONOLINE RV
Part Status : Discontinued at
Type : Isolated Module
Number of Outputs : 1
Voltage - Input (Min) : 13.5V
Voltage - Input (Max) : 16.5V
Voltage - Output 1 : 24V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 83mA
Power (Watts) : 2W
Voltage - Isolation : 6kV
Applications : ITE (Commercial), Medical
Features : SCP
Operating Temperature : -40°C ~ 85°C
Efficiency : 75%
Mounting Type : Through Hole
Package / Case : 24-DIP Module, 14 Leads
Size / Dimension : 1.27" L x 0.58" W x 0.45" H (32.4mm x 14.7mm x 11.4mm)
Supplier Device Package : -
Control Features : -
0
15 in stock

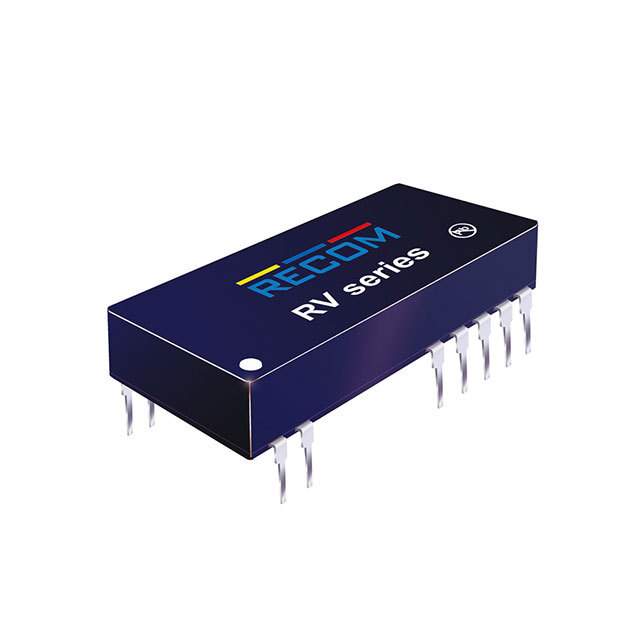

RV-2405D/R8
RECOM Power
Manufacturer : Recom Power
Packaging : Tube
Series : ECONOLINE RV/R
Part Status : Discontinued at
Type : Isolated Module
Number of Outputs : 2
Voltage - Input (Min) : 21.6V
Voltage - Input (Max) : 26.4V
Voltage - Output 1 : 5V
Voltage - Output 2 : -5V
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 200mA, 200mA
Power (Watts) : 2W
Voltage - Isolation : 8kV
Applications : ITE (Commercial), Medical
Features : -
Operating Temperature : -40°C ~ 85°C
Efficiency : 82%
Mounting Type : Through Hole
Package / Case : 24-DIP Module, 14 Leads
Size / Dimension : 1.27" L x 0.58" W x 0.45" H (32.4mm x 14.7mm x 11.4mm)
Supplier Device Package : -
Control Features : -
Packaging : Tube
Series : ECONOLINE RV/R
Part Status : Discontinued at
Type : Isolated Module
Number of Outputs : 2
Voltage - Input (Min) : 21.6V
Voltage - Input (Max) : 26.4V
Voltage - Output 1 : 5V
Voltage - Output 2 : -5V
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 200mA, 200mA
Power (Watts) : 2W
Voltage - Isolation : 8kV
Applications : ITE (Commercial), Medical
Features : -
Operating Temperature : -40°C ~ 85°C
Efficiency : 82%
Mounting Type : Through Hole
Package / Case : 24-DIP Module, 14 Leads
Size / Dimension : 1.27" L x 0.58" W x 0.45" H (32.4mm x 14.7mm x 11.4mm)
Supplier Device Package : -
Control Features : -
0
60 in stock
RV-2415S
RECOM Power
Manufacturer : Recom Power
Packaging : Tube
Series : ECONOLINE RV
Part Status : Discontinued at
Type : Isolated Module
Number of Outputs : 1
Voltage - Input (Min) : 21.6V
Voltage - Input (Max) : 26.4V
Voltage - Output 1 : 15V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 132mA
Power (Watts) : 2W
Voltage - Isolation : 6kV
Applications : ITE (Commercial), Medical
Features : SCP
Operating Temperature : -40°C ~ 85°C
Efficiency : 80%
Mounting Type : Through Hole
Package / Case : 24-DIP Module, 14 Leads
Size / Dimension : 1.27" L x 0.58" W x 0.45" H (32.4mm x 14.7mm x 11.4mm)
Supplier Device Package : -
Control Features : -
Packaging : Tube
Series : ECONOLINE RV
Part Status : Discontinued at
Type : Isolated Module
Number of Outputs : 1
Voltage - Input (Min) : 21.6V
Voltage - Input (Max) : 26.4V
Voltage - Output 1 : 15V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 132mA
Power (Watts) : 2W
Voltage - Isolation : 6kV
Applications : ITE (Commercial), Medical
Features : SCP
Operating Temperature : -40°C ~ 85°C
Efficiency : 80%
Mounting Type : Through Hole
Package / Case : 24-DIP Module, 14 Leads
Size / Dimension : 1.27" L x 0.58" W x 0.45" H (32.4mm x 14.7mm x 11.4mm)
Supplier Device Package : -
Control Features : -
0
330 in stock
RV-3.309D
RECOM Power
Manufacturer : Recom Power
Packaging : Tube
Series : ECONOLINE RV
Part Status : Discontinued at
Type : Isolated Module
Number of Outputs : 2
Voltage - Input (Min) : 3V
Voltage - Input (Max) : 3.6V
Voltage - Output 1 : 9V
Voltage - Output 2 : -9V
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 111mA, 111mA
Power (Watts) : 2W
Voltage - Isolation : 6kV
Applications : ITE (Commercial), Medical
Features : SCP
Operating Temperature : -40°C ~ 85°C
Efficiency : 75%
Mounting Type : Through Hole
Package / Case : 24-DIP Module, 14 Leads
Size / Dimension : 1.27" L x 0.58" W x 0.45" H (32.4mm x 14.7mm x 11.4mm)
Supplier Device Package : -
Control Features : -
Packaging : Tube
Series : ECONOLINE RV
Part Status : Discontinued at
Type : Isolated Module
Number of Outputs : 2
Voltage - Input (Min) : 3V
Voltage - Input (Max) : 3.6V
Voltage - Output 1 : 9V
Voltage - Output 2 : -9V
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 111mA, 111mA
Power (Watts) : 2W
Voltage - Isolation : 6kV
Applications : ITE (Commercial), Medical
Features : SCP
Operating Temperature : -40°C ~ 85°C
Efficiency : 75%
Mounting Type : Through Hole
Package / Case : 24-DIP Module, 14 Leads
Size / Dimension : 1.27" L x 0.58" W x 0.45" H (32.4mm x 14.7mm x 11.4mm)
Supplier Device Package : -
Control Features : -
0
15 in stock
RV-3.312D
RECOM Power
Manufacturer : Recom Power
Packaging : Tube
Series : ECONOLINE RV
Part Status : Discontinued at
Type : Isolated Module
Number of Outputs : 2
Voltage - Input (Min) : 3V
Voltage - Input (Max) : 3.6V
Voltage - Output 1 : 12V
Voltage - Output 2 : -12V
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 83mA, 83mA
Power (Watts) : 2W
Voltage - Isolation : 6kV
Applications : ITE (Commercial), Medical
Features : SCP
Operating Temperature : -40°C ~ 85°C
Efficiency : 75%
Mounting Type : Through Hole
Package / Case : 24-DIP Module, 14 Leads
Size / Dimension : 1.27" L x 0.58" W x 0.45" H (32.4mm x 14.7mm x 11.4mm)
Supplier Device Package : -
Control Features : -
Packaging : Tube
Series : ECONOLINE RV
Part Status : Discontinued at
Type : Isolated Module
Number of Outputs : 2
Voltage - Input (Min) : 3V
Voltage - Input (Max) : 3.6V
Voltage - Output 1 : 12V
Voltage - Output 2 : -12V
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 83mA, 83mA
Power (Watts) : 2W
Voltage - Isolation : 6kV
Applications : ITE (Commercial), Medical
Features : SCP
Operating Temperature : -40°C ~ 85°C
Efficiency : 75%
Mounting Type : Through Hole
Package / Case : 24-DIP Module, 14 Leads
Size / Dimension : 1.27" L x 0.58" W x 0.45" H (32.4mm x 14.7mm x 11.4mm)
Supplier Device Package : -
Control Features : -
0
15 in stock
RW-0509D
RECOM Power
Manufacturer : Recom Power
Packaging : Tube
Series : ECONOLINE RW-D
Part Status : Active
Type : Isolated Module
Number of Outputs : 2
Voltage - Input (Min) : 4.5V
Voltage - Input (Max) : 9V
Voltage - Output 1 : 9V
Voltage - Output 2 : -9V
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 167mA, 167mA
Power (Watts) : 3W
Voltage - Isolation : 3kV
Applications : ITE (Commercial), Medical
Features : SCP
Operating Temperature : -40°C ~ 85°C
Efficiency : 73%
Mounting Type : Through Hole
Package / Case : 24-DIP Module, 8 Leads
Size / Dimension : 1.26" L x 0.69" W x 0.28" H (32.0mm x 17.5mm x 7.0mm)
Supplier Device Package : -
Control Features : -
Packaging : Tube
Series : ECONOLINE RW-D
Part Status : Active
Type : Isolated Module
Number of Outputs : 2
Voltage - Input (Min) : 4.5V
Voltage - Input (Max) : 9V
Voltage - Output 1 : 9V
Voltage - Output 2 : -9V
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 167mA, 167mA
Power (Watts) : 3W
Voltage - Isolation : 3kV
Applications : ITE (Commercial), Medical
Features : SCP
Operating Temperature : -40°C ~ 85°C
Efficiency : 73%
Mounting Type : Through Hole
Package / Case : 24-DIP Module, 8 Leads
Size / Dimension : 1.26" L x 0.69" W x 0.28" H (32.0mm x 17.5mm x 7.0mm)
Supplier Device Package : -
Control Features : -
0
46 in stock

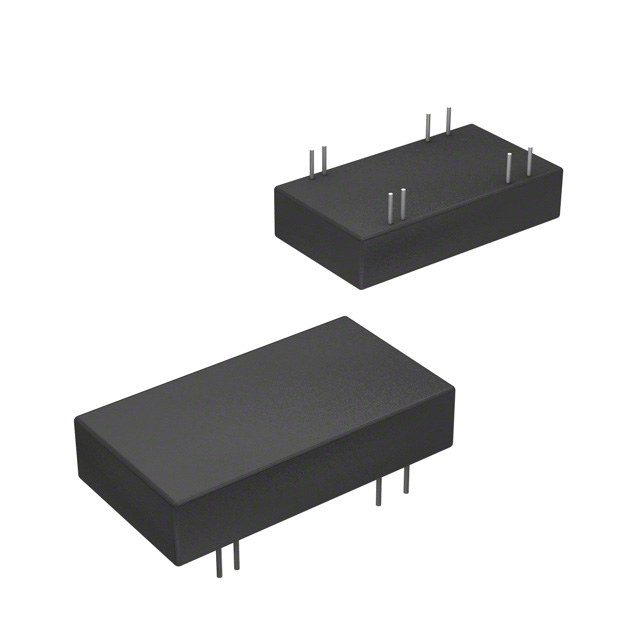

RW-0515D
RECOM Power
Manufacturer : Recom Power
Packaging : Tube
Series : ECONOLINE RW-D
Part Status : Active
Type : Isolated Module
Number of Outputs : 2
Voltage - Input (Min) : 4.5V
Voltage - Input (Max) : 9V
Voltage - Output 1 : 15V
Voltage - Output 2 : -15V
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 100mA, 100mA
Power (Watts) : 3W
Voltage - Isolation : 3kV
Applications : ITE (Commercial), Medical
Features : SCP
Operating Temperature : -40°C ~ 85°C
Efficiency : 75%
Mounting Type : Through Hole
Package / Case : 24-DIP Module, 8 Leads
Size / Dimension : 1.26" L x 0.69" W x 0.28" H (32.0mm x 17.5mm x 7.0mm)
Supplier Device Package : -
Control Features : -
Packaging : Tube
Series : ECONOLINE RW-D
Part Status : Active
Type : Isolated Module
Number of Outputs : 2
Voltage - Input (Min) : 4.5V
Voltage - Input (Max) : 9V
Voltage - Output 1 : 15V
Voltage - Output 2 : -15V
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 100mA, 100mA
Power (Watts) : 3W
Voltage - Isolation : 3kV
Applications : ITE (Commercial), Medical
Features : SCP
Operating Temperature : -40°C ~ 85°C
Efficiency : 75%
Mounting Type : Through Hole
Package / Case : 24-DIP Module, 8 Leads
Size / Dimension : 1.26" L x 0.69" W x 0.28" H (32.0mm x 17.5mm x 7.0mm)
Supplier Device Package : -
Control Features : -
0
75 in stock

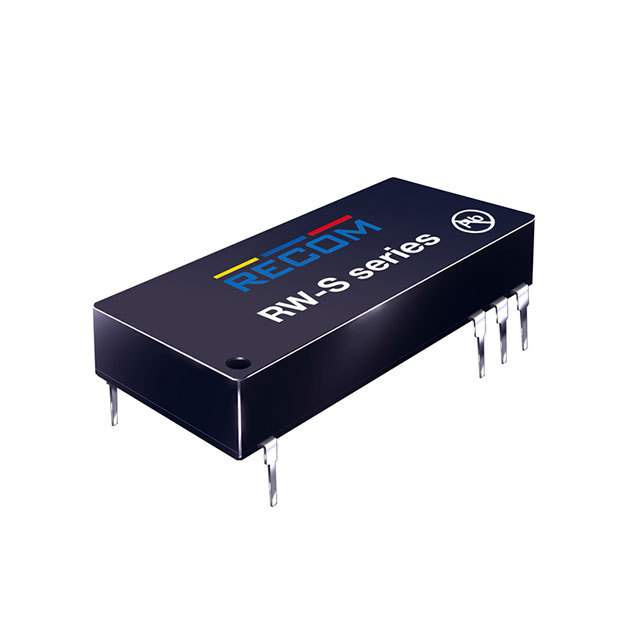

RW-1205S
RECOM Power
Manufacturer : Recom Power
Packaging : Tube
Series : ECONOLINE RW-S
Part Status : Active
Type : Isolated Module
Number of Outputs : 1
Voltage - Input (Min) : 9V
Voltage - Input (Max) : 18V
Voltage - Output 1 : 5V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 600mA
Power (Watts) : 3W
Voltage - Isolation : 1kV
Applications : ITE (Commercial)
Features : SCP
Operating Temperature : -40°C ~ 80°C
Efficiency : 73%
Mounting Type : Through Hole
Package / Case : 24-DIP Module, 8 Leads
Size / Dimension : 1.27" L x 0.58" W x 0.28" H (32.3mm x 14.7mm x 7.0mm)
Supplier Device Package : -
Control Features : -
Packaging : Tube
Series : ECONOLINE RW-S
Part Status : Active
Type : Isolated Module
Number of Outputs : 1
Voltage - Input (Min) : 9V
Voltage - Input (Max) : 18V
Voltage - Output 1 : 5V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 600mA
Power (Watts) : 3W
Voltage - Isolation : 1kV
Applications : ITE (Commercial)
Features : SCP
Operating Temperature : -40°C ~ 80°C
Efficiency : 73%
Mounting Type : Through Hole
Package / Case : 24-DIP Module, 8 Leads
Size / Dimension : 1.27" L x 0.58" W x 0.28" H (32.3mm x 14.7mm x 7.0mm)
Supplier Device Package : -
Control Features : -
0
3 in stock
RW-1209S
RECOM Power
Manufacturer : Recom Power
Packaging : Tube
Series : ECONOLINE RW-S
Part Status : Discontinued at
Type : Isolated Module
Number of Outputs : 1
Voltage - Input (Min) : 9V
Voltage - Input (Max) : 18V
Voltage - Output 1 : 9V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 333mA
Power (Watts) : 3W
Voltage - Isolation : 1kV
Applications : ITE (Commercial)
Features : SCP
Operating Temperature : -40°C ~ 80°C
Efficiency : 78%
Mounting Type : Through Hole
Package / Case : 24-DIP Module, 8 Leads
Size / Dimension : 1.27" L x 0.58" W x 0.28" H (32.3mm x 14.7mm x 7.0mm)
Supplier Device Package : -
Control Features : -
Packaging : Tube
Series : ECONOLINE RW-S
Part Status : Discontinued at
Type : Isolated Module
Number of Outputs : 1
Voltage - Input (Min) : 9V
Voltage - Input (Max) : 18V
Voltage - Output 1 : 9V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 333mA
Power (Watts) : 3W
Voltage - Isolation : 1kV
Applications : ITE (Commercial)
Features : SCP
Operating Temperature : -40°C ~ 80°C
Efficiency : 78%
Mounting Type : Through Hole
Package / Case : 24-DIP Module, 8 Leads
Size / Dimension : 1.27" L x 0.58" W x 0.28" H (32.3mm x 14.7mm x 7.0mm)
Supplier Device Package : -
Control Features : -
0
30 in stock
RW-1212S
RECOM Power
Manufacturer : Recom Power
Packaging : Tube
Series : ECONOLINE RW-S
Part Status : Active
Type : Isolated Module
Number of Outputs : 1
Voltage - Input (Min) : 9V
Voltage - Input (Max) : 18V
Voltage - Output 1 : 12V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 250mA
Power (Watts) : 3W
Voltage - Isolation : 1kV
Applications : ITE (Commercial)
Features : SCP
Operating Temperature : -40°C ~ 80°C
Efficiency : 79%
Mounting Type : Through Hole
Package / Case : 24-DIP Module, 8 Leads
Size / Dimension : 1.27" L x 0.58" W x 0.28" H (32.3mm x 14.7mm x 7.0mm)
Supplier Device Package : -
Control Features : -
Packaging : Tube
Series : ECONOLINE RW-S
Part Status : Active
Type : Isolated Module
Number of Outputs : 1
Voltage - Input (Min) : 9V
Voltage - Input (Max) : 18V
Voltage - Output 1 : 12V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 250mA
Power (Watts) : 3W
Voltage - Isolation : 1kV
Applications : ITE (Commercial)
Features : SCP
Operating Temperature : -40°C ~ 80°C
Efficiency : 79%
Mounting Type : Through Hole
Package / Case : 24-DIP Module, 8 Leads
Size / Dimension : 1.27" L x 0.58" W x 0.28" H (32.3mm x 14.7mm x 7.0mm)
Supplier Device Package : -
Control Features : -
0
34 in stock
RW-1215D
RECOM Power
Manufacturer : Recom Power
Packaging : Tube
Series : ECONOLINE RW-D
Part Status : Active
Type : Isolated Module
Number of Outputs : 2
Voltage - Input (Min) : 9V
Voltage - Input (Max) : 18V
Voltage - Output 1 : 15V
Voltage - Output 2 : -15V
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 100mA, 100mA
Power (Watts) : 3W
Voltage - Isolation : 3kV
Applications : ITE (Commercial), Medical
Features : SCP
Operating Temperature : -40°C ~ 85°C
Efficiency : 83%
Mounting Type : Through Hole
Package / Case : 24-DIP Module, 8 Leads
Size / Dimension : 1.26" L x 0.69" W x 0.28" H (32.0mm x 17.5mm x 7.0mm)
Supplier Device Package : -
Control Features : -
Packaging : Tube
Series : ECONOLINE RW-D
Part Status : Active
Type : Isolated Module
Number of Outputs : 2
Voltage - Input (Min) : 9V
Voltage - Input (Max) : 18V
Voltage - Output 1 : 15V
Voltage - Output 2 : -15V
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 100mA, 100mA
Power (Watts) : 3W
Voltage - Isolation : 3kV
Applications : ITE (Commercial), Medical
Features : SCP
Operating Temperature : -40°C ~ 85°C
Efficiency : 83%
Mounting Type : Through Hole
Package / Case : 24-DIP Module, 8 Leads
Size / Dimension : 1.26" L x 0.69" W x 0.28" H (32.0mm x 17.5mm x 7.0mm)
Supplier Device Package : -
Control Features : -
0
13 in stock

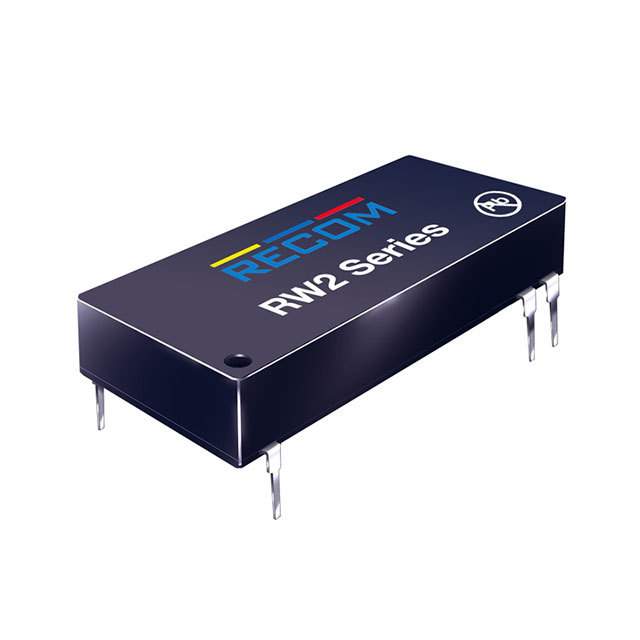

RW2-0505S
RECOM Power
Manufacturer : Recom Power
Packaging : Tube
Series : ECONOLINE RW2
Part Status : Active
Type : Isolated Module
Number of Outputs : 1
Voltage - Input (Min) : 4.5V
Voltage - Input (Max) : 9V
Voltage - Output 1 : 5V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 400mA
Power (Watts) : 2W
Voltage - Isolation : 1kV
Applications : ITE (Commercial), Medical
Features : SCP
Operating Temperature : -40°C ~ 85°C
Efficiency : 73%
Mounting Type : Through Hole
Package / Case : 16-DIP Module, 6 Leads
Size / Dimension : 0.95" L x 0.57" W x 0.38" H (24.2mm x 14.5mm x 9.7mm)
Supplier Device Package : -
Control Features : -
Packaging : Tube
Series : ECONOLINE RW2
Part Status : Active
Type : Isolated Module
Number of Outputs : 1
Voltage - Input (Min) : 4.5V
Voltage - Input (Max) : 9V
Voltage - Output 1 : 5V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 400mA
Power (Watts) : 2W
Voltage - Isolation : 1kV
Applications : ITE (Commercial), Medical
Features : SCP
Operating Temperature : -40°C ~ 85°C
Efficiency : 73%
Mounting Type : Through Hole
Package / Case : 16-DIP Module, 6 Leads
Size / Dimension : 0.95" L x 0.57" W x 0.38" H (24.2mm x 14.5mm x 9.7mm)
Supplier Device Package : -
Control Features : -
0
18 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
