QT Brightek
- QT Brightek is headquartered in the San Francisco bay area with sales, marketing and field application support throughout the Americas, Europe and Asia. The product families offered are SMT LED, thru-hole LEDs, LED displayss, optocoupler, IR devices, and custom modules.
Part Number
Manufacturer
Description
Unit Price
In Stock
QBHP686-IWK-CW
QT Brightek
Manufacturer : QT Brightek (QTB)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Color : White, Cool
CCT (K) : 6020K (5300K ~ 7050K)
Flux @ 85°C, Current - Test : -
Flux @ 25°C, Current - Test : 19 lm (Typ)
Current - Test : 60mA
Voltage - Forward (Vf) (Typ) : 3.2V
Lumens/Watt @ Current - Test : 99 lm/W
CRI (Color Rendering Index) : 80
Current - Max : 75mA
Viewing Angle : -
Mounting Type : Surface Mount
Package / Case : 1113 (2835 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.126" L x 0.110" W (3.20mm x 2.80mm)
Height - Seated (Max) : 0.035" (0.90mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Color : White, Cool
CCT (K) : 6020K (5300K ~ 7050K)
Flux @ 85°C, Current - Test : -
Flux @ 25°C, Current - Test : 19 lm (Typ)
Current - Test : 60mA
Voltage - Forward (Vf) (Typ) : 3.2V
Lumens/Watt @ Current - Test : 99 lm/W
CRI (Color Rendering Index) : 80
Current - Max : 75mA
Viewing Angle : -
Mounting Type : Surface Mount
Package / Case : 1113 (2835 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.126" L x 0.110" W (3.20mm x 2.80mm)
Height - Seated (Max) : 0.035" (0.90mm)
0
12542 in stock
QBHP686-IWK-NW
QT Brightek
Manufacturer : QT Brightek (QTB)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
Color : White, Neutral
CCT (K) : 4000K (3640K ~ 4240K)
Flux @ 85°C, Current - Test : -
Flux @ 25°C, Current - Test : 19 lm (Typ)
Current - Test : 60mA
Voltage - Forward (Vf) (Typ) : 3.2V
Lumens/Watt @ Current - Test : 99 lm/W
CRI (Color Rendering Index) : 80
Current - Max : 75mA
Viewing Angle : -
Mounting Type : Surface Mount
Package / Case : 1113 (2835 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.126" L x 0.110" W (3.20mm x 2.80mm)
Height - Seated (Max) : 0.035" (0.90mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
Color : White, Neutral
CCT (K) : 4000K (3640K ~ 4240K)
Flux @ 85°C, Current - Test : -
Flux @ 25°C, Current - Test : 19 lm (Typ)
Current - Test : 60mA
Voltage - Forward (Vf) (Typ) : 3.2V
Lumens/Watt @ Current - Test : 99 lm/W
CRI (Color Rendering Index) : 80
Current - Max : 75mA
Viewing Angle : -
Mounting Type : Surface Mount
Package / Case : 1113 (2835 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.126" L x 0.110" W (3.20mm x 2.80mm)
Height - Seated (Max) : 0.035" (0.90mm)
0
100 in stock

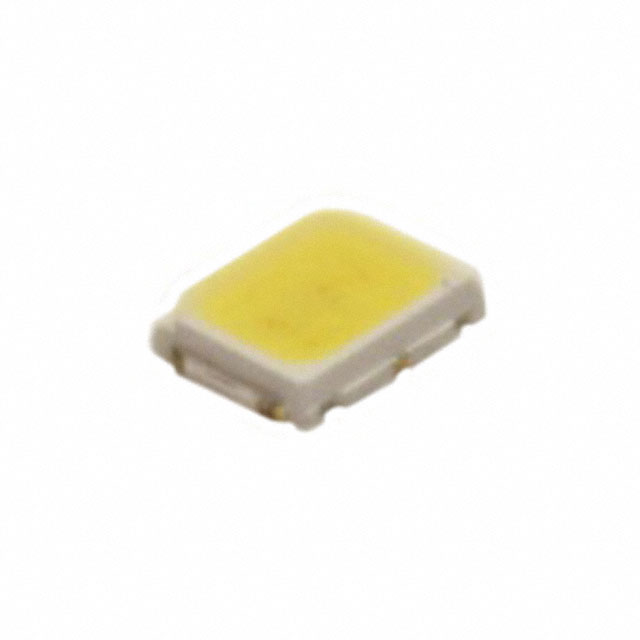

QBHP686-IWK-WW
QT Brightek
Manufacturer : QT Brightek (QTB)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
Color : White, Warm
CCT (K) : 3000K (2760K ~ 3260K)
Flux @ 85°C, Current - Test : -
Flux @ 25°C, Current - Test : 18 lm (Typ)
Current - Test : 60mA
Voltage - Forward (Vf) (Typ) : 3.2V
Lumens/Watt @ Current - Test : 94 lm/W
CRI (Color Rendering Index) : 80
Current - Max : 75mA
Viewing Angle : -
Mounting Type : Surface Mount
Package / Case : 1113 (2835 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.126" L x 0.110" W (3.20mm x 2.80mm)
Height - Seated (Max) : 0.035" (0.90mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
Color : White, Warm
CCT (K) : 3000K (2760K ~ 3260K)
Flux @ 85°C, Current - Test : -
Flux @ 25°C, Current - Test : 18 lm (Typ)
Current - Test : 60mA
Voltage - Forward (Vf) (Typ) : 3.2V
Lumens/Watt @ Current - Test : 94 lm/W
CRI (Color Rendering Index) : 80
Current - Max : 75mA
Viewing Angle : -
Mounting Type : Surface Mount
Package / Case : 1113 (2835 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.126" L x 0.110" W (3.20mm x 2.80mm)
Height - Seated (Max) : 0.035" (0.90mm)
0
100 in stock
QBHP686-OH
QT Brightek
Manufacturer : QT Brightek (QTB)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : QBHP686
Part Status : Active
Color : Orange
Configuration : -
Lens Color : Colorless
Lens Transparency : Clear
Millicandela Rating : -
Lens Style : Rectangle with Flat Top
Lens Size : -
Voltage - Forward (Vf) (Typ) : 2.4V
Current - Test : 150mA
Viewing Angle : 120°
Mounting Type : Surface Mount
Wavelength - Dominant : 605nm
Wavelength - Peak : -
Features : -
Package / Case : 1113 (2835 Metric)
Supplier Device Package : 2835
Size / Dimension : 3.10mm L x 2.80mm W
Height (Max) : 1.00mm
Packaging : Cut Tape (CT)
Alternate Packaging
Series : QBHP686
Part Status : Active
Color : Orange
Configuration : -
Lens Color : Colorless
Lens Transparency : Clear
Millicandela Rating : -
Lens Style : Rectangle with Flat Top
Lens Size : -
Voltage - Forward (Vf) (Typ) : 2.4V
Current - Test : 150mA
Viewing Angle : 120°
Mounting Type : Surface Mount
Wavelength - Dominant : 605nm
Wavelength - Peak : -
Features : -
Package / Case : 1113 (2835 Metric)
Supplier Device Package : 2835
Size / Dimension : 3.10mm L x 2.80mm W
Height (Max) : 1.00mm
0
100 in stock
QBHP686-RH
QT Brightek
Manufacturer : QT Brightek (QTB)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : QBHP686
Part Status : Active
Color : Red
Configuration : -
Lens Color : Colorless
Lens Transparency : Clear
Millicandela Rating : -
Lens Style : Rectangle with Flat Top
Lens Size : -
Voltage - Forward (Vf) (Typ) : 2.4V
Current - Test : 150mA
Viewing Angle : 120°
Mounting Type : Surface Mount
Wavelength - Dominant : 620nm
Wavelength - Peak : -
Features : -
Package / Case : 1113 (2835 Metric)
Supplier Device Package : 2835
Size / Dimension : 3.10mm L x 2.80mm W
Height (Max) : 1.00mm
Packaging : Cut Tape (CT)
Alternate Packaging
Series : QBHP686
Part Status : Active
Color : Red
Configuration : -
Lens Color : Colorless
Lens Transparency : Clear
Millicandela Rating : -
Lens Style : Rectangle with Flat Top
Lens Size : -
Voltage - Forward (Vf) (Typ) : 2.4V
Current - Test : 150mA
Viewing Angle : 120°
Mounting Type : Surface Mount
Wavelength - Dominant : 620nm
Wavelength - Peak : -
Features : -
Package / Case : 1113 (2835 Metric)
Supplier Device Package : 2835
Size / Dimension : 3.10mm L x 2.80mm W
Height (Max) : 1.00mm
0
100 in stock
QBHP686-YH
QT Brightek
Manufacturer : QT Brightek (QTB)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : QBHP686
Part Status : Active
Color : Yellow
Configuration : -
Lens Color : Colorless
Lens Transparency : Clear
Millicandela Rating : -
Lens Style : Rectangle with Flat Top
Lens Size : -
Voltage - Forward (Vf) (Typ) : 2.4V
Current - Test : 150mA
Viewing Angle : 120°
Mounting Type : Surface Mount
Wavelength - Dominant : 590nm
Wavelength - Peak : -
Features : -
Package / Case : 1113 (2835 Metric)
Supplier Device Package : 2835
Size / Dimension : 3.10mm L x 2.80mm W
Height (Max) : 1.00mm
Packaging : Cut Tape (CT)
Alternate Packaging
Series : QBHP686
Part Status : Active
Color : Yellow
Configuration : -
Lens Color : Colorless
Lens Transparency : Clear
Millicandela Rating : -
Lens Style : Rectangle with Flat Top
Lens Size : -
Voltage - Forward (Vf) (Typ) : 2.4V
Current - Test : 150mA
Viewing Angle : 120°
Mounting Type : Surface Mount
Wavelength - Dominant : 590nm
Wavelength - Peak : -
Features : -
Package / Case : 1113 (2835 Metric)
Supplier Device Package : 2835
Size / Dimension : 3.10mm L x 2.80mm W
Height (Max) : 1.00mm
0
100 in stock
QBHP687-IWH-CW
QT Brightek
Manufacturer : QT Brightek (QTB)
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Color : White, Cool
CCT (K) : 6020K (5300K ~ 7050K)
Flux @ 85°C, Current - Test : -
Flux @ 25°C, Current - Test : 50 lm (Typ)
Current - Test : 150mA
Voltage - Forward (Vf) (Typ) : 3.3V
Lumens/Watt @ Current - Test : 101 lm/W
CRI (Color Rendering Index) : 80
Current - Max : 180mA
Viewing Angle : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, Flat Lead Exposed Pad
Supplier Device Package : SMD
Size / Dimension : 0.209" L x 0.118" W (5.30mm x 3.00mm)
Height - Seated (Max) : 0.038" (0.97mm)
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Color : White, Cool
CCT (K) : 6020K (5300K ~ 7050K)
Flux @ 85°C, Current - Test : -
Flux @ 25°C, Current - Test : 50 lm (Typ)
Current - Test : 150mA
Voltage - Forward (Vf) (Typ) : 3.3V
Lumens/Watt @ Current - Test : 101 lm/W
CRI (Color Rendering Index) : 80
Current - Max : 180mA
Viewing Angle : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, Flat Lead Exposed Pad
Supplier Device Package : SMD
Size / Dimension : 0.209" L x 0.118" W (5.30mm x 3.00mm)
Height - Seated (Max) : 0.038" (0.97mm)
0
100 in stock

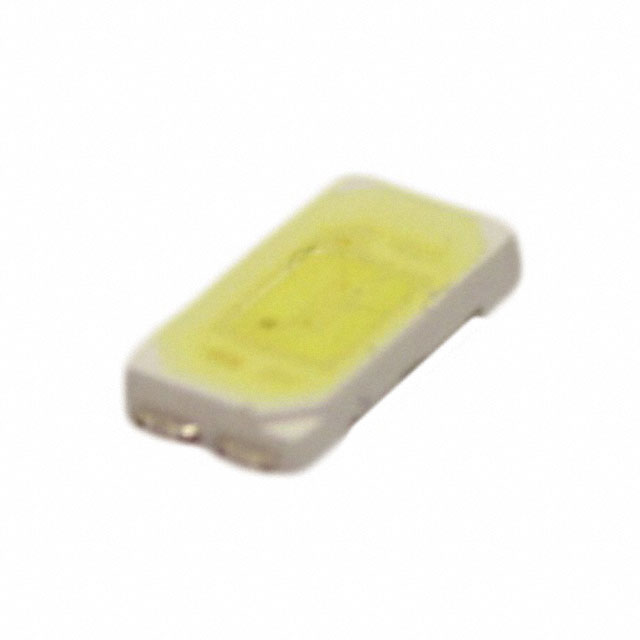

QBHP687-IWH-NW
QT Brightek
Manufacturer : QT Brightek (QTB)
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Color : White, Neutral
CCT (K) : 4000K (3640K ~ 4240K)
Flux @ 85°C, Current - Test : -
Flux @ 25°C, Current - Test : 50 lm (Typ)
Current - Test : 150mA
Voltage - Forward (Vf) (Typ) : 3.3V
Lumens/Watt @ Current - Test : 101 lm/W
CRI (Color Rendering Index) : 80
Current - Max : 180mA
Viewing Angle : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, Flat Lead Exposed Pad
Supplier Device Package : SMD
Size / Dimension : 0.209" L x 0.118" W (5.30mm x 3.00mm)
Height - Seated (Max) : 0.038" (0.97mm)
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Color : White, Neutral
CCT (K) : 4000K (3640K ~ 4240K)
Flux @ 85°C, Current - Test : -
Flux @ 25°C, Current - Test : 50 lm (Typ)
Current - Test : 150mA
Voltage - Forward (Vf) (Typ) : 3.3V
Lumens/Watt @ Current - Test : 101 lm/W
CRI (Color Rendering Index) : 80
Current - Max : 180mA
Viewing Angle : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, Flat Lead Exposed Pad
Supplier Device Package : SMD
Size / Dimension : 0.209" L x 0.118" W (5.30mm x 3.00mm)
Height - Seated (Max) : 0.038" (0.97mm)
0
100 in stock
QBHP687-IWH-WW
QT Brightek
Manufacturer : QT Brightek (QTB)
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Color : White, Warm
CCT (K) : 3000K (2760K ~ 3260K)
Flux @ 85°C, Current - Test : -
Flux @ 25°C, Current - Test : 44 lm (Typ)
Current - Test : 150mA
Voltage - Forward (Vf) (Typ) : 3.3V
Lumens/Watt @ Current - Test : 89 lm/W
CRI (Color Rendering Index) : 80
Current - Max : 180mA
Viewing Angle : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, Flat Lead Exposed Pad
Supplier Device Package : SMD
Size / Dimension : 0.209" L x 0.118" W (5.30mm x 3.00mm)
Height - Seated (Max) : 0.038" (0.97mm)
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Color : White, Warm
CCT (K) : 3000K (2760K ~ 3260K)
Flux @ 85°C, Current - Test : -
Flux @ 25°C, Current - Test : 44 lm (Typ)
Current - Test : 150mA
Voltage - Forward (Vf) (Typ) : 3.3V
Lumens/Watt @ Current - Test : 89 lm/W
CRI (Color Rendering Index) : 80
Current - Max : 180mA
Viewing Angle : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, Flat Lead Exposed Pad
Supplier Device Package : SMD
Size / Dimension : 0.209" L x 0.118" W (5.30mm x 3.00mm)
Height - Seated (Max) : 0.038" (0.97mm)
0
100 in stock
QBL7AG30C
QT Brightek
Manufacturer : QT Brightek (QTB)
Packaging : -
Series : -
Part Status : Active
Color : Yellow-Green
Wavelength - Peak : 573nm
Configuration : Single
Current : 20mA
Millicandela Rating : 270mcd
Viewing Angle : 30°
Lens Type : Clear
Lens Style/Size : Round with Domed Top, 3.05mm
Voltage Rating : 2V
Mounting Type : Through Hole
Packaging : -
Series : -
Part Status : Active
Color : Yellow-Green
Wavelength - Peak : 573nm
Configuration : Single
Current : 20mA
Millicandela Rating : 270mcd
Viewing Angle : 30°
Lens Type : Clear
Lens Style/Size : Round with Domed Top, 3.05mm
Voltage Rating : 2V
Mounting Type : Through Hole
0
1480 in stock
QBL7AG60D
QT Brightek
Manufacturer : QT Brightek (QTB)
Packaging : -
Series : QBL7XX60D
Part Status : Active
Color : Yellow-Green
Wavelength - Peak : 573nm
Configuration : Single
Current : 20mA
Millicandela Rating : 120mcd
Viewing Angle : 60°
Lens Type : Diffused
Lens Style/Size : Round with Domed Top, 3.00mm
Voltage Rating : 2V
Mounting Type : Through Hole
Packaging : -
Series : QBL7XX60D
Part Status : Active
Color : Yellow-Green
Wavelength - Peak : 573nm
Configuration : Single
Current : 20mA
Millicandela Rating : 120mcd
Viewing Angle : 60°
Lens Type : Diffused
Lens Style/Size : Round with Domed Top, 3.00mm
Voltage Rating : 2V
Mounting Type : Through Hole
0
1500 in stock
QBL7IB30C
QT Brightek
Manufacturer : QT Brightek (QTB)
Packaging : -
Series : -
Part Status : Active
Color : Blue
Wavelength - Peak : 470nm
Configuration : Single
Current : 20mA
Millicandela Rating : 3800mcd
Viewing Angle : 30°
Lens Type : Clear
Lens Style/Size : Round with Domed Top, 3.05mm
Voltage Rating : 3.2V
Mounting Type : Through Hole
Packaging : -
Series : -
Part Status : Active
Color : Blue
Wavelength - Peak : 470nm
Configuration : Single
Current : 20mA
Millicandela Rating : 3800mcd
Viewing Angle : 30°
Lens Type : Clear
Lens Style/Size : Round with Domed Top, 3.05mm
Voltage Rating : 3.2V
Mounting Type : Through Hole
0
1500 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
