QT Brightek
- QT Brightek is headquartered in the San Francisco bay area with sales, marketing and field application support throughout the Americas, Europe and Asia. The product families offered are SMT LED, thru-hole LEDs, LED displayss, optocoupler, IR devices, and custom modules.
Part Number
Manufacturer
Description
Unit Price
In Stock

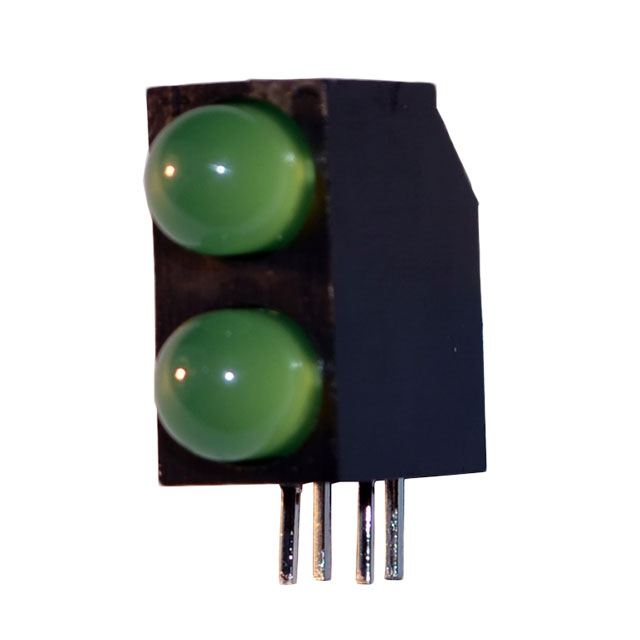

QBL8YG60D-MP94
QT Brightek
Manufacturer : QT Brightek (QTB)
Packaging : -
Series : QBL8XX60D-MP9Y
Part Status : Active
Color : Green (x 2)
Wavelength - Peak : 570nm
Configuration : 2 High
Current : 20mA
Millicandela Rating : 30mcd
Viewing Angle : 60°
Lens Type : Diffused
Lens Style/Size : Round with Domed Top, 4.80mm
Voltage Rating : 2V
Mounting Type : -
Packaging : -
Series : QBL8XX60D-MP9Y
Part Status : Active
Color : Green (x 2)
Wavelength - Peak : 570nm
Configuration : 2 High
Current : 20mA
Millicandela Rating : 30mcd
Viewing Angle : 60°
Lens Type : Diffused
Lens Style/Size : Round with Domed Top, 4.80mm
Voltage Rating : 2V
Mounting Type : -
0
498 in stock

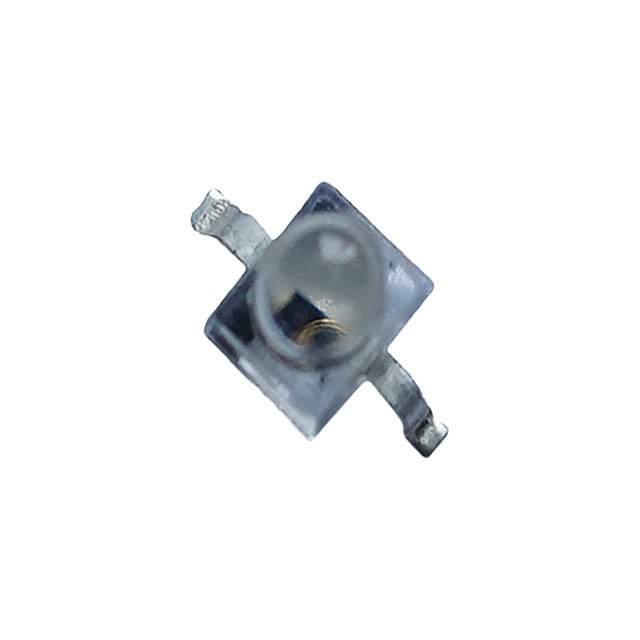

QBL912GC-IR2
QT Brightek
Manufacturer : QT Brightek (QTB)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 50mA
Radiant Intensity (Ie) Min @ If : 0.6mW/sr @ 20mA
Wavelength : 880nm
Voltage - Forward (Vf) (Typ) : 1.4V
Viewing Angle : 20°
Orientation : Top View
Operating Temperature : -40°C ~ 80°C (TA)
Mounting Type : Surface Mount
Package / Case : 2-SMD, Gull Wing
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 50mA
Radiant Intensity (Ie) Min @ If : 0.6mW/sr @ 20mA
Wavelength : 880nm
Voltage - Forward (Vf) (Typ) : 1.4V
Viewing Angle : 20°
Orientation : Top View
Operating Temperature : -40°C ~ 80°C (TA)
Mounting Type : Surface Mount
Package / Case : 2-SMD, Gull Wing
0
1995 in stock

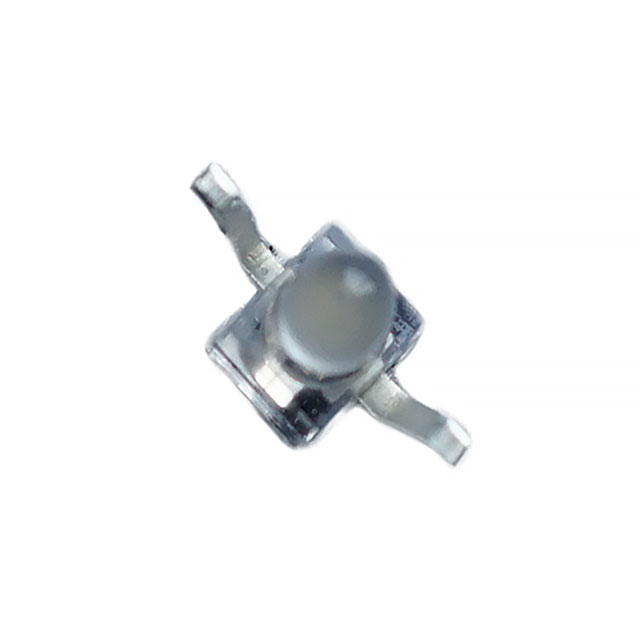

QBL912ZC-IR2
QT Brightek
Manufacturer : QT Brightek (QTB)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 50mA
Radiant Intensity (Ie) Min @ If : 0.6mW/sr @ 20mA
Wavelength : 880nm
Voltage - Forward (Vf) (Typ) : 1.4V
Viewing Angle : 20°
Orientation : Top View
Operating Temperature : -40°C ~ 80°C (TA)
Mounting Type : Surface Mount, Bottom Entry
Package / Case : 2-SMD, Z-Bend
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 50mA
Radiant Intensity (Ie) Min @ If : 0.6mW/sr @ 20mA
Wavelength : 880nm
Voltage - Forward (Vf) (Typ) : 1.4V
Viewing Angle : 20°
Orientation : Top View
Operating Temperature : -40°C ~ 80°C (TA)
Mounting Type : Surface Mount, Bottom Entry
Package / Case : 2-SMD, Z-Bend
0
1498 in stock
QBL912ZC-IR3
QT Brightek
Manufacturer : QT Brightek (QTB)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 50mA
Radiant Intensity (Ie) Min @ If : 0.6mW/sr @ 20mA
Wavelength : 880nm
Voltage - Forward (Vf) (Typ) : 1.4V
Viewing Angle : 20°
Orientation : Top View
Operating Temperature : -40°C ~ 80°C (TA)
Mounting Type : Surface Mount, Bottom Entry
Package / Case : 2-SMD, Z-Bend
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 50mA
Radiant Intensity (Ie) Min @ If : 0.6mW/sr @ 20mA
Wavelength : 880nm
Voltage - Forward (Vf) (Typ) : 1.4V
Viewing Angle : 20°
Orientation : Top View
Operating Temperature : -40°C ~ 80°C (TA)
Mounting Type : Surface Mount, Bottom Entry
Package / Case : 2-SMD, Z-Bend
0
1564 in stock

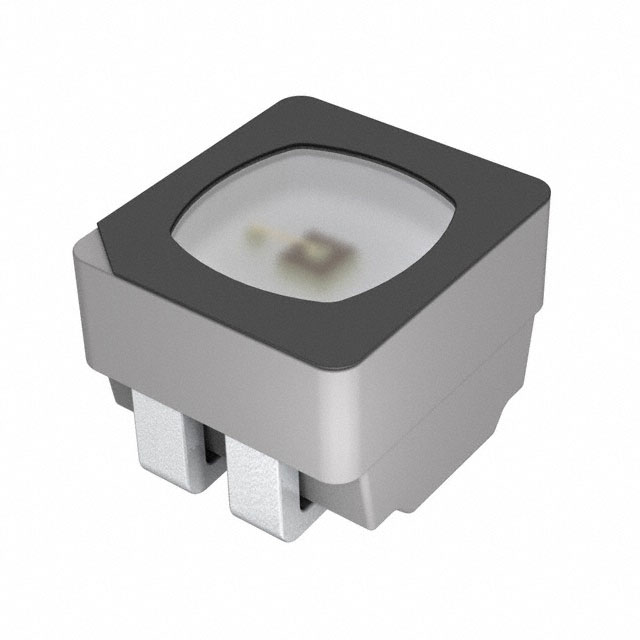

QBLP1515-AG5
QT Brightek
Manufacturer : QT Brightek (QTB)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : QBLP1515-XX5
Part Status : Active
Color : Yellow-Green
Configuration : Standard
Lens Color : -
Lens Transparency : -
Millicandela Rating : 30mcd
Lens Style : Square with Flat Top
Lens Size : -
Voltage - Forward (Vf) (Typ) : 1.9V
Current - Test : 5mA
Viewing Angle : 120°
Mounting Type : Surface Mount
Wavelength - Dominant : 570nm
Wavelength - Peak : -
Features : -
Package / Case : 4-SMD, J-Lead
Supplier Device Package : 4-PLCC
Size / Dimension : 1.60mm L x 1.50mm W
Height (Max) : 1.20mm
Packaging : Cut Tape (CT)
Alternate Packaging
Series : QBLP1515-XX5
Part Status : Active
Color : Yellow-Green
Configuration : Standard
Lens Color : -
Lens Transparency : -
Millicandela Rating : 30mcd
Lens Style : Square with Flat Top
Lens Size : -
Voltage - Forward (Vf) (Typ) : 1.9V
Current - Test : 5mA
Viewing Angle : 120°
Mounting Type : Surface Mount
Wavelength - Dominant : 570nm
Wavelength - Peak : -
Features : -
Package / Case : 4-SMD, J-Lead
Supplier Device Package : 4-PLCC
Size / Dimension : 1.60mm L x 1.50mm W
Height (Max) : 1.20mm
0
3989 in stock

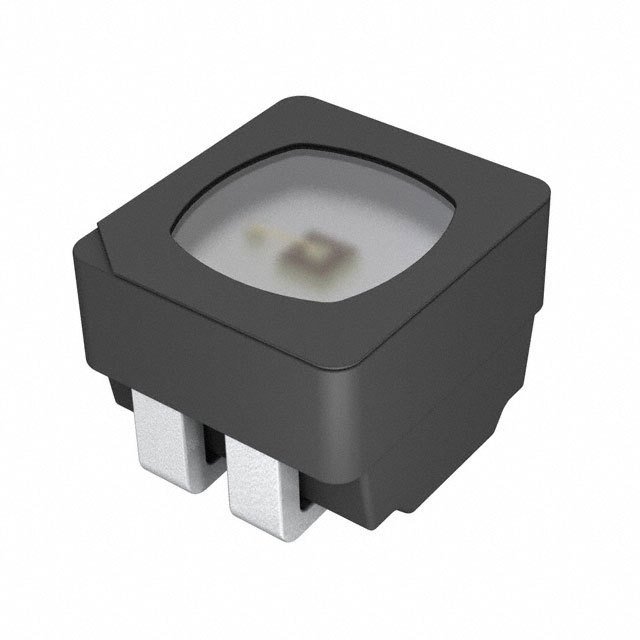

QBLP1515B-RGBA
QT Brightek
Manufacturer : QT Brightek (QTB)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Color : Red, Green, Blue (RGB)
Configuration : Common Anode
Lens Color : -
Lens Transparency : Diffused
Millicandela Rating : 150mcd Red, 300mcd Green, 77mcd Blue
Lens Style : Square with Flat Top
Lens Size : -
Voltage - Forward (Vf) (Typ) : 2V Red, 3.1V Green, 3.1V Blue
Current - Test : 10mA Red, 10mA Green, 10mA Blue
Viewing Angle : 120°
Mounting Type : Surface Mount
Wavelength - Dominant : 622nm Red, 523nm Green, 467nm Blue
Wavelength - Peak : -
Features : -
Package / Case : 4-SMD, J-Lead
Supplier Device Package : 4-PLCC
Size / Dimension : 1.60mm L x 1.50mm W
Height (Max) : 1.20mm
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Color : Red, Green, Blue (RGB)
Configuration : Common Anode
Lens Color : -
Lens Transparency : Diffused
Millicandela Rating : 150mcd Red, 300mcd Green, 77mcd Blue
Lens Style : Square with Flat Top
Lens Size : -
Voltage - Forward (Vf) (Typ) : 2V Red, 3.1V Green, 3.1V Blue
Current - Test : 10mA Red, 10mA Green, 10mA Blue
Viewing Angle : 120°
Mounting Type : Surface Mount
Wavelength - Dominant : 622nm Red, 523nm Green, 467nm Blue
Wavelength - Peak : -
Features : -
Package / Case : 4-SMD, J-Lead
Supplier Device Package : 4-PLCC
Size / Dimension : 1.60mm L x 1.50mm W
Height (Max) : 1.20mm
0
58 in stock
QBLP1515-IB5
QT Brightek
Manufacturer : QT Brightek (QTB)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : QBLP1515-XX5
Part Status : Active
Color : Blue
Configuration : Standard
Lens Color : -
Lens Transparency : -
Millicandela Rating : 100mcd
Lens Style : Square with Flat Top
Lens Size : -
Voltage - Forward (Vf) (Typ) : 3.1V
Current - Test : 5mA
Viewing Angle : 120°
Mounting Type : Surface Mount
Wavelength - Dominant : 465nm
Wavelength - Peak : -
Features : -
Package / Case : 4-SMD, J-Lead
Supplier Device Package : 4-PLCC
Size / Dimension : 1.60mm L x 1.50mm W
Height (Max) : 1.20mm
Packaging : Cut Tape (CT)
Alternate Packaging
Series : QBLP1515-XX5
Part Status : Active
Color : Blue
Configuration : Standard
Lens Color : -
Lens Transparency : -
Millicandela Rating : 100mcd
Lens Style : Square with Flat Top
Lens Size : -
Voltage - Forward (Vf) (Typ) : 3.1V
Current - Test : 5mA
Viewing Angle : 120°
Mounting Type : Surface Mount
Wavelength - Dominant : 465nm
Wavelength - Peak : -
Features : -
Package / Case : 4-SMD, J-Lead
Supplier Device Package : 4-PLCC
Size / Dimension : 1.60mm L x 1.50mm W
Height (Max) : 1.20mm
0
2640 in stock
QBLP1515-IG5
QT Brightek
Manufacturer : QT Brightek (QTB)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : QBLP1515-XX5
Part Status : Active
Color : Green
Configuration : Standard
Lens Color : -
Lens Transparency : -
Millicandela Rating : 400mcd
Lens Style : Square with Flat Top
Lens Size : -
Voltage - Forward (Vf) (Typ) : 3.1V
Current - Test : 5mA
Viewing Angle : 120°
Mounting Type : Surface Mount
Wavelength - Dominant : 520nm
Wavelength - Peak : -
Features : -
Package / Case : 4-SMD, J-Lead
Supplier Device Package : 4-PLCC
Size / Dimension : 1.60mm L x 1.50mm W
Height (Max) : 1.20mm
Packaging : Cut Tape (CT)
Alternate Packaging
Series : QBLP1515-XX5
Part Status : Active
Color : Green
Configuration : Standard
Lens Color : -
Lens Transparency : -
Millicandela Rating : 400mcd
Lens Style : Square with Flat Top
Lens Size : -
Voltage - Forward (Vf) (Typ) : 3.1V
Current - Test : 5mA
Viewing Angle : 120°
Mounting Type : Surface Mount
Wavelength - Dominant : 520nm
Wavelength - Peak : -
Features : -
Package / Case : 4-SMD, J-Lead
Supplier Device Package : 4-PLCC
Size / Dimension : 1.60mm L x 1.50mm W
Height (Max) : 1.20mm
0
1593 in stock
QBLP1515-IW5-CW
QT Brightek
Manufacturer : QT Brightek (QTB)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Color : White, Cool
Configuration : Standard
Lens Color : -
Lens Transparency : -
Millicandela Rating : 530mcd
Lens Style : Square with Flat Top
Lens Size : -
Voltage - Forward (Vf) (Typ) : 2.9V
Current - Test : 5mA
Viewing Angle : 120°
Mounting Type : Surface Mount
Wavelength - Dominant : 6020K
Wavelength - Peak : -
Features : -
Package / Case : 4-SMD, J-Lead
Supplier Device Package : 4-PLCC
Size / Dimension : 1.60mm L x 1.50mm W
Height (Max) : 1.20mm
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Color : White, Cool
Configuration : Standard
Lens Color : -
Lens Transparency : -
Millicandela Rating : 530mcd
Lens Style : Square with Flat Top
Lens Size : -
Voltage - Forward (Vf) (Typ) : 2.9V
Current - Test : 5mA
Viewing Angle : 120°
Mounting Type : Surface Mount
Wavelength - Dominant : 6020K
Wavelength - Peak : -
Features : -
Package / Case : 4-SMD, J-Lead
Supplier Device Package : 4-PLCC
Size / Dimension : 1.60mm L x 1.50mm W
Height (Max) : 1.20mm
0
22830 in stock
QBLP1515-IW5-NW
QT Brightek
Manufacturer : QT Brightek (QTB)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Color : White, Neutral
Configuration : Standard
Lens Color : -
Lens Transparency : -
Millicandela Rating : 490mcd
Lens Style : Square with Flat Top
Lens Size : -
Voltage - Forward (Vf) (Typ) : 2.9V
Current - Test : 5mA
Viewing Angle : 120°
Mounting Type : Surface Mount
Wavelength - Dominant : 4000K
Wavelength - Peak : -
Features : -
Package / Case : 4-SMD, J-Lead
Supplier Device Package : 4-PLCC
Size / Dimension : 1.60mm L x 1.50mm W
Height (Max) : 1.20mm
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Color : White, Neutral
Configuration : Standard
Lens Color : -
Lens Transparency : -
Millicandela Rating : 490mcd
Lens Style : Square with Flat Top
Lens Size : -
Voltage - Forward (Vf) (Typ) : 2.9V
Current - Test : 5mA
Viewing Angle : 120°
Mounting Type : Surface Mount
Wavelength - Dominant : 4000K
Wavelength - Peak : -
Features : -
Package / Case : 4-SMD, J-Lead
Supplier Device Package : 4-PLCC
Size / Dimension : 1.60mm L x 1.50mm W
Height (Max) : 1.20mm
0
19035 in stock
QBLP1515-IW5-WW
QT Brightek
Manufacturer : QT Brightek (QTB)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Color : White, Warm
Configuration : Standard
Lens Color : -
Lens Transparency : -
Millicandela Rating : 450mcd
Lens Style : Square with Flat Top
Lens Size : -
Voltage - Forward (Vf) (Typ) : 2.9V
Current - Test : 5mA
Viewing Angle : 120°
Mounting Type : Surface Mount
Wavelength - Dominant : 3000K
Wavelength - Peak : -
Features : -
Package / Case : 4-SMD, J-Lead
Supplier Device Package : 4-PLCC
Size / Dimension : 1.60mm L x 1.50mm W
Height (Max) : 1.20mm
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Color : White, Warm
Configuration : Standard
Lens Color : -
Lens Transparency : -
Millicandela Rating : 450mcd
Lens Style : Square with Flat Top
Lens Size : -
Voltage - Forward (Vf) (Typ) : 2.9V
Current - Test : 5mA
Viewing Angle : 120°
Mounting Type : Surface Mount
Wavelength - Dominant : 3000K
Wavelength - Peak : -
Features : -
Package / Case : 4-SMD, J-Lead
Supplier Device Package : 4-PLCC
Size / Dimension : 1.60mm L x 1.50mm W
Height (Max) : 1.20mm
0
19565 in stock
QBLP1515-O5
QT Brightek
Manufacturer : QT Brightek (QTB)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : QBLP1515-XX5
Part Status : Active
Color : Orange
Configuration : Standard
Lens Color : -
Lens Transparency : -
Millicandela Rating : 50mcd
Lens Style : Square with Flat Top
Lens Size : -
Voltage - Forward (Vf) (Typ) : 1.9V
Current - Test : 5mA
Viewing Angle : 120°
Mounting Type : Surface Mount
Wavelength - Dominant : 603nm
Wavelength - Peak : -
Features : -
Package / Case : 4-SMD, J-Lead
Supplier Device Package : 4-PLCC
Size / Dimension : 1.60mm L x 1.50mm W
Height (Max) : 1.20mm
Packaging : Cut Tape (CT)
Alternate Packaging
Series : QBLP1515-XX5
Part Status : Active
Color : Orange
Configuration : Standard
Lens Color : -
Lens Transparency : -
Millicandela Rating : 50mcd
Lens Style : Square with Flat Top
Lens Size : -
Voltage - Forward (Vf) (Typ) : 1.9V
Current - Test : 5mA
Viewing Angle : 120°
Mounting Type : Surface Mount
Wavelength - Dominant : 603nm
Wavelength - Peak : -
Features : -
Package / Case : 4-SMD, J-Lead
Supplier Device Package : 4-PLCC
Size / Dimension : 1.60mm L x 1.50mm W
Height (Max) : 1.20mm
0
3980 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
