PULS Power Supply
- PULS is a company exclusively dedicated to the design, development, production, and sales of DIN-Rail power products. This singular focus on the needs and requirements of the Industrial DC power market allows PULS to set new standards for efficiency and service lifetimes while becoming the global market leader. The broad product offering from PULS enables users to select the right product for their application requirements. All PULS products are manufactured in two state-of-the-art production facilities that are wholly owned and operated by PULS.
Part Number
Manufacturer
Description
Unit Price
In Stock

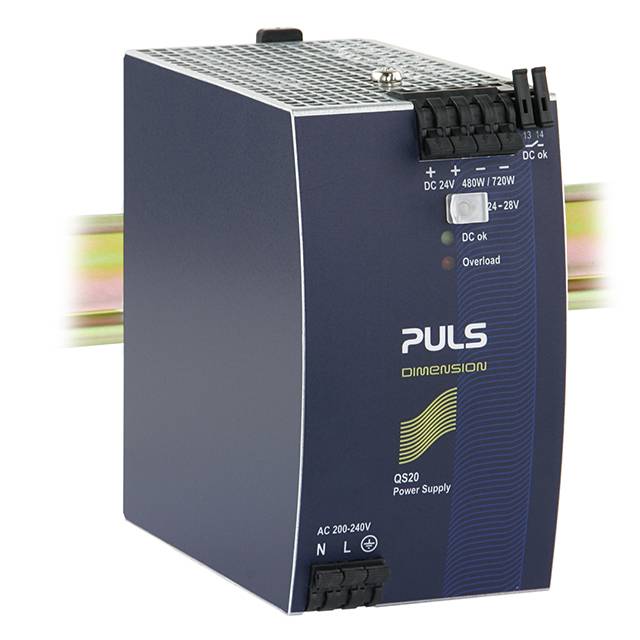

QS20.244
PULS
Manufacturer : PULS, LP
Series : DIMENSION Q (480W)
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 85 ~ 276 VAC
Voltage - Output 1 : 24V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 20A
Power (Watts) : 480W
Applications : Hazardous Locations, ITE (Commercial)
Voltage - Isolation : 500V
Efficiency : 94.5%
Operating Temperature : -10°C ~ 70°C (With Derating)
Features : Adjustable Output, Load Sharing
Mounting Type : DIN Rail
Size / Dimension : 5.00" L x 3.23" W x 4.88" H (127.0mm x 82.0mm x 124.0mm)
Series : DIMENSION Q (480W)
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 85 ~ 276 VAC
Voltage - Output 1 : 24V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 20A
Power (Watts) : 480W
Applications : Hazardous Locations, ITE (Commercial)
Voltage - Isolation : 500V
Efficiency : 94.5%
Operating Temperature : -10°C ~ 70°C (With Derating)
Features : Adjustable Output, Load Sharing
Mounting Type : DIN Rail
Size / Dimension : 5.00" L x 3.23" W x 4.88" H (127.0mm x 82.0mm x 124.0mm)
0
100 in stock

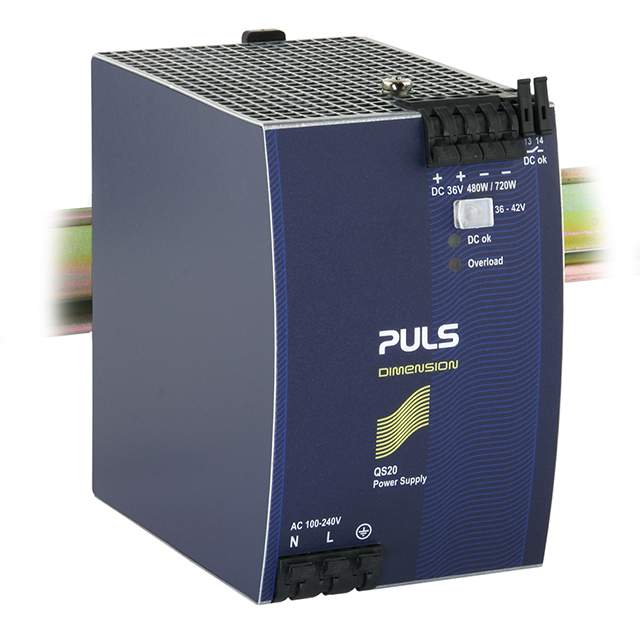

QS20.361
PULS
Manufacturer : PULS, LP
Series : DIMENSION Q (480W)
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 85 ~ 276 VAC
Voltage - Output 1 : 36V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 13.3A
Power (Watts) : 480W
Applications : Hazardous Locations, ITE (Commercial)
Voltage - Isolation : 500V
Efficiency : 94%
Operating Temperature : -10°C ~ 70°C (With Derating)
Features : Adjustable Output, Load Sharing, PFC
Mounting Type : DIN Rail
Size / Dimension : 5.00" L x 3.23" W x 4.88" H (127.0mm x 82.0mm x 124.0mm)
Series : DIMENSION Q (480W)
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 85 ~ 276 VAC
Voltage - Output 1 : 36V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 13.3A
Power (Watts) : 480W
Applications : Hazardous Locations, ITE (Commercial)
Voltage - Isolation : 500V
Efficiency : 94%
Operating Temperature : -10°C ~ 70°C (With Derating)
Features : Adjustable Output, Load Sharing, PFC
Mounting Type : DIN Rail
Size / Dimension : 5.00" L x 3.23" W x 4.88" H (127.0mm x 82.0mm x 124.0mm)
0
100 in stock

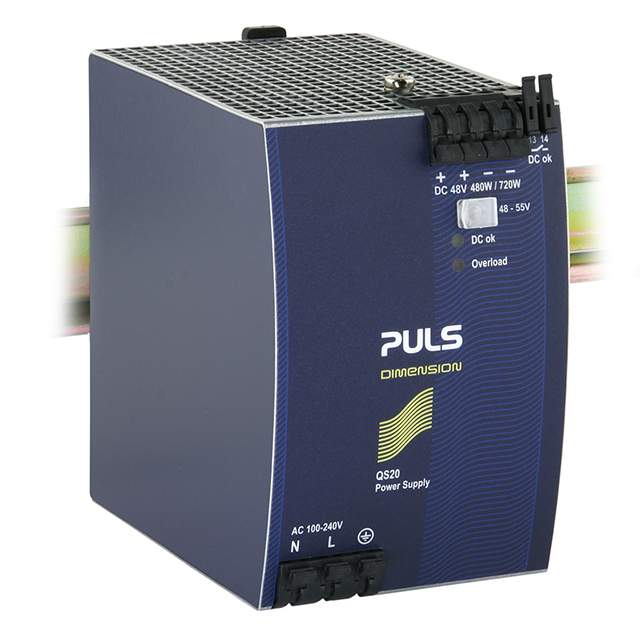

QS20.481
PULS
Manufacturer : PULS, LP
Series : DIMENSION Q (480W)
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 85 ~ 276 VAC, 88 ~ 187 VDC
Voltage - Output 1 : 48V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 10A
Power (Watts) : 480W
Applications : Hazardous Locations, ITE (Commercial)
Voltage - Isolation : 500V
Efficiency : 94.3%
Operating Temperature : -10°C ~ 70°C (With Derating)
Features : Adjustable Output, Load Sharing, PFC
Mounting Type : DIN Rail
Size / Dimension : 5.00" L x 3.23" W x 4.88" H (127.0mm x 82.0mm x 124.0mm)
Series : DIMENSION Q (480W)
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 85 ~ 276 VAC, 88 ~ 187 VDC
Voltage - Output 1 : 48V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 10A
Power (Watts) : 480W
Applications : Hazardous Locations, ITE (Commercial)
Voltage - Isolation : 500V
Efficiency : 94.3%
Operating Temperature : -10°C ~ 70°C (With Derating)
Features : Adjustable Output, Load Sharing, PFC
Mounting Type : DIN Rail
Size / Dimension : 5.00" L x 3.23" W x 4.88" H (127.0mm x 82.0mm x 124.0mm)
0
28 in stock

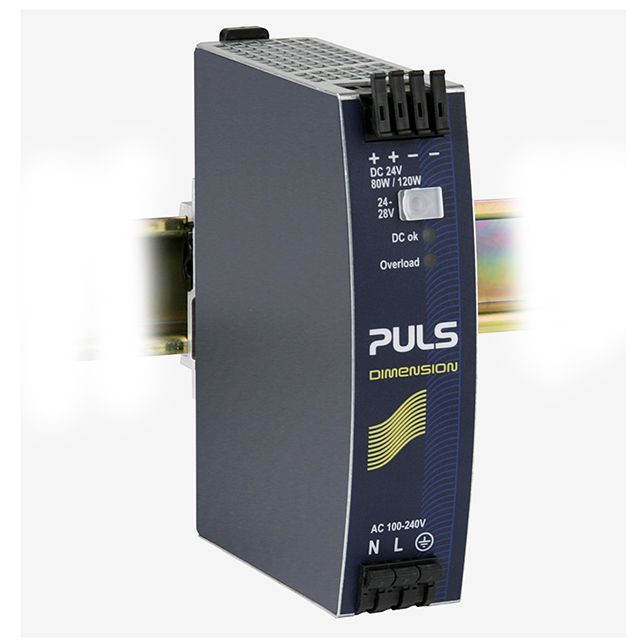

QS3.241
PULS
Manufacturer : PULS, LP
Series : DIMENSION Q (80W)
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 85 ~ 276 VAC
Voltage - Output 1 : 24V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 3.33A
Power (Watts) : 80W
Applications : ITE (Commercial)
Voltage - Isolation : 500V
Efficiency : 90%
Operating Temperature : -10°C ~ 70°C (With Derating)
Features : Adjustable Output, Load Sharing
Mounting Type : DIN Rail
Size / Dimension : 4.02" L x 1.26" W x 4.88" H (102.0mm x 32.0mm x 124.0mm)
Series : DIMENSION Q (80W)
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 85 ~ 276 VAC
Voltage - Output 1 : 24V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 3.33A
Power (Watts) : 80W
Applications : ITE (Commercial)
Voltage - Isolation : 500V
Efficiency : 90%
Operating Temperature : -10°C ~ 70°C (With Derating)
Features : Adjustable Output, Load Sharing
Mounting Type : DIN Rail
Size / Dimension : 4.02" L x 1.26" W x 4.88" H (102.0mm x 32.0mm x 124.0mm)
0
32 in stock

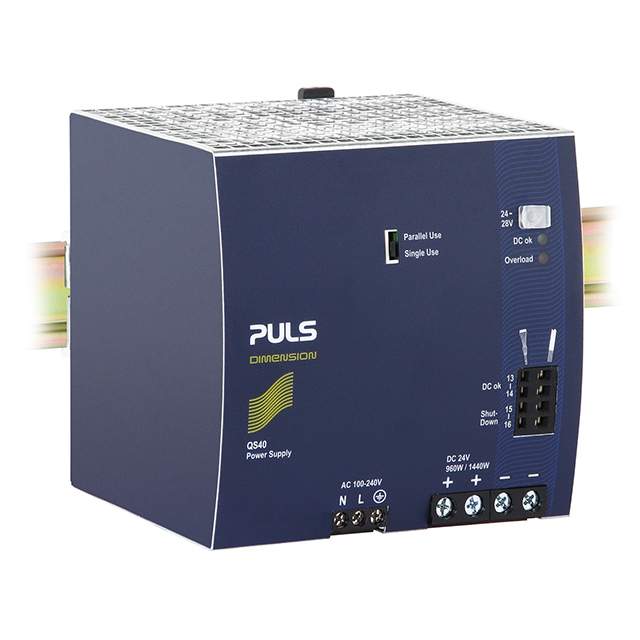

QS40.241
PULS
Manufacturer : PULS, LP
Series : DIMENSION Q (960W)
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 90 ~ 264 VAC
Voltage - Output 1 : 24V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 40A
Power (Watts) : 960W
Applications : Hazardous Locations, ITE (Commercial)
Voltage - Isolation : 500V
Efficiency : 94.6%
Operating Temperature : -10°C ~ 70°C (With Derating)
Features : Adjustable Output, Load Sharing, PFC
Mounting Type : DIN Rail
Size / Dimension : 5.00" L x 4.88" W x 4.88" H (127.0mm x 124.0mm x 124.0mm)
Series : DIMENSION Q (960W)
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 90 ~ 264 VAC
Voltage - Output 1 : 24V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 40A
Power (Watts) : 960W
Applications : Hazardous Locations, ITE (Commercial)
Voltage - Isolation : 500V
Efficiency : 94.6%
Operating Temperature : -10°C ~ 70°C (With Derating)
Features : Adjustable Output, Load Sharing, PFC
Mounting Type : DIN Rail
Size / Dimension : 5.00" L x 4.88" W x 4.88" H (127.0mm x 124.0mm x 124.0mm)
0
18 in stock

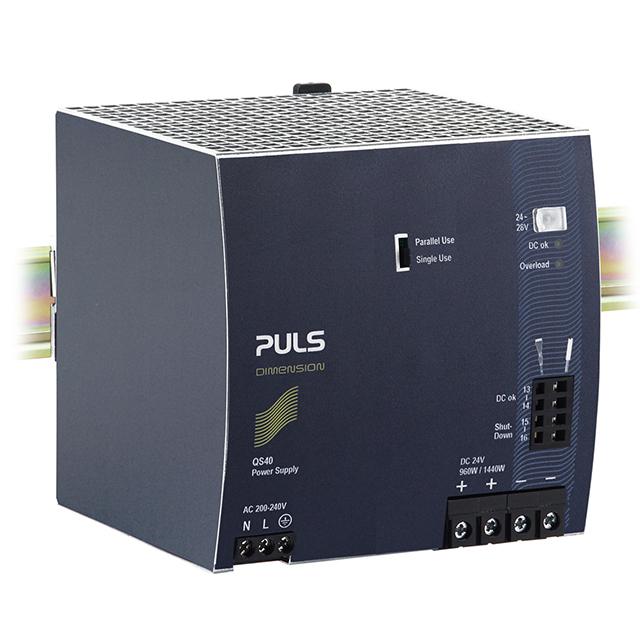

QS40.244
PULS
Manufacturer : PULS, LP
Series : DIMENSION Q (960W)
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 170 ~ 264 VAC
Voltage - Output 1 : 24V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 40A
Power (Watts) : 960W
Applications : ITE (Commercial)
Voltage - Isolation : 500V
Efficiency : 94.6%
Operating Temperature : -10°C ~ 70°C (With Derating)
Features : Adjustable Output, Load Sharing, PFC
Mounting Type : DIN Rail
Size / Dimension : 5.00" L x 4.88" W x 4.88" H (127.0mm x 124.0mm x 124.0mm)
Series : DIMENSION Q (960W)
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 170 ~ 264 VAC
Voltage - Output 1 : 24V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 40A
Power (Watts) : 960W
Applications : ITE (Commercial)
Voltage - Isolation : 500V
Efficiency : 94.6%
Operating Temperature : -10°C ~ 70°C (With Derating)
Features : Adjustable Output, Load Sharing, PFC
Mounting Type : DIN Rail
Size / Dimension : 5.00" L x 4.88" W x 4.88" H (127.0mm x 124.0mm x 124.0mm)
0
100 in stock

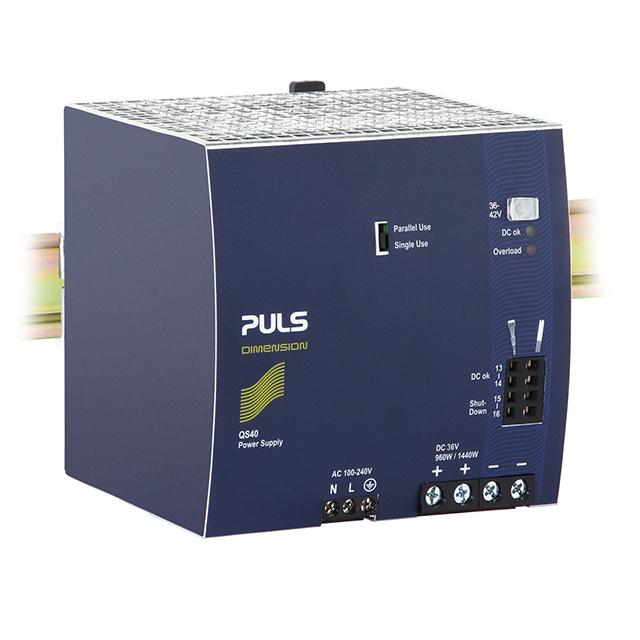

QS40.361
PULS
Manufacturer : PULS, LP
Series : DIMENSION Q (960W)
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 90 ~ 264 VAC
Voltage - Output 1 : 36V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 26.7A
Power (Watts) : 960W
Applications : ITE (Commercial)
Voltage - Isolation : 500V
Efficiency : 94.6%
Operating Temperature : -10°C ~ 70°C (With Derating)
Features : Adjustable Output, Load Sharing, PFC
Mounting Type : DIN Rail
Size / Dimension : 5.00" L x 4.88" W x 4.88" H (127.0mm x 124.0mm x 124.0mm)
Series : DIMENSION Q (960W)
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 90 ~ 264 VAC
Voltage - Output 1 : 36V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 26.7A
Power (Watts) : 960W
Applications : ITE (Commercial)
Voltage - Isolation : 500V
Efficiency : 94.6%
Operating Temperature : -10°C ~ 70°C (With Derating)
Features : Adjustable Output, Load Sharing, PFC
Mounting Type : DIN Rail
Size / Dimension : 5.00" L x 4.88" W x 4.88" H (127.0mm x 124.0mm x 124.0mm)
0
5 in stock

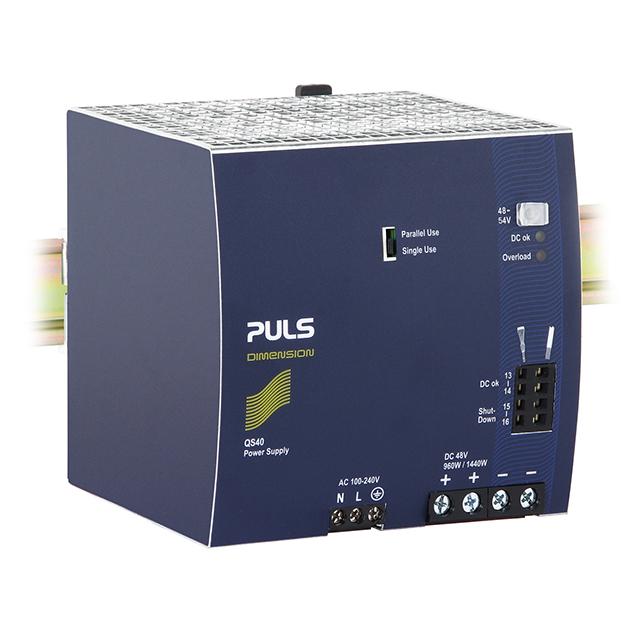

QS40.481
PULS
Manufacturer : PULS, LP
Series : DIMENSION Q (960W)
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 90 ~ 264 VAC
Voltage - Output 1 : 48V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 20A
Power (Watts) : 960W
Applications : ITE (Commercial)
Voltage - Isolation : 500V
Efficiency : 95%
Operating Temperature : -10°C ~ 70°C (With Derating)
Features : Adjustable Output, Load Sharing, PFC
Mounting Type : DIN Rail
Size / Dimension : 5.00" L x 4.88" W x 4.88" H (127.0mm x 124.0mm x 124.0mm)
Series : DIMENSION Q (960W)
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 90 ~ 264 VAC
Voltage - Output 1 : 48V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 20A
Power (Watts) : 960W
Applications : ITE (Commercial)
Voltage - Isolation : 500V
Efficiency : 95%
Operating Temperature : -10°C ~ 70°C (With Derating)
Features : Adjustable Output, Load Sharing, PFC
Mounting Type : DIN Rail
Size / Dimension : 5.00" L x 4.88" W x 4.88" H (127.0mm x 124.0mm x 124.0mm)
0
31 in stock

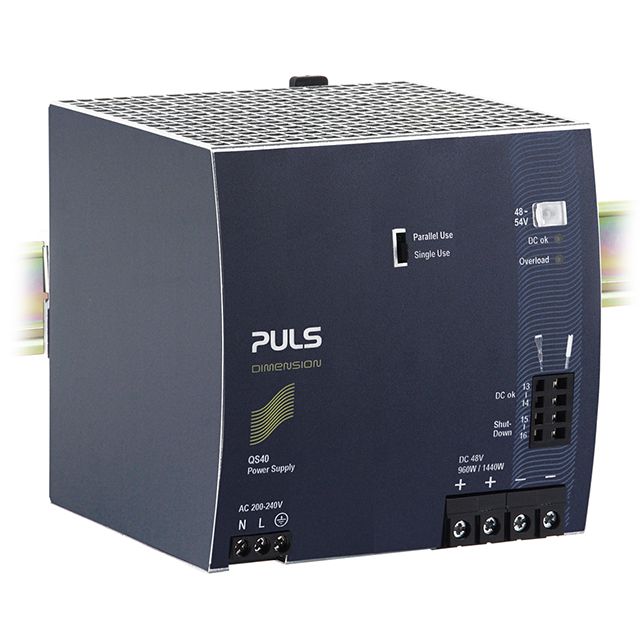

QS40.484
PULS
Manufacturer : PULS, LP
Series : DIMENSION Q (960W)
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 170 ~ 264 VAC
Voltage - Output 1 : 48V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 20A
Power (Watts) : 960W
Applications : ITE (Commercial)
Voltage - Isolation : 500V
Efficiency : 95%
Operating Temperature : -10°C ~ 70°C (With Derating)
Features : Adjustable Output, Load Sharing, PFC
Mounting Type : DIN Rail
Size / Dimension : 5.00" L x 4.88" W x 4.88" H (127.0mm x 124.0mm x 124.0mm)
Series : DIMENSION Q (960W)
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 170 ~ 264 VAC
Voltage - Output 1 : 48V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 20A
Power (Watts) : 960W
Applications : ITE (Commercial)
Voltage - Isolation : 500V
Efficiency : 95%
Operating Temperature : -10°C ~ 70°C (With Derating)
Features : Adjustable Output, Load Sharing, PFC
Mounting Type : DIN Rail
Size / Dimension : 5.00" L x 4.88" W x 4.88" H (127.0mm x 124.0mm x 124.0mm)
0
100 in stock

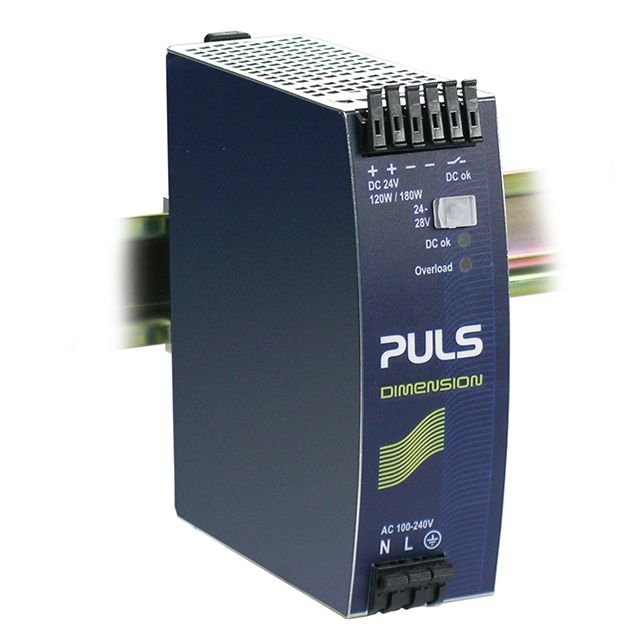

QS5.241
PULS
Manufacturer : PULS, LP
Series : DIMENSION Q (120W)
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 85 ~ 264 VAC
Voltage - Output 1 : 24V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 5A
Power (Watts) : 120W
Applications : Hazardous Locations, ITE (Commercial)
Voltage - Isolation : 500V
Efficiency : 92.7%
Operating Temperature : -10°C ~ 70°C (With Derating)
Features : Adjustable Output, Load Sharing, PFC
Mounting Type : DIN Rail
Size / Dimension : 4.61" L x 1.57" W x 4.88" H (117.0mm x 40.0mm x 124.0mm)
Series : DIMENSION Q (120W)
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 85 ~ 264 VAC
Voltage - Output 1 : 24V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 5A
Power (Watts) : 120W
Applications : Hazardous Locations, ITE (Commercial)
Voltage - Isolation : 500V
Efficiency : 92.7%
Operating Temperature : -10°C ~ 70°C (With Derating)
Features : Adjustable Output, Load Sharing, PFC
Mounting Type : DIN Rail
Size / Dimension : 4.61" L x 1.57" W x 4.88" H (117.0mm x 40.0mm x 124.0mm)
0
53 in stock
QS5.241-A1
PULS
Manufacturer : PULS, LP
Series : DIMENSION Q (120W)
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 88 ~ 360 VAC
Voltage - Output 1 : 24V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 5A
Power (Watts) : 120W
Applications : Hazardous Locations, ITE (Commercial)
Voltage - Isolation : 500V
Efficiency : 92.7%
Operating Temperature : -10°C ~ 70°C (With Derating)
Features : Adjustable Output, Load Sharing, PFC
Mounting Type : DIN Rail
Size / Dimension : 4.61" L x 1.57" W x 4.88" H (117.0mm x 40.0mm x 124.0mm)
Series : DIMENSION Q (120W)
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 88 ~ 360 VAC
Voltage - Output 1 : 24V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 5A
Power (Watts) : 120W
Applications : Hazardous Locations, ITE (Commercial)
Voltage - Isolation : 500V
Efficiency : 92.7%
Operating Temperature : -10°C ~ 70°C (With Derating)
Features : Adjustable Output, Load Sharing, PFC
Mounting Type : DIN Rail
Size / Dimension : 4.61" L x 1.57" W x 4.88" H (117.0mm x 40.0mm x 124.0mm)
0
30 in stock

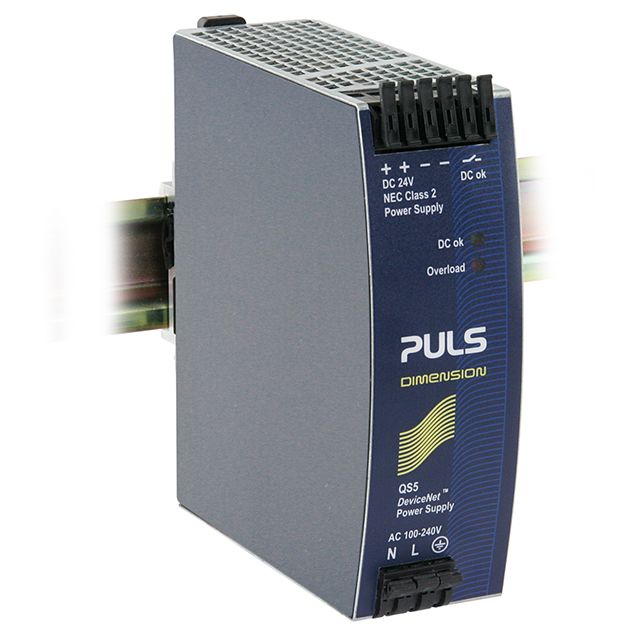

QS5.DNET
PULS
Manufacturer : PULS, LP
Series : DIMENSION Q (91W)
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 85 ~ 264 VAC
Voltage - Output 1 : 24V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 3.8A
Power (Watts) : 91W
Applications : Hazardous Locations, ITE (Commercial)
Voltage - Isolation : 500V
Efficiency : 92%
Operating Temperature : -10°C ~ 70°C (With Derating)
Features : Adjustable Output, Load Sharing, PFC
Mounting Type : DIN Rail
Size / Dimension : 4.61" L x 1.57" W x 4.88" H (117.0mm x 40.0mm x 124.0mm)
Series : DIMENSION Q (91W)
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 85 ~ 264 VAC
Voltage - Output 1 : 24V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 3.8A
Power (Watts) : 91W
Applications : Hazardous Locations, ITE (Commercial)
Voltage - Isolation : 500V
Efficiency : 92%
Operating Temperature : -10°C ~ 70°C (With Derating)
Features : Adjustable Output, Load Sharing, PFC
Mounting Type : DIN Rail
Size / Dimension : 4.61" L x 1.57" W x 4.88" H (117.0mm x 40.0mm x 124.0mm)
0
6 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
