Orion Fans
- For nearly two decades Orion Fans, a division of Knight Electronics has been supplying and designing thermal management solutions for demanding applications worldwide. Orion provides one of the industry’s broadest lines of AC, DC fans, blowers, fan trays and accessories. Fast response and short lead times provide customers the right product when they need it. Orion offers price, quality and availability.
Part Number
Manufacturer
Description
Unit Price
In Stock

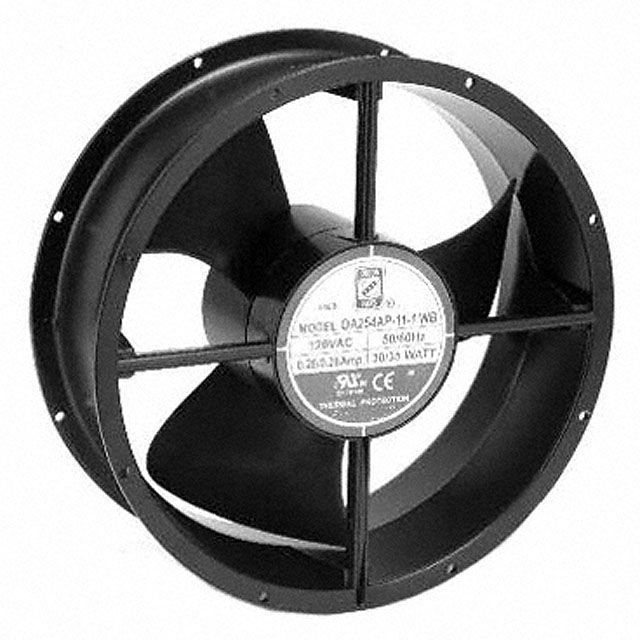

Orion Fans
Manufacturer : Orion Fans
Series : OA254
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Round - 254mm Dia
Width : 89.00mm
Air Flow : 547.0 CFM (15.32m鲁/min)
Static Pressure : 0.390 in H2O (97.1 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 55.0 dB
Power (Watts) : 35.00W
RPM : 1650 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus, TUV
Weight : -
0
93 in stock
Orion Fans
Manufacturer : Orion Fans
Series : OA254
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Round - 254mm Dia
Width : 89.00mm
Air Flow : 547.0 CFM (15.32m鲁/min)
Static Pressure : 0.390 in H2O (97.1 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 55.0 dB
Power (Watts) : 35.00W
RPM : 1650 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus, TUV
Weight : -
0
1115 in stock

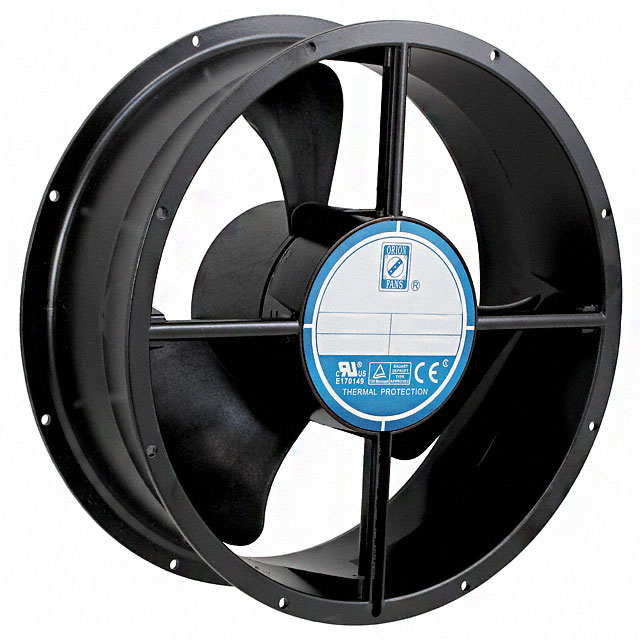

Orion Fans
Manufacturer : Orion Fans
Series : OA254AP
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Round - 254mm Dia
Width : 89.00mm
Air Flow : 550.0 CFM (15.40m鲁/min)
Static Pressure : 0.400 in H2O (99.6 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Salt Fog Rated
Noise : 55.0 dB
Power (Watts) : 33.00W
RPM : 1650 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus
Weight : -
0
100 in stock
Orion Fans
Manufacturer : Orion Fans
Series : OA254
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Round - 254mm Dia
Width : 89.00mm
Air Flow : 547.0 CFM (15.32m鲁/min)
Static Pressure : 0.390 in H2O (97.1 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 55.0 dB
Power (Watts) : 35.00W
RPM : 1650 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus, TUV
Weight : -
0
27 in stock

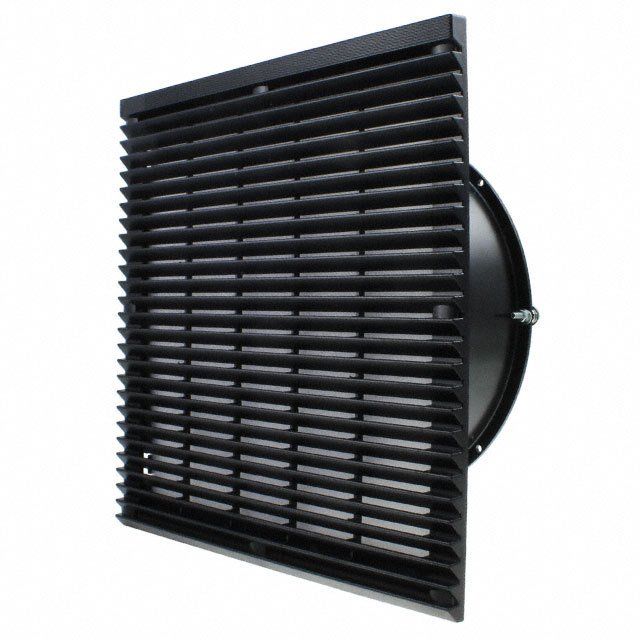

Orion Fans
Manufacturer : Orion Fans
Series : OA254
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 320mm L x 320mm H
Width : 122.5mm
Air Flow : 547.0 CFM (15.32m鲁/min)
Static Pressure : 0.390 in H2O (97.1 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Kit
Noise : 55.0 dB
Power (Watts) : 33.00W
RPM : 1650 RPM
Termination : 2 Terminals
Ingress Protection : IP54 - Dust Protected, Water Resistant
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus, TUV
Weight : -
0
12 in stock
Orion Fans
Manufacturer : Orion Fans
Series : OA254
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 320mm L x 320mm H
Width : 122.5mm
Air Flow : 850.0 CFM (23.80m鲁/min)
Static Pressure : 0.780 in H2O (194.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Kit
Noise : 69.0 dB
Power (Watts) : 75.0W
RPM : 2700 RPM
Termination : 2 Terminals
Ingress Protection : IP54 - Dust Protected, Water Resistant
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : cURus, TUV
Weight : -
0
100 in stock
Orion Fans
Manufacturer : Orion Fans
Series : OA254
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 320mm L x 320mm H
Width : 122.5mm
Air Flow : 547.0 CFM (15.32m鲁/min)
Static Pressure : 0.390 in H2O (97.1 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Kit
Noise : 55.0 dB
Power (Watts) : 33.00W
RPM : 1650 RPM
Termination : 2 Terminals
Ingress Protection : IP54 - Dust Protected, Water Resistant
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus, TUV
Weight : -
0
100 in stock
Orion Fans
Manufacturer : Orion Fans
Series : OA254
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 320mm L x 320mm H
Width : 122.5mm
Air Flow : 850.0 CFM (23.80m鲁/min)
Static Pressure : 0.780 in H2O (194.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Kit
Noise : 69.0 dB
Power (Watts) : 75.0W
RPM : 2700 RPM
Termination : 2 Terminals
Ingress Protection : IP54 - Dust Protected, Water Resistant
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : cURus, TUV
Weight : -
0
100 in stock

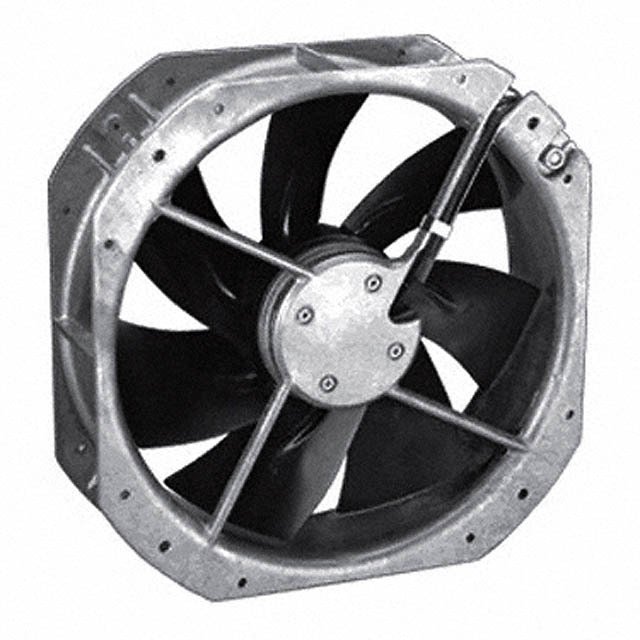

Orion Fans
Manufacturer : Orion Fans
Series : OA280
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 280mm L x 280mm H
Width : 80.00mm
Air Flow : 1130.0 CFM (31.64m鲁/min)
Static Pressure : 0.780 in H2O (194.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 70.0 dB
Power (Watts) : 148W
RPM : 2700 RPM
Termination : Terminal Block
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : -40 ~ 140°F (-40 ~ 60°C)
Approvals : cURus, TUV
Weight : -
0
41 in stock
Orion Fans
Manufacturer : Orion Fans
Series : OA280
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 280mm L x 280mm H
Width : 80.00mm
Air Flow : 1130.0 CFM (31.64m鲁/min)
Static Pressure : 0.780 in H2O (194.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 70.0 dB
Power (Watts) : 158W
RPM : 2700 RPM
Termination : Terminal Block
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : -40 ~ 140°F (-40 ~ 60°C)
Approvals : cURus, TUV
Weight : -
0
111 in stock

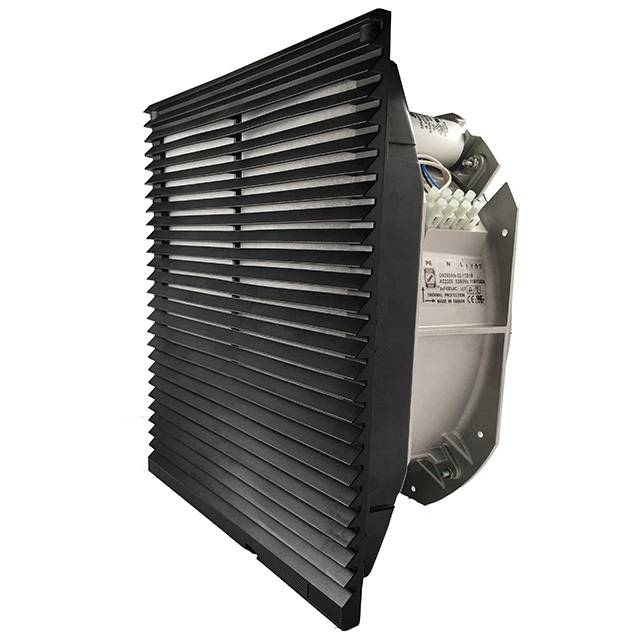

Orion Fans
Manufacturer : Orion Fans
Series : OA280
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 320mm L x 320mm H
Width : 141.5mm
Air Flow : 1130.0 CFM (31.64m鲁/min)
Static Pressure : 0.650 in H2O (161.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Kit
Noise : 70.0 dB
Power (Watts) : 148W
RPM : 2700 RPM
Termination : Terminal Block
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : -40 ~ 140°F (-40 ~ 60°C)
Approvals : cURus, TUV
Weight : -
0
17 in stock
Orion Fans
Manufacturer : Orion Fans
Series : OA280
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 323mm L x 323mm H
Width : 141.5mm
Air Flow : 1130.0 CFM (31.64m鲁/min)
Static Pressure : 0.650 in H2O (161.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Kit
Noise : 70.0 dB
Power (Watts) : 158W
RPM : 2700 RPM
Termination : Terminal Block
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : -40 ~ 140°F (-40 ~ 60°C)
Approvals : cURus, TUV
Weight : -
0
100 in stock
