On-Shore Technology, Inc.
- On-Shore Technology, Inc. (OST) founded in 1988, headquarters in Tempe, Arizona, is a leading international supplier of interconnect products to the computer, automotive and telecommunications industries. OST offers customers a variety of over six thousand products. The most popular of these include miniature terminal blocks, sockets, custom cables, PGA's and other interconnect products. Our technological expertise and emphasis on service has enabled OST to provide quality products to some of the largest and most demanding companies in the world.
Part Number
Manufacturer
Description
Unit Price
In Stock

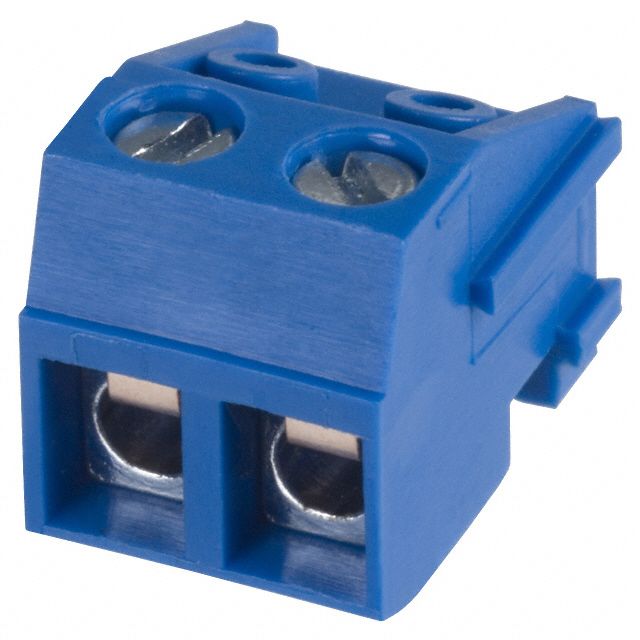

On-Shore Technology, Inc.
Manufacturer : On Shore Technology Inc.
Packaging : Bulk
Series : ED130
Part Status : Active
Type : Plug for Unshrouded Header
Number of Positions : 2
Positions Per Level : 2
Number of Levels : 1
Pitch : 0.197" (5.00mm)
Header Orientation : -
Plug Wire Entry : 90°
Termination Style : Screw
Mounting Type : Free Hanging (In-Line)
Current - IEC : -
Voltage - IEC : -
Current - UL : 10A
Voltage - UL : 300V
Wire Gauge or Range - AWG : 14-22 AWG
Wire Gauge or Range - mm² : 1.5mm²
Color : Blue
Operating Temperature : -30°C ~ 105°C
Contact Mating Finish : -
Features : Interlocking (Side)
0
25355 in stock

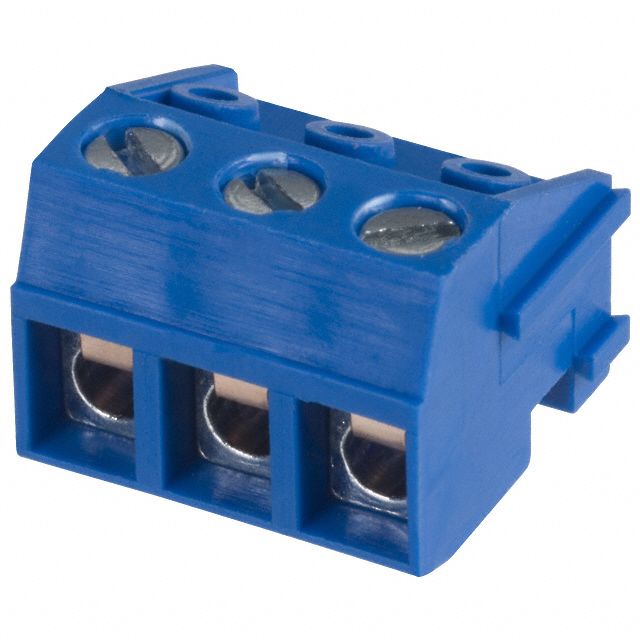

On-Shore Technology, Inc.
Manufacturer : On Shore Technology Inc.
Packaging : Bulk
Series : ED130
Part Status : Active
Type : Plug for Unshrouded Header
Number of Positions : 3
Positions Per Level : 3
Number of Levels : 1
Pitch : 0.197" (5.00mm)
Header Orientation : -
Plug Wire Entry : 90°
Termination Style : Screw
Mounting Type : Free Hanging (In-Line)
Current - IEC : -
Voltage - IEC : -
Current - UL : 10A
Voltage - UL : 300V
Wire Gauge or Range - AWG : 14-22 AWG
Wire Gauge or Range - mm² : 1.5mm²
Color : Blue
Operating Temperature : -30°C ~ 105°C
Contact Mating Finish : -
Features : Interlocking (Side)
0
22279 in stock

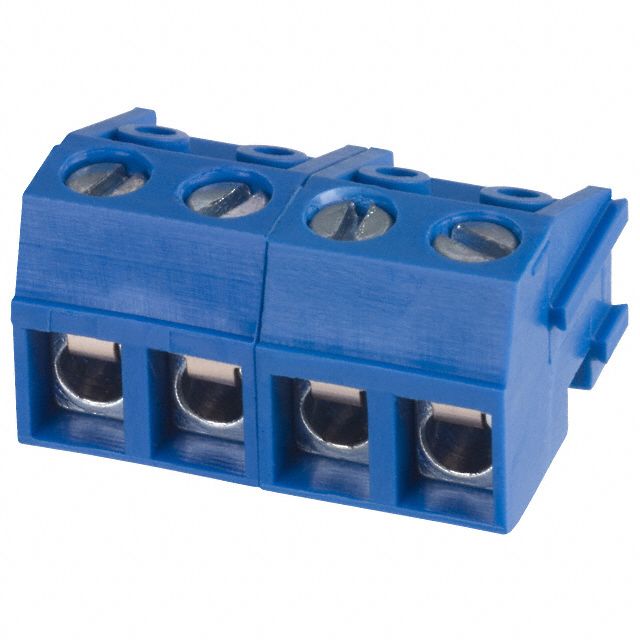

On-Shore Technology, Inc.
Manufacturer : On Shore Technology Inc.
Packaging : Bulk
Series : ED130
Part Status : Active
Type : Plug for Unshrouded Header
Number of Positions : 4
Positions Per Level : 4
Number of Levels : 1
Pitch : 0.197" (5.00mm)
Header Orientation : -
Plug Wire Entry : 90°
Termination Style : Screw
Mounting Type : Free Hanging (In-Line)
Current - IEC : -
Voltage - IEC : -
Current - UL : 10A
Voltage - UL : 300V
Wire Gauge or Range - AWG : 14-22 AWG
Wire Gauge or Range - mm² : 1.5mm²
Color : Blue
Operating Temperature : -30°C ~ 105°C
Contact Mating Finish : -
Features : Interlocking (Side)
0
1877 in stock

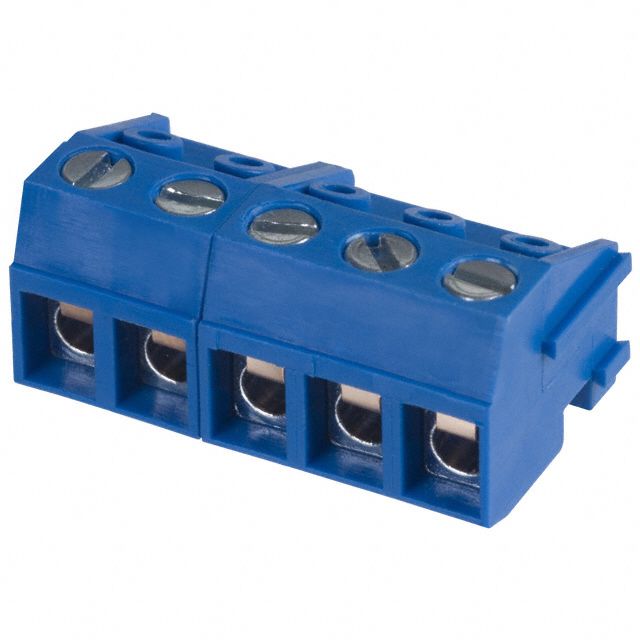

On-Shore Technology, Inc.
Manufacturer : On Shore Technology Inc.
Packaging : Bulk
Series : ED130
Part Status : Active
Type : Plug for Unshrouded Header
Number of Positions : 5
Positions Per Level : 5
Number of Levels : 1
Pitch : 0.197" (5.00mm)
Header Orientation : -
Plug Wire Entry : 90°
Termination Style : Screw
Mounting Type : Free Hanging (In-Line)
Current - IEC : -
Voltage - IEC : -
Current - UL : 10A
Voltage - UL : 300V
Wire Gauge or Range - AWG : 14-22 AWG
Wire Gauge or Range - mm² : 1.5mm²
Color : Blue
Operating Temperature : -30°C ~ 105°C
Contact Mating Finish : -
Features : Interlocking (Side)
0
44 in stock

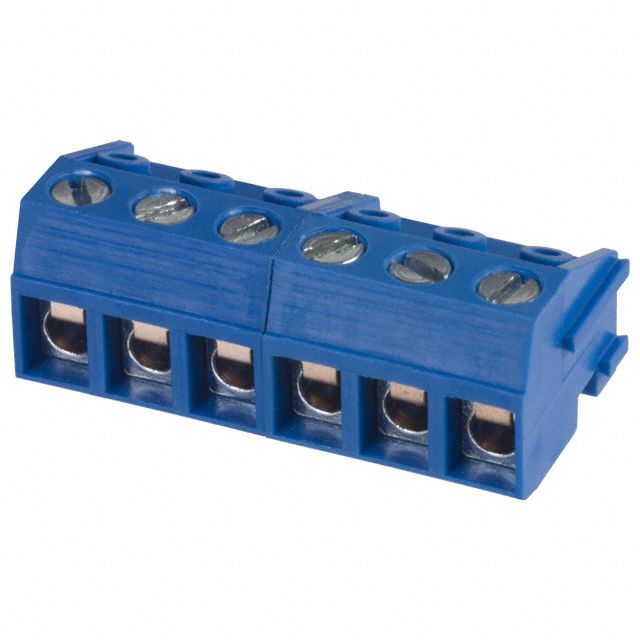

On-Shore Technology, Inc.
Manufacturer : On Shore Technology Inc.
Packaging : Bulk
Series : ED130
Part Status : Active
Type : Plug for Unshrouded Header
Number of Positions : 6
Positions Per Level : 6
Number of Levels : 1
Pitch : 0.197" (5.00mm)
Header Orientation : -
Plug Wire Entry : 90°
Termination Style : Screw
Mounting Type : Free Hanging (In-Line)
Current - IEC : -
Voltage - IEC : -
Current - UL : 10A
Voltage - UL : 300V
Wire Gauge or Range - AWG : 14-22 AWG
Wire Gauge or Range - mm² : 1.5mm²
Color : Blue
Operating Temperature : -30°C ~ 105°C
Contact Mating Finish : -
Features : Interlocking (Side)
0
92 in stock
On-Shore Technology, Inc.
Manufacturer : On Shore Technology Inc.
Packaging : Tube
Series : ED
Part Status : Active
Type : DIP, 0.3" (7.62mm) Row Spacing
Number of Positions or Pins (Grid) : 14 (2 x 7)
Pitch - Mating : 0.100" (2.54mm)
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 60.0µin (1.52µm)
Contact Material - Mating : Phosphor Bronze
Mounting Type : Through Hole
Features : Open Frame
Termination : Solder
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Tin
Contact Finish Thickness - Post : 60.0µin (1.52µm)
Contact Material - Post : Phosphor Bronze
Housing Material : Polybutylene Terephthalate (PBT), Glass Filled
Operating Temperature : -55°C ~ 110°C
0
18916 in stock
On-Shore Technology, Inc.
Manufacturer : On Shore Technology Inc.
Packaging : Tube
Series : ED
Part Status : Active
Type : DIP, 0.3" (7.62mm) Row Spacing
Number of Positions or Pins (Grid) : 16 (2 x 8)
Pitch - Mating : 0.100" (2.54mm)
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 60.0µin (1.52µm)
Contact Material - Mating : Phosphor Bronze
Mounting Type : Through Hole
Features : Open Frame
Termination : Solder
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Tin
Contact Finish Thickness - Post : 60.0µin (1.52µm)
Contact Material - Post : Phosphor Bronze
Housing Material : Polybutylene Terephthalate (PBT), Glass Filled
Operating Temperature : -55°C ~ 110°C
0
22928 in stock
On-Shore Technology, Inc.
Manufacturer : On Shore Technology Inc.
Packaging : Tube
Series : ED
Part Status : Active
Type : DIP, 0.3" (7.62mm) Row Spacing
Number of Positions or Pins (Grid) : 18 (2 x 9)
Pitch - Mating : 0.100" (2.54mm)
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 60.0µin (1.52µm)
Contact Material - Mating : Phosphor Bronze
Mounting Type : Through Hole
Features : Open Frame
Termination : Solder
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Tin
Contact Finish Thickness - Post : 60.0µin (1.52µm)
Contact Material - Post : Phosphor Bronze
Housing Material : Polybutylene Terephthalate (PBT), Glass Filled
Operating Temperature : -55°C ~ 110°C
0
11787 in stock

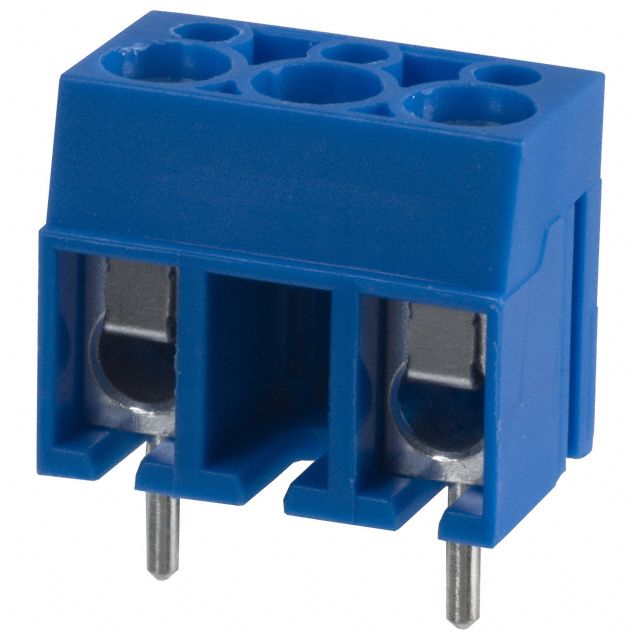

On-Shore Technology, Inc.
Manufacturer : On Shore Technology Inc.
Packaging : Bulk
Series : ED200/DS
Part Status : Active
Number of Levels : 1
Positions Per Level : 2
Pitch : 0.394" (10.00mm)
Mating Orientation : Horizontal with Board
Current : 15A
Voltage : 300V
Wire Gauge : 14-22 AWG
Mounting Type : Through Hole
Wire Termination : Screw - Leaf Spring, Wire Guard
Features : -
Color : Blue
0
400 in stock

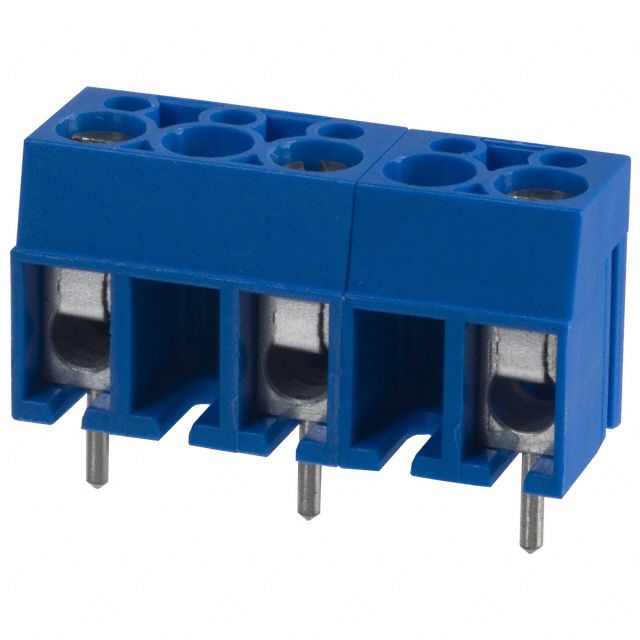

On-Shore Technology, Inc.
Manufacturer : On Shore Technology Inc.
Packaging : Bulk
Series : ED200/DS
Part Status : Active
Number of Levels : 1
Positions Per Level : 3
Pitch : 0.394" (10.00mm)
Mating Orientation : Horizontal with Board
Current : 15A
Voltage : 300V
Wire Gauge : 14-22 AWG
Mounting Type : Through Hole
Wire Termination : Screw - Leaf Spring, Wire Guard
Features : -
Color : Blue
0
1324 in stock
On-Shore Technology, Inc.
Manufacturer : On Shore Technology Inc.
Packaging : Tube
Series : ED
Part Status : Active
Type : DIP, 0.3" (7.62mm) Row Spacing
Number of Positions or Pins (Grid) : 20 (2 x 10)
Pitch - Mating : 0.100" (2.54mm)
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 60.0µin (1.52µm)
Contact Material - Mating : Phosphor Bronze
Mounting Type : Through Hole
Features : Open Frame
Termination : Solder
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Tin
Contact Finish Thickness - Post : 60.0µin (1.52µm)
Contact Material - Post : Phosphor Bronze
Housing Material : Polybutylene Terephthalate (PBT), Glass Filled
Operating Temperature : -55°C ~ 110°C
0
9570 in stock
On-Shore Technology, Inc.
Manufacturer : On Shore Technology Inc.
Packaging : Tube
Series : ED
Part Status : Active
Type : DIP, 0.3" (7.62mm) Row Spacing
Number of Positions or Pins (Grid) : 24 (2 x 12)
Pitch - Mating : 0.100" (2.54mm)
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 60.0µin (1.52µm)
Contact Material - Mating : Phosphor Bronze
Mounting Type : Through Hole
Features : Open Frame
Termination : Solder
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Tin
Contact Finish Thickness - Post : 60.0µin (1.52µm)
Contact Material - Post : Phosphor Bronze
Housing Material : Polybutylene Terephthalate (PBT), Glass Filled
Operating Temperature : -55°C ~ 110°C
0
10319 in stock
