- On-Shore Technology, Inc. (OST) founded in 1988, headquarters in Tempe, Arizona, is a leading international supplier of interconnect products to the computer, automotive and telecommunications industries. OST offers customers a variety of over six thousand products. The most popular of these include miniature terminal blocks, sockets, custom cables, PGA's and other interconnect products. Our technological expertise and emphasis on service has enabled OST to provide quality products to some of the largest and most demanding companies in the world.
Part Number
Manufacturer
Description
Unit Price
In Stock
On-Shore Technology, Inc.
Manufacturer : On Shore Technology Inc.
Packaging : Tube
Series : SA
Part Status : Active
Type : DIP, 0.3" (7.62mm) Row Spacing
Number of Positions or Pins (Grid) : 24 (2 x 12)
Pitch - Mating : 0.100" (2.54mm)
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Material - Mating : Beryllium Copper
Mounting Type : Through Hole
Features : Open Frame
Termination : Solder
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Tin
Contact Finish Thickness - Post : 200.0µin (5.08µm)
Contact Material - Post : Brass
Housing Material : Thermoplastic, Polyester, Glass Filled
Operating Temperature : -40°C ~ 105°C
0
1225 in stock
On-Shore Technology, Inc.
Manufacturer : On Shore Technology Inc.
Packaging : Tube
Series : SA
Part Status : Active
Type : DIP, 0.3" (7.62mm) Row Spacing
Number of Positions or Pins (Grid) : 24 (2 x 12)
Pitch - Mating : 0.100" (2.54mm)
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Material - Mating : Beryllium Copper
Mounting Type : Through Hole
Features : Open Frame
Termination : Solder
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Gold
Contact Finish Thickness - Post : 80.0µin (2.03µm)
Contact Material - Post : Brass
Housing Material : Thermoplastic, Polyester, Glass Filled
Operating Temperature : -40°C ~ 105°C
0
100 in stock
On-Shore Technology, Inc.
Manufacturer : On Shore Technology Inc.
Packaging : Tube
Series : SA
Part Status : Active
Type : DIP, 0.6" (15.24mm) Row Spacing
Number of Positions or Pins (Grid) : 24 (2 x 12)
Pitch - Mating : 0.100" (2.54mm)
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Material - Mating : Beryllium Copper
Mounting Type : Through Hole
Features : Open Frame
Termination : Solder
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Tin
Contact Finish Thickness - Post : 200.0µin (5.08µm)
Contact Material - Post : Brass
Housing Material : Thermoplastic, Polyester, Glass Filled
Operating Temperature : -40°C ~ 105°C
0
1042 in stock
On-Shore Technology, Inc.
Manufacturer : On Shore Technology Inc.
Packaging : Tube
Series : SA
Part Status : Active
Type : DIP, 0.6" (15.24mm) Row Spacing
Number of Positions or Pins (Grid) : 24 (2 x 12)
Pitch - Mating : 0.100" (2.54mm)
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Material - Mating : Beryllium Copper
Mounting Type : Through Hole
Features : Open Frame
Termination : Solder
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Gold
Contact Finish Thickness - Post : 80.0µin (2.03µm)
Contact Material - Post : Brass
Housing Material : Thermoplastic, Polyester, Glass Filled
Operating Temperature : -40°C ~ 105°C
0
133 in stock
On-Shore Technology, Inc.
Manufacturer : On Shore Technology Inc.
Packaging : Tube
Series : SA
Part Status : Active
Type : DIP, 0.3" (7.62mm) Row Spacing
Number of Positions or Pins (Grid) : 28 (2 x 14)
Pitch - Mating : 0.100" (2.54mm)
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : Flash
Contact Material - Mating : Beryllium Copper
Mounting Type : Through Hole
Features : Open Frame
Termination : Solder
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Tin
Contact Finish Thickness - Post : 200.0µin (5.08µm)
Contact Material - Post : Brass
Housing Material : Thermoplastic, Polyester, Glass Filled
Operating Temperature : -40°C ~ 105°C
0
1350 in stock
On-Shore Technology, Inc.
Manufacturer : On Shore Technology Inc.
Packaging : Tube
Series : SA
Part Status : Active
Type : DIP, 0.3" (7.62mm) Row Spacing
Number of Positions or Pins (Grid) : 28 (2 x 14)
Pitch - Mating : 0.100" (2.54mm)
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Material - Mating : Beryllium Copper
Mounting Type : Through Hole
Features : Open Frame
Termination : Solder
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Gold
Contact Finish Thickness - Post : 80.0µin (2.03µm)
Contact Material - Post : Brass
Housing Material : Thermoplastic, Polyester, Glass Filled
Operating Temperature : -40°C ~ 105°C
0
720 in stock
On-Shore Technology, Inc.
Manufacturer : On Shore Technology Inc.
Packaging : Tube
Series : SA
Part Status : Active
Type : DIP, 0.6" (15.24mm) Row Spacing
Number of Positions or Pins (Grid) : 28 (2 x 14)
Pitch - Mating : 0.100" (2.54mm)
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Material - Mating : Beryllium Copper
Mounting Type : Through Hole
Features : Open Frame
Termination : Solder
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Tin
Contact Finish Thickness - Post : 200.0µin (5.08µm)
Contact Material - Post : Brass
Housing Material : Thermoplastic, Polyester, Glass Filled
Operating Temperature : -40°C ~ 105°C
0
1354 in stock
On-Shore Technology, Inc.
Manufacturer : On Shore Technology Inc.
Packaging : Tube
Series : SA
Part Status : Active
Type : DIP, 0.6" (15.24mm) Row Spacing
Number of Positions or Pins (Grid) : 28 (2 x 14)
Pitch - Mating : 0.100" (2.54mm)
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Material - Mating : Beryllium Copper
Mounting Type : Through Hole
Features : Open Frame
Termination : Solder
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Gold
Contact Finish Thickness - Post : 80.0µin (2.03µm)
Contact Material - Post : Brass
Housing Material : Thermoplastic, Polyester, Glass Filled
Operating Temperature : -40°C ~ 105°C
0
402 in stock
On-Shore Technology, Inc.
Manufacturer : On Shore Technology Inc.
Packaging : Tube
Series : SA
Part Status : Active
Type : DIP, 0.6" (15.24mm) Row Spacing
Number of Positions or Pins (Grid) : 32 (2 x 16)
Pitch - Mating : 0.100" (2.54mm)
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Material - Mating : Beryllium Copper
Mounting Type : Through Hole
Features : Open Frame
Termination : Solder
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Tin
Contact Finish Thickness - Post : 200.0µin (5.08µm)
Contact Material - Post : Brass
Housing Material : Thermoplastic, Polyester, Glass Filled
Operating Temperature : -40°C ~ 105°C
0
606 in stock
On-Shore Technology, Inc.
Manufacturer : On Shore Technology Inc.
Packaging : Tube
Series : SA
Part Status : Active
Type : DIP, 0.6" (15.24mm) Row Spacing
Number of Positions or Pins (Grid) : 32 (2 x 16)
Pitch - Mating : 0.100" (2.54mm)
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Material - Mating : Beryllium Copper
Mounting Type : Through Hole
Features : Open Frame
Termination : Solder
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Gold
Contact Finish Thickness - Post : 80.0µin (2.03µm)
Contact Material - Post : Brass
Housing Material : Thermoplastic, Polyester, Glass Filled
Operating Temperature : -40°C ~ 105°C
0
196 in stock

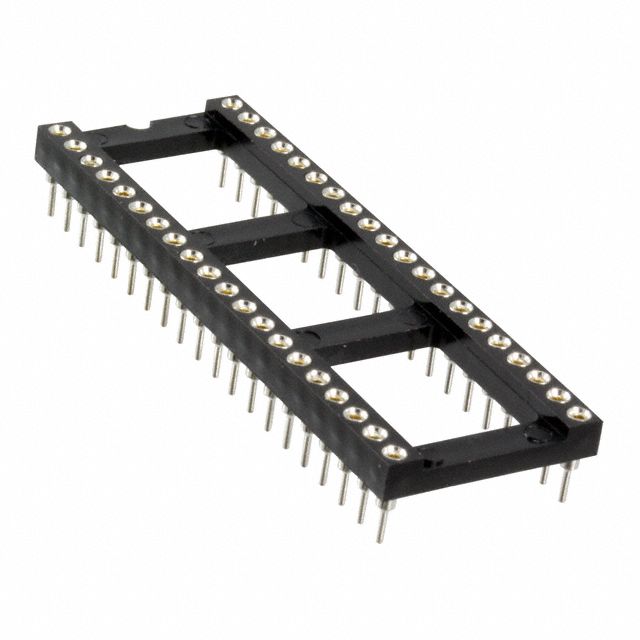

On-Shore Technology, Inc.
Manufacturer : On Shore Technology Inc.
Packaging : Tube
Series : SA
Part Status : Active
Type : DIP, 0.6" (15.24mm) Row Spacing
Number of Positions or Pins (Grid) : 40 (2 x 20)
Pitch - Mating : 0.100" (2.54mm)
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Material - Mating : Beryllium Copper
Mounting Type : Through Hole
Features : Open Frame
Termination : Solder
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Tin
Contact Finish Thickness - Post : 200.0µin (5.08µm)
Contact Material - Post : Brass
Housing Material : Thermoplastic, Polyester, Glass Filled
Operating Temperature : -40°C ~ 105°C
0
1814 in stock

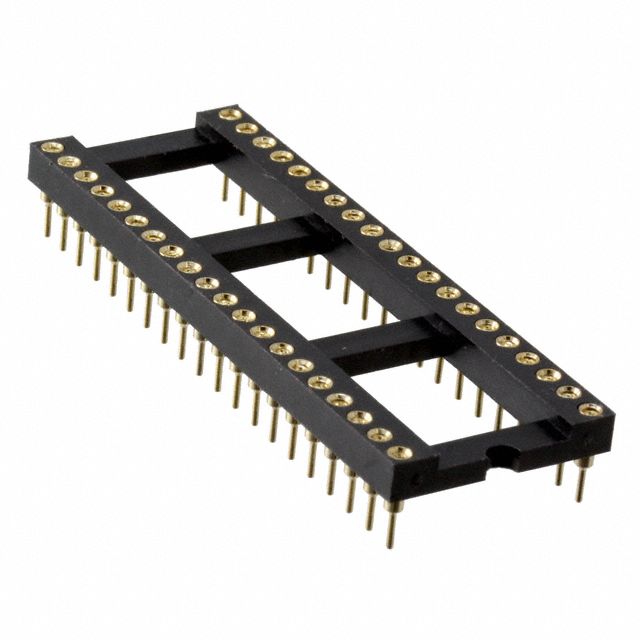

On-Shore Technology, Inc.
Manufacturer : On Shore Technology Inc.
Packaging : Tube
Series : SA
Part Status : Active
Type : DIP, 0.6" (15.24mm) Row Spacing
Number of Positions or Pins (Grid) : 40 (2 x 20)
Pitch - Mating : 0.100" (2.54mm)
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : Flash
Contact Material - Mating : Beryllium Copper
Mounting Type : Through Hole
Features : Open Frame
Termination : Solder
Pitch - Post : 0.100" (2.54mm)
Contact Finish - Post : Gold
Contact Finish Thickness - Post : 80.0µin (2.03µm)
Contact Material - Post : Brass
Housing Material : Thermoplastic, Polyester, Glass Filled
Operating Temperature : -40°C ~ 105°C
0
166 in stock
