Part Number
Manufacturer
Description
Unit Price
In Stock
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 600V
Current - Average Rectified (Io) : 5A
Voltage - Forward (Vf) (Max) @ If : 1.3V @ 5A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 150ns
Current - Reverse Leakage @ Vr : 10µA @ 600V
Capacitance @ Vr, F : -
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : TP-FA
Operating Temperature - Junction : 150°C (Max)
0
1400 in stock
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 600V
Current - Average Rectified (Io) : 10A
Voltage - Forward (Vf) (Max) @ If : 1.3V @ 10A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 150ns
Current - Reverse Leakage @ Vr : 100µA @ 600V
Capacitance @ Vr, F : -
Mounting Type : Through Hole

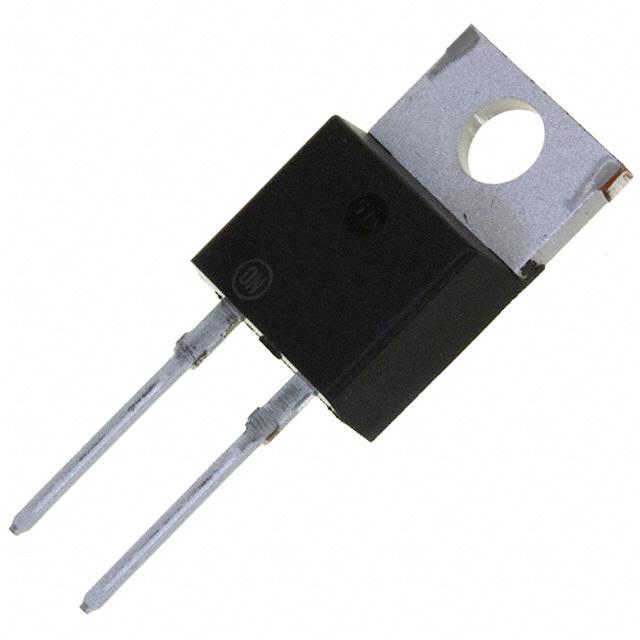

Package / Case : TO-220-2
Supplier Device Package : -
Operating Temperature - Junction : 150°C (Max)
0
900 in stock
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : uESD
Part Status : Active
Type : Zener
Unidirectional Channels : 2
Bidirectional Channels : -
Voltage - Reverse Standoff (Typ) : 3.3V (Max)
Voltage - Breakdown (Min) : 5V
Voltage - Clamping (Max) @ Ipp : -
Current - Peak Pulse (10/1000µs) : -
Power - Peak Pulse : -
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : 80pF @ 1MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount

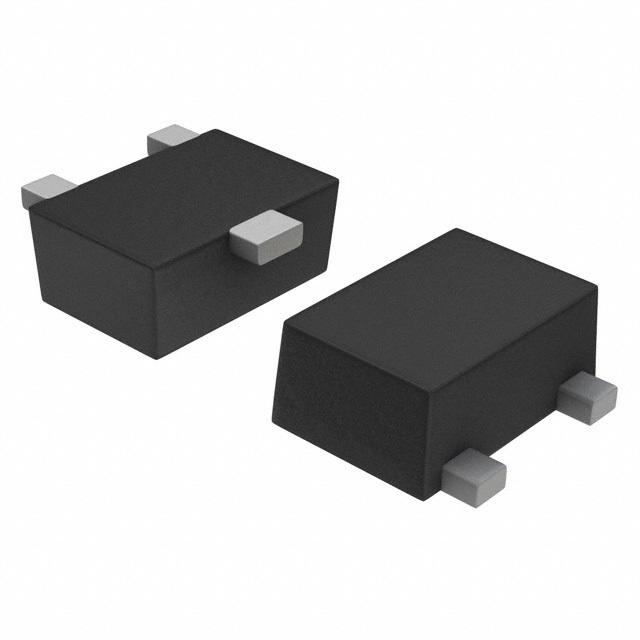

Package / Case : SOT-723
Supplier Device Package : SOT-723
0
5550 in stock
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : uESD
Part Status : Active
Type : Zener
Unidirectional Channels : 2
Bidirectional Channels : -
Voltage - Reverse Standoff (Typ) : 5V (Max)
Voltage - Breakdown (Min) : 6.2V
Voltage - Clamping (Max) @ Ipp : -
Current - Peak Pulse (10/1000µs) : -
Power - Peak Pulse : -
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : 38pF @ 1MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-723
Supplier Device Package : SOT-723
0
20952 in stock
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : uESD
Part Status : Active
Type : Zener
Unidirectional Channels : 2
Bidirectional Channels : -
Voltage - Reverse Standoff (Typ) : 6V (Max)
Voltage - Breakdown (Min) : 7V
Voltage - Clamping (Max) @ Ipp : -
Current - Peak Pulse (10/1000µs) : -
Power - Peak Pulse : -
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : 34pF @ 1MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-723
Supplier Device Package : SOT-723
0
100 in stock
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 50V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 1V @ 1A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 50ns
Current - Reverse Leakage @ Vr : 10µA @ 50V
Capacitance @ Vr, F : 17pF @ 4V, 1MHz
Mounting Type : Through Hole

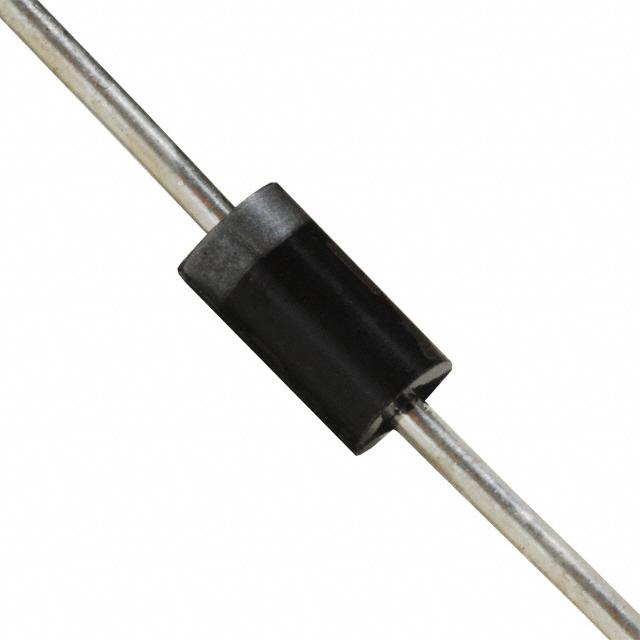

Package / Case : DO-204AL, DO-41, Axial
Supplier Device Package : DO-204AL (DO-41)
Operating Temperature - Junction : -65°C ~ 150°C
0
366 in stock
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 100V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 1V @ 1A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 50ns
Current - Reverse Leakage @ Vr : 10µA @ 100V
Capacitance @ Vr, F : 17pF @ 4V, 1MHz
Mounting Type : Through Hole
Package / Case : DO-204AL, DO-41, Axial
Supplier Device Package : DO-204AL (DO-41)
Operating Temperature - Junction : -65°C ~ 150°C
0
17863 in stock
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 200V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 1V @ 1A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 50ns
Current - Reverse Leakage @ Vr : 10µA @ 200V
Capacitance @ Vr, F : 17pF @ 4V, 1MHz
Mounting Type : Through Hole
Package / Case : DO-204AL, DO-41, Axial
Supplier Device Package : DO-204AL (DO-41)
Operating Temperature - Junction : -65°C ~ 150°C
0
10657 in stock
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 400V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 1V @ 1A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 50ns
Current - Reverse Leakage @ Vr : 10µA @ 400V
Capacitance @ Vr, F : 17pF @ 4V, 1MHz
Mounting Type : Through Hole
Package / Case : DO-204AL, DO-41, Axial
Supplier Device Package : DO-204AL (DO-41)
Operating Temperature - Junction : -65°C ~ 150°C
0
2830 in stock
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 600V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 1.7V @ 1A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 75ns
Current - Reverse Leakage @ Vr : 10µA @ 600V
Capacitance @ Vr, F : 17pF @ 4V, 1MHz
Mounting Type : Through Hole
Package / Case : DO-204AL, DO-41, Axial
Supplier Device Package : DO-204AL (DO-41)
Operating Temperature - Junction : -65°C ~ 150°C
0
34804 in stock
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 800V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 1.7V @ 1A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 75ns
Current - Reverse Leakage @ Vr : 10µA @ 800V
Capacitance @ Vr, F : 17pF @ 4V, 1MHz
Mounting Type : Through Hole
Package / Case : DO-204AL, DO-41, Axial
Supplier Device Package : DO-204AL (DO-41)
Operating Temperature - Junction : -65°C ~ 150°C
0
2935 in stock
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 1000V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 1.7V @ 1A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 75ns
Current - Reverse Leakage @ Vr : 10µA @ 1000V
Capacitance @ Vr, F : 17pF @ 4V, 1MHz
Mounting Type : Through Hole
Package / Case : DO-204AL, DO-41, Axial
Supplier Device Package : DO-204AL (DO-41)
Operating Temperature - Junction : -65°C ~ 150°C
0
2317 in stock
