ON Semiconductor
- ON Semiconductor (Nasdaq: ON) is driving energy efficient innovations, empowering customers to reduce global energy use. The company offers a comprehensive portfolio of energy efficient power and signal management, logic, discrete and custom solutions to help design engineers solve their unique design challenges in automotive, communications, computing, consumer, industrial, LED lighting, medical, military/aerospace and power supply applications. ON Semiconductor operates a responsive, reliable, world-class supply chain and quality program, and a network of manufacturing facilities, sales offices and design centers in key markets throughout North America, Europe, and the Asia Pacific regions.
Part Number
Manufacturer
Description
Unit Price
In Stock
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SWITCHMODE™
Part Status : Active
Output Type : Transistor Driver
Function : Step-Down, Step-Up/Step-Down
Output Configuration : Positive
Topology : Buck, Push-Pull
Number of Outputs : 2
Output Phases : 1
Voltage - Supply (Vcc/Vdd) : 7 V ~ 40 V
Frequency - Switching : 200kHz
Duty Cycle (Max) : 48%
Synchronous Rectifier : Yes
Clock Sync : No
Serial Interfaces : -
Control Features : Dead Time Control, Frequency Control
Operating Temperature : -40°C ~ 125°C (TJ)
Package / Case : 16-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 16-SOIC
0
586 in stock
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SWITCHMODE™
Part Status : Active
Output Type : Transistor Driver
Function : Step-Down, Step-Up/Step-Down
Output Configuration : Positive
Topology : Buck, Push-Pull
Number of Outputs : 2
Output Phases : 1
Voltage - Supply (Vcc/Vdd) : 7 V ~ 40 V
Frequency - Switching : 200kHz
Duty Cycle (Max) : 48%
Synchronous Rectifier : Yes
Clock Sync : No
Serial Interfaces : -
Control Features : Dead Time Control, Frequency Control
Operating Temperature : 0°C ~ 70°C (TA)
Package / Case : 16-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 16-SOIC
0
2497 in stock
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SWITCHMODE™
Part Status : Active
Output Type : Transistor Driver
Function : Step-Down, Step-Up/Step-Down
Output Configuration : Positive
Topology : Buck, Push-Pull
Number of Outputs : 2
Output Phases : 1
Voltage - Supply (Vcc/Vdd) : 7 V ~ 40 V
Frequency - Switching : 300kHz
Duty Cycle (Max) : 48%
Synchronous Rectifier : Yes
Clock Sync : No
Serial Interfaces : -
Control Features : Dead Time Control, Frequency Control
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 16-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 16-SOIC
0
545 in stock
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SWITCHMODE™
Part Status : Active
Output Type : Transistor Driver
Function : Step-Down, Step-Up/Step-Down
Output Configuration : Positive
Topology : Buck, Push-Pull
Number of Outputs : 2
Output Phases : 1
Voltage - Supply (Vcc/Vdd) : 7 V ~ 40 V
Frequency - Switching : 300kHz
Duty Cycle (Max) : 48%
Synchronous Rectifier : Yes
Clock Sync : No
Serial Interfaces : -
Control Features : Dead Time Control, Frequency Control
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 16-TSSOP (0.173", 4.40mm Width)
Supplier Device Package : 16-TSSOP
0
27 in stock
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 330V
Current - Continuous Drain (Id) @ 25°C : 7A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : -
Rds On (Max) @ Id, Vgs : -
Vgs(th) (Max) @ Id : -
Gate Charge (Qg) (Max) @ Vgs : -
Vgs (Max) : -
Input Capacitance (Ciss) (Max) @ Vds : -
FET Feature : -
Power Dissipation (Max) : -
Operating Temperature : -
Mounting Type : Through Hole
Supplier Device Package : TO-220-3
Package / Case : TO-220-3
0
100 in stock
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 330V
Current - Continuous Drain (Id) @ 25°C : 7A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : -
Rds On (Max) @ Id, Vgs : -
Vgs(th) (Max) @ Id : -
Gate Charge (Qg) (Max) @ Vgs : -
Vgs (Max) : -
Input Capacitance (Ciss) (Max) @ Vds : -
FET Feature : -
Power Dissipation (Max) : -
Operating Temperature : -
Mounting Type : Through Hole
Supplier Device Package : TO-220-3
Package / Case : TO-220-3
0
100 in stock

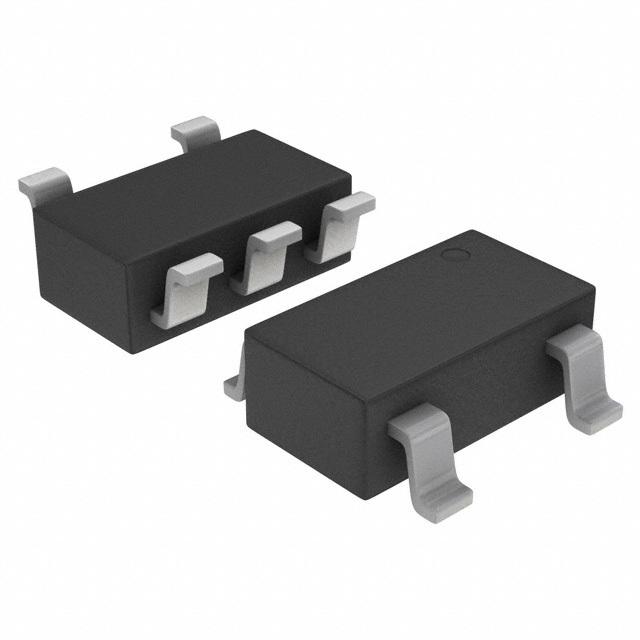

Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Amplifier Type : General Purpose
Number of Circuits : 1
Output Type : Rail-to-Rail
Slew Rate : 2.6 V/µs
Gain Bandwidth Product : 3MHz
-3db Bandwidth : -
Current - Input Bias : 1pA
Voltage - Input Offset : 500µV
Current - Supply : 490µA
Current - Output / Channel : 8mA
Voltage - Supply, Single/Dual (±) : 2.7 V ~ 16 V, ±1.35 V ~ 8 V
Operating Temperature : -40°C ~ 105°C
Mounting Type : Surface Mount
Package / Case : SOT-23-5 Thin, TSOT-23-5
Supplier Device Package : 5-TSOP
0
8971 in stock
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Amplifier Type : General Purpose
Number of Circuits : 1
Output Type : Rail-to-Rail
Slew Rate : 2.6 V/µs
Gain Bandwidth Product : 3MHz
-3db Bandwidth : -
Current - Input Bias : 1pA
Voltage - Input Offset : 500µV
Current - Supply : 490µA
Current - Output / Channel : 8mA
Voltage - Supply, Single/Dual (±) : 2.7 V ~ 16 V, ±1.35 V ~ 8 V
Operating Temperature : -40°C ~ 105°C
Mounting Type : Surface Mount
Package / Case : SOT-23-5 Thin, TSOT-23-5
Supplier Device Package : 5-TSOP
0
5390 in stock
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Bulk
Series : -
Part Status : Active
Reference Type : Shunt
Output Type : Adjustable
Voltage - Output (Min/Fixed) : 1.24V
Voltage - Output (Max) : 16V
Current - Output : 20mA
Tolerance : ±1%
Temperature Coefficient : -
Noise - 0.1Hz to 10Hz : -
Noise - 10Hz to 10kHz : -
Voltage - Input : -
Current - Supply : -
Current - Cathode : 80µA
Operating Temperature : -40°C ~ 85°C (TA)
Mounting Type : Through Hole
Package / Case : TO-226-3, TO-92-3 (TO-226AA)
Supplier Device Package : TO-92-3
0
2291 in stock

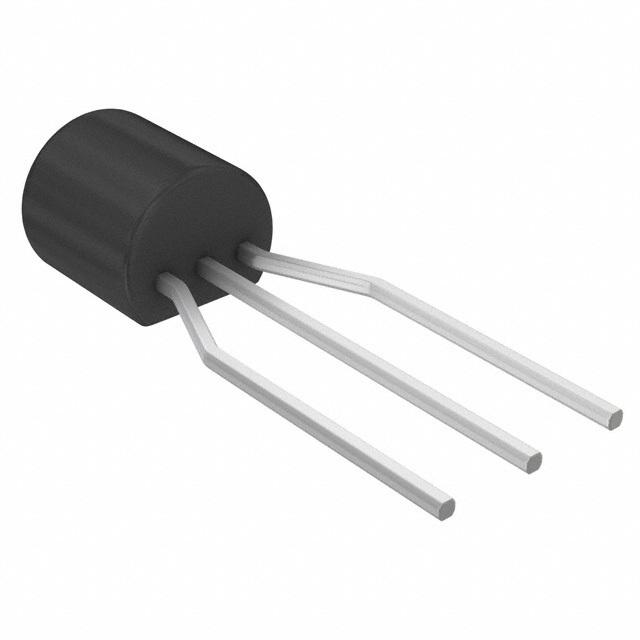

Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Reference Type : Shunt
Output Type : Adjustable
Voltage - Output (Min/Fixed) : 1.24V
Voltage - Output (Max) : 16V
Current - Output : 20mA
Tolerance : ±1%
Temperature Coefficient : -
Noise - 0.1Hz to 10Hz : -
Noise - 10Hz to 10kHz : -
Voltage - Input : -
Current - Supply : -
Current - Cathode : 80µA
Operating Temperature : -40°C ~ 85°C (TA)
Mounting Type : Through Hole
Package / Case : TO-226-3, TO-92-3 (TO-226AA) (Formed Leads)
Supplier Device Package : TO-92 (TO-226)
0
3819 in stock
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Reference Type : Shunt
Output Type : Adjustable
Voltage - Output (Min/Fixed) : 1.24V
Voltage - Output (Max) : 16V
Current - Output : 20mA
Tolerance : ±1%
Temperature Coefficient : -
Noise - 0.1Hz to 10Hz : -
Noise - 10Hz to 10kHz : -
Voltage - Input : -
Current - Supply : -
Current - Cathode : 80µA
Operating Temperature : -40°C ~ 85°C (TA)
Mounting Type : Surface Mount
Package / Case : TO-236-3, SC-59, SOT-23-3
Supplier Device Package : SOT-23-3 (TO-236)
0
233 in stock
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Reference Type : Shunt
Output Type : Adjustable
Voltage - Output (Min/Fixed) : 1.24V
Voltage - Output (Max) : 16V
Current - Output : 20mA
Tolerance : ±1%
Temperature Coefficient : -
Noise - 0.1Hz to 10Hz : -
Noise - 10Hz to 10kHz : -
Voltage - Input : -
Current - Supply : -
Current - Cathode : 80µA
Operating Temperature : -40°C ~ 85°C (TA)
Mounting Type : Surface Mount
Package / Case : SOT-23-5 Thin, TSOT-23-5
Supplier Device Package : 5-TSOP
0
4304 in stock
