NVE Corporation
- NVE is an electronics component manufacturer specializing in the combination of magnetically-sensitive materials with integrated circuits. This new solid-state magnetic technology is characterized by high sensitivity to magnetic fields coupled with small size and low power. NVE has applied these technologies to magnetic sensors, isolators and Magnetoresistive Random Access Memory (MRAM). These components often outperform existing devices, providing both cost-effective and performance-enhanced solutions to sensing and data transmission applications. NVE is ISO 9001 certified.
Since its founding in 1989 with technology from Honeywell International, NVE has become a recognized world leader in magnetically sensitive material research. In 1994, NVE introduced the world's first products using Giant Magnetoresistive (GMR) material. This product line, magnetic field sensors, is used for position, magnetic media, wheel speed and current sensing applications.
Similarly, in 1999, NVE introduced its IsoLoop® product line of high-speed digital isolators for communications, industrial controls and computer applications. These 100 megabaud opto- replacement isolators are the fastest available in the world.
Part Number
Manufacturer
Description
Unit Price
In Stock
NVE Corporation
Manufacturer : NVE Corp/Isolation Products
Packaging : Tube
Series : IsoLoop®
Part Status : Active
Technology : GMR (Giant Magnetoresistive)
Type : General Purpose
Isolated Power : No
Number of Channels : 4
Inputs - Side 1/Side 2 : 3/1
Channel Type : Unidirectional
Voltage - Isolation : 6000Vrms
Common Mode Transient Immunity (Min) : 30kV/µs
Data Rate : 110Mbps
Propagation Delay tpLH / tpHL (Max) : 15ns, 15ns
Pulse Width Distortion (Max) : 3ns
Rise / Fall Time (Typ) : 1ns, 1ns
Voltage - Supply : 3 V ~ 5.5 V
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 16-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 16-SOIC
0
305 in stock
NVE Corporation
Manufacturer : NVE Corp/Isolation Products
Packaging : Tube
Series : IsoLoop®
Part Status : Active
Technology : GMR (Giant Magnetoresistive)
Type : General Purpose
Isolated Power : No
Number of Channels : 2
Inputs - Side 1/Side 2 : 1/1
Channel Type : Unidirectional
Voltage - Isolation : 2500Vrms
Common Mode Transient Immunity (Min) : 30kV/µs
Data Rate : 110Mbps
Propagation Delay tpLH / tpHL (Max) : 15ns, 15ns
Pulse Width Distortion (Max) : 3ns
Rise / Fall Time (Typ) : 1ns, 1ns
Voltage - Supply : 3 V ~ 5.5 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOIC
0
67 in stock

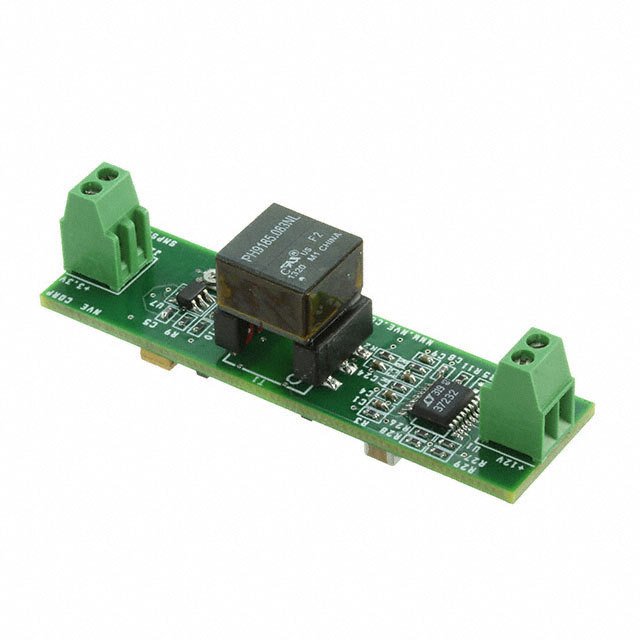

NVE Corporation
Manufacturer : NVE Corp/Isolation Products
Series : IsoLoop®
Part Status : Active
Main Purpose : DC/DC, Step Down
Outputs and Type : 1, Isolated
Power - Output : -
Voltage - Output : 3.3V
Current - Output : 750mA
Voltage - Input : 11 V ~ 14 V
Regulator Topology : Buck
Frequency - Switching : 130kHz
Board Type : Fully Populated
Supplied Contents : Board(s)
Utilized IC / Part : IL610, IL711
0
100 in stock

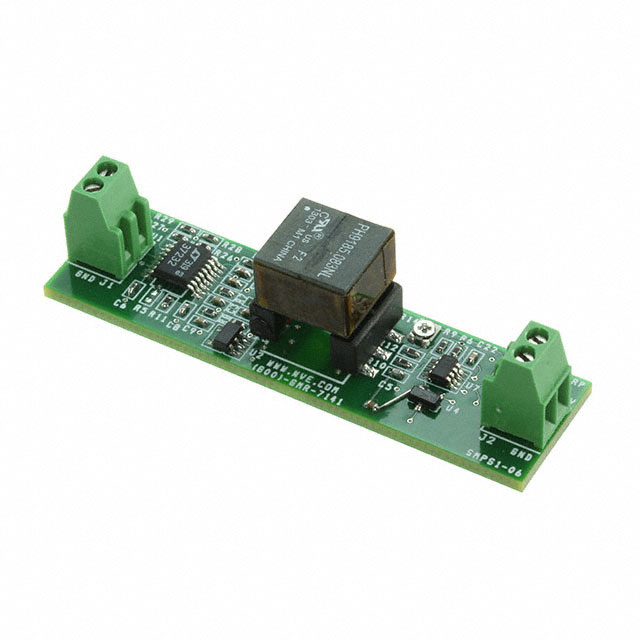

NVE Corporation
Manufacturer : NVE Corp/Isolation Products
Series : IsoLoop®
Part Status : Active
Main Purpose : DC/DC, Step Down
Outputs and Type : 1, Isolated
Power - Output : -
Voltage - Output : 3.3V
Current - Output : 750mA
Voltage - Input : 11 V ~ 14 V
Regulator Topology : Buck
Frequency - Switching : 130kHz
Board Type : Fully Populated
Supplied Contents : Board(s)
Utilized IC / Part : IL710, IL711
0
100 in stock
