Welcome to Weijie Semiconductor

NJR Corporation/NJRC

- NJR Corporation/NJRC ("NJR", San Jose, CA) is the North American subsidiary of New Japan Radio Company ("NJRC", Tokyo, Japan) one of the world's largest producers of Bipolar and CMOS Linear ICs.

NJR is responsible for all sales and product support to customers located in the US, Canada, Mexico and Latin America.

New Japan Radio Company ("NJRC") was established in 1959 as a joint venture between Japan Radio Company ("JRC", Tokyo, Japan) and the Raytheon Company (Boston, MA, USA). JRC was established in 1915 and is known throughout the world as a pioneer in Radio and Wireless technology. NJRC has been providing semiconductor products and microwave components for over 40 years to Industrial and Consumer markets.

New Japan Radio Company has been publicly traded on the Tokyo stock exchange in Japan since 1991. In 2003, NJRC moved to level 1 in the Tokyo stock exchange.

Part Number
Manufacturer
Description
Unit Price
In Stock

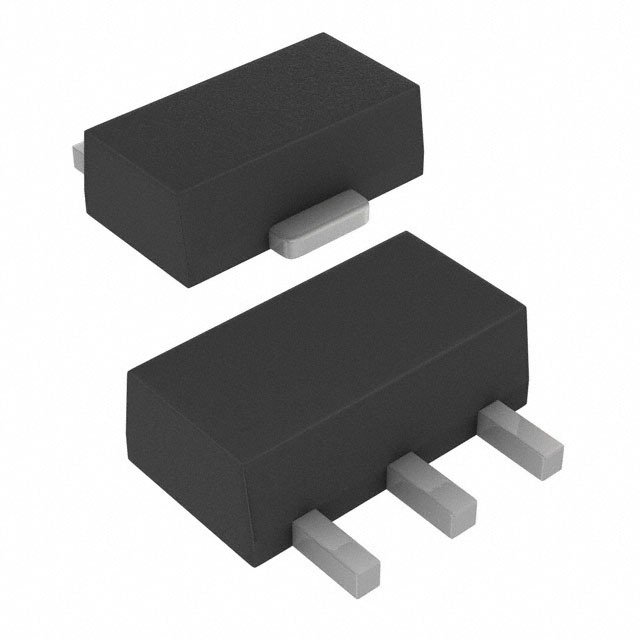

NJM79L09UA-TE1 NJM79L09UA-TE1

JRC Corporation / NJRC
Manufacturer : NJR Corporation/NJRC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Output Configuration : Negative
Output Type : Fixed
Number of Regulators : 1
Voltage - Input (Max) : -30V
Voltage - Output (Min/Fixed) : -9V
Voltage - Output (Max) : -
Voltage Dropout (Max) : -
Current - Output : 100mA
Current - Quiescent (Iq) : 6mA
Current - Supply (Max) : -
PSRR : 67dB (120Hz)
Control Features : -
Protection Features : Over Temperature, Short Circuit
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : TO-243AA
Supplier Device Package : SOT-89-3
0
1461 in stock

NJM79L12UA-TE1 NJM79L12UA-TE1

JRC Corporation / NJRC
Manufacturer : NJR Corporation/NJRC
Packaging : Cut Tape (CT)
Series : -
Part Status : Active
Output Configuration : Negative
Output Type : Fixed
Number of Regulators : 1
Voltage - Input (Max) : -35V
Voltage - Output (Min/Fixed) : -12V
Voltage - Output (Max) : -
Voltage Dropout (Max) : -
Current - Output : 100mA
Current - Quiescent (Iq) : 6.5mA
Current - Supply (Max) : -
PSRR : 64dB (120Hz)
Control Features : -
Protection Features : Over Temperature, Short Circuit
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : TO-243AA
Supplier Device Package : SOT-89
0
1646 in stock

NJM79L24UA-TE1 NJM79L24UA-TE1

JRC Corporation / NJRC
Manufacturer : NJR Corporation/NJRC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Output Configuration : Negative
Output Type : Fixed
Number of Regulators : 1
Voltage - Input (Max) : -40V
Voltage - Output (Min/Fixed) : -24V
Voltage - Output (Max) : -
Voltage Dropout (Max) : -
Current - Output : 100mA
Current - Quiescent (Iq) : 6.5mA
Current - Supply (Max) : -
PSRR : 55dB (120Hz)
Control Features : -
Protection Features : Over Temperature, Short Circuit
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : TO-243AA
Supplier Device Package : SOT-89-3
0
2031 in stock

NJM79M05FA NJM79M05FA

JRC Corporation / NJRC
Manufacturer : NJR Corporation/NJRC
Packaging : Bulk
Series : -
Part Status : Active
Output Configuration : Negative
Output Type : Fixed
Number of Regulators : 1
Voltage - Input (Max) : -35V
Voltage - Output (Min/Fixed) : -5V
Voltage - Output (Max) : -
Voltage Dropout (Max) : -
Current - Output : 500mA
Current - Quiescent (Iq) : 5mA
Current - Supply (Max) : -
PSRR : 58dB (120Hz)
Control Features : -
Protection Features : Over Temperature, Short Circuit
Operating Temperature : -40°C ~ 85°C
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220F
0
602 in stock

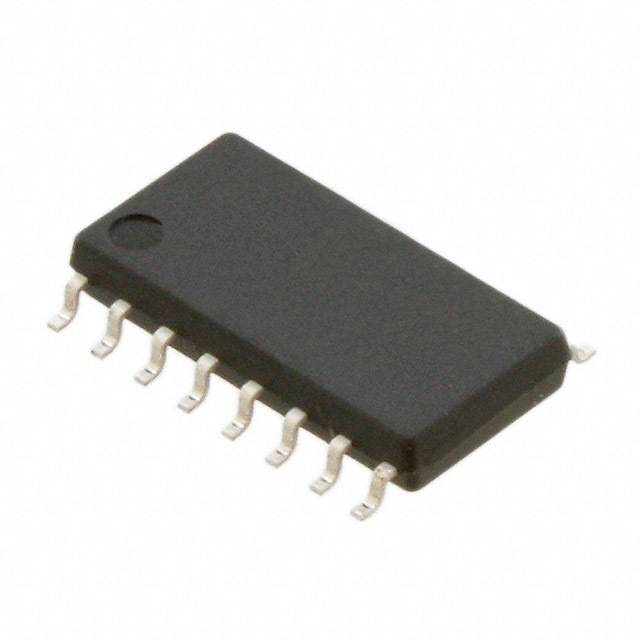

NJU201AM NJU201AM

JRC Corporation / NJRC
Manufacturer : NJR Corporation/NJRC
Packaging : Tube
Series : -
Part Status : Active
Switch Circuit : SPST - NC
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 4
On-State Resistance (Max) : 100 Ohm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : -
Voltage - Supply, Dual (V±) : ±15V
Switch Time (Ton, Toff) (Max) : 600ns, 450ns
-3db Bandwidth : -
Charge Injection : 20pC
Channel Capacitance (CS(off), CD(off)) : 5pF, 5pF
Current - Leakage (IS(off)) (Max) : 100nA
Crosstalk : -90dB @ 100kHz
Operating Temperature : 0°C ~ 70°C (TA)
Package / Case : 16-SOIC (0.209", 5.30mm Width)
Supplier Device Package : 16-DMP
0
500 in stock

NJU3711D NJU3711D

JRC Corporation / NJRC
Manufacturer : NJR Corporation/NJRC
Packaging : Tube
Series : -
Part Status : Obsolete
Function : Deserializer
Data Rate : -
Input Type : Serial
Output Type : Parallel
Number of Inputs : 1
Number of Outputs : 8
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -25°C ~ 85°C (TA)
Mounting Type : Through Hole
Package / Case : 14-DIP (0.300", 7.62mm)
Supplier Device Package : 14-DIP
0
100 in stock

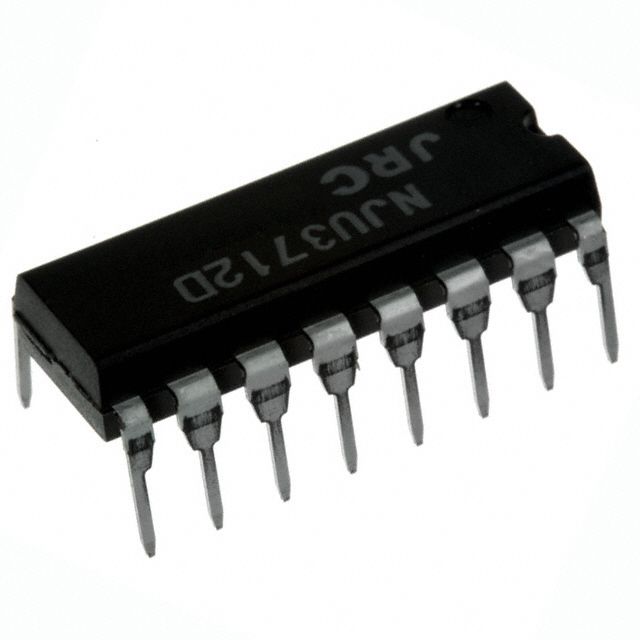

NJU3712D NJU3712D

JRC Corporation / NJRC
Manufacturer : NJR Corporation/NJRC
Packaging : Tube
Series : -
Part Status : Obsolete
Function : Deserializer
Data Rate : -
Input Type : Serial
Output Type : Parallel
Number of Inputs : 1
Number of Outputs : 8
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -25°C ~ 85°C (TA)
Mounting Type : Through Hole
Package / Case : 16-DIP (0.325", 8.25mm)
Supplier Device Package : 16-DIP
0
100 in stock

NJU3712M NJU3712M

JRC Corporation / NJRC
Manufacturer : NJR Corporation/NJRC
Packaging : Tube
Series : -
Part Status : Active
Function : Deserializer
Data Rate : -
Input Type : Serial
Output Type : Parallel
Number of Inputs : 1
Number of Outputs : 8
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -25°C ~ 85°C (TA)
Mounting Type : Surface Mount
Package / Case : 16-SOIC (0.209", 5.30mm Width)
Supplier Device Package : 16-DMP
0
2279 in stock

NJU3715G NJU3715G

JRC Corporation / NJRC
Manufacturer : NJR Corporation/NJRC
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Function : Deserializer
Data Rate : -
Input Type : Serial
Output Type : Parallel
Number of Inputs : 1
Number of Outputs : 16
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -25°C ~ 85°C (TA)
Mounting Type : Surface Mount
Package / Case : -
Supplier Device Package : 22-SOP
0
100 in stock

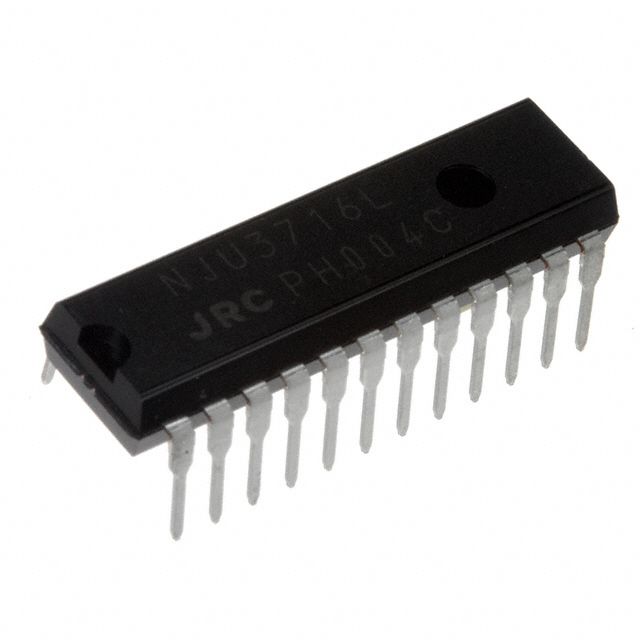

NJU3716L NJU3716L

JRC Corporation / NJRC
Manufacturer : NJR Corporation/NJRC
Packaging : Tube
Series : -
Part Status : Obsolete
Function : Deserializer
Data Rate : -
Input Type : Serial
Output Type : Parallel
Number of Inputs : 1
Number of Outputs : 16
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -25°C ~ 85°C (TA)
Mounting Type : Through Hole
Package / Case : 24-SDIP (0.300", 7.62mm)
Supplier Device Package : -
0
100 in stock

NJU3716M NJU3716M

JRC Corporation / NJRC
Manufacturer : NJR Corporation/NJRC
Packaging : Tube
Series : -
Part Status : Obsolete
Function : Deserializer
Data Rate : -
Input Type : Serial
Output Type : Parallel
Number of Inputs : 1
Number of Outputs : 16
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -25°C ~ 85°C (TA)
Mounting Type : Surface Mount
Package / Case : 24-SOIC (0.213", 5.40mm Width)
Supplier Device Package : 24-DMP
0
100 in stock

NJU3718G NJU3718G

JRC Corporation / NJRC
Manufacturer : NJR Corporation/NJRC
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Function : Deserializer
Data Rate : -
Input Type : Serial
Output Type : Parallel
Number of Inputs : 1
Number of Outputs : 20
Voltage - Supply : 4.5 V ~ 5.5 V
Operating Temperature : -25°C ~ 85°C (TA)
Mounting Type : Surface Mount
Package / Case : 28-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 28-SOIC
0
100 in stock
