NJR Corporation/NJRC
- NJR Corporation/NJRC ("NJR", San Jose, CA) is the North American subsidiary of New Japan Radio Company ("NJRC", Tokyo, Japan) one of the world's largest producers of Bipolar and CMOS Linear ICs.
NJR is responsible for all sales and product support to customers located in the US, Canada, Mexico and Latin America.
New Japan Radio Company ("NJRC") was established in 1959 as a joint venture between Japan Radio Company ("JRC", Tokyo, Japan) and the Raytheon Company (Boston, MA, USA). JRC was established in 1915 and is known throughout the world as a pioneer in Radio and Wireless technology. NJRC has been providing semiconductor products and microwave components for over 40 years to Industrial and Consumer markets.
New Japan Radio Company has been publicly traded on the Tokyo stock exchange in Japan since 1991. In 2003, NJRC moved to level 1 in the Tokyo stock exchange.
Part Number
Manufacturer
Description
Unit Price
In Stock
JRC Corporation / NJRC
Manufacturer : NJR Corporation/NJRC
Packaging : Tube
Series : -
Part Status : Obsolete
Output Type : Transistor Driver
Function : Step-Up, Step-Down, Step-Up/Step-Down
Output Configuration : Positive, Isolation Capable
Topology : Buck, Boost, Flyback, Push-Pull
Number of Outputs : 2
Output Phases : 1
Voltage - Supply (Vcc/Vdd) : 8 V ~ 40 V
Frequency - Switching : 30kHz
Duty Cycle (Max) : 45%
Synchronous Rectifier : Yes
Clock Sync : No
Serial Interfaces : -
Control Features : Current Limit
Operating Temperature : -20°C ~ 75°C (TA)
Package / Case : 16-DIP (0.300", 7.62mm)
Supplier Device Package : 16-DIP
0
112 in stock
JRC Corporation / NJRC
Manufacturer : NJR Corporation/NJRC
Packaging : Tube
Series : -
Part Status : Active
Motor Type - Stepper : Bipolar
Motor Type - AC, DC : -
Function : Driver - Fully Integrated, Control and Power Stage
Output Configuration : Half Bridge (2)
Interface : Parallel
Technology : Bipolar
Step Resolution : 1, 1/2
Applications : General Purpose
Current - Output : 1A
Voltage - Supply : 4.75 V ~ 5.25 V
Voltage - Load : 10 V ~ 45 V
Operating Temperature : -20°C ~ 125°C (TJ)
Mounting Type : Through Hole

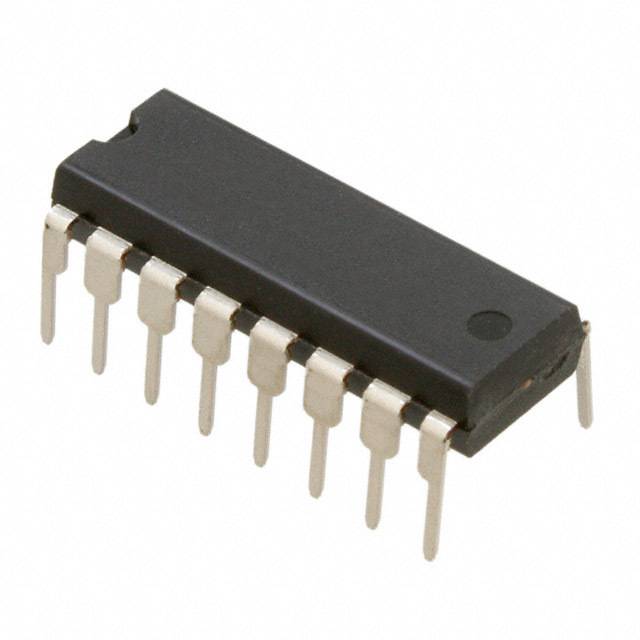

Package / Case : 16-DIP (0.325", 8.25mm)
Supplier Device Package : 16-DIP
0
3306 in stock
JRC Corporation / NJRC
Manufacturer : NJR Corporation/NJRC
Packaging : Tube
Series : -
Part Status : Obsolete
Motor Type - Stepper : Bipolar
Motor Type - AC, DC : -
Function : Driver - Fully Integrated, Control and Power Stage
Output Configuration : Half Bridge (2)
Interface : Parallel
Technology : Bipolar
Step Resolution : 1, 1/2
Applications : General Purpose
Current - Output : 1A
Voltage - Supply : 4.75 V ~ 5.25 V
Voltage - Load : 10 V ~ 45 V
Operating Temperature : -20°C ~ 125°C (TJ)
Mounting Type : Surface Mount
Package / Case : 28-LCC (J-Lead)
Supplier Device Package : 28-PLCC (11.51x11.51)
0
100 in stock
JRC Corporation / NJRC
Manufacturer : NJR Corporation/NJRC
Packaging : Tube
Series : -
Part Status : Active
Motor Type - Stepper : Bipolar
Motor Type - AC, DC : -
Function : Driver - Fully Integrated, Control and Power Stage
Output Configuration : Half Bridge (2)
Interface : Parallel
Technology : Bipolar
Step Resolution : 1, 1/2
Applications : General Purpose
Current - Output : 1.5A
Voltage - Supply : 4.75 V ~ 5.25 V
Voltage - Load : 10 V ~ 40 V
Operating Temperature : -20°C ~ 125°C (TJ)
Mounting Type : Through Hole

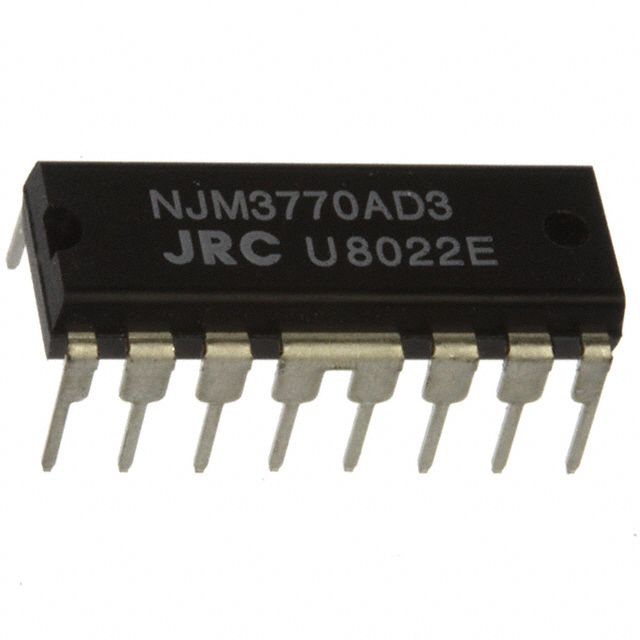

Package / Case : 16-DIP (0.325", 8.25mm), 12 Leads + 2 Fins
Supplier Device Package : 16-DIP Batwing
0
5270 in stock
JRC Corporation / NJRC
Manufacturer : NJR Corporation/NJRC
Packaging : Tube
Series : -
Part Status : Active
Motor Type - Stepper : Bipolar
Motor Type - AC, DC : -
Function : Driver - Fully Integrated, Control and Power Stage
Output Configuration : Half Bridge (2)
Interface : Parallel
Technology : Bipolar
Step Resolution : 1, 1/2
Applications : General Purpose
Current - Output : 1.5A
Voltage - Supply : 4.75 V ~ 5.25 V
Voltage - Load : 10 V ~ 40 V
Operating Temperature : -20°C ~ 125°C (TJ)
Mounting Type : Surface Mount
Package / Case : 28-LCC (J-Lead)
Supplier Device Package : 28-PLCC (11.51x11.51)
0
6318 in stock
JRC Corporation / NJRC
Manufacturer : NJR Corporation/NJRC
Packaging : Tube
Series : -
Part Status : Obsolete
Motor Type - Stepper : Bipolar
Motor Type - AC, DC : -
Function : Driver - Fully Integrated, Control and Power Stage
Output Configuration : Half Bridge (2)
Interface : Parallel
Technology : Bipolar
Step Resolution : 1, 1/2
Applications : General Purpose
Current - Output : 1A
Voltage - Supply : 4.75 V ~ 5.25 V
Voltage - Load : 10 V ~ 56 V
Operating Temperature : -20°C ~ 125°C (TJ)
Mounting Type : Surface Mount

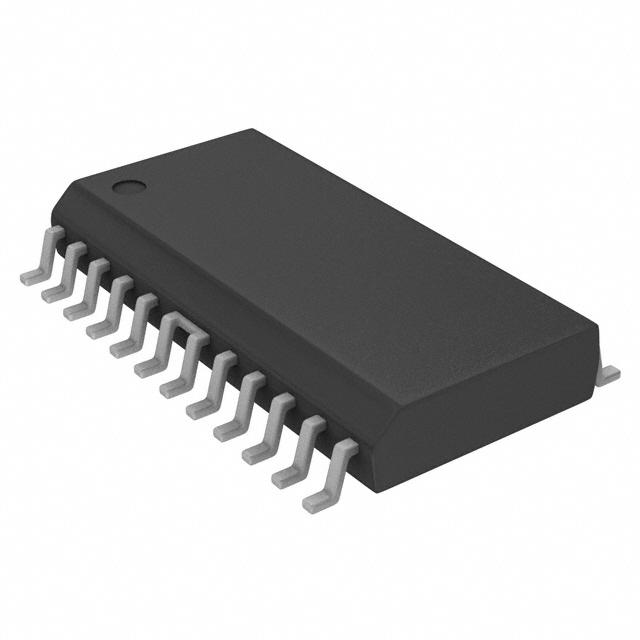

Package / Case : 24-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 24-EMP
0
100 in stock
JRC Corporation / NJRC
Manufacturer : NJR Corporation/NJRC
Packaging : Tube
Series : -
Part Status : Active
Motor Type - Stepper : Bipolar
Motor Type - AC, DC : -
Function : Driver - Fully Integrated, Control and Power Stage
Output Configuration : Half Bridge (4)
Interface : Parallel
Technology : Bipolar
Step Resolution : 1, 1/2
Applications : General Purpose
Current - Output : 650mA
Voltage - Supply : 4.75 V ~ 5.25 V
Voltage - Load : 10 V ~ 40 V
Operating Temperature : -20°C ~ 125°C (TJ)
Mounting Type : Through Hole

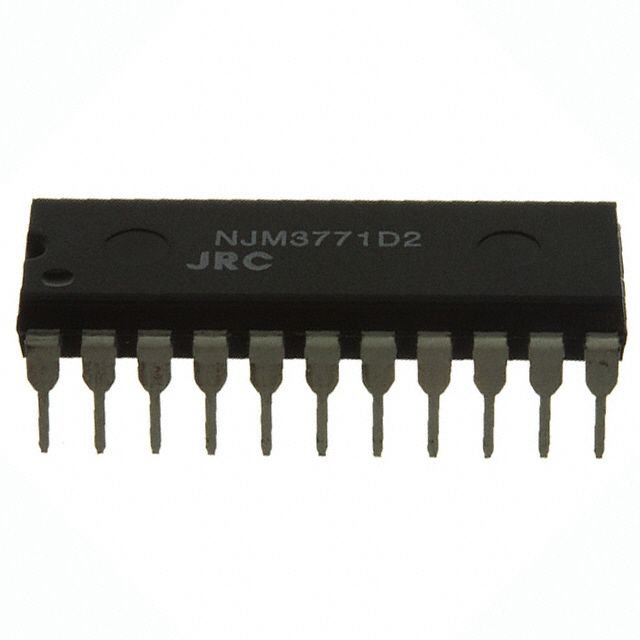

Package / Case : 22-DIP (0.400", 10.16mm)
Supplier Device Package : -
0
1756 in stock
JRC Corporation / NJRC
Manufacturer : NJR Corporation/NJRC
Packaging : Tube
Series : -
Part Status : Active
Motor Type - Stepper : Bipolar
Motor Type - AC, DC : -
Function : Driver - Fully Integrated, Control and Power Stage
Output Configuration : Half Bridge (4)
Interface : Parallel
Technology : Bipolar
Step Resolution : 1, 1/2
Applications : General Purpose
Current - Output : 650mA
Voltage - Supply : 4.75 V ~ 5.25 V
Voltage - Load : 10 V ~ 40 V
Operating Temperature : -20°C ~ 125°C (TJ)
Mounting Type : Surface Mount

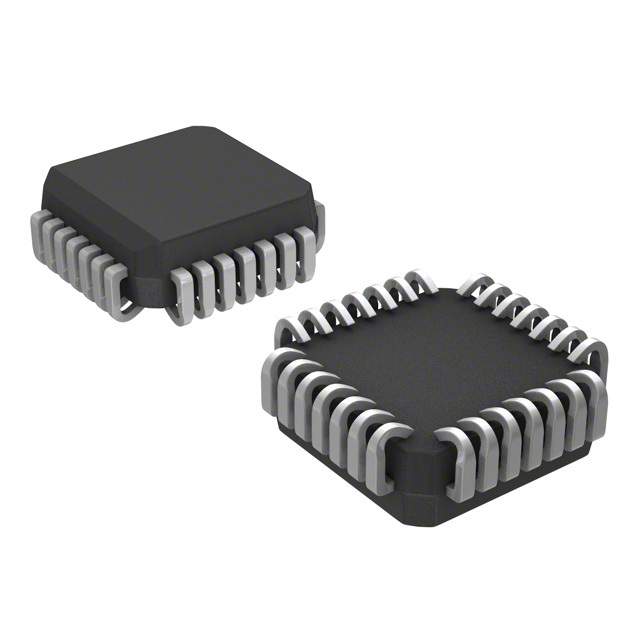

Package / Case : 28-LCC (J-Lead)
Supplier Device Package : 28-PLCC (11.51x11.51)
0
2158 in stock
JRC Corporation / NJRC
Manufacturer : NJR Corporation/NJRC
Packaging : Tube
Series : -
Part Status : Active
Motor Type - Stepper : Bipolar
Motor Type - AC, DC : -
Function : Driver - Fully Integrated, Control and Power Stage
Output Configuration : Half Bridge (4)
Interface : Parallel
Technology : Bipolar
Step Resolution : -
Applications : General Purpose
Current - Output : 1A
Voltage - Supply : 4.75 V ~ 5.25 V
Voltage - Load : 10 V ~ 40 V
Operating Temperature : -20°C ~ 125°C (TJ)
Mounting Type : Through Hole

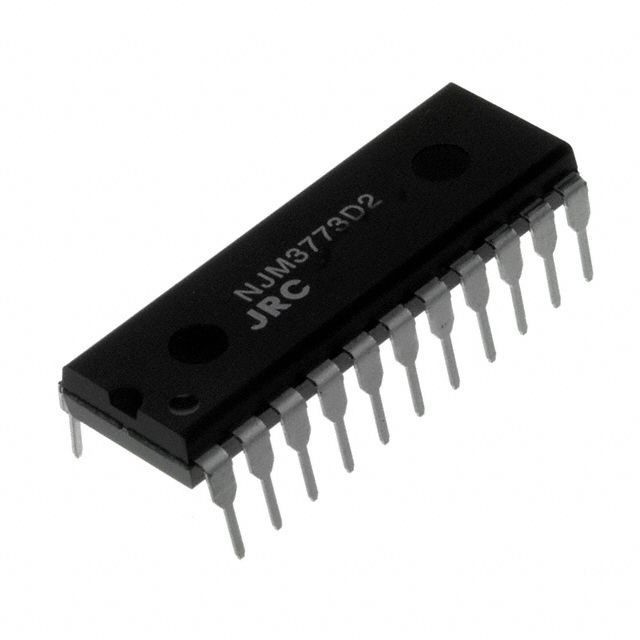

Package / Case : 22-DIP (0.400", 10.16mm)
Supplier Device Package : 22-DIP
0
164 in stock
JRC Corporation / NJRC
Manufacturer : NJR Corporation/NJRC
Packaging : Tube
Series : -
Part Status : Active
Motor Type - Stepper : Bipolar
Motor Type - AC, DC : -
Function : Driver - Fully Integrated, Control and Power Stage
Output Configuration : Half Bridge (4)
Interface : Parallel
Technology : Bipolar
Step Resolution : -
Applications : General Purpose
Current - Output : 1A
Voltage - Supply : 4.75 V ~ 5.25 V
Voltage - Load : 10 V ~ 40 V
Operating Temperature : -20°C ~ 125°C (TJ)
Mounting Type : Surface Mount
Package / Case : 28-LCC (J-Lead)
Supplier Device Package : 28-PLCC (11.51x11.51)
0
367 in stock
JRC Corporation / NJRC
Manufacturer : NJR Corporation/NJRC
Packaging : Tube
Series : -
Part Status : Active
Motor Type - Stepper : Bipolar
Motor Type - AC, DC : -
Function : Driver - Fully Integrated, Control and Power Stage
Output Configuration : Half Bridge (4)
Interface : Parallel
Technology : Bipolar
Step Resolution : 1, 1/2
Applications : General Purpose
Current - Output : 750mA
Voltage - Supply : 4.75 V ~ 5.25 V
Voltage - Load : 10 V ~ 40 V
Operating Temperature : -20°C ~ 125°C (TJ)
Mounting Type : Through Hole

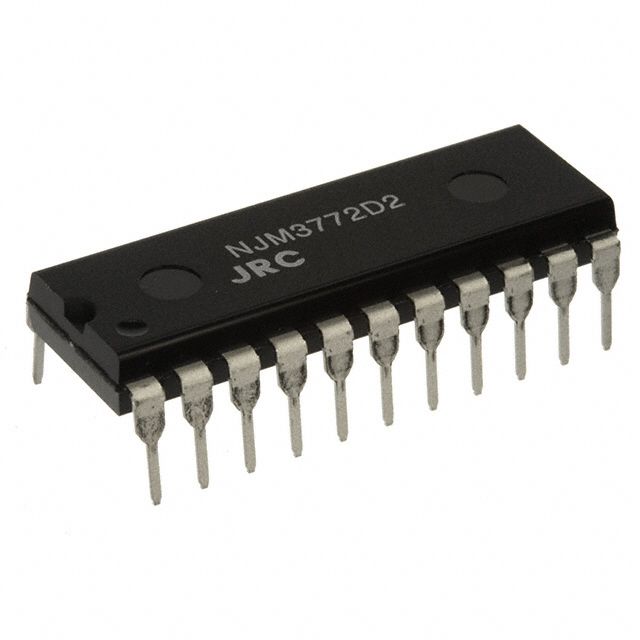

Package / Case : 22-DIP (0.400", 10.16mm)
Supplier Device Package : 22-DIP
0
720 in stock
JRC Corporation / NJRC
Manufacturer : NJR Corporation/NJRC
Packaging : Tube
Series : -
Part Status : Active
Motor Type - Stepper : Bipolar
Motor Type - AC, DC : -
Function : Driver - Fully Integrated, Control and Power Stage
Output Configuration : Half Bridge (4)
Interface : Parallel
Technology : Bipolar
Step Resolution : 1, 1/2
Applications : General Purpose
Current - Output : 750mA
Voltage - Supply : 4.75 V ~ 5.25 V
Voltage - Load : 10 V ~ 40 V
Operating Temperature : -20°C ~ 125°C (TJ)
Mounting Type : Surface Mount
Package / Case : 28-LCC (J-Lead)
Supplier Device Package : 28-PLCC (11.51x11.51)
0
5196 in stock
