Nichicon
- For over 60 years, Nichicon has strived to be a “valuable supplier for our customers” by balancing advanced technology, strict quality control measures, and superior service. We are continuously researching and implementing innovative technologies to directly benefit our customers while offering the widest selection of aluminum electrolytic capacitors in the industry. We also offer the broadest array of conductive polymer capacitors worldwide.
In the competitive marketplace of electronics, Nichicon’s “zero-defect” philosophy ensures our components can endure diverse applications. We pride ourselves in the variety of capacitors offered including surface mount, snap-in, through-hole, and screw terminal. Additionally, our company upholds the strictest environmental standards including manufacturing only RoHS and REACH compliant components.
Part Number
Manufacturer
Description
Unit Price
In Stock
Nichicon
Manufacturer : Nichicon
Packaging : Bulk
Series : LLG
Part Status : Active
Capacitance : 2200µF
Tolerance : ±20%
Voltage - Rated : 200V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 85°C
Operating Temperature : -40°C ~ 85°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 4.18A @ 120Hz
Ripple Current @ High Frequency : 6.27A @ 50kHz
Impedance : -
Lead Spacing : 0.394" (10.00mm)
Size / Dimension : 1.181" Dia (30.00mm)
Height - Seated (Max) : 2.047" (52.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can - Snap-In
0
6427 in stock
Nichicon
Manufacturer : Nichicon
Packaging : Bulk
Series : LLG
Part Status : Active
Capacitance : 470µF
Tolerance : ±20%
Voltage - Rated : 400V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 85°C
Operating Temperature : -25°C ~ 85°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 2.13A @ 120Hz
Ripple Current @ High Frequency : 3.0459A @ 50kHz
Impedance : -
Lead Spacing : 0.394" (10.00mm)
Size / Dimension : 1.181" Dia (30.00mm)
Height - Seated (Max) : 1.457" (37.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can - Snap-In
0
9862 in stock
Nichicon
Manufacturer : Nichicon
Packaging : Bulk
Series : LLG
Part Status : Active
Capacitance : 470µF
Tolerance : ±20%
Voltage - Rated : 450V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 85°C
Operating Temperature : -25°C ~ 85°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 2.32A @ 120Hz
Ripple Current @ High Frequency : 3.3176A @ 50kHz
Impedance : -
Lead Spacing : 0.394" (10.00mm)
Size / Dimension : 1.181" Dia (30.00mm)
Height - Seated (Max) : 1.654" (42.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can - Snap-In
0
1421 in stock
Nichicon
Manufacturer : Nichicon
Packaging : Bulk
Series : LLG
Part Status : Active
Capacitance : 680µF
Tolerance : ±20%
Voltage - Rated : 450V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 85°C
Operating Temperature : -25°C ~ 85°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 2.82A @ 120Hz
Ripple Current @ High Frequency : 4.0326A @ 50kHz
Impedance : -
Lead Spacing : 0.394" (10.00mm)
Size / Dimension : 1.378" Dia (35.00mm)
Height - Seated (Max) : 1.850" (47.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can - Snap-In
0
1616 in stock
Nichicon
Manufacturer : Nichicon
Packaging : Bulk
Series : LLS
Part Status : Active
Capacitance : 15000µF
Tolerance : ±20%
Voltage - Rated : 50V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 3000 Hrs @ 85°C
Operating Temperature : -40°C ~ 85°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 6.56A @ 120Hz
Ripple Current @ High Frequency : 7.544A @ 50kHz
Impedance : -
Lead Spacing : 0.394" (10.00mm)
Size / Dimension : 1.378" Dia (35.00mm)
Height - Seated (Max) : 1.850" (47.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can - Snap-In
0
2738 in stock
Nichicon
Manufacturer : Nichicon
Packaging : Bulk
Series : LLS
Part Status : Active
Capacitance : 18000µF
Tolerance : ±20%
Voltage - Rated : 50V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 3000 Hrs @ 85°C
Operating Temperature : -40°C ~ 85°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 7.14A @ 120Hz
Ripple Current @ High Frequency : 8.211A @ 50kHz
Impedance : -
Lead Spacing : 0.394" (10.00mm)
Size / Dimension : 1.378" Dia (35.00mm)
Height - Seated (Max) : 2.047" (52.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can - Snap-In
0
204 in stock
Nichicon
Manufacturer : Nichicon
Packaging : Bulk
Series : LLS
Part Status : Active
Capacitance : 2200µF
Tolerance : ±20%
Voltage - Rated : 63V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 3000 Hrs @ 85°C
Operating Temperature : -40°C ~ 85°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 2.3A @ 120Hz
Ripple Current @ High Frequency : 2.645A @ 50kHz
Impedance : -
Lead Spacing : 0.394" (10.00mm)
Size / Dimension : 0.984" Dia (25.00mm)
Height - Seated (Max) : 0.984" (25.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can - Snap-In
0
5596 in stock
Nichicon
Manufacturer : Nichicon
Packaging : Bulk
Series : LLS
Part Status : Active
Capacitance : 10000µF
Tolerance : ±20%
Voltage - Rated : 80V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 3000 Hrs @ 85°C
Operating Temperature : -40°C ~ 85°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 6.63A @ 120Hz
Ripple Current @ High Frequency : 7.6245A @ 50kHz
Impedance : -
Lead Spacing : 0.394" (10.00mm)
Size / Dimension : 1.378" Dia (35.00mm)
Height - Seated (Max) : 2.047" (52.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can - Snap-In
0
1117 in stock
Nichicon
Manufacturer : Nichicon
Packaging : Bulk
Series : LLS
Part Status : Active
Capacitance : 18000µF
Tolerance : ±20%
Voltage - Rated : 35V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 3000 Hrs @ 85°C
Operating Temperature : -40°C ~ 85°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 5.71A @ 120Hz
Ripple Current @ High Frequency : 6.5665A @ 50kHz
Impedance : -
Lead Spacing : 0.394" (10.00mm)
Size / Dimension : 1.378" Dia (35.00mm)
Height - Seated (Max) : 1.654" (42.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can - Snap-In
0
3182 in stock
Nichicon
Manufacturer : Nichicon
Packaging : Bulk
Series : LLS
Part Status : Active
Capacitance : 22000µF
Tolerance : ±20%
Voltage - Rated : 35V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 3000 Hrs @ 85°C
Operating Temperature : -40°C ~ 85°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 6.38A @ 120Hz
Ripple Current @ High Frequency : 7.337A @ 50kHz
Impedance : -
Lead Spacing : 0.394" (10.00mm)
Size / Dimension : 1.378" Dia (35.00mm)
Height - Seated (Max) : 1.850" (47.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can - Snap-In
0
2363 in stock

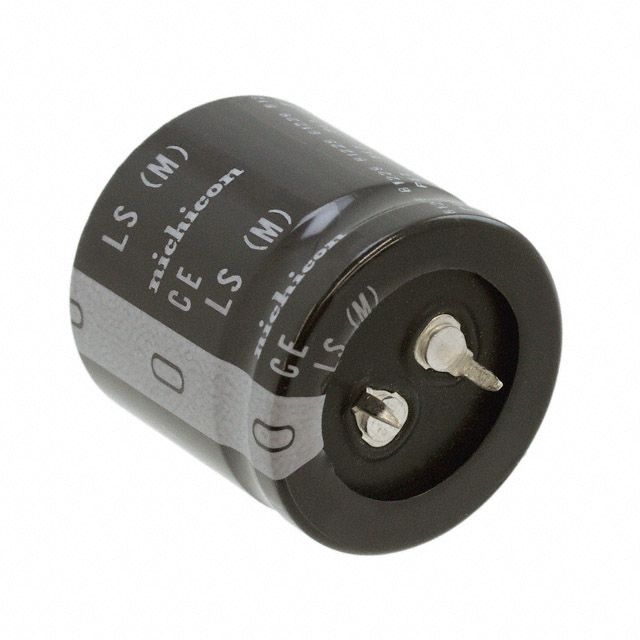

Nichicon
Manufacturer : Nichicon
Packaging : Bulk
Series : LLS
Part Status : Active
Capacitance : 2200µF
Tolerance : ±20%
Voltage - Rated : 100V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 3000 Hrs @ 85°C
Operating Temperature : -40°C ~ 85°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 3.17A @ 120Hz
Ripple Current @ High Frequency : 3.6455A @ 50kHz
Impedance : -
Lead Spacing : 0.394" (10.00mm)
Size / Dimension : 1.181" Dia (30.00mm)
Height - Seated (Max) : 1.260" (32.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can - Snap-In
0
2400 in stock

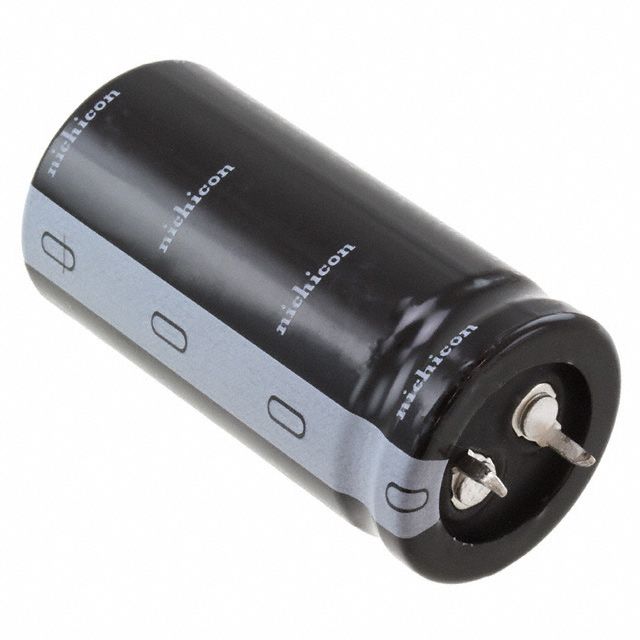

Nichicon
Manufacturer : Nichicon
Packaging : Bulk
Series : LLS
Part Status : Active
Capacitance : 3300µF
Tolerance : ±20%
Voltage - Rated : 100V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 3000 Hrs @ 85°C
Operating Temperature : -40°C ~ 85°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 4.15A @ 120Hz
Ripple Current @ High Frequency : 4.7725A @ 50kHz
Impedance : -
Lead Spacing : 0.394" (10.00mm)
Size / Dimension : 0.984" Dia (25.00mm)
Height - Seated (Max) : 2.047" (52.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can - Snap-In
0
12005 in stock
