Nichicon
- For over 60 years, Nichicon has strived to be a “valuable supplier for our customers” by balancing advanced technology, strict quality control measures, and superior service. We are continuously researching and implementing innovative technologies to directly benefit our customers while offering the widest selection of aluminum electrolytic capacitors in the industry. We also offer the broadest array of conductive polymer capacitors worldwide.
In the competitive marketplace of electronics, Nichicon’s “zero-defect” philosophy ensures our components can endure diverse applications. We pride ourselves in the variety of capacitors offered including surface mount, snap-in, through-hole, and screw terminal. Additionally, our company upholds the strictest environmental standards including manufacturing only RoHS and REACH compliant components.
Part Number
Manufacturer
Description
Unit Price
In Stock
Nichicon
Manufacturer : Nichicon
Packaging : Bulk
Series : LGU
Part Status : Active
Capacitance : 220µF
Tolerance : ±20%
Voltage - Rated : 200V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 3000 Hrs @ 105°C
Operating Temperature : -40°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 1A @ 120Hz
Ripple Current @ High Frequency : 1.5A @ 50kHz
Impedance : -
Lead Spacing : 0.394" (10.00mm)
Size / Dimension : 0.787" Dia (20.00mm)
Height - Seated (Max) : 0.984" (25.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can - Snap-In
0
6727 in stock
Nichicon
Manufacturer : Nichicon
Packaging : Bulk
Series : LGU
Part Status : Active
Capacitance : 470µF
Tolerance : ±20%
Voltage - Rated : 200V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 3000 Hrs @ 105°C
Operating Temperature : -40°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 1.5A @ 120Hz
Ripple Current @ High Frequency : 2.25A @ 50kHz
Impedance : -
Lead Spacing : 0.394" (10.00mm)
Size / Dimension : 0.866" Dia (22.00mm)
Height - Seated (Max) : 1.378" (35.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can - Snap-In
0
31614 in stock
Nichicon
Manufacturer : Nichicon
Packaging : Bulk
Series : LGU
Part Status : Active
Capacitance : 820µF
Tolerance : ±20%
Voltage - Rated : 200V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 3000 Hrs @ 105°C
Operating Temperature : -40°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 2.04A @ 120Hz
Ripple Current @ High Frequency : 3.06A @ 50kHz
Impedance : -
Lead Spacing : 0.394" (10.00mm)
Size / Dimension : 1.181" Dia (30.00mm)
Height - Seated (Max) : 1.181" (30.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can - Snap-In
0
15287 in stock
Nichicon
Manufacturer : Nichicon
Packaging : Bulk
Series : LGU
Part Status : Active
Capacitance : 1000µF
Tolerance : ±20%
Voltage - Rated : 250V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 3000 Hrs @ 105°C
Operating Temperature : -40°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 2.47A @ 120Hz
Ripple Current @ High Frequency : 3.705A @ 50kHz
Impedance : -
Lead Spacing : 0.394" (10.00mm)
Size / Dimension : 1.378" Dia (35.00mm)
Height - Seated (Max) : 1.575" (40.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can - Snap-In
0
2756 in stock
Nichicon
Manufacturer : Nichicon
Packaging : Bulk
Series : LGU
Part Status : Active
Capacitance : 330µF
Tolerance : ±20%
Voltage - Rated : 250V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 3000 Hrs @ 105°C
Operating Temperature : -40°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 1.3A @ 120Hz
Ripple Current @ High Frequency : 1.95A @ 50kHz
Impedance : -
Lead Spacing : 0.394" (10.00mm)
Size / Dimension : 0.984" Dia (25.00mm)
Height - Seated (Max) : 1.181" (30.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can - Snap-In
0
4598 in stock
Nichicon
Manufacturer : Nichicon
Packaging : Bulk
Series : LGU
Part Status : Active
Capacitance : 680µF
Tolerance : ±20%
Voltage - Rated : 250V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 3000 Hrs @ 105°C
Operating Temperature : -40°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 2A @ 120Hz
Ripple Current @ High Frequency : 3A @ 50kHz
Impedance : -
Lead Spacing : 0.394" (10.00mm)
Size / Dimension : 1.181" Dia (30.00mm)
Height - Seated (Max) : 1.575" (40.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can - Snap-In
0
3676 in stock
Nichicon
Manufacturer : Nichicon
Packaging : Bulk
Series : LGU
Part Status : Active
Capacitance : 120µF
Tolerance : ±20%
Voltage - Rated : 400V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 3000 Hrs @ 105°C
Operating Temperature : -25°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 750mA @ 120Hz
Ripple Current @ High Frequency : 1.0725A @ 50kHz
Impedance : -
Lead Spacing : 0.394" (10.00mm)
Size / Dimension : 0.984" Dia (25.00mm)
Height - Seated (Max) : 0.984" (25.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can - Snap-In
0
1245 in stock
Nichicon
Manufacturer : Nichicon
Packaging : Bulk
Series : LGU
Part Status : Active
Capacitance : 150µF
Tolerance : ±20%
Voltage - Rated : 400V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 3000 Hrs @ 105°C
Operating Temperature : -25°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 880mA @ 120Hz
Ripple Current @ High Frequency : 1.2584A @ 50kHz
Impedance : -
Lead Spacing : 0.394" (10.00mm)
Size / Dimension : 0.984" Dia (25.00mm)
Height - Seated (Max) : 1.181" (30.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can - Snap-In
0
4121 in stock
Nichicon
Manufacturer : Nichicon
Packaging : Bulk
Series : LGU
Part Status : Active
Capacitance : 150µF
Tolerance : ±20%
Voltage - Rated : 400V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 3000 Hrs @ 105°C
Operating Temperature : -25°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 880mA @ 120Hz
Ripple Current @ High Frequency : 1.2584A @ 50kHz
Impedance : -
Lead Spacing : 0.394" (10.00mm)
Size / Dimension : 1.181" Dia (30.00mm)
Height - Seated (Max) : 0.984" (25.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can - Snap-In
0
1077 in stock
Nichicon
Manufacturer : Nichicon
Packaging : Bulk
Series : LGU
Part Status : Active
Capacitance : 220µF
Tolerance : ±20%
Voltage - Rated : 400V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 3000 Hrs @ 105°C
Operating Temperature : -25°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 1.1A @ 120Hz
Ripple Current @ High Frequency : 1.573A @ 50kHz
Impedance : -
Lead Spacing : 0.394" (10.00mm)
Size / Dimension : 0.984" Dia (25.00mm)
Height - Seated (Max) : 1.575" (40.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can - Snap-In
0
7075 in stock

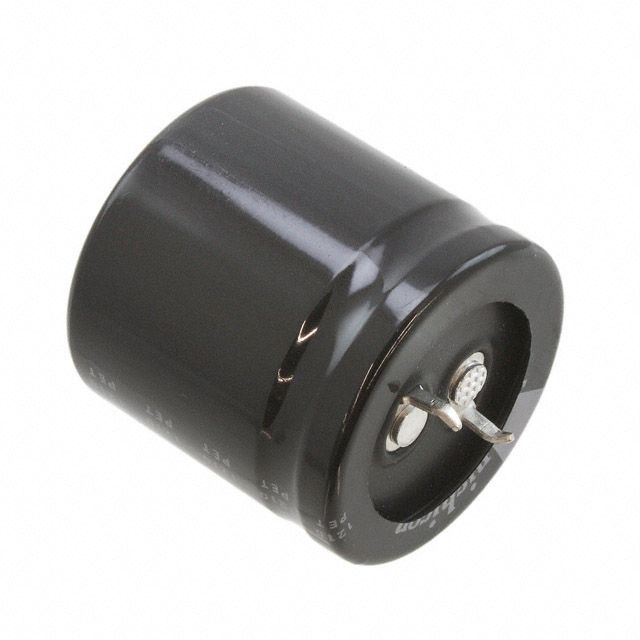

Nichicon
Manufacturer : Nichicon
Packaging : Bulk
Series : LGU
Part Status : Active
Capacitance : 220µF
Tolerance : ±20%
Voltage - Rated : 400V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 3000 Hrs @ 105°C
Operating Temperature : -25°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 1.1A @ 120Hz
Ripple Current @ High Frequency : 1.573A @ 50kHz
Impedance : -
Lead Spacing : 0.394" (10.00mm)
Size / Dimension : 1.181" Dia (30.00mm)
Height - Seated (Max) : 1.181" (30.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can - Snap-In
0
4063 in stock

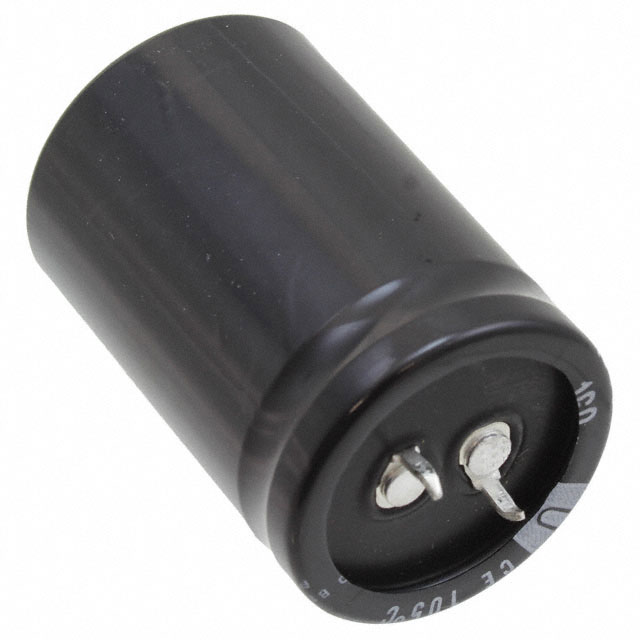

Nichicon
Manufacturer : Nichicon
Packaging : Bulk
Series : LGU
Part Status : Active
Capacitance : 270µF
Tolerance : ±20%
Voltage - Rated : 400V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 3000 Hrs @ 105°C
Operating Temperature : -25°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 1.22A @ 120Hz
Ripple Current @ High Frequency : 1.7446A @ 50kHz
Impedance : -
Lead Spacing : 0.394" (10.00mm)
Size / Dimension : 0.984" Dia (25.00mm)
Height - Seated (Max) : 1.772" (45.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can - Snap-In
0
25625 in stock
