NDK

- Since our founding in 1948, we at Nihon Dempa Kogyo Co., Ltd. (NDK) have operated under a philosophy of “contributing to social prosperity and world peace through our service to customers.”

NDK’s quartz crystal devices provide an accurate and superior oscillation source that is absolutely essential to crystal components. As the era of the ubiquitous networked society unfolds, the Company’s crystal devices are being utilized in diverse applications, ranging from mobile communications and fixed radio communications to office automation, audiovisual, and automotive electronics equipment.

With its lineup of high-precision, high-reliability, compact crystal devices that anticipate the next generation of customer needs today, NDK has grown to become the leading company among quartz crystal device manufacturers in the world. Under the banner of “quality, cost, and speed,” NDK aims to establish itself as the industry’s technology leader and the most trusted customer brand.

NDK will continue to provide high-value-added products and high-quality service to its customers throughout the world, increase its enterprise value, and live up to the expectations of its stakeholders, including shareholders, customers, and local communities.

Part Number
Manufacturer
Description
Unit Price
In Stock

NX2520SA-16MHZ-EXS00A-CS11340 NX2520SA-16MHZ-EXS00A-CS11340

NDK
Manufacturer : NDK America, Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NX2520SA
Part Status : Active
Type : MHz Crystal
Frequency : 16MHz
Frequency Stability : ±15ppm
Frequency Tolerance : ±15ppm
Load Capacitance : 8pF
ESR (Equivalent Series Resistance) : 80 Ohms
Operating Mode : Fundamental
Operating Temperature : -10°C ~ 70°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) : 0.022" (0.55mm)
0
4195 in stock

NX2520SA-16MHZ-STD-CSW-4 NX2520SA-16MHZ-STD-CSW-4

NDK
Manufacturer : NDK America, Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NX2520SA
Part Status : Active
Type : MHz Crystal
Frequency : 16MHz
Frequency Stability : ±15ppm
Frequency Tolerance : ±15ppm
Load Capacitance : 8pF
ESR (Equivalent Series Resistance) : 80 Ohms
Operating Mode : Fundamental
Operating Temperature : -10°C ~ 75°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) : 0.022" (0.55mm)
0
33711 in stock

NX2520SA-16MHZ-STD-CSW-5 NX2520SA-16MHZ-STD-CSW-5

NDK
Manufacturer : NDK America, Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NX2520SA
Part Status : Active
Type : MHz Crystal
Frequency : 16MHz
Frequency Stability : ±25ppm
Frequency Tolerance : ±15ppm
Load Capacitance : 8pF
ESR (Equivalent Series Resistance) : 80 Ohms
Operating Mode : Fundamental
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) : 0.022" (0.55mm)
0
123256 in stock

NX2520SA-20.000000MHZ NX2520SA-20.000000MHZ

NDK
Manufacturer : NDK America, Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NX2520SA
Part Status : Active
Type : MHz Crystal
Frequency : 20MHz
Frequency Stability : ±10ppm
Frequency Tolerance : ±10ppm
Load Capacitance : 10pF
ESR (Equivalent Series Resistance) : 60 Ohms
Operating Mode : Fundamental
Operating Temperature : -10°C ~ 60°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) : 0.026" (0.65mm)
0
4035 in stock

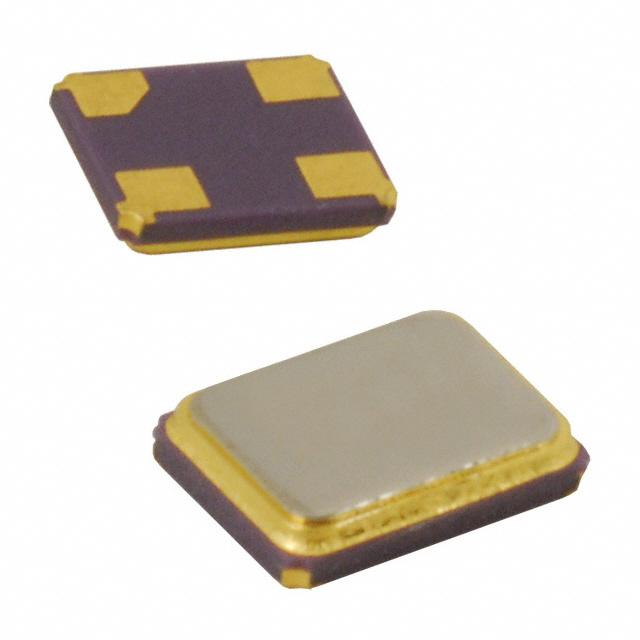

NX2520SA-24.000000MHZ NX2520SA-24.000000MHZ

NDK
Manufacturer : NDK America, Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NX2520SA
Part Status : Active
Type : MHz Crystal
Frequency : 24MHz
Frequency Stability : ±10ppm
Frequency Tolerance : ±10ppm
Load Capacitance : 10pF
ESR (Equivalent Series Resistance) : 60 Ohms
Operating Mode : Fundamental
Operating Temperature : -10°C ~ 70°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) : 0.026" (0.65mm)
0
23447 in stock

NX2520SA-24.000000MHZ-B8 NX2520SA-24.000000MHZ-B8

NDK
Manufacturer : NDK America, Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NX2520SA
Part Status : Active
Type : MHz Crystal
Frequency : 24MHz
Frequency Stability : ±10ppm
Frequency Tolerance : ±10ppm
Load Capacitance : 10pF
ESR (Equivalent Series Resistance) : 100 Ohms
Operating Mode : Fundamental
Operating Temperature : -20°C ~ 70°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) : 0.026" (0.65mm)
0
3629 in stock

NX2520SA-24.576000MHZ NX2520SA-24.576000MHZ

NDK
Manufacturer : NDK America, Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NX2520SA
Part Status : Active
Type : MHz Crystal
Frequency : 24.576MHz
Frequency Stability : ±10ppm
Frequency Tolerance : ±10ppm
Load Capacitance : 10pF
ESR (Equivalent Series Resistance) : 60 Ohms
Operating Mode : Fundamental
Operating Temperature : -10°C ~ 60°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) : 0.026" (0.65mm)
0
4247 in stock

NX2520SA-24MHZ-EXS00A-CS11339 NX2520SA-24MHZ-EXS00A-CS11339

NDK
Manufacturer : NDK America, Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NX2520SA
Part Status : Active
Type : MHz Crystal
Frequency : 24MHz
Frequency Stability : ±10ppm
Frequency Tolerance : ±10ppm
Load Capacitance : 8pF
ESR (Equivalent Series Resistance) : 60 Ohms
Operating Mode : Fundamental
Operating Temperature : -20°C ~ 70°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) : 0.022" (0.55mm)
0
1970 in stock

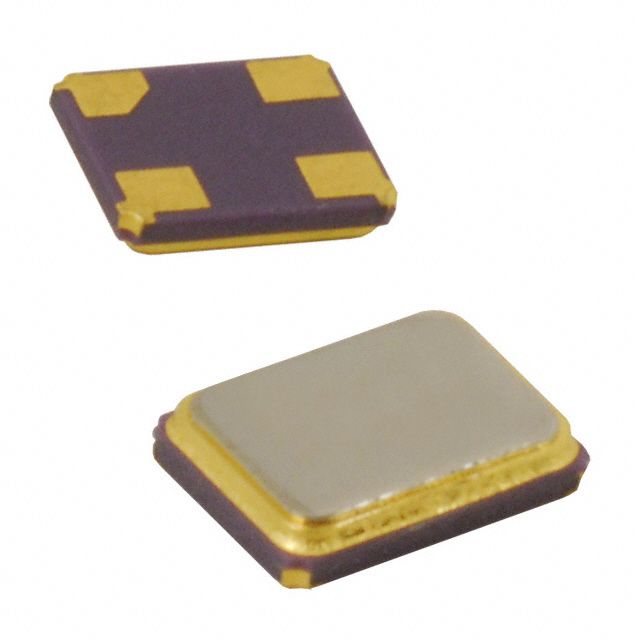

NX2520SA-25.000M-STD-CSW-5 NX2520SA-25.000M-STD-CSW-5

NDK
Manufacturer : NDK America, Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NX2520SA
Part Status : Active
Type : MHz Crystal
Frequency : 25MHz
Frequency Stability : ±25ppm
Frequency Tolerance : ±15ppm
Load Capacitance : 8pF
ESR (Equivalent Series Resistance) : 60 Ohms
Operating Mode : Fundamental
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) : 0.022" (0.55mm)
0
11620 in stock

NX2520SA-26.000000MHZ NX2520SA-26.000000MHZ

NDK
Manufacturer : NDK America, Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NX2520SA
Part Status : Active
Type : MHz Crystal
Frequency : 26MHz
Frequency Stability : ±10ppm
Frequency Tolerance : ±10ppm
Load Capacitance : 10pF
ESR (Equivalent Series Resistance) : 60 Ohms
Operating Mode : Fundamental
Operating Temperature : -10°C ~ 70°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) : 0.026" (0.65mm)
0
7719 in stock

NX2520SA-26.000000MHZ-B9 NX2520SA-26.000000MHZ-B9

NDK
Manufacturer : NDK America, Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NX2520SA
Part Status : Active
Type : MHz Crystal
Frequency : 26MHz
Frequency Stability : ±10ppm
Frequency Tolerance : ±10ppm
Load Capacitance : 10pF
ESR (Equivalent Series Resistance) : 100 Ohms
Operating Mode : Fundamental
Operating Temperature : -20°C ~ 70°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) : 0.026" (0.65mm)
0
5731 in stock

NX2520SA-26MHZ-STD-CSX-1 NX2520SA-26MHZ-STD-CSX-1

NDK
Manufacturer : NDK America, Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NX2520SA
Part Status : Active
Type : MHz Crystal
Frequency : 26MHz
Frequency Stability : ±10ppm
Frequency Tolerance : ±10ppm
Load Capacitance : 8pF
ESR (Equivalent Series Resistance) : 60 Ohms
Operating Mode : Fundamental
Operating Temperature : -20°C ~ 75°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) : 0.022" (0.55mm)
0
12652 in stock
