NDK

- Since our founding in 1948, we at Nihon Dempa Kogyo Co., Ltd. (NDK) have operated under a philosophy of “contributing to social prosperity and world peace through our service to customers.”

NDK’s quartz crystal devices provide an accurate and superior oscillation source that is absolutely essential to crystal components. As the era of the ubiquitous networked society unfolds, the Company’s crystal devices are being utilized in diverse applications, ranging from mobile communications and fixed radio communications to office automation, audiovisual, and automotive electronics equipment.

With its lineup of high-precision, high-reliability, compact crystal devices that anticipate the next generation of customer needs today, NDK has grown to become the leading company among quartz crystal device manufacturers in the world. Under the banner of “quality, cost, and speed,” NDK aims to establish itself as the industry’s technology leader and the most trusted customer brand.

NDK will continue to provide high-value-added products and high-quality service to its customers throughout the world, increase its enterprise value, and live up to the expectations of its stakeholders, including shareholders, customers, and local communities.

Part Number
Manufacturer
Description
Unit Price
In Stock

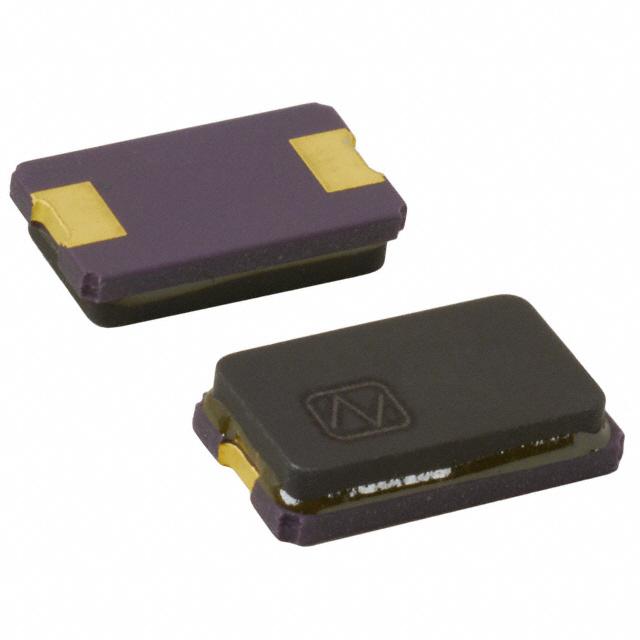

NX8045GB-8.000M-STD-CSJ-1 NX8045GB-8.000M-STD-CSJ-1

NDK
Manufacturer : NDK America, Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NX8045GB
Part Status : Active
Type : MHz Crystal
Frequency : 8MHz
Frequency Stability : ±150ppm
Frequency Tolerance : ±50ppm
Load Capacitance : 8pF
ESR (Equivalent Series Resistance) : 220 Ohms
Operating Mode : Fundamental
Operating Temperature : -40°C ~ 150°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 2-SMD, No Lead
Size / Dimension : 0.315" L x 0.177" W (8.00mm x 4.50mm)
Height - Seated (Max) : 0.079" (2.00mm)
0
23280 in stock

NZ2520SB-125MHZ-RNA3035C NZ2520SB-125MHZ-RNA3035C

NDK
Manufacturer : NDK America, Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NZ2520SB
Part Status : Active
Base Resonator : Crystal
Type : XO (Standard)
Frequency : 125MHz
Function : Standby (Power Down)
Output : CMOS
Voltage - Supply : 3.3V
Frequency Stability : ±5ppm
Absolute Pull Range (APR) : -
Operating Temperature : -40°C ~ 85°C
Current - Supply (Max) : 40mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) : 0.035" (0.90mm)
0
2672 in stock

NZ2520SB-133M-END4825A NZ2520SB-133M-END4825A

NDK
Manufacturer : NDK America, Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NZ2520S
Part Status : Active
Base Resonator : Crystal
Type : XO (Standard)
Frequency : 133MHz
Function : Standby (Power Down)
Output : CMOS
Voltage - Supply : 3.3V
Frequency Stability : -
Absolute Pull Range (APR) : -
Operating Temperature : -40°C ~ 85°C
Current - Supply (Max) : 60mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) : 0.035" (0.90mm)
0
4092 in stock

NZ2520SB-14.7456MHZ-RNA3043A NZ2520SB-14.7456MHZ-RNA3043A

NDK
Manufacturer : NDK America, Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NZ2520SB
Part Status : Active
Base Resonator : Crystal
Type : XO (Standard)
Frequency : 14.7456MHz
Function : Standby (Power Down)
Output : CMOS
Voltage - Supply : 3.3V
Frequency Stability : ±5ppm
Absolute Pull Range (APR) : -
Operating Temperature : -40°C ~ 85°C
Current - Supply (Max) : 4.5mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) : 0.035" (0.90mm)
0
3000 in stock

NZ2520SB-22.5792MHZ-RNA3046A NZ2520SB-22.5792MHZ-RNA3046A

NDK
Manufacturer : NDK America, Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NZ2520SB
Part Status : Active
Base Resonator : Crystal
Type : XO (Standard)
Frequency : 22.5792MHz
Function : Standby (Power Down)
Output : CMOS
Voltage - Supply : 3.3V
Frequency Stability : -
Absolute Pull Range (APR) : -
Operating Temperature : -40°C ~ 85°C
Current - Supply (Max) : 5mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) : 0.035" (0.90mm)
0
3000 in stock

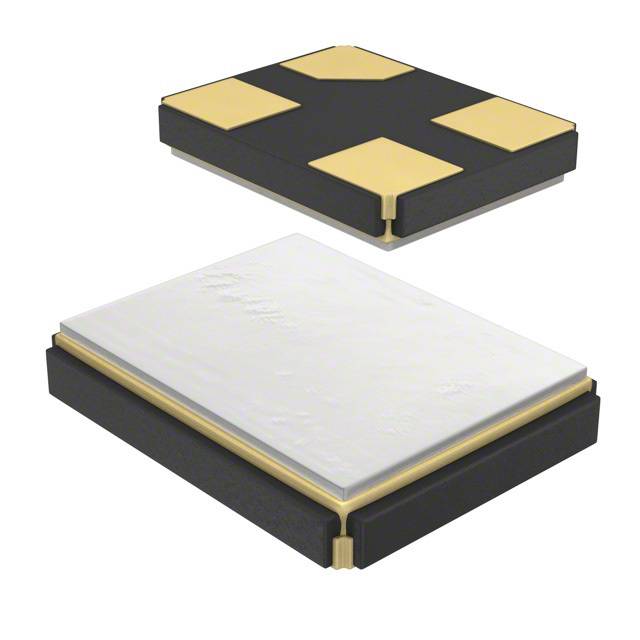

NZ2520SB-32.768KHZ-NSA3534C NZ2520SB-32.768KHZ-NSA3534C

NDK
Manufacturer : NDK America, Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NZ2520S
Part Status : Active
Base Resonator : Crystal
Type : XO (Standard)
Frequency : 32.768kHz
Function : Standby (Power Down)
Output : CMOS
Voltage - Supply : 1.8V
Frequency Stability : ±30ppm
Absolute Pull Range (APR) : -
Operating Temperature : -40°C ~ 85°C
Current - Supply (Max) : 260µA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) : 0.035" (0.90mm)
0
33673 in stock

NZ2520SB-32.768KHZ-NSA3536C NZ2520SB-32.768KHZ-NSA3536C

NDK
Manufacturer : NDK America, Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NZ2520S
Part Status : Active
Base Resonator : Crystal
Type : XO (Standard)
Frequency : 32.768kHz
Function : Standby (Power Down)
Output : CMOS
Voltage - Supply : 3.3V
Frequency Stability : ±30ppm
Absolute Pull Range (APR) : -
Operating Temperature : -40°C ~ 85°C
Current - Supply (Max) : 260µA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) : 0.035" (0.90mm)
0
6819 in stock

NZ2520SB-32.768KHZ-RNA3045A NZ2520SB-32.768KHZ-RNA3045A

NDK
Manufacturer : NDK America, Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NZ2520SB
Part Status : Active
Base Resonator : Crystal
Type : XO (Standard)
Frequency : 32.768kHz
Function : Standby (Power Down)
Output : CMOS
Voltage - Supply : 1.8V
Frequency Stability : ±5ppm
Absolute Pull Range (APR) : -
Operating Temperature : -40°C ~ 85°C
Current - Supply (Max) : 220µA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) : 0.035" (0.90mm)
0
2994 in stock

NZ2520SB-33MHZ-RNA3047A NZ2520SB-33MHZ-RNA3047A

NDK
Manufacturer : NDK America, Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NZ2520SB
Part Status : Active
Base Resonator : Crystal
Type : XO (Standard)
Frequency : 33MHz
Function : Standby (Power Down)
Output : CMOS
Voltage - Supply : 1.8V
Frequency Stability : ±5ppm
Absolute Pull Range (APR) : -
Operating Temperature : -40°C ~ 85°C
Current - Supply (Max) : 4.5mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) : 0.035" (0.90mm)
0
3000 in stock

NZ2520SH-16.64MHZ-RNA5013A NZ2520SH-16.64MHZ-RNA5013A

NDK
Manufacturer : NDK America, Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NZ2520SH
Part Status : Active
Base Resonator : Crystal
Type : XO (Standard)
Frequency : 16.64MHz
Function : Standby (Power Down)
Output : CMOS
Voltage - Supply : 1.8V
Frequency Stability : -
Absolute Pull Range (APR) : -
Operating Temperature : -40°C ~ 105°C
Current - Supply (Max) : 3.5mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) : 0.035" (0.90mm)
0
3000 in stock

NZ2520SH-16.6666MHZ-RNA3048B NZ2520SH-16.6666MHZ-RNA3048B

NDK
Manufacturer : NDK America, Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NZ2520SH
Part Status : Active
Base Resonator : Crystal
Type : XO (Standard)
Frequency : 16.6666MHz
Function : Standby (Power Down)
Output : CMOS
Voltage - Supply : 1.8V
Frequency Stability : -
Absolute Pull Range (APR) : -
Operating Temperature : -40°C ~ 105°C
Current - Supply (Max) : 3.5mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) : 0.035" (0.90mm)
0
2675 in stock

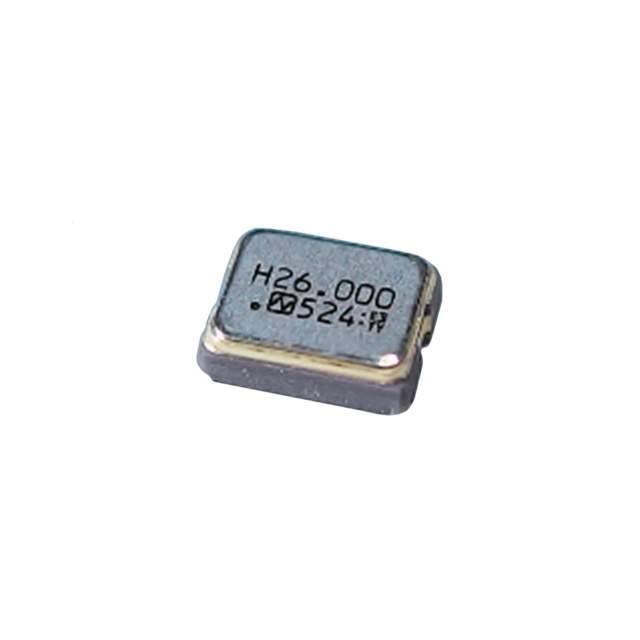

NZ2520SHA-50M-END5301A NZ2520SHA-50M-END5301A

NDK
Manufacturer : NDK America, Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NZ2520SHA
Part Status : Active
Base Resonator : Crystal
Type : XO (Standard)
Frequency : 50MHz
Function : Standby (Power Down)
Output : CMOS
Voltage - Supply : 1.8 ~ 3.3V
Frequency Stability : ±100ppm
Absolute Pull Range (APR) : -
Operating Temperature : -40°C ~ 125°C
Current - Supply (Max) : 9mA
Ratings : AEC-Q100, AEC-Q200
Mounting Type : Surface Mount
Package / Case : 1008 (2520 Metric), 4 PC Pad
Size / Dimension : 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) : 0.035" (0.90mm)
0
2625 in stock
