- Murata Power Solutions designs and manufactures DC/DC Converters, AC/DC Power Supplies, Magnetics, Data Acquisition devices and Digital Panel Meters, and offers these products in custom, standard and modified-standard variations. Currently the world's number 1 supplier of DC/DC converters and one of the top 5 largest suppliers of power electronics overall, our products are used within numerous applications including telecommunications, computing, industrial, medical, office-equipment and more.
Murata Power Solutions was formed in 2007 when Murata Manufacturing Corporation acquired the power electronics division of C&D Technologies. We are headquartered in Mansfield, Massachusetts (USA) with over 1,300 employees in locations in the USA, Canada, Mexico, England, France, Germany, Japan, China and Singapore.
Part Number
Manufacturer
Description
Unit Price
In Stock

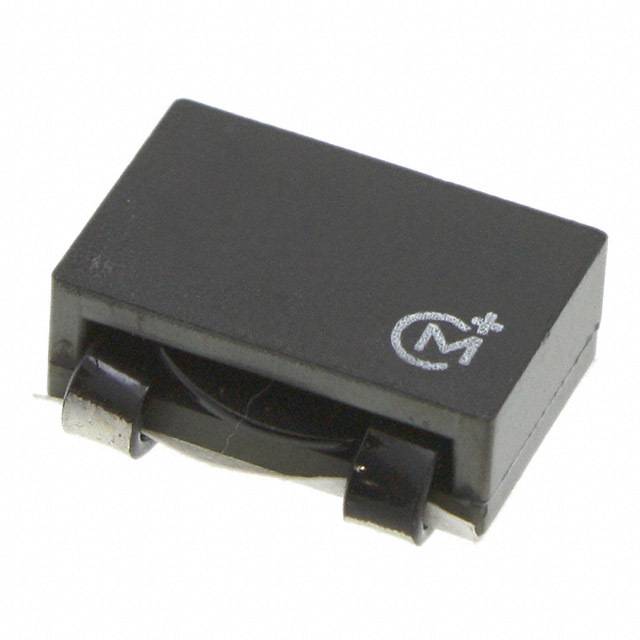

Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 3700
Part Status : Discontinued at
Type : Wirewound
Material - Core : -
Inductance : 950nH
Tolerance : ±20%
Current Rating : 18A
Current - Saturation : 25A
Shielding : Unshielded
DC Resistance (DCR) : 1.3 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 130°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.571" L x 0.453" W (14.50mm x 11.50mm)
Height - Seated (Max) : 0.268" (6.80mm)
0
76 in stock

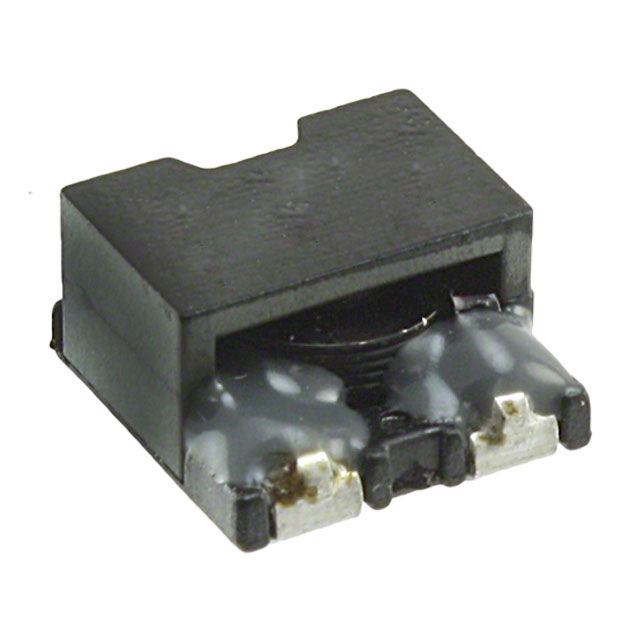

Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 3800
Part Status : Discontinued at
Type : Wirewound
Material - Core : -
Inductance : 1.4µH
Tolerance : ±20%
Current Rating : 12A
Current - Saturation : 15A
Shielding : Unshielded
DC Resistance (DCR) : 3.7 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 130°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.409" L x 0.409" W (10.40mm x 10.40mm)
Height - Seated (Max) : 0.220" (5.60mm)
0
57 in stock
Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 3800
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 4.3µH
Tolerance : ±20%
Current Rating : 6.8A
Current - Saturation : 8.8A
Shielding : Unshielded
DC Resistance (DCR) : 9.7 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 130°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.409" L x 0.409" W (10.40mm x 10.40mm)
Height - Seated (Max) : 0.220" (5.60mm)
0
1050 in stock
Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 3800
Part Status : Discontinued at
Type : Wirewound
Material - Core : -
Inductance : 8.8µH
Tolerance : ±20%
Current Rating : 4.8A
Current - Saturation : 5.9A
Shielding : Unshielded
DC Resistance (DCR) : 19.6 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 130°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.409" L x 0.409" W (10.40mm x 10.40mm)
Height - Seated (Max) : 0.220" (5.60mm)
0
150 in stock
Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Bulk
Series : DMS
Part Status : Active
Frequency Range : 50Hz ~ 400Hz
Type : Non-Invasive (Solid Core)
Current Rating : -
Inductance : -
Energy Time (E.T.) : -
Turns Ratio - Primary:Secondary : -
Current Ratio : -
DC Resistance (DCR) : -
Ratings : -
Mounting Type : Free Hanging (In-Line)
Size / Dimension : 1.560" Dia (39.60mm)
Height - Seated (Max) : 1.098" (27.90mm)
Termination Style : Wire Leads
0
5 in stock
Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 3900
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 4µH
Tolerance : ±20%
Current Rating : 9.7A
Current - Saturation : 10.3A
Shielding : Unshielded
DC Resistance (DCR) : 8 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.508" L x 0.508" W (12.90mm x 12.90mm)
Height - Seated (Max) : 0.228" (5.80mm)
0
1505 in stock
Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Tray
Series : 4000
Part Status : Not For New Designs
Type : Toroidal
Material - Core : -
Inductance : 10µH
Tolerance : -
Current Rating : 3A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 23 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 85°C
Inductance Frequency - Test : 10kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.560" L x 0.555" W (14.22mm x 14.10mm)
Height - Seated (Max) : 0.345" (8.76mm)
0
30 in stock
Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Tray
Series : 4000
Part Status : Not For New Designs
Type : Toroidal
Material - Core : -
Inductance : 100µH
Tolerance : -
Current Rating : 940mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 177 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 85°C
Inductance Frequency - Test : 10kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.560" L x 0.555" W (14.22mm x 14.10mm)
Height - Seated (Max) : 0.345" (8.76mm)
0
29 in stock
Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Tray
Series : 4000
Part Status : Not For New Designs
Type : Toroidal
Material - Core : -
Inductance : 150µH
Tolerance : -
Current Rating : 760mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 273 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 85°C
Inductance Frequency - Test : 10kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.560" L x 0.555" W (14.22mm x 14.10mm)
Height - Seated (Max) : 0.345" (8.76mm)
0
25 in stock

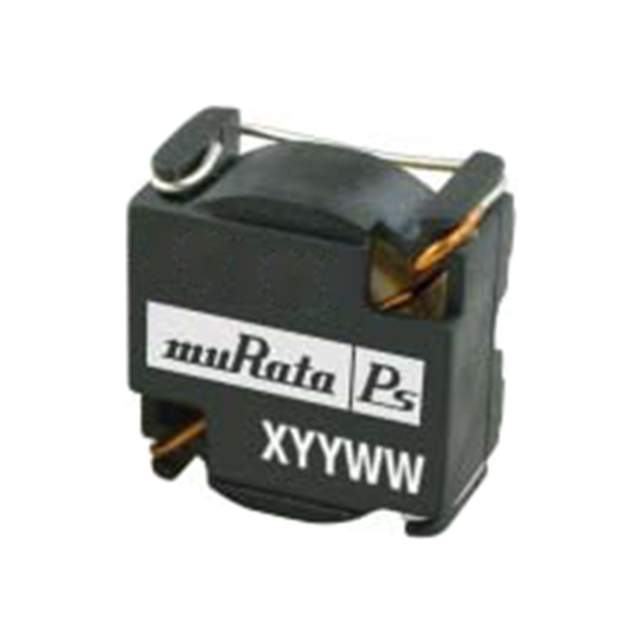

Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Tube
Series : 4000
Part Status : Not For New Designs
Type : Toroidal
Material - Core : -
Inductance : 22µH
Tolerance : -
Current Rating : 2.1A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 35 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 85°C
Inductance Frequency - Test : 10kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.560" L x 0.555" W (14.22mm x 14.10mm)
Height - Seated (Max) : 0.345" (8.76mm)
0
29 in stock
Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Tray
Series : 4000
Part Status : Not For New Designs
Type : Toroidal
Material - Core : -
Inductance : 33µH
Tolerance : -
Current Rating : 1.66A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 54 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 85°C
Inductance Frequency - Test : 10kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.560" L x 0.555" W (14.22mm x 14.10mm)
Height - Seated (Max) : 0.345" (8.76mm)
0
30 in stock
Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Tube
Series : 4000
Part Status : Not For New Designs
Type : Toroidal
Material - Core : -
Inductance : 47µH
Tolerance : -
Current Rating : 1.42A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 79 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 85°C
Inductance Frequency - Test : 10kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.560" L x 0.555" W (14.22mm x 14.10mm)
Height - Seated (Max) : 0.345" (8.76mm)
0
30 in stock
