Mill-Max Mfg. Corp.
- Mill-Max Mfg. Corp., located at 190 Pine Hollow Road, Oyster Bay, NY 11771, is a vertically integrated engineering and manufacturing company capable of producing over 100 million interconnect components a week, making us the largest manufacturer of precision machined interconnect components in North America.
Established in 1971 by Roger Bahnik, Chairman and CEO, Mill-Max has a tradition of exercising total control from raw materials to finished product. Our 150,000 square foot plant houses all facilities including: engineering, tooling, primary and secondary machining, stamping, gold and tin plating, injection molding, automatic assembly operations and strict process control, monitored by our experienced Quality Control Inspectors.
Part Number
Manufacturer
Description
Unit Price
In Stock

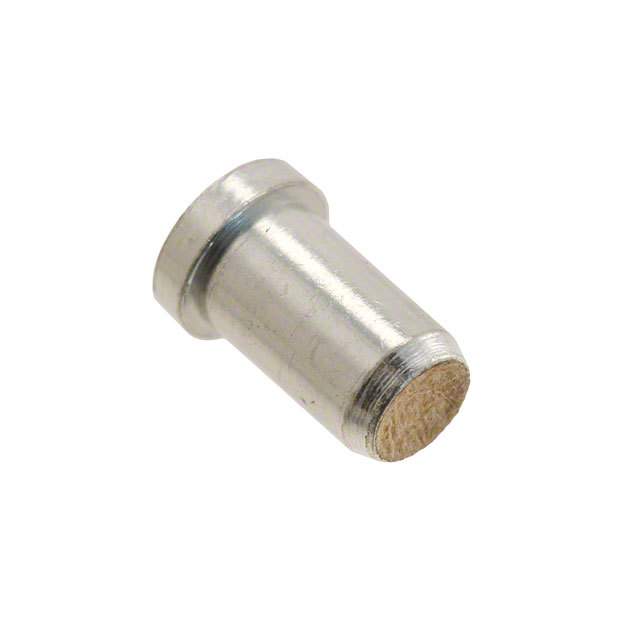

Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 353
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.192" (4.88mm)
Accepts Pin Diameter : 0.040" ~ 0.060" (1.02mm ~ 1.52mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.078" (1.98mm)
Mounting Hole Diameter : 0.106" (2.69mm)
Flange Diameter : 0.125" (3.18mm)
Tail Diameter : -
Socket Depth : 0.192" (4.88mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
1324 in stock

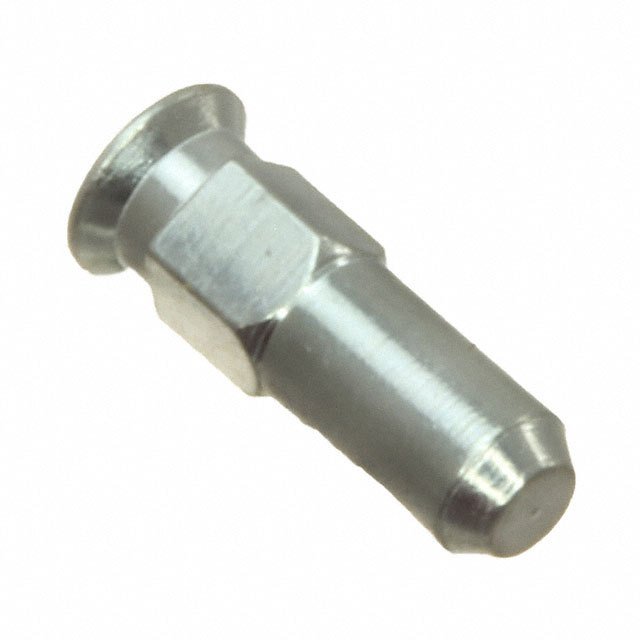

Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 0354
Part Status : Active
Tail Type : No Tail
Termination : Press-Fit, Hex
Length - Overall : 0.290" (7.37mm)
Accepts Pin Diameter : 0.040" ~ 0.050" (1.02mm ~ 1.27mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.068" (1.73mm)
Mounting Hole Diameter : 0.104" (2.64mm)
Flange Diameter : 0.119" (3.02mm)
Tail Diameter : -
Socket Depth : 0.260" (6.60mm)
Contact Material : Beryllium Copper
Contact Finish : Tin
Contact Finish Thickness : 200.0µin (5.08µm)
0
875 in stock

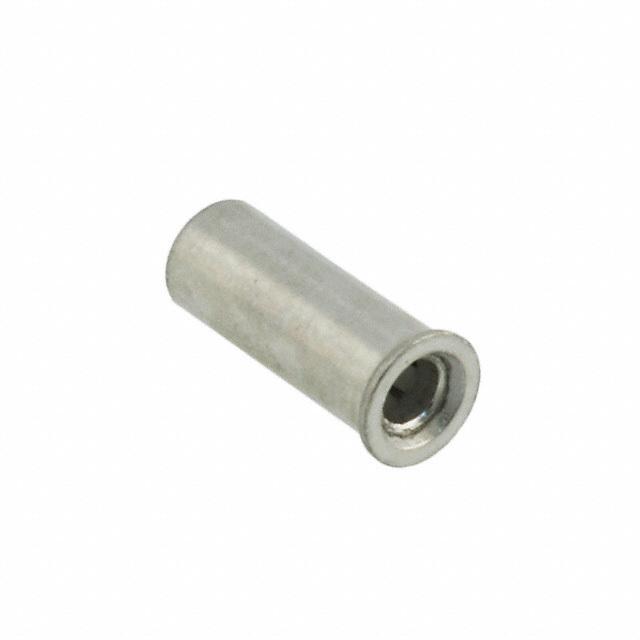

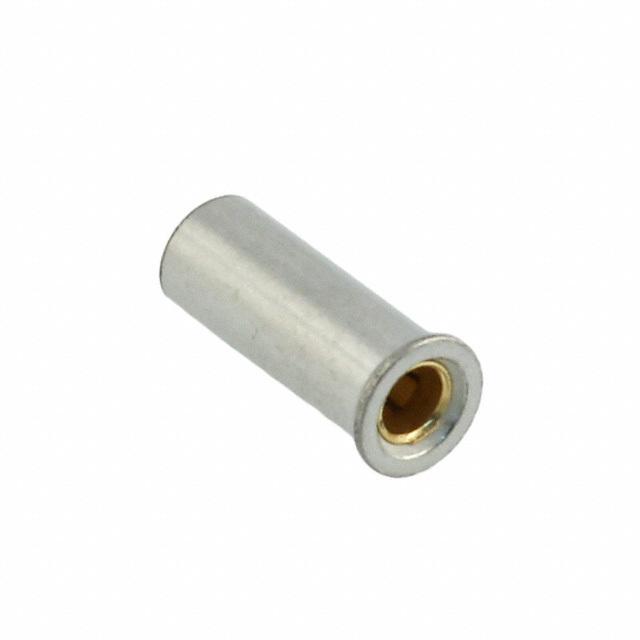

Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 355
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.290" (7.37mm)
Accepts Pin Diameter : 0.040" ~ 0.050" (1.02mm ~ 1.27mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.068" (1.73mm)
Mounting Hole Diameter : 0.102" (2.59mm)
Flange Diameter : 0.118" (3.00mm)
Tail Diameter : -
Socket Depth : 0.260" (6.60mm)
Contact Material : Beryllium Copper
Contact Finish : Tin-Lead
Contact Finish Thickness : 200.0µin (5.08µm)
0
23129 in stock

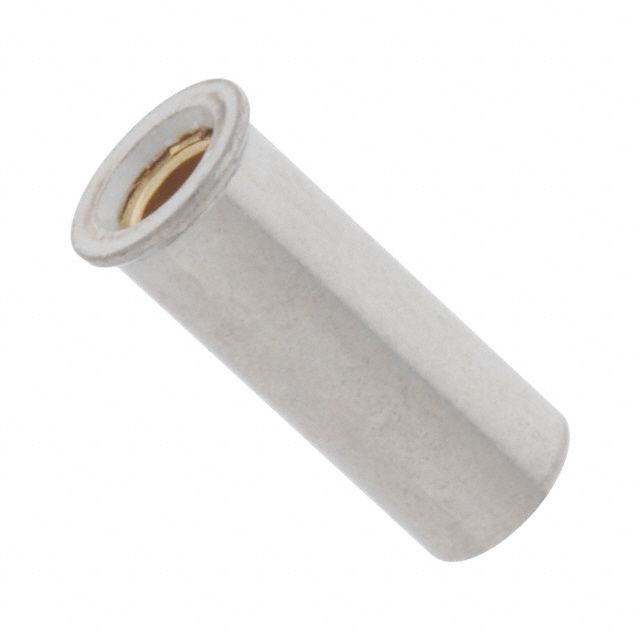

Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 355
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.290" (7.37mm)
Accepts Pin Diameter : 0.040" ~ 0.050" (1.02mm ~ 1.27mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.068" (1.73mm)
Mounting Hole Diameter : 0.102" (2.59mm)
Flange Diameter : 0.118" (3.00mm)
Tail Diameter : -
Socket Depth : 0.260" (6.60mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
38950 in stock
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 355
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.290" (7.37mm)
Accepts Pin Diameter : 0.040" ~ 0.050" (1.02mm ~ 1.27mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.068" (1.73mm)
Mounting Hole Diameter : 0.102" (2.59mm)
Flange Diameter : 0.118" (3.00mm)
Tail Diameter : -
Socket Depth : 0.260" (6.60mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
19510 in stock
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 355
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.290" (7.37mm)
Accepts Pin Diameter : 0.040" ~ 0.050" (1.02mm ~ 1.27mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.068" (1.73mm)
Mounting Hole Diameter : 0.102" (2.59mm)
Flange Diameter : 0.118" (3.00mm)
Tail Diameter : -
Socket Depth : 0.260" (6.60mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
7965 in stock

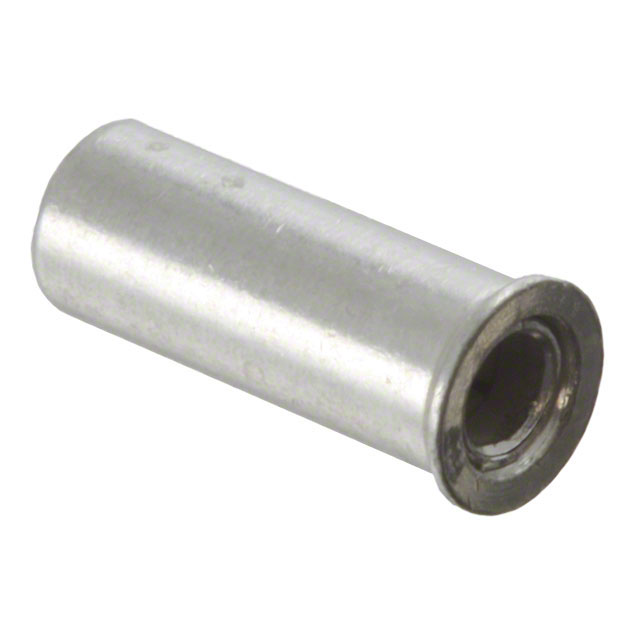

Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 355
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.290" (7.37mm)
Accepts Pin Diameter : 0.040" ~ 0.050" (1.02mm ~ 1.27mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.068" (1.73mm)
Mounting Hole Diameter : 0.102" (2.59mm)
Flange Diameter : 0.118" (3.00mm)
Tail Diameter : -
Socket Depth : 0.260" (6.60mm)
Contact Material : Beryllium Copper
Contact Finish : Tin
Contact Finish Thickness : 200.0µin (5.08µm)
0
7987 in stock

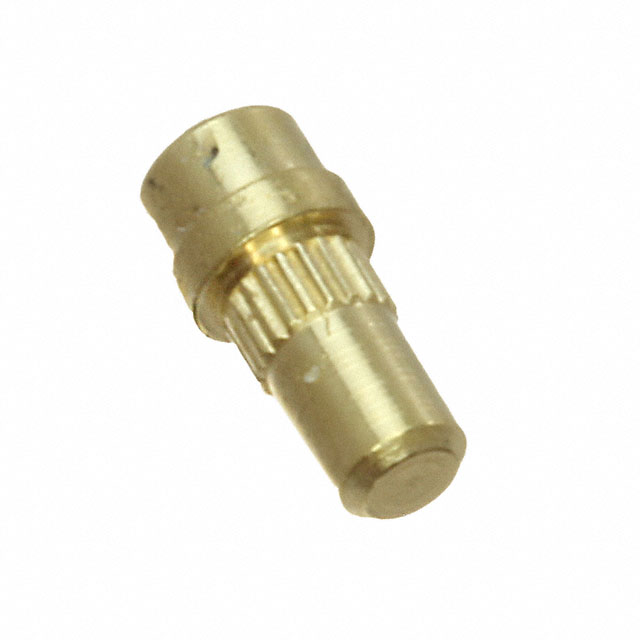

Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 357
Part Status : Active
Tail Type : No Tail
Termination : Press-Fit, Knurled
Length - Overall : 0.220" (5.59mm)
Accepts Pin Diameter : 0.032" ~ 0.046" (0.81mm ~ 1.17mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.064" (1.63mm)
Mounting Hole Diameter : 0.078" (1.98mm)
Flange Diameter : 0.103" (2.62mm)
Tail Diameter : -
Socket Depth : 0.195" (4.95mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
875 in stock

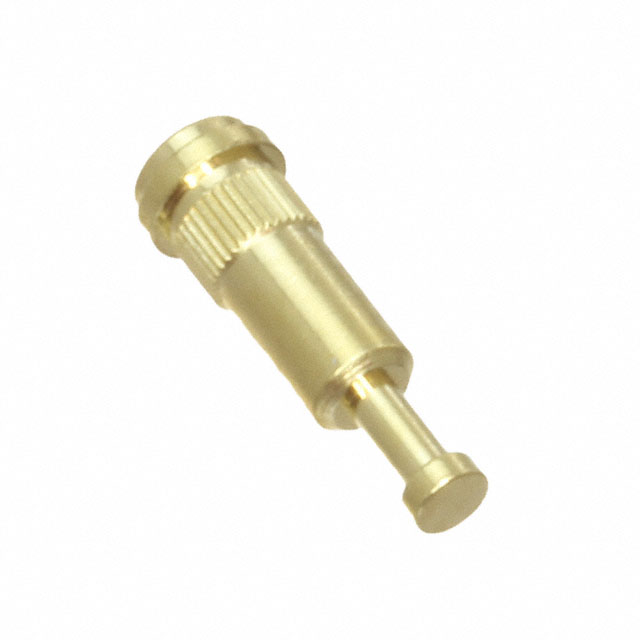

Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 358
Part Status : Active
Tail Type : Turret
Termination : Press-Fit, Knurled
Length - Overall : 0.343" (8.71mm)
Accepts Pin Diameter : 0.032" ~ 0.046" (0.81mm ~ 1.17mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.064" (1.63mm)
Mounting Hole Diameter : 0.090" (2.29mm)
Flange Diameter : 0.110" (2.79mm)
Tail Diameter : -
Socket Depth : 0.190" (4.83mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
897 in stock

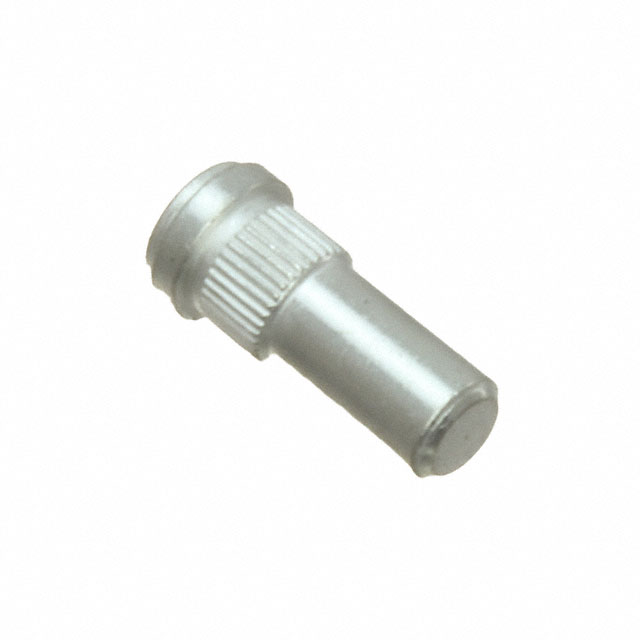

Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 0359
Part Status : Active
Tail Type : No Tail
Termination : Press-Fit, Knurled
Length - Overall : 0.250" (6.35mm)
Accepts Pin Diameter : 0.032" ~ 0.046" (0.81mm ~ 1.17mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.064" (1.63mm)
Mounting Hole Diameter : 0.090" (2.29mm)
Flange Diameter : 0.110" (2.79mm)
Tail Diameter : -
Socket Depth : 0.190" (4.83mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
996 in stock

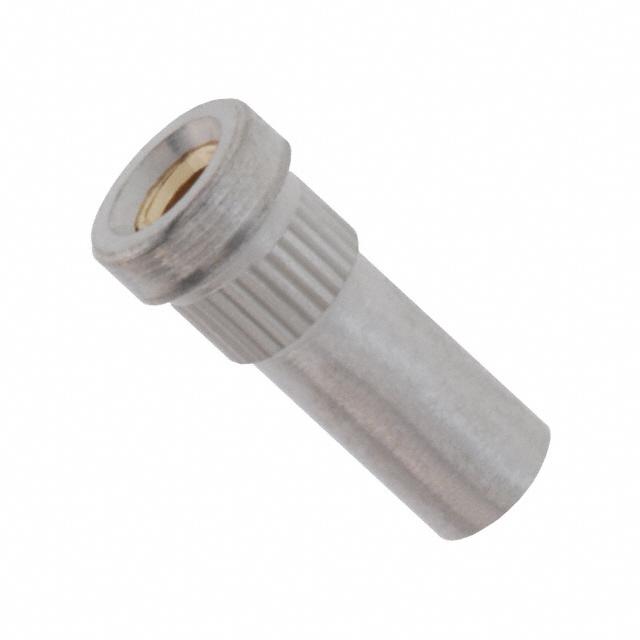

Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 360
Part Status : Active
Tail Type : No Tail
Termination : Press-Fit, Knurled
Length - Overall : 0.250" (6.35mm)
Accepts Pin Diameter : 0.032" ~ 0.046" (0.81mm ~ 1.17mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.064" (1.63mm)
Mounting Hole Diameter : 0.090" (2.29mm)
Flange Diameter : 0.110" (2.79mm)
Tail Diameter : -
Socket Depth : 0.250" (6.35mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
16285 in stock
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 360
Part Status : Active
Tail Type : No Tail
Termination : Press-Fit, Knurled
Length - Overall : 0.250" (6.35mm)
Accepts Pin Diameter : 0.032" ~ 0.046" (0.81mm ~ 1.17mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.064" (1.63mm)
Mounting Hole Diameter : 0.090" (2.29mm)
Flange Diameter : 0.110" (2.79mm)
Tail Diameter : -
Socket Depth : 0.250" (6.35mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
4146 in stock
