Microsemi
- Microsemi Corporation (Nasdaq: MSCC) offers a comprehensive portfolio of semiconductor and system solutions for aerospace & defense, communications, data center and industrial markets. products include high-performance and radiation-hardened analog mixed-signal integrated circuits, fpgas, socs and asics; power management products; timing and synchronization devices and precise time solutions, setting the world’s standard for time; voice processing devices; RF solutions; discrete components; enterprise storage and communication solutions, security technologies and scalable anti-tamper products; Ethernet solutions; Power-over-Ethernet ICs and midspans; as well as custom design capabilities and services. Microsemi is headquartered in Aliso Viejo, Calif., and has approximately 4,800 employees globally.
Part Number
Manufacturer
Description
Unit Price
In Stock

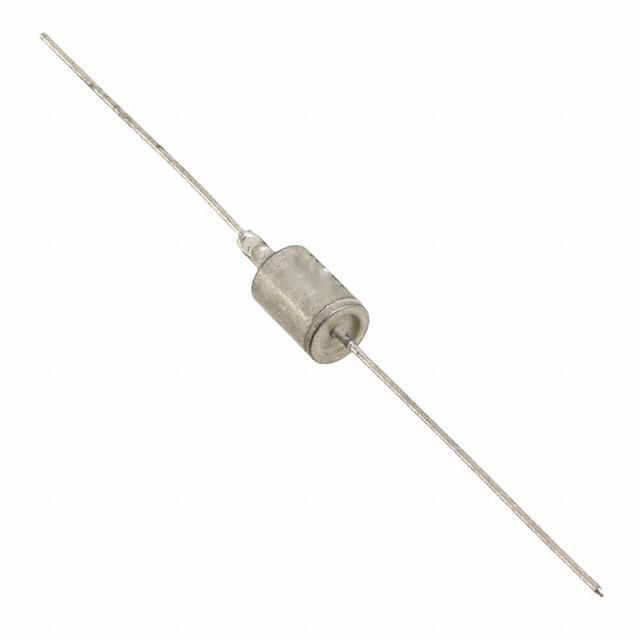

Microsemi
Manufacturer : Microsemi Corporation
Packaging : Bulk
Series : -
Part Status : Active
Type : Zener
Unidirectional Channels : 1
Bidirectional Channels : -
Voltage - Reverse Standoff (Typ) : 30.8V
Voltage - Breakdown (Min) : 34.2V
Voltage - Clamping (Max) @ Ipp : 49.9V
Current - Peak Pulse (10/1000µs) : 30A
Power - Peak Pulse : 1500W (1.5kW)
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : -
Operating Temperature : -65°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : DO-13
Supplier Device Package : DO-13
0
100 in stock
Microsemi
Manufacturer : Microsemi Corporation
Packaging : Bulk
Series : -
Part Status : Active
Type : Zener
Unidirectional Channels : 1
Bidirectional Channels : -
Voltage - Reverse Standoff (Typ) : 33.3V
Voltage - Breakdown (Min) : 37.1V
Voltage - Clamping (Max) @ Ipp : 53.9V
Current - Peak Pulse (10/1000µs) : 28A
Power - Peak Pulse : 1500W (1.5kW)
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : -
Operating Temperature : -65°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : DO-13
Supplier Device Package : DO-13
0
450 in stock
Microsemi
Manufacturer : Microsemi Corporation
Packaging : Bulk
Series : -
Part Status : Active
Type : Zener
Unidirectional Channels : 1
Bidirectional Channels : -
Voltage - Reverse Standoff (Typ) : 77.8V
Voltage - Breakdown (Min) : 86.5V
Voltage - Clamping (Max) @ Ipp : 125V
Current - Peak Pulse (10/1000µs) : 12A
Power - Peak Pulse : 1500W (1.5kW)
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : -
Operating Temperature : -65°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : DO-13
Supplier Device Package : DO-13
0
473 in stock
Microsemi
Manufacturer : Microsemi Corporation
Packaging : Bulk
Series : -
Part Status : Active
Type : Zener
Unidirectional Channels : 1
Bidirectional Channels : -
Voltage - Reverse Standoff (Typ) : 136V
Voltage - Breakdown (Min) : 152V
Voltage - Clamping (Max) @ Ipp : 219V
Current - Peak Pulse (10/1000µs) : 6.8A
Power - Peak Pulse : 1500W (1.5kW)
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : -
Operating Temperature : -65°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : DO-13
Supplier Device Package : DO-13
0
72 in stock
Microsemi
Manufacturer : Microsemi Corporation
Packaging : Bulk
Series : -
Part Status : Active
Type : Zener
Unidirectional Channels : 1
Bidirectional Channels : -
Voltage - Reverse Standoff (Typ) : 171V
Voltage - Breakdown (Min) : 190V
Voltage - Clamping (Max) @ Ipp : 274V
Current - Peak Pulse (10/1000µs) : 5.5A
Power - Peak Pulse : 1500W (1.5kW)
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : -
Operating Temperature : -65°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : DO-13
Supplier Device Package : DO-13
0
73 in stock
Microsemi
Manufacturer : Microsemi Corporation
Packaging : Bulk
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 70V
Current - Average Rectified (Io) : 33mA
Voltage - Forward (Vf) (Max) @ If : 1V @ 15mA
Speed : Small Signal =
-
200nA @ 50V
2pF @ 0V, 1MHz
Through Hole
DO-204AH, DO-35, Axial
DO-35 (DO-204AH)
-65°C ~ 150°C
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 200nA @ 50V
Capacitance @ Vr, F : 2pF @ 0V, 1MHz
Mounting Type : Through Hole
Package / Case : DO-204AH, DO-35, Axial
Supplier Device Package : DO-35 (DO-204AH)
Operating Temperature - Junction : -65°C ~ 150°C
0
230 in stock
Microsemi
Manufacturer : Microsemi Corporation
Packaging : Bulk
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 20V
Current - Average Rectified (Io) : 75mA
Voltage - Forward (Vf) (Max) @ If : 1V @ 35mA
Speed : Small Signal =
-
150nA @ 16V
2pF @ 0V, 1MHz
Through Hole
DO-204AH, DO-35, Axial
DO-35 (DO-204AH)
-65°C ~ 150°C
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 150nA @ 16V
Capacitance @ Vr, F : 2pF @ 0V, 1MHz
Mounting Type : Through Hole
Package / Case : DO-204AH, DO-35, Axial
Supplier Device Package : DO-35 (DO-204AH)
Operating Temperature - Junction : -65°C ~ 150°C
0
51 in stock
Microsemi
Manufacturer : Microsemi Corporation
Packaging : Bulk
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 50V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 875mV @ 1A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 25ns
Current - Reverse Leakage @ Vr : 1µA @ 50V
Capacitance @ Vr, F : 25pF @ 10V, 1MHz
Mounting Type : Through Hole
Package / Case : A, Axial
Supplier Device Package : -
Operating Temperature - Junction : -65°C ~ 175°C
0
156 in stock
Microsemi
Manufacturer : Microsemi Corporation
Packaging : Bulk
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 50V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 875mV @ 1A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 25ns
Current - Reverse Leakage @ Vr : 1µA @ 50V
Capacitance @ Vr, F : 25pF @ 10V, 1MHz
Mounting Type : Surface Mount
Package / Case : SQ-MELF, A
Supplier Device Package : D-5A
Operating Temperature - Junction : -65°C ~ 175°C
0
17 in stock
Microsemi
Manufacturer : Microsemi Corporation
Packaging : Bulk
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 100V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 875mV @ 1A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 25ns
Current - Reverse Leakage @ Vr : 1µA @ 100V
Capacitance @ Vr, F : 25pF @ 10V, 1MHz
Mounting Type : Through Hole
Package / Case : A, Axial
Supplier Device Package : -
Operating Temperature - Junction : -65°C ~ 175°C
0
171 in stock
Microsemi
Manufacturer : Microsemi Corporation
Packaging : Bulk
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 100V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 875mV @ 1A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 25ns
Current - Reverse Leakage @ Vr : 1µA @ 100V
Capacitance @ Vr, F : 25pF @ 10V, 1MHz
Mounting Type : Surface Mount
Package / Case : SQ-MELF, A
Supplier Device Package : D-5A
Operating Temperature - Junction : -65°C ~ 175°C
0
128 in stock
Microsemi
Manufacturer : Microsemi Corporation
Packaging : Bulk
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 150V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 875mV @ 1A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 25ns
Current - Reverse Leakage @ Vr : 1µA @ 150V
Capacitance @ Vr, F : 25pF @ 10V, 1MHz
Mounting Type : Surface Mount
Package / Case : SQ-MELF, A
Supplier Device Package : D-5A
Operating Temperature - Junction : -65°C ~ 175°C
0
362 in stock
