MEAN WELL

- MEAN WELL is one of the leading standard switching power supply manufacturers in the world having more than 8,000 standard off-the-shelf models for a complete range of power supply solutions. Specializing in design, manufacturing and marketing of AC-DC switching power supplies, DC-DC converters, DC-AC inverters, and adapters/battery chargers for global markets. MEAN WELL upholds the idea of “your reliable power partner” and is devoted to offering the best power supply product and service. MEAN WELL is now able to provide fast, localized services around the world with its global distribution network fostered by continuous effort and hard work.


Part Number

Manufacturer

Description

Unit Price

In Stock

USP-350-3.3

MEAN WELL

Manufacturer : MEAN WELL USA Inc.
Series : USP-350 (350W)
Part Status : Not For New Designs
Type : Open Frame
Number of Outputs : 1
Voltage - Input : 90 ~ 264 VAC, 127 ~ 370 VDC
Voltage - Output 1 : 3.3V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 50A
Power (Watts) : 165W (231W Forced Air)
Applications : ITE (Commercial)
Voltage - Isolation : 3kV
Efficiency : 78%
Operating Temperature : -10°C ~ 65°C (With Derating)
Features : Adjustable Output, PFC, Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 9.26" L x 4.00" W x 1.50" H (235.2mm x 101.5mm x 38.0mm)

4 in stock

USP-350-48

MEAN WELL

Manufacturer : MEAN WELL USA Inc.
Series : USP-350 (350W)
Part Status : Not For New Designs
Type : Open Frame
Number of Outputs : 1
Voltage - Input : 90 ~ 264 VAC, 127 ~ 370 VDC
Voltage - Output 1 : 48V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 6.25A
Power (Watts) : 300W (350W Forced Air)
Applications : ITE (Commercial)
Voltage - Isolation : 3kV
Efficiency : 89%
Operating Temperature : -10°C ~ 65°C (With Derating)
Features : Adjustable Output, PFC, Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 9.26" L x 4.00" W x 1.50" H (235.2mm x 101.5mm x 38.0mm)

14 in stock

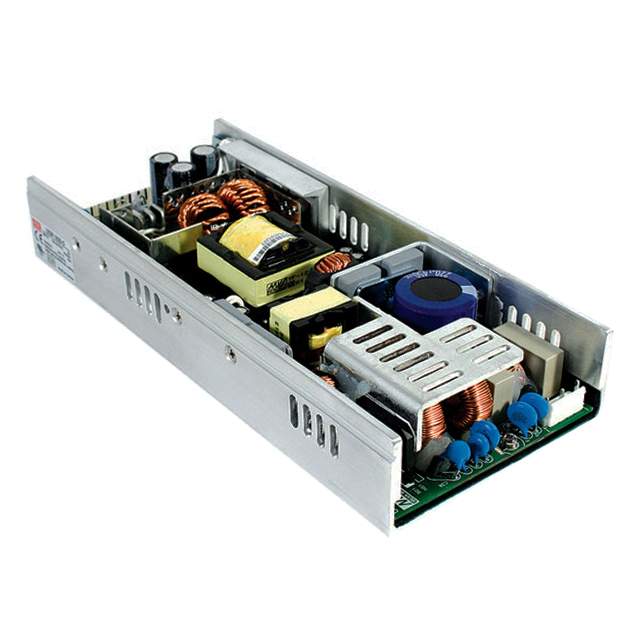

USP-350-5

MEAN WELL

Manufacturer : MEAN WELL USA Inc.
Series : USP-350 (350W)
Part Status : Not For New Designs
Type : Open Frame
Number of Outputs : 1
Voltage - Input : 90 ~ 264 VAC, 127 ~ 370 VDC
Voltage - Output 1 : 5V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 50A
Power (Watts) : 250W (350W Forced Air)
Applications : ITE (Commercial)
Voltage - Isolation : 3kV
Efficiency : 84%
Operating Temperature : -10°C ~ 65°C (With Derating)
Features : Adjustable Output, PFC, Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 9.26" L x 4.00" W x 1.50" H (235.2mm x 101.5mm x 38.0mm)

4 in stock

USP-500-12

MEAN WELL

Manufacturer : MEAN WELL USA Inc.
Series : USP-500 (500W)
Part Status : Not For New Designs
Type : Open Frame
Number of Outputs : 1
Voltage - Input : 90 ~ 264 VAC, 127 ~ 370 VDC
Voltage - Output 1 : 12V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 33A
Power (Watts) : 396W (504W Forced Air)
Applications : ITE (Commercial)
Voltage - Isolation : 3kV
Efficiency : 90%
Operating Temperature : -20°C ~ 70°C (With Derating)
Features : Adjustable Output, PFC, Remote On/Off, Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 10.00" L x 5.00" W x 1.61" H (254.0mm x 127.0mm x 41.0mm)

16 in stock

USP-500-15

MEAN WELL

Manufacturer : MEAN WELL USA Inc.
Series : USP-500 (500W)
Part Status : Not For New Designs
Type : Open Frame
Number of Outputs : 1
Voltage - Input : 90 ~ 264 VAC, 127 ~ 370 VDC
Voltage - Output 1 : 15V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 27A
Power (Watts) : 405W (503W Forced Air)
Applications : ITE (Commercial)
Voltage - Isolation : 3kV
Efficiency : 90%
Operating Temperature : -20°C ~ 70°C (With Derating)
Features : Adjustable Output, PFC, Remote On/Off, Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 10.00" L x 5.00" W x 1.61" H (254.0mm x 127.0mm x 41.0mm)

3 in stock

USP-500-24

MEAN WELL

Manufacturer : MEAN WELL USA Inc.
Series : USP-500 (500W)
Part Status : Not For New Designs
Type : Open Frame
Number of Outputs : 1
Voltage - Input : 90 ~ 264 VAC, 127 ~ 370 VDC
Voltage - Output 1 : 24V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 17A
Power (Watts) : 408W (504W Forced Air)
Applications : ITE (Commercial)
Voltage - Isolation : 3kV
Efficiency : 89%
Operating Temperature : -20°C ~ 70°C (With Derating)
Features : Adjustable Output, PFC, Remote On/Off, Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 10.00" L x 5.00" W x 1.61" H (254.0mm x 127.0mm x 41.0mm)

15 in stock

USP-500-48

MEAN WELL

Manufacturer : MEAN WELL USA Inc.
Series : USP-500 (500W)
Part Status : Not For New Designs
Type : Open Frame
Number of Outputs : 1
Voltage - Input : 90 ~ 264 VAC, 127 ~ 370 VDC
Voltage - Output 1 : 48V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 8.5A
Power (Watts) : 408W (504W Forced Air)
Applications : ITE (Commercial)
Voltage - Isolation : 3kV
Efficiency : 90%
Operating Temperature : -20°C ~ 70°C (With Derating)
Features : Adjustable Output, PFC, Remote On/Off, Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 10.00" L x 5.00" W x 1.61" H (254.0mm x 127.0mm x 41.0mm)

10 in stock

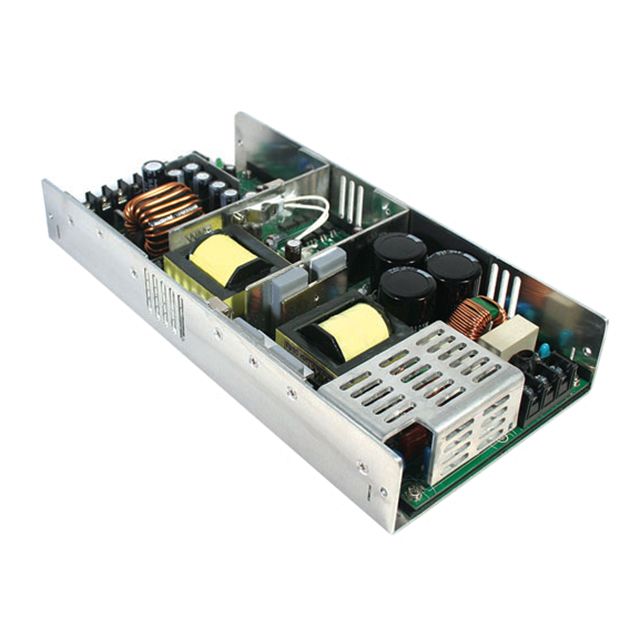

USP-500-5

MEAN WELL

Manufacturer : MEAN WELL USA Inc.
Series : USP-500 (500W)
Part Status : Not For New Designs
Type : Open Frame
Number of Outputs : 1
Voltage - Input : 90 ~ 264 VAC, 127 ~ 370 VDC
Voltage - Output 1 : 5V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 60A
Power (Watts) : 300W (400W Forced Air)
Applications : ITE (Commercial)
Voltage - Isolation : 3kV
Efficiency : 85%
Operating Temperature : -20°C ~ 70°C (With Derating)
Features : Adjustable Output, PFC, Remote On/Off, Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 10.00" L x 5.00" W x 1.61" H (254.0mm x 127.0mm x 41.0mm)

3 in stock

WDR-120-12

MEAN WELL

Manufacturer : MEAN WELL USA Inc.
Series : WDR-120 (120W)
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 180 ~ 550 VAC (2PH), 254 ~ 780 VDC
Voltage - Output 1 : 12V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 10A
Power (Watts) : 120W
Applications : Industrial, ITE (Commercial)
Voltage - Isolation : 3kV
Efficiency : 89.5%
Operating Temperature : -25°C ~ 70°C (With Derating)
Features : Adjustable Output
Mounting Type : DIN Rail
Size / Dimension : 4.47" L x 1.57" W x 4.93" H (113.5mm x 40.0mm x 125.2mm)

115 in stock

WDR-120-24

MEAN WELL

Manufacturer : MEAN WELL USA Inc.
Series : WDR-120 (120W)
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 180 ~ 550 VAC (2PH), 254 ~ 780 VDC
Voltage - Output 1 : 24V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 5A
Power (Watts) : 120W
Applications : Industrial, ITE (Commercial)
Voltage - Isolation : 3kV
Efficiency : 91%
Operating Temperature : -25°C ~ 70°C (With Derating)
Features : Adjustable Output
Mounting Type : DIN Rail
Size / Dimension : 4.47" L x 1.57" W x 4.93" H (113.5mm x 40.0mm x 125.2mm)

156 in stock

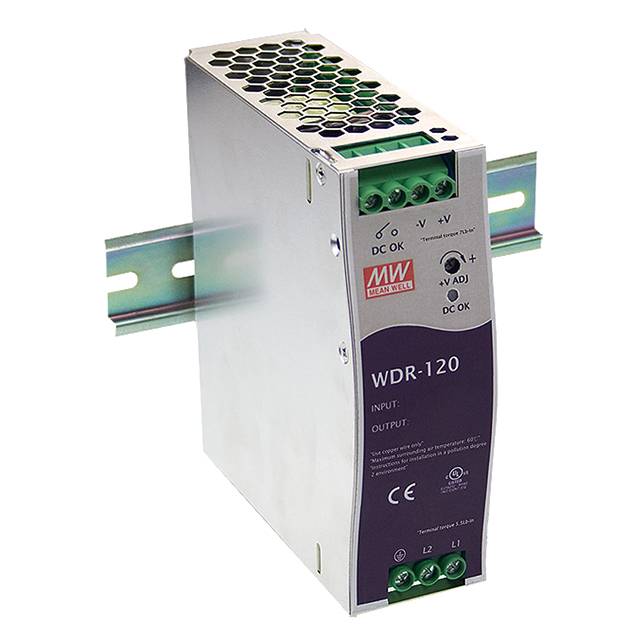

WDR-120-48

MEAN WELL

Manufacturer : MEAN WELL USA Inc.
Series : WDR-120 (120W)
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 180 ~ 550 VAC (2PH), 254 ~ 780 VDC
Voltage - Output 1 : 48V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 2.5A
Power (Watts) : 120W
Applications : Industrial, ITE (Commercial)
Voltage - Isolation : 3kV
Efficiency : 92%
Operating Temperature : -25°C ~ 70°C (With Derating)
Features : Adjustable Output
Mounting Type : DIN Rail
Size / Dimension : 4.47" L x 1.57" W x 4.93" H (113.5mm x 40.0mm x 125.2mm)

79 in stock

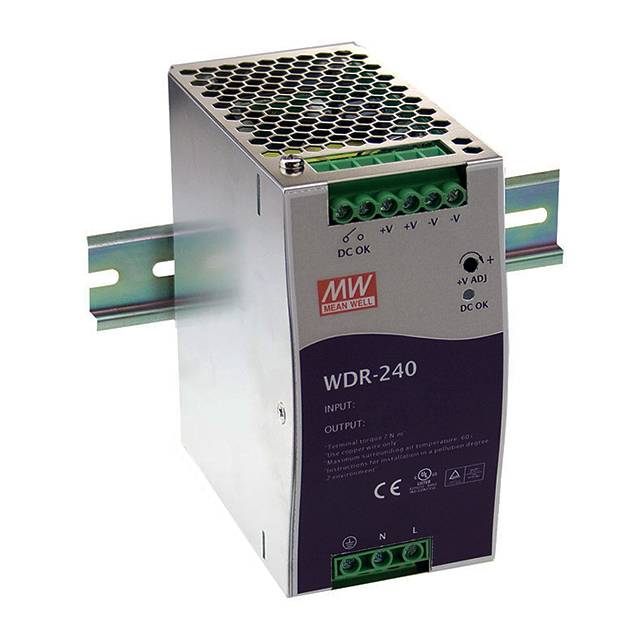

WDR-240-24

MEAN WELL

Manufacturer : MEAN WELL USA Inc.
Series : WDR-240 (240W)
Part Status : Active
Type : Enclosed
Number of Outputs : 1
Voltage - Input : 180 ~ 550 VAC, 254 ~ 780 VDC
Voltage - Output 1 : 24V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 10A
Power (Watts) : 240W
Applications : Industrial, ITE (Commercial)
Voltage - Isolation : 3kV
Efficiency : 91%
Operating Temperature : -30°C ~ 70°C (With Derating)
Features : Adjustable Output, PFC
Mounting Type : DIN Rail
Size / Dimension : 4.47" L x 2.48" W x 4.93" H (113.5mm x 63.0mm x 125.2mm)

25 in stock
