MEAN WELL
- MEAN WELL is one of the leading standard switching power supply manufacturers in the world having more than 8,000 standard off-the-shelf models for a complete range of power supply solutions. Specializing in design, manufacturing and marketing of AC-DC switching power supplies, DC-DC converters, DC-AC inverters, and adapters/battery chargers for global markets. MEAN WELL upholds the idea of “your reliable power partner” and is devoted to offering the best power supply product and service. MEAN WELL is now able to provide fast, localized services around the world with its global distribution network fostered by continuous effort and hard work.
Part Number
Manufacturer
Description
Unit Price
In Stock

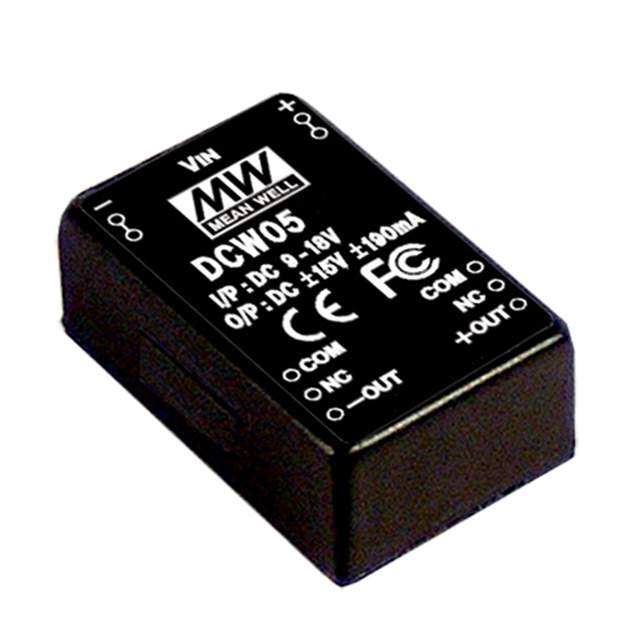

MEAN WELL
Manufacturer : MEAN WELL USA Inc.
Packaging : -
Series : DCW05
Part Status : Active
Type : Isolated Module
Number of Outputs : 2
Voltage - Input (Min) : 9V
Voltage - Input (Max) : 18V
Voltage - Output 1 : 15V
Voltage - Output 2 : -15V
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 190mA, 190mA
Power (Watts) : 5.7W
Voltage - Isolation : 1000V
Applications : ITE (Commercial)
Features : OCP, SCP
Operating Temperature : -40°C ~ 71°C (With Derating)
Efficiency : 81%
Mounting Type : Through Hole
Package / Case : 24-DIP Module, 8 Leads
Size / Dimension : 1.25" L x 0.80" W x 0.48" H (31.8mm x 20.3mm x 12.2mm)
Supplier Device Package : -
Control Features : -
0
31 in stock
MEAN WELL
Manufacturer : MEAN WELL USA Inc.
Packaging : -
Series : DCW05
Part Status : Active
Type : Isolated Module
Number of Outputs : 2
Voltage - Input (Min) : 18V
Voltage - Input (Max) : 36V
Voltage - Output 1 : 5V
Voltage - Output 2 : -5V
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 500mA, 500mA
Power (Watts) : 5W
Voltage - Isolation : 1000V
Applications : ITE (Commercial)
Features : OCP, SCP
Operating Temperature : -40°C ~ 71°C (With Derating)
Efficiency : 77%
Mounting Type : Through Hole
Package / Case : 24-DIP Module, 8 Leads
Size / Dimension : 1.25" L x 0.80" W x 0.48" H (31.8mm x 20.3mm x 12.2mm)
Supplier Device Package : -
Control Features : -
0
100 in stock
MEAN WELL
Manufacturer : MEAN WELL USA Inc.
Packaging : -
Series : DCW05
Part Status : Active
Type : Isolated Module
Number of Outputs : 2
Voltage - Input (Min) : 18V
Voltage - Input (Max) : 36V
Voltage - Output 1 : 12V
Voltage - Output 2 : -12V
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 230mA, 230mA
Power (Watts) : 5.5W
Voltage - Isolation : 1000V
Applications : ITE (Commercial)
Features : OCP, SCP
Operating Temperature : -40°C ~ 71°C (With Derating)
Efficiency : 82%
Mounting Type : Through Hole
Package / Case : 24-DIP Module, 8 Leads
Size / Dimension : 1.25" L x 0.80" W x 0.48" H (31.8mm x 20.3mm x 12.2mm)
Supplier Device Package : -
Control Features : -
0
39 in stock
MEAN WELL
Manufacturer : MEAN WELL USA Inc.
Packaging : -
Series : DCW05
Part Status : Active
Type : Isolated Module
Number of Outputs : 2
Voltage - Input (Min) : 18V
Voltage - Input (Max) : 36V
Voltage - Output 1 : 15V
Voltage - Output 2 : -15V
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 190mA, 190mA
Power (Watts) : 5.7W
Voltage - Isolation : 1000V
Applications : ITE (Commercial)
Features : OCP, SCP
Operating Temperature : -40°C ~ 71°C (With Derating)
Efficiency : 83%
Mounting Type : Through Hole
Package / Case : 24-DIP Module, 8 Leads
Size / Dimension : 1.25" L x 0.80" W x 0.48" H (31.8mm x 20.3mm x 12.2mm)
Supplier Device Package : -
Control Features : -
0
39 in stock
MEAN WELL
Manufacturer : MEAN WELL USA Inc.
Packaging : -
Series : DCW05
Part Status : Active
Type : Isolated Module
Number of Outputs : 2
Voltage - Input (Min) : 36V
Voltage - Input (Max) : 72V
Voltage - Output 1 : 5V
Voltage - Output 2 : -5V
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 500mA, 500mA
Power (Watts) : 5W
Voltage - Isolation : 1000V
Applications : ITE (Commercial)
Features : OCP, SCP
Operating Temperature : -40°C ~ 71°C (With Derating)
Efficiency : 77%
Mounting Type : Through Hole
Package / Case : 24-DIP Module, 8 Leads
Size / Dimension : 1.25" L x 0.80" W x 0.48" H (31.8mm x 20.3mm x 12.2mm)
Supplier Device Package : -
Control Features : -
0
4 in stock
MEAN WELL
Manufacturer : MEAN WELL USA Inc.
Packaging : -
Series : DCW05
Part Status : Active
Type : Isolated Module
Number of Outputs : 2
Voltage - Input (Min) : 36V
Voltage - Input (Max) : 72V
Voltage - Output 1 : 12V
Voltage - Output 2 : -12V
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 230mA, 230mA
Power (Watts) : 5.5W
Voltage - Isolation : 1000V
Applications : ITE (Commercial)
Features : OCP, SCP
Operating Temperature : -40°C ~ 71°C (With Derating)
Efficiency : 83%
Mounting Type : Through Hole
Package / Case : 24-DIP Module, 8 Leads
Size / Dimension : 1.25" L x 0.80" W x 0.48" H (31.8mm x 20.3mm x 12.2mm)
Supplier Device Package : -
Control Features : -
0
2 in stock
MEAN WELL
Manufacturer : MEAN WELL USA Inc.
Packaging : -
Series : DCW05
Part Status : Active
Type : Isolated Module
Number of Outputs : 2
Voltage - Input (Min) : 36V
Voltage - Input (Max) : 72V
Voltage - Output 1 : 15V
Voltage - Output 2 : -15V
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 190mA, 190mA
Power (Watts) : 5.7W
Voltage - Isolation : 1000V
Applications : ITE (Commercial)
Features : OCP, SCP
Operating Temperature : -40°C ~ 71°C (With Derating)
Efficiency : 85%
Mounting Type : Through Hole
Package / Case : 24-DIP Module, 8 Leads
Size / Dimension : 1.25" L x 0.80" W x 0.48" H (31.8mm x 20.3mm x 12.2mm)
Supplier Device Package : -
Control Features : -
0
4 in stock

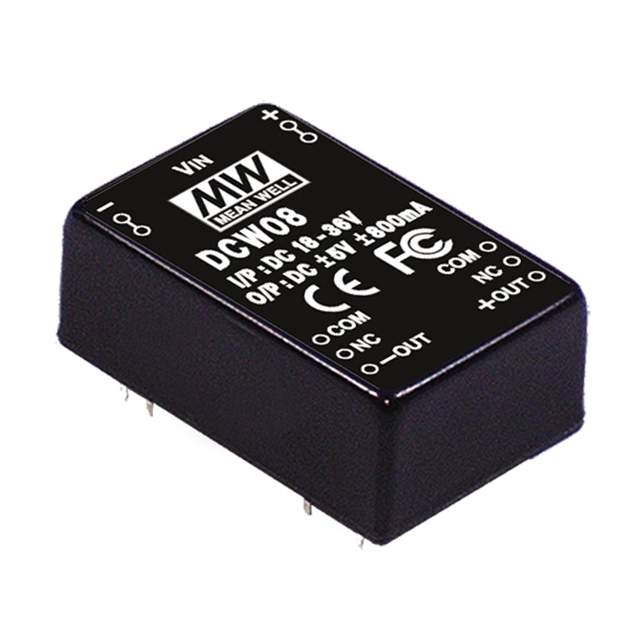

MEAN WELL
Manufacturer : MEAN WELL USA Inc.
Packaging : -
Series : DCW08
Part Status : Active
Type : Isolated Module
Number of Outputs : 2
Voltage - Input (Min) : 9V
Voltage - Input (Max) : 18V
Voltage - Output 1 : 5V
Voltage - Output 2 : -5V
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 800mA, 800mA
Power (Watts) : 8W
Voltage - Isolation : 1000V
Applications : ITE (Commercial)
Features : OCP, SCP
Operating Temperature : -40°C ~ 71°C (With Derating)
Efficiency : 75%
Mounting Type : Through Hole
Package / Case : 24-DIP Module, 8 Leads
Size / Dimension : 1.25" L x 0.80" W x 0.48" H (31.8mm x 20.3mm x 12.2mm)
Supplier Device Package : -
Control Features : -
0
4 in stock
MEAN WELL
Manufacturer : MEAN WELL USA Inc.
Packaging : -
Series : DCW08
Part Status : Active
Type : Isolated Module
Number of Outputs : 2
Voltage - Input (Min) : 9V
Voltage - Input (Max) : 18V
Voltage - Output 1 : 12V
Voltage - Output 2 : -12V
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 335mA, 335mA
Power (Watts) : 8W
Voltage - Isolation : 1000V
Applications : ITE (Commercial)
Features : OCP, SCP
Operating Temperature : -40°C ~ 71°C (With Derating)
Efficiency : 80%
Mounting Type : Through Hole
Package / Case : 24-DIP Module, 8 Leads
Size / Dimension : 1.25" L x 0.80" W x 0.48" H (31.8mm x 20.3mm x 12.2mm)
Supplier Device Package : -
Control Features : -
0
32 in stock
MEAN WELL
Manufacturer : MEAN WELL USA Inc.
Packaging : -
Series : DCW08
Part Status : Active
Type : Isolated Module
Number of Outputs : 2
Voltage - Input (Min) : 9V
Voltage - Input (Max) : 18V
Voltage - Output 1 : 15V
Voltage - Output 2 : -15V
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 267mA, 267mA
Power (Watts) : 8W
Voltage - Isolation : 1000V
Applications : ITE (Commercial)
Features : OCP, SCP
Operating Temperature : -40°C ~ 71°C (With Derating)
Efficiency : 80%
Mounting Type : Through Hole
Package / Case : 24-DIP Module, 8 Leads
Size / Dimension : 1.25" L x 0.80" W x 0.48" H (31.8mm x 20.3mm x 12.2mm)
Supplier Device Package : -
Control Features : -
0
4 in stock
MEAN WELL
Manufacturer : MEAN WELL USA Inc.
Packaging : -
Series : DCW08
Part Status : Active
Type : Isolated Module
Number of Outputs : 2
Voltage - Input (Min) : 18V
Voltage - Input (Max) : 36V
Voltage - Output 1 : 5V
Voltage - Output 2 : -5V
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 800mA, 800mA
Power (Watts) : 8W
Voltage - Isolation : 1000V
Applications : ITE (Commercial)
Features : OCP, SCP
Operating Temperature : -40°C ~ 71°C (With Derating)
Efficiency : 78%
Mounting Type : Through Hole
Package / Case : 24-DIP Module, 8 Leads
Size / Dimension : 1.25" L x 0.80" W x 0.48" H (31.8mm x 20.3mm x 12.2mm)
Supplier Device Package : -
Control Features : -
0
4 in stock
MEAN WELL
Manufacturer : MEAN WELL USA Inc.
Packaging : -
Series : DCW08
Part Status : Active
Type : Isolated Module
Number of Outputs : 2
Voltage - Input (Min) : 18V
Voltage - Input (Max) : 36V
Voltage - Output 1 : 12V
Voltage - Output 2 : -12V
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 335mA, 335mA
Power (Watts) : 8W
Voltage - Isolation : 1000V
Applications : ITE (Commercial)
Features : OCP, SCP
Operating Temperature : -40°C ~ 71°C (With Derating)
Efficiency : 80%
Mounting Type : Through Hole
Package / Case : 24-DIP Module, 8 Leads
Size / Dimension : 1.25" L x 0.80" W x 0.48" H (31.8mm x 20.3mm x 12.2mm)
Supplier Device Package : -
Control Features : -
0
100 in stock
