Lumex, Inc.
- Lumex, Inc. for 30 years, Lumex has been a global leader in the optoelectronics industry, with the broadest range of high efficiency, high performance LEDs and LCDs in the industry. With thousands of standard products and a focus on semi-custom and custom designs, Lumex is a valuable resource for quality and innovation. Lumex's optical range encompasses a wide spectrum including UV, visible and infrared wavelengths. Lumex's team of Technical Design Specialists are experts in collaboratively developing effective, smart solutions from the most complex design dilemmas.
Lumex has a global footprint with the worldwide headquarters outside Chicago and the Asian headquarters in Taiwan. With manufacturing capabilities in the United States, China, Taiwan and Thailand, Lumex is able to support over 23 end markets with more than 80,000 customers both directly and through our distribution channel partners. Over the last 30 years, the name Lumex has become synonymous with quality and performance around the world.
Part Number
Manufacturer
Description
Unit Price
In Stock
Lumex, Inc.
Manufacturer : Lumex Opto/Components Inc.
Series : -
Part Status : Obsolete
Display Type : FSTN - Film Super-Twisted Nematic
Display Mode : Transflective
Touchscreen : -
Diagonal Screen Size : -
Viewing Area : 120.14mm W x 92.14mm H
Backlight : CCFL
Dot Pixels : 320 x 240 (QVGA)
Interface : Parallel, 4-Bit
Graphics Color : -
Background Color : -
0
100 in stock

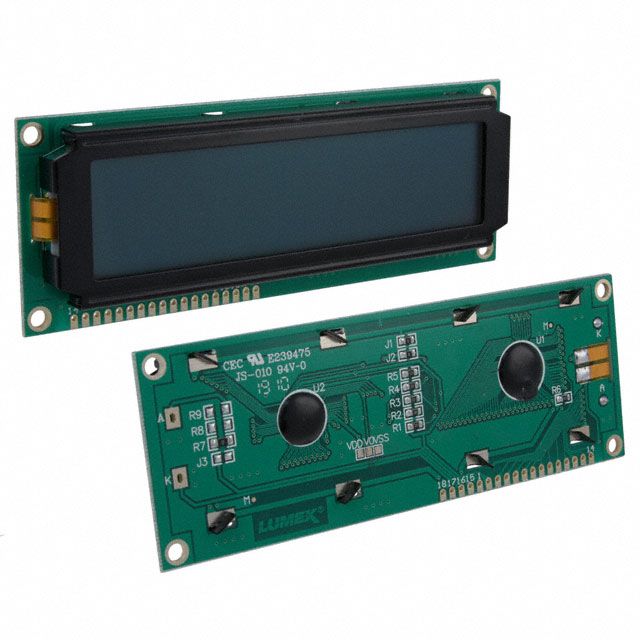

Lumex, Inc.
Manufacturer : Lumex Opto/Components Inc.
Series : -
Part Status : Active
Number of Characters : 32
Display Format : 16 x 2
Character Format : 5 x 8 Dots
Display Type : STN - Super-Twisted Nematic
Display Mode : Transflective
Character Size : 4.35mm H x 2.80mm W
Outline L x W x H : 80.00mm x 36.00mm x 9.90mm
Viewing Area : 64.00mm L x 14.00mm W
Backlight : LED - White
Voltage - Supply : 4.7 V ~ 5.3 V
Dot Size : 0.52mm W x 0.52mm H
Interface : Parallel
Operating Temperature : -40°C ~ 85°C
Text Color : -
Background Color : Green
0
709 in stock

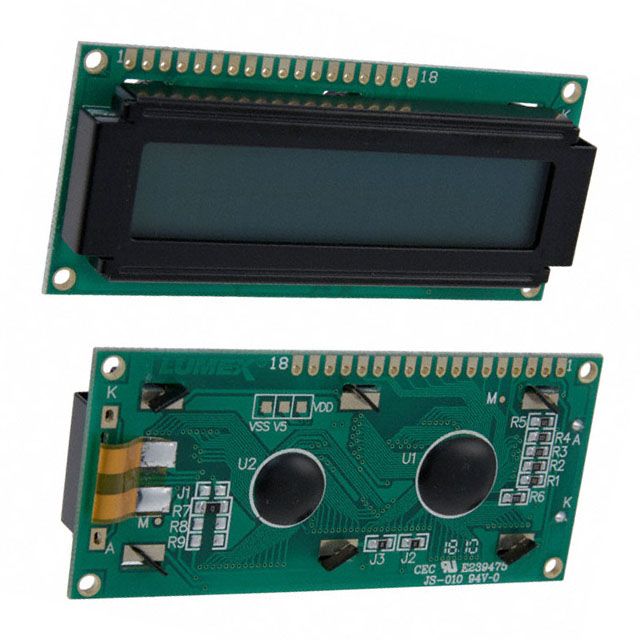

Lumex, Inc.
Manufacturer : Lumex Opto/Components Inc.
Series : -
Part Status : Active
Number of Characters : 32
Display Format : 16 x 2
Character Format : 5 x 7 Dots w/Cursor
Display Type : STN - Super-Twisted Nematic
Display Mode : Transflective
Character Size : 9.66mm H x 4.84mm W
Outline L x W x H : 122.00mm x 44.00mm x 10.60mm
Viewing Area : 99.00mm L x 24.00mm W
Backlight : LED - White
Voltage - Supply : 4.7 V ~ 5.3 V
Dot Size : 0.92mm W x 1.10mm H
Interface : Parallel
Operating Temperature : -40°C ~ 85°C
Text Color : -
Background Color : Green
0
100 in stock
Lumex, Inc.
Manufacturer : Lumex Opto/Components Inc.
Series : -
Part Status : Active
Number of Characters : 40
Display Format : 20 x 2
Character Format : 5 x 8 Dots
Display Type : STN - Super-Twisted Nematic
Display Mode : Transflective
Character Size : 5.88mm H x 3.70mm W
Outline L x W x H : 116.00mm x 37.00mm x 9.80mm
Viewing Area : 83.00mm L x 18.60mm W
Backlight : LED - White
Voltage - Supply : 4.7 V ~ 5.3 V
Dot Size : 0.60mm W x 0.65mm H
Interface : Parallel
Operating Temperature : -40°C ~ 85°C
Text Color : -
Background Color : Green
0
80 in stock
Lumex, Inc.
Manufacturer : Lumex Opto/Components Inc.
Series : -
Part Status : Active
Number of Characters : 80
Display Format : 20 x 4
Character Format : 5 x 8 Dots
Display Type : STN - Super-Twisted Nematic
Display Mode : Transflective
Character Size : 4.75mm H x 2.95mm W
Outline L x W x H : 98.00mm x 60.00mm x 11.60mm
Viewing Area : 76.30mm L x 25.00mm W
Backlight : LED - White
Voltage - Supply : 4.7 V ~ 5.3 V
Dot Size : 0.55mm W x 0.55mm H
Interface : Parallel
Operating Temperature : -40°C ~ 85°C
Text Color : Black
Background Color : Gray
0
930 in stock

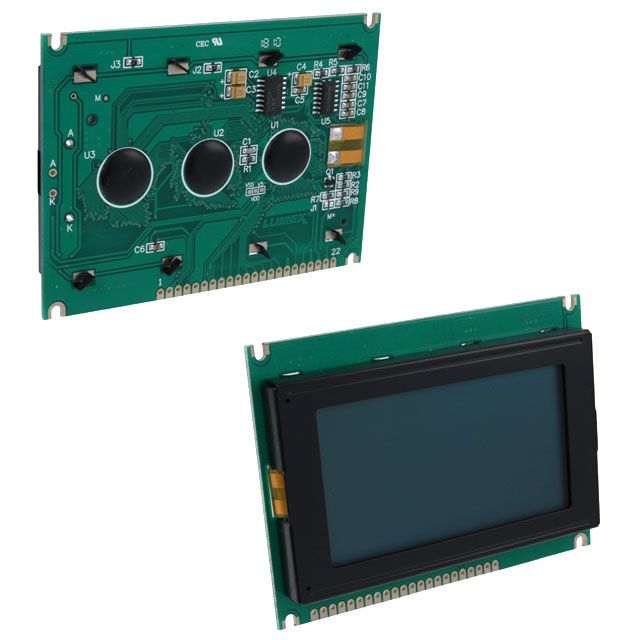

Lumex, Inc.
Manufacturer : Lumex Opto/Components Inc.
Series : -
Part Status : Active
Display Type : STN - Super-Twisted Nematic
Display Mode : Transflective
Touchscreen : -
Diagonal Screen Size : -
Viewing Area : 70.00mm W x 38.80mm H
Backlight : LED - White
Dot Pixels : 128 x 64
Interface : Parallel, 8-Bit
Graphics Color : Blue
Background Color : Gray
0
100 in stock

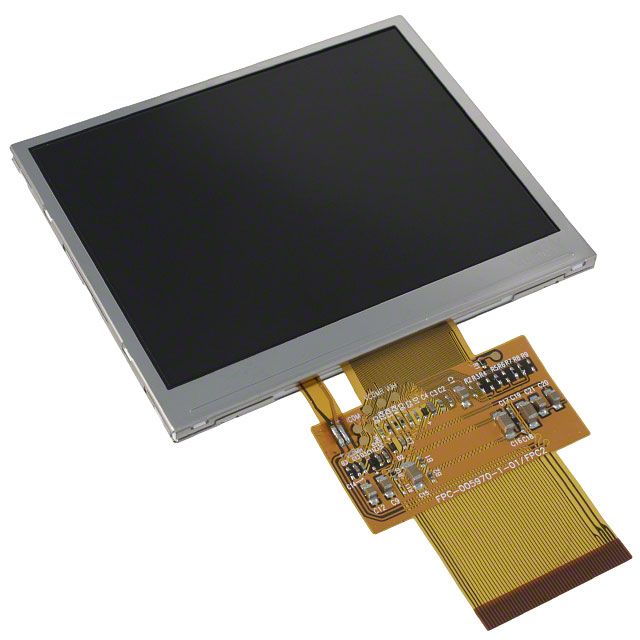

Lumex, Inc.
Manufacturer : Lumex Opto/Components Inc.
Series : InfoVue
Part Status : Active
Display Type : TFT - Color
Display Mode : Transmissive
Touchscreen : -
Diagonal Screen Size : 3.5" (88.90mm)
Viewing Area : 72.00mm W x 54.50mm H
Backlight : LED - White
Dot Pixels : 320 x 240 (QVGA)
Interface : Parallel/Serial
Graphics Color : Red, Green, Blue (RGB)
Background Color : -
0
100 in stock

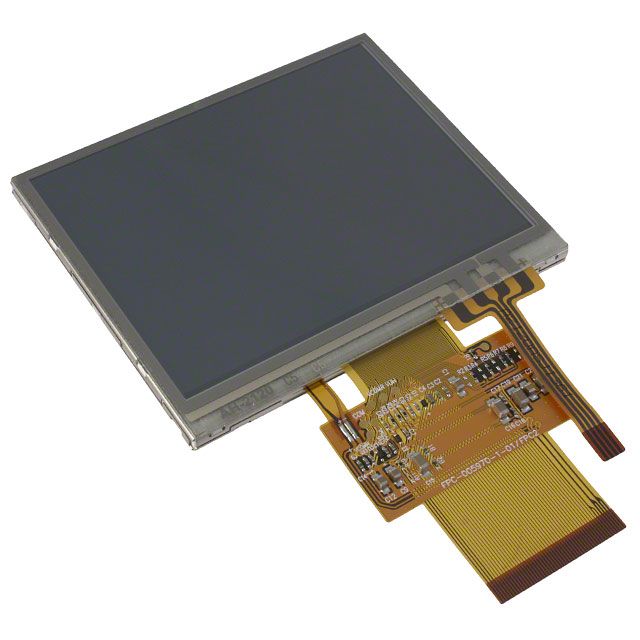

Lumex, Inc.
Manufacturer : Lumex Opto/Components Inc.
Series : InfoVue
Part Status : Active
Display Type : TFT - Color
Display Mode : Transmissive
Touchscreen : Resistive
Diagonal Screen Size : 3.5" (88.90mm)
Viewing Area : 72.00mm W x 54.50mm H
Backlight : LED - White
Dot Pixels : 320 x 240 (QVGA)
Interface : Parallel/Serial
Graphics Color : Red, Green, Blue (RGB)
Background Color : -
0
100 in stock

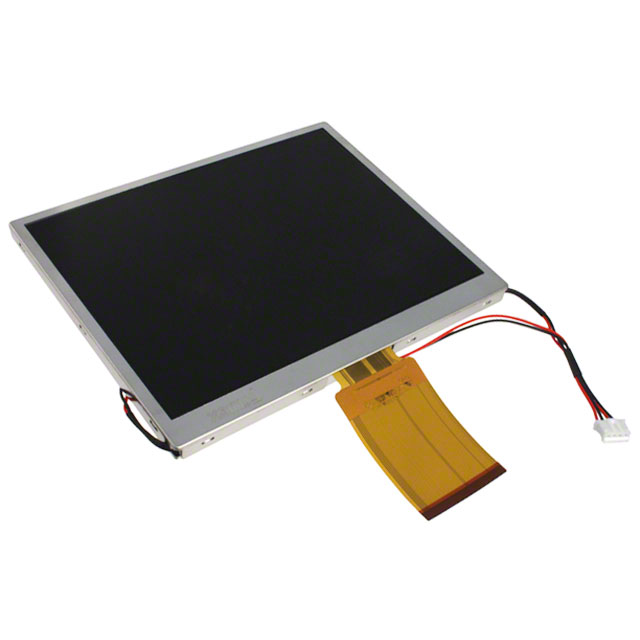

Lumex, Inc.
Manufacturer : Lumex Opto/Components Inc.
Series : InfoVue
Part Status : Active
Display Type : TFT - Color
Display Mode : Transmissive
Touchscreen : -
Diagonal Screen Size : 5.7" (144.78mm)
Viewing Area : 115.20mm W x 86.40mm H
Backlight : LED - White
Dot Pixels : 320 x 240 (QVGA)
Interface : Parallel/Serial
Graphics Color : Red, Green, Blue (RGB)
Background Color : -
0
100 in stock

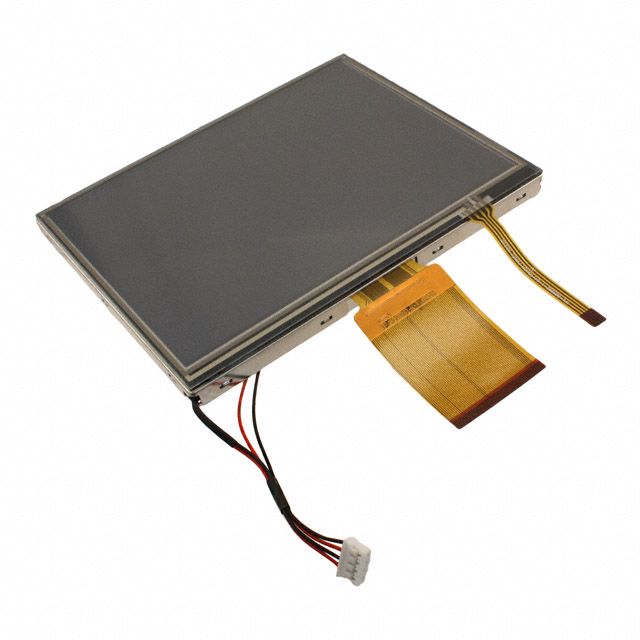

Lumex, Inc.
Manufacturer : Lumex Opto/Components Inc.
Series : InfoVue
Part Status : Active
Display Type : TFT - Color
Display Mode : Transmissive
Touchscreen : Resistive
Diagonal Screen Size : 5.7" (144.78mm)
Viewing Area : 118.26mm W x 89.40mm H
Backlight : LED - White
Dot Pixels : 320 x 240 (QVGA)
Interface : Parallel/Serial
Graphics Color : Red, Green, Blue (RGB)
Background Color : -
0
100 in stock

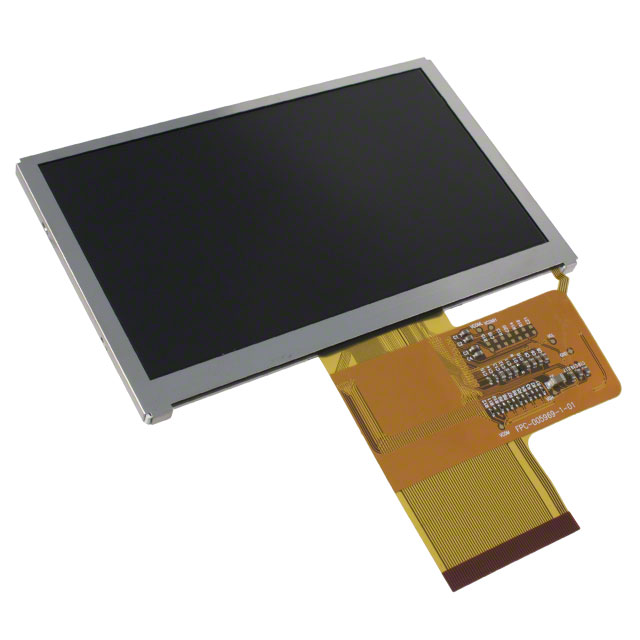

Lumex, Inc.
Manufacturer : Lumex Opto/Components Inc.
Series : InfoVue
Part Status : Active
Display Type : TFT - Color
Display Mode : Transmissive
Touchscreen : -
Diagonal Screen Size : 4.3" (109.22mm)
Viewing Area : 95.04mm W x 53.86mm H
Backlight : LED - White
Dot Pixels : 480 x 272
Interface : Parallel/Serial
Graphics Color : Red, Green, Blue (RGB)
Background Color : -
0
100 in stock

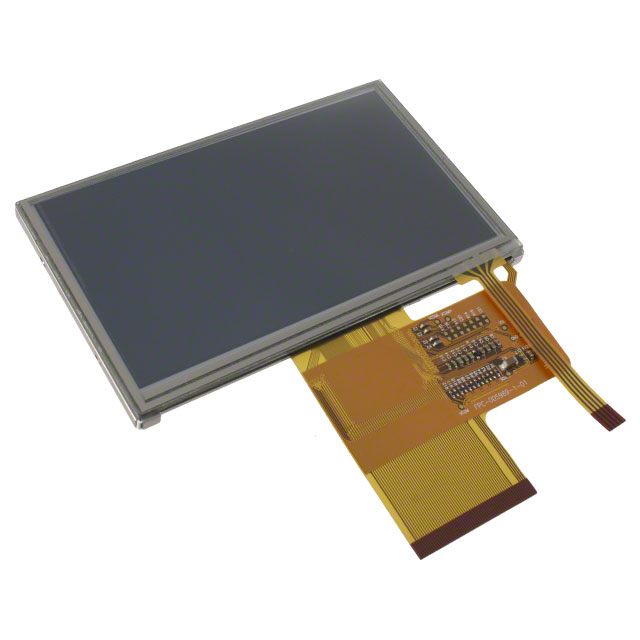

Lumex, Inc.
Manufacturer : Lumex Opto/Components Inc.
Series : InfoVue
Part Status : Active
Display Type : TFT - Color
Display Mode : Transmissive
Touchscreen : Resistive
Diagonal Screen Size : 4.3" (109.22mm)
Viewing Area : 95.04mm W x 53.86mm H
Backlight : LED - White
Dot Pixels : 480 x 272
Interface : Parallel/Serial
Graphics Color : Red, Green, Blue (RGB)
Background Color : -
0
100 in stock
