Laird Thermal Materials

- Laird Thermal Systems is an end-to-end solutions partner offering continuous access to OEMs through its industry leading component and application expertise. An engineering force utilizing the broadest, vertically integrated thermal management product range in the industry, Laird facilitates customer technology development by providing cutting edge solutions coupled with the ability to qualify, manufacture and service globally.

Part Number
Manufacturer
Description
Unit Price
In Stock

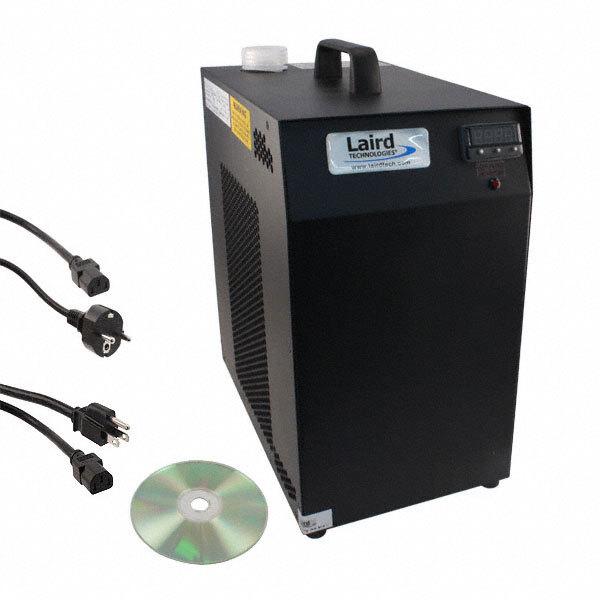

385760-001 385760-001

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : MRC
Part Status : Active
Product Type : Active, Recirculating Chiller/Heater
Power - Cooling : 290W
Current : 8.5A
Voltage : 115 ~ 240VAC
Flow Rate : 0.87GPM (3.3LPM)
Power Input : 507W
Thermal Resistance @ GPM : -
Fluid Capacity : 450ML (15.2 oz)
Connection Type : 3/8" Quick Connect
Weight : 30 lbs (13.6kg)
Dimensions - Overall : 13.31" L x 7.99" W x 15.39" H (338.0mm x 203.0mm x 391.0mm)
Ratings : UL61010-1
Features : Temperature Control
0
18 in stock

385832-401 385832-401

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : -
Part Status : Active
Accessory Type : Wireless Power Generator
For Use With/Related Products : Wireless Sensors
0
11 in stock

385832-402 385832-402

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : -
Part Status : Active
Accessory Type : Wireless Power Generator
For Use With/Related Products : Wireless Sensors
0
100 in stock

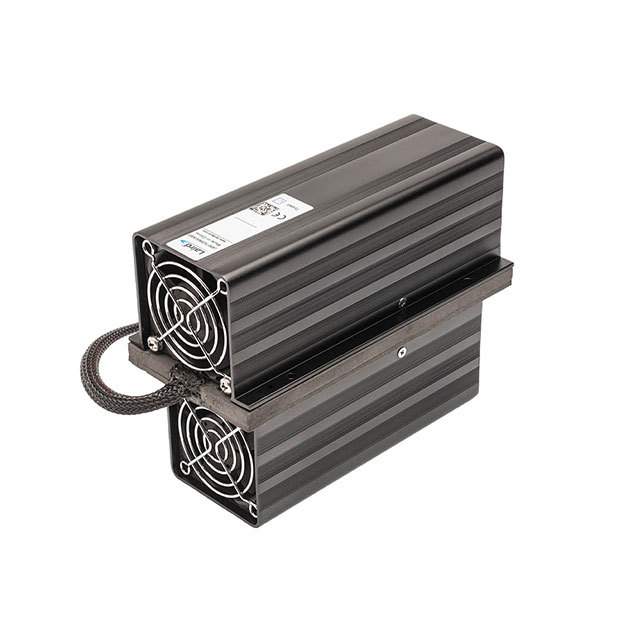

387000176 387000176

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : Tunnel
Part Status : Active
Heat Transfer Type : Air to Air
Power - Cooling : 55W
Current : 2.6A
Voltage : 24V
Fan Location : Cold Side / Warm Side
Power - Input : -
Operating Temperature : -10°C ~ 50°C
Weight : 3.7 lbs (1.7kg)
Dimensions - Overall : 180mm L x 84mm W x 142mm H
0
100 in stock

387000177 387000177

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : Tunnel
Part Status : Active
Heat Transfer Type : Direct to Air
Power - Cooling : 64W
Current : 2.6A
Voltage : 24V
Fan Location : Warm Side
Power - Input : -
Operating Temperature : -10°C ~ 50°C
Weight : 2.6 lbs (1.2kg)
Dimensions - Overall : 180mm L x 65mm W x 86mm H
0
5 in stock

387000573 387000573

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : *
Part Status : Active
Outline L x W x H : -
Qmax @ Th : -
Delta Tmax @ Th : -
Current - Max : -
Voltage - Max : -
Resistance : -
Operating Temperature : -
Features : -
0
100 in stock

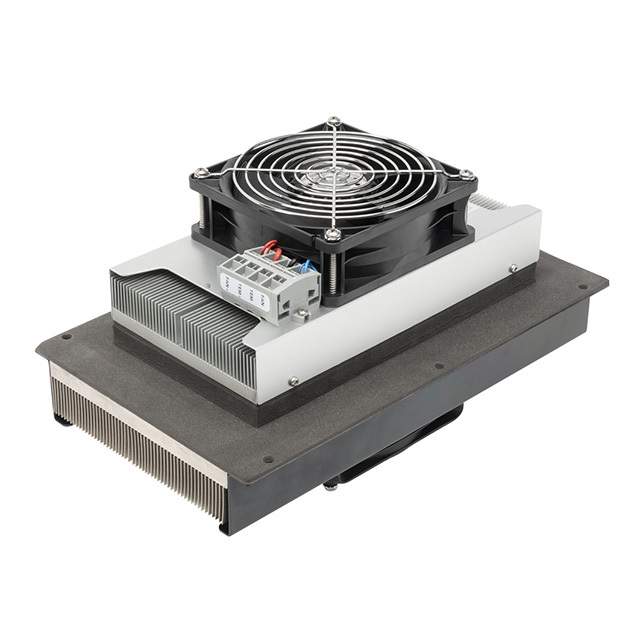

387000612 387000612

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : -
Part Status : Active
Heat Transfer Type : Air to Air
Power - Cooling : 166W
Current : 6.9A
Voltage : 24V
Fan Location : Cold Side / Warm Side
Power - Input : 100W
Operating Temperature : -20°C ~ 70°C
Weight : -
Dimensions - Overall : 300mm L x 180mm W x 160mm H
0
100 in stock

387000624 387000624

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : -
Part Status : Active
Heat Transfer Type : Direct to Air
Power - Cooling : 193W
Current : 6.9A
Voltage : 24V
Fan Location : Cold Side / Warm Side
Power - Input : 100W
Operating Temperature : -20°C ~ 70°C
Weight : -
Dimensions - Overall : 300mm L x 150mm W x 103mm H
0
100 in stock

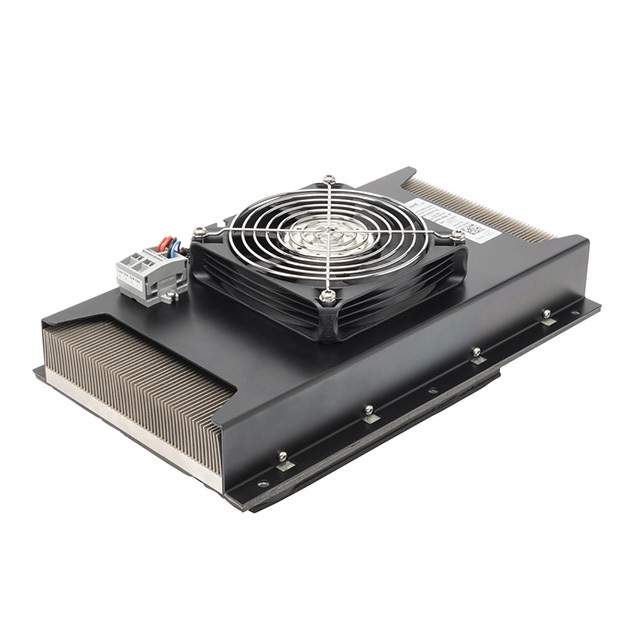

387000639 387000639

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : -
Part Status : Active
Heat Transfer Type : Liquid to Air
Power - Cooling : 202W
Current : 6.9A
Voltage : 24V
Fan Location : Cold Side / Warm Side
Power - Input : 100W
Operating Temperature : -20°C ~ 70°C
Weight : -
Dimensions - Overall : 300mm L x 180mm W x 108mm H
0
100 in stock

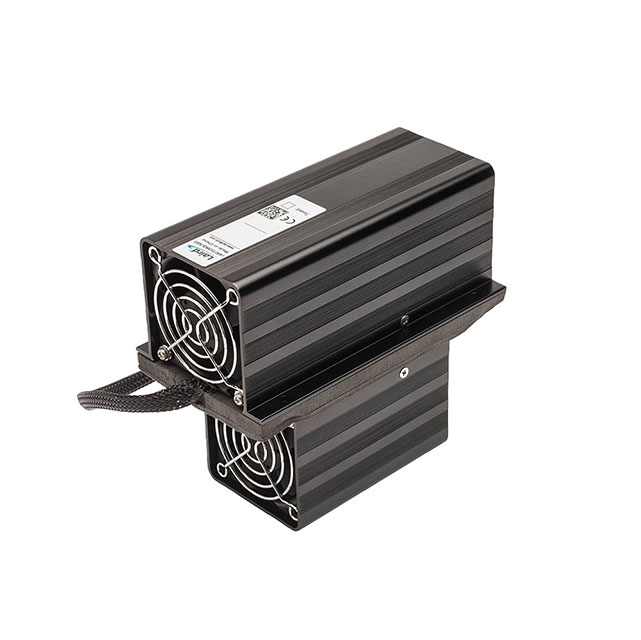

387000840 387000840

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : Tunnel
Part Status : Active
Heat Transfer Type : Air to Air
Power - Cooling : 32W
Current : 2.8A
Voltage : 12V
Fan Location : Cold Side / Warm Side
Power - Input : -
Operating Temperature : -10°C ~ 50°C
Weight : 2.6 lbs (1.2kg)
Dimensions - Overall : 155mm L x 84mm W x 141.3mm H
0
2 in stock

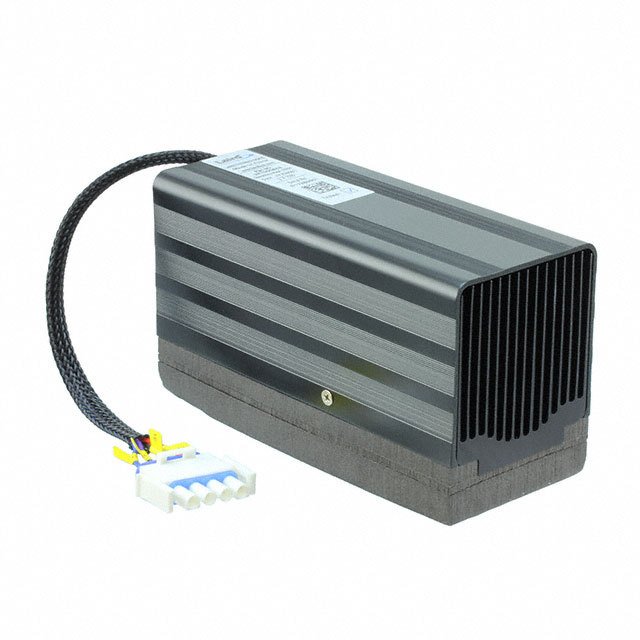

387000848 387000848

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : Tunnel
Part Status : Active
Heat Transfer Type : Direct to Air
Power - Cooling : 40W
Current : 2.9A
Voltage : 12V
Fan Location : Warm Side
Power - Input : -
Operating Temperature : -10°C ~ 50°C
Weight : 1.8 lbs (816.5g)
Dimensions - Overall : 155mm L x 65mm W x 86mm H
0
3 in stock

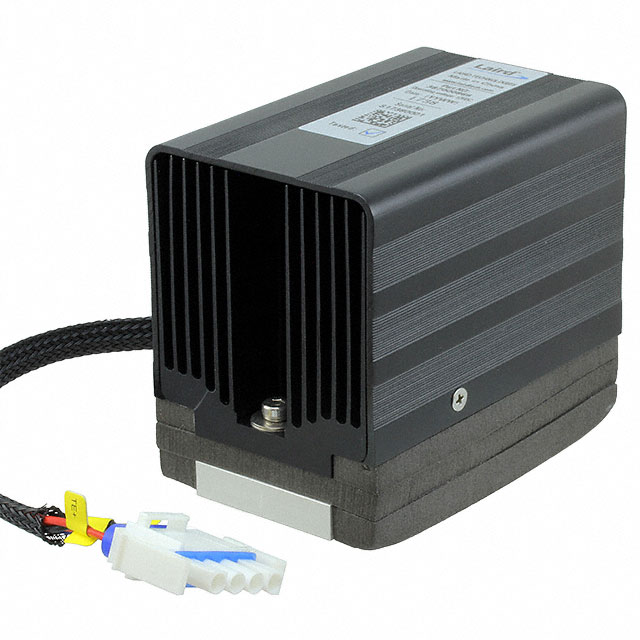

387000866 387000866

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : Tunnel
Part Status : Active
Heat Transfer Type : Direct to Air
Power - Cooling : 29W
Current : 2.7A
Voltage : 12V
Fan Location : Cold Side / Warm Side
Power - Input : -
Operating Temperature : -10°C ~ 50°C
Weight : 115 lbs (52.2kg)
Dimensions - Overall : 97.5mm L x 65mm W x 86.5mm H
0
4 in stock
