Laird Thermal Materials

- Laird Thermal Systems is an end-to-end solutions partner offering continuous access to OEMs through its industry leading component and application expertise. An engineering force utilizing the broadest, vertically integrated thermal management product range in the industry, Laird facilitates customer technology development by providing cutting edge solutions coupled with the ability to qualify, manufacture and service globally.

Part Number
Manufacturer
Description
Unit Price
In Stock

430891-401 430891-401

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : eTEC, Nextreme
Part Status : Obsolete
Outline L x W x H : 1.79mm x 1.52mm x 0.62mm
Qmax @ Th : 1.4W @ 25°C
Delta Tmax @ Th : 45°C @ 25°C
Current - Max : 1.0A
Voltage - Max : 2.0V
Resistance : 1.70 Ohms
Operating Temperature : 150°C
Features : Non-Sealed
0
100 in stock

430891-403 430891-403

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : eTEC, Nextreme
Part Status : Obsolete
Outline L x W x H : 3.39mm x 2.05mm x 0.62mm
Qmax @ Th : 3.7W @ 25°C
Delta Tmax @ Th : 50°C @ 25°C
Current - Max : 1.0A
Voltage - Max : 5.9V
Resistance : 4.50 Ohms
Operating Temperature : 150°C
Features : Non-Sealed
0
100 in stock

430891-404 430891-404

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : eTEC, Nextreme
Part Status : Obsolete
Outline L x W x H : 3.39mm x 2.05mm x 0.62mm
Qmax @ Th : 3.7W @ 25°C
Delta Tmax @ Th : 50°C @ 25°C
Current - Max : 1.0A
Voltage - Max : 5.9V
Resistance : 4.50 Ohms
Operating Temperature : 150°C
Features : Non-Sealed
0
100 in stock

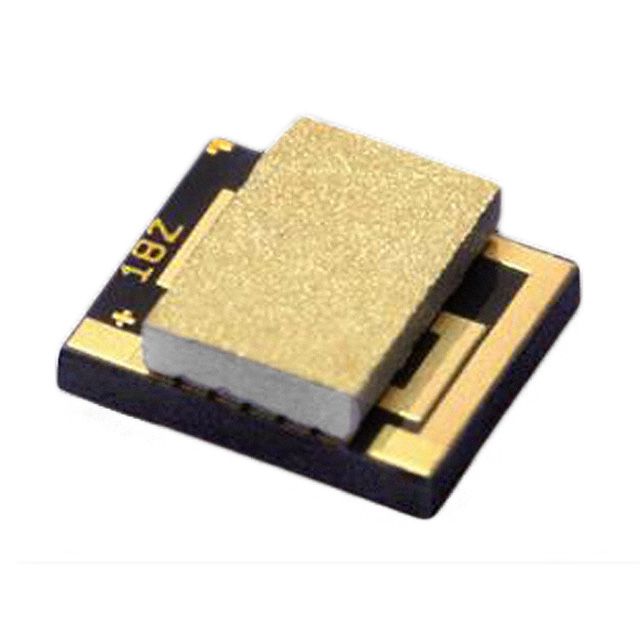

430891-405 430891-405

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : eTEC, Nextreme
Part Status : Obsolete
Outline L x W x H : 3.31mm x 3.12mm x 0.62mm
Qmax @ Th : 4.8W @ 25°C
Delta Tmax @ Th : 50°C @ 25°C
Current - Max : 1.0A
Voltage - Max : 8.8V
Resistance : 8.40 Ohms
Operating Temperature : 150°C
Features : Non-Sealed
0
100 in stock

430891-406 430891-406

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : eTEC, Nextreme
Part Status : Obsolete
Outline L x W x H : 3.31mm x 3.12mm x 0.62mm
Qmax @ Th : 4.8W @ 25°C
Delta Tmax @ Th : 50°C @ 25°C
Current - Max : 1.0A
Voltage - Max : 8.8V
Resistance : 8.40 Ohms
Operating Temperature : 150°C
Features : Non-Sealed
0
100 in stock

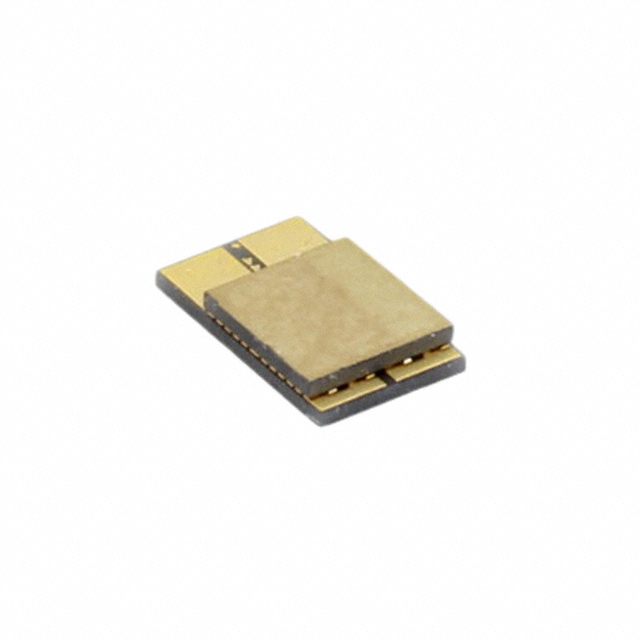

430891-414 430891-414

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : eTEC, Nextreme
Part Status : Obsolete
Outline L x W x H : 3.77mm x 2.38mm x 0.62mm
Qmax @ Th : 3.7W @ 25°C
Delta Tmax @ Th : 45°C @ 25°C
Current - Max : 1.1A
Voltage - Max : 6.0V
Resistance : 4.80 Ohms
Operating Temperature : 150°C
Features : Lead Wires
0
100 in stock

430891-415 430891-415

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : eTEC, Nextreme
Part Status : Obsolete
Outline L x W x H : 3.77mm x 2.38mm x 0.62mm
Qmax @ Th : 3.7W @ 25°C
Delta Tmax @ Th : 45°C @ 25°C
Current - Max : 1.1A
Voltage - Max : 6.0V
Resistance : 4.80 Ohms
Operating Temperature : 150°C
Features : Lead Wires
0
100 in stock

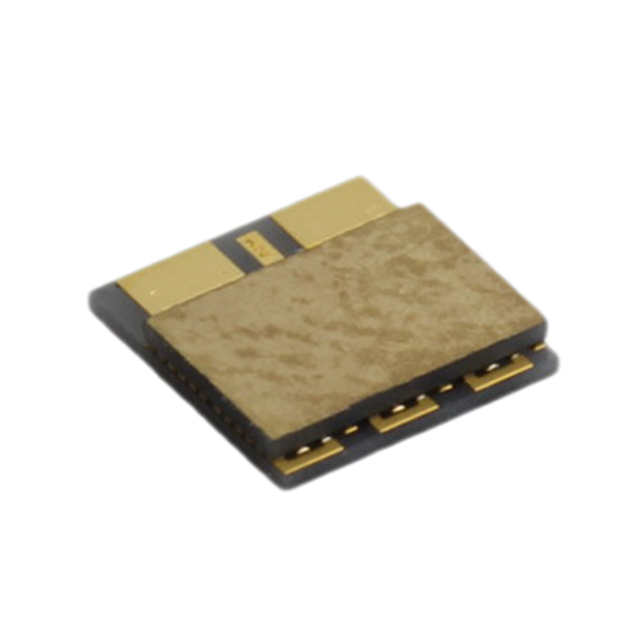

430891-416 430891-416

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : eTEC, Nextreme
Part Status : Obsolete
Outline L x W x H : 3.57mm x 3.54mm x 0.60mm
Qmax @ Th : 6.5W @ 25°C
Delta Tmax @ Th : 47°C @ 25°C
Current - Max : 1.1A
Voltage - Max : 9.6V
Resistance : 7.00 Ohms
Operating Temperature : 150°C
Features : Lead Wires
0
100 in stock

430891-417 430891-417

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : eTEC, Nextreme
Part Status : Obsolete
Outline L x W x H : 3.57mm x 3.54mm x 0.60mm
Qmax @ Th : 6.5W @ 25°C
Delta Tmax @ Th : 47°C @ 25°C
Current - Max : 1.1A
Voltage - Max : 9.6V
Resistance : 7.00 Ohms
Operating Temperature : 150°C
Features : Lead Wires
0
100 in stock

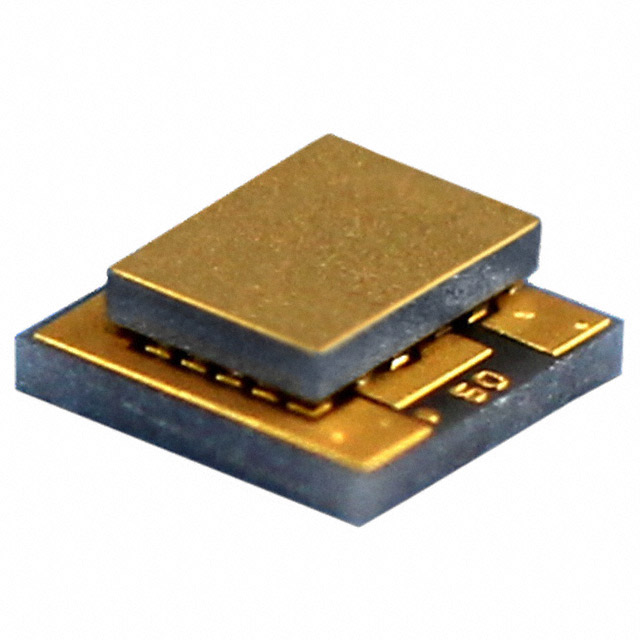

430891-420 430891-420

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : eTEC, Nextreme
Part Status : Obsolete
Outline L x W x H : 2.04mm x 1.89mm x 0.60mm
Qmax @ Th : 1.3W @ 25°C
Delta Tmax @ Th : 45°C @ 25°C
Current - Max : 1.0A
Voltage - Max : 2.3V
Resistance : 2.0 Ohms
Operating Temperature : 150°C
Features : Lead Wires
0
100 in stock

430892-414 430892-414

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : -
Part Status : Active
Outline L x W x H : -
Qmax @ Th : -
Delta Tmax @ Th : -
Current - Max : -
Voltage - Max : -
Resistance : -
Operating Temperature : -
Features : -
0
100 in stock

430892-415 430892-415

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : -
Part Status : Active
Outline L x W x H : -
Qmax @ Th : -
Delta Tmax @ Th : -
Current - Max : -
Voltage - Max : -
Resistance : -
Operating Temperature : -
Features : -
0
100 in stock
