Laird Thermal Materials

- Laird Thermal Systems is an end-to-end solutions partner offering continuous access to OEMs through its industry leading component and application expertise. An engineering force utilizing the broadest, vertically integrated thermal management product range in the industry, Laird facilitates customer technology development by providing cutting edge solutions coupled with the ability to qualify, manufacture and service globally.

Part Number
Manufacturer
Description
Unit Price
In Stock

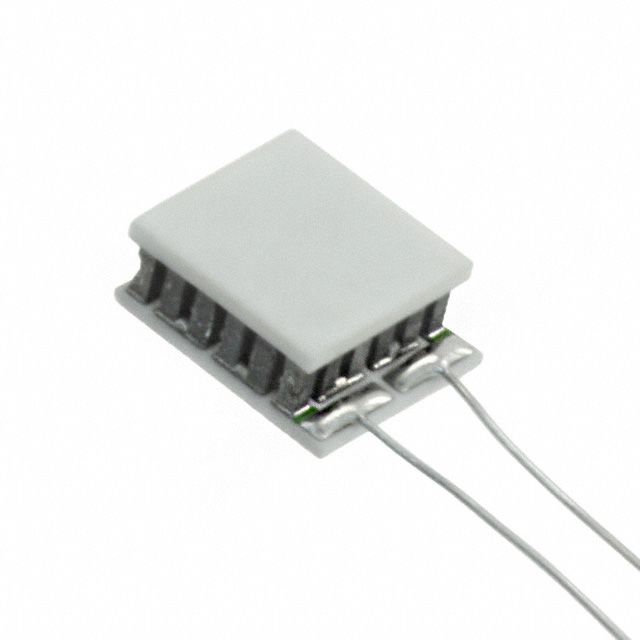

430779-501 430779-501

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : OptoTEC™
Part Status : Active
Outline L x W x H : 7.20mm x 6.00mm x 2.69mm
Qmax @ Th : 1.5W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 1.2A
Voltage - Max : 2.1V
Resistance : 1.57 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed
0
26 in stock

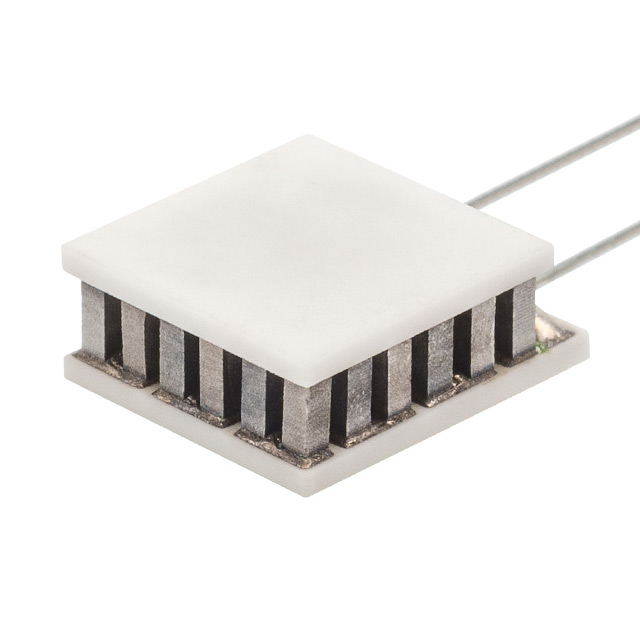

430779-502 430779-502

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : OptoTEC™
Part Status : Active
Outline L x W x H : 7.20mm x 6.00mm x 3.07mm
Qmax @ Th : 1.5W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 1.2A
Voltage - Max : 2.1V
Resistance : 1.57 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed
0
40 in stock

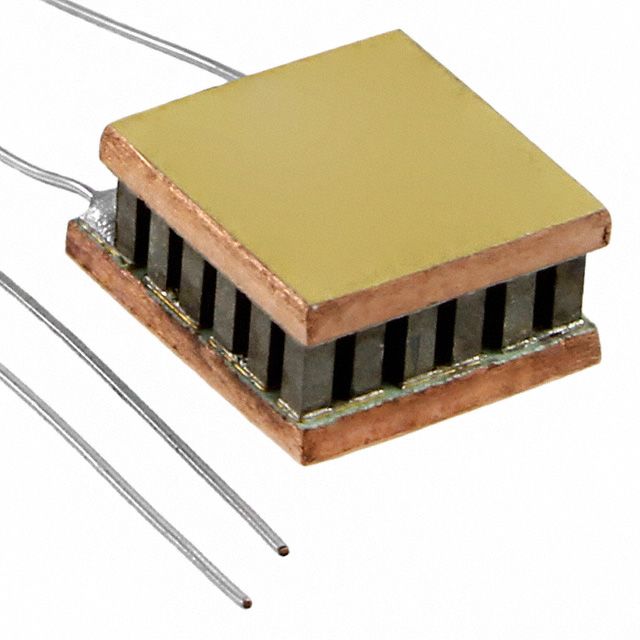

430779-512 430779-512

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : OptoTEC™
Part Status : Obsolete
Outline L x W x H : -
Qmax @ Th : 1.5W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 1.2A
Voltage - Max : 2.1V
Resistance : 1.57 Ohms
Operating Temperature : -
Features : Lead Wires
0
100 in stock

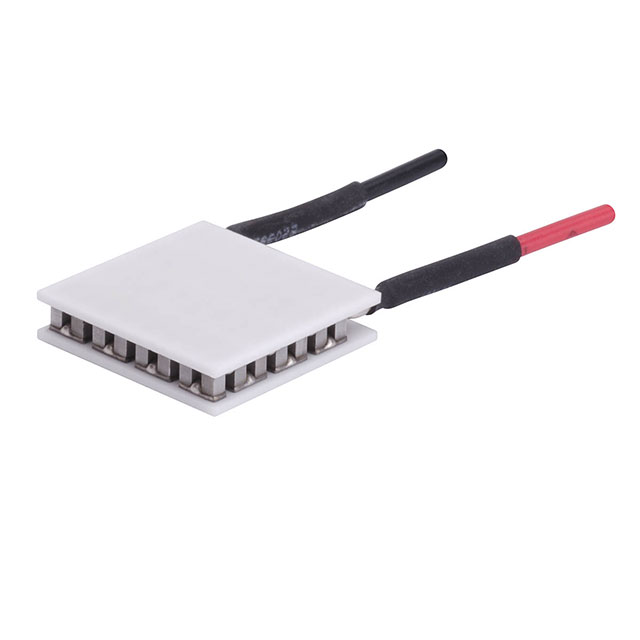

430801-501 430801-501

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : CP
Part Status : Active
Outline L x W x H : 15.00mm x 15.00mm x 3.20mm
Qmax @ Th : 8.2W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 3.9A
Voltage - Max : 3.8V
Resistance : 820 mOhms
Operating Temperature : 80°C
Features : Lead Wires, Sealed - Epoxy
0
219 in stock

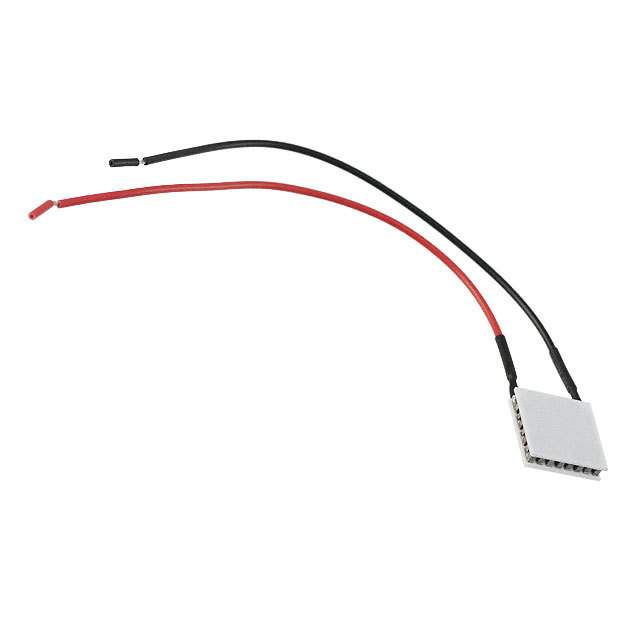

430801-504 430801-504

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : CP
Part Status : Active
Outline L x W x H : 15.00mm x 15.00mm x 3.20mm
Qmax @ Th : 8.2W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 3.9A
Voltage - Max : 3.8V
Resistance : 820 mOhms
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed
0
448 in stock

430801-512 430801-512

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : *
Part Status : Active
Outline L x W x H : -
Qmax @ Th : -
Delta Tmax @ Th : -
Current - Max : -
Voltage - Max : -
Resistance : -
Operating Temperature : -
Features : -
0
100 in stock

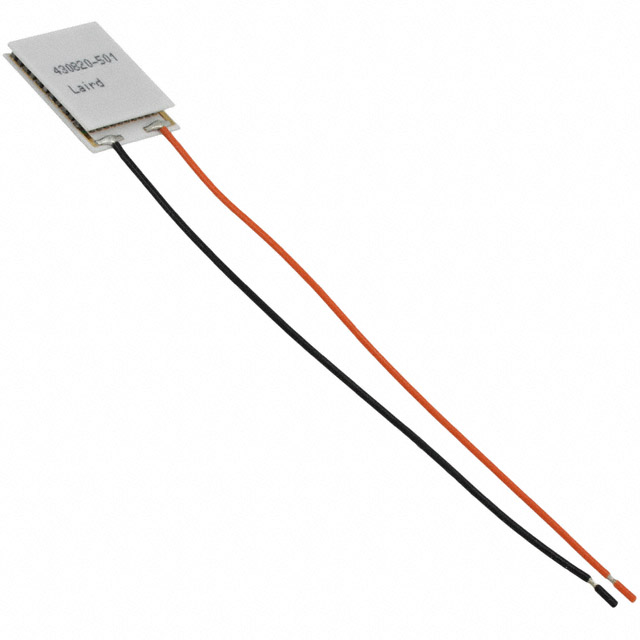

430820-501 430820-501

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : ThermaTEC™
Part Status : Active
Outline L x W x H : 30.00mm x 30.00mm x 4.09mm
Qmax @ Th : 18.4W @ 25°C
Delta Tmax @ Th : 64°C @ 25°C
Current - Max : 3.8A
Voltage - Max : 8.1V
Resistance : 1.95 Ohms
Operating Temperature : 175°C
Features : Lead Wires, Non-Sealed
0
7 in stock

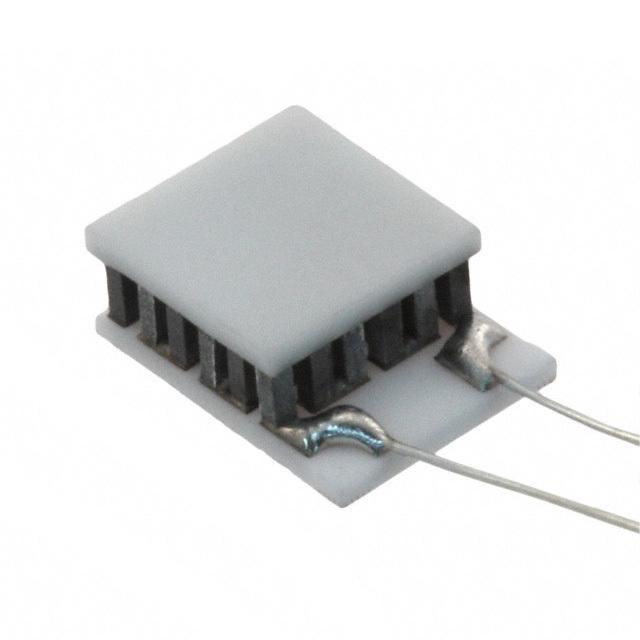

430828-501 430828-501

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : OptoTEC™
Part Status : Active
Outline L x W x H : 6.70mm x 5.00mm x 2.44mm
Qmax @ Th : 1.0W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 0.8A
Voltage - Max : 2.1V
Resistance : 2.35 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed
0
14 in stock

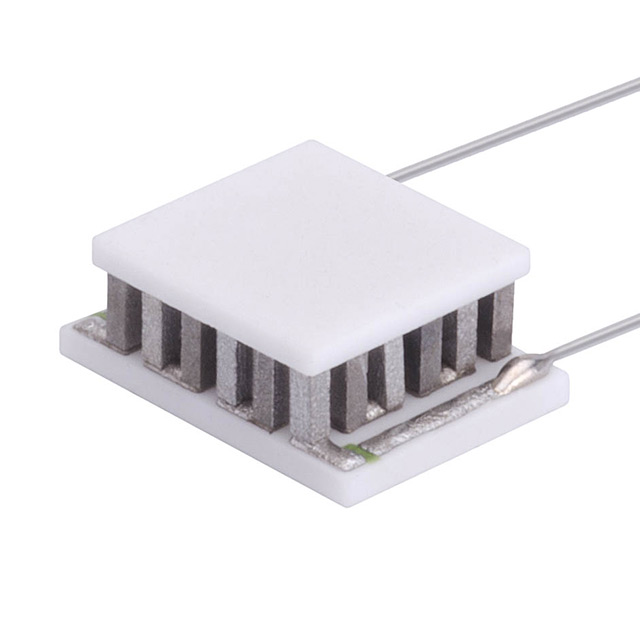

430828-502 430828-502

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : OptoTEC™
Part Status : Active
Outline L x W x H : 6.70mm x 5.00mm x 2.79mm
Qmax @ Th : 1.0W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 0.8A
Voltage - Max : 2.1V
Resistance : 2.35 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed
0
40 in stock

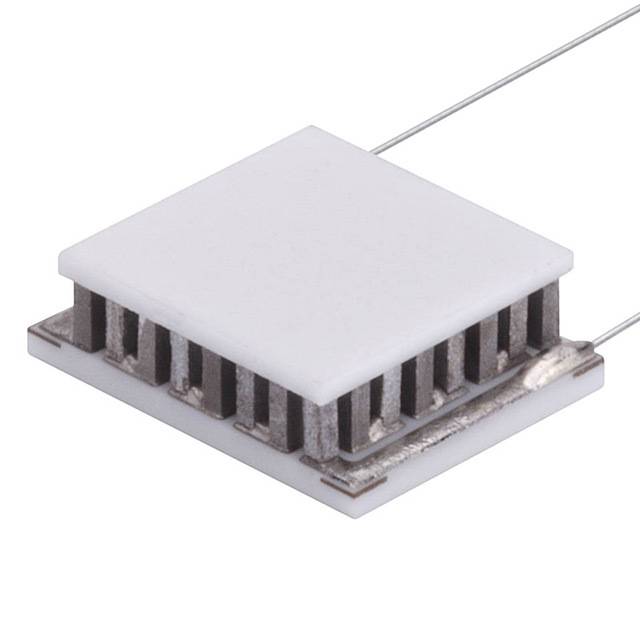

430831-504 430831-504

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : OptoTEC™
Part Status : Active
Outline L x W x H : 8.13mm x 6.50mm x 2.79mm
Qmax @ Th : 1.7W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 0.8A
Voltage - Max : 3.7V
Resistance : 4.17 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed
0
40 in stock

430834-501 430834-501

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : OptoTEC™
Part Status : Active
Outline L x W x H : 4.88mm x 3.25mm x 2.44mm
Qmax @ Th : 0.6W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 0.8A
Voltage - Max : 1.3V
Resistance : 1.43 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed
0
17 in stock

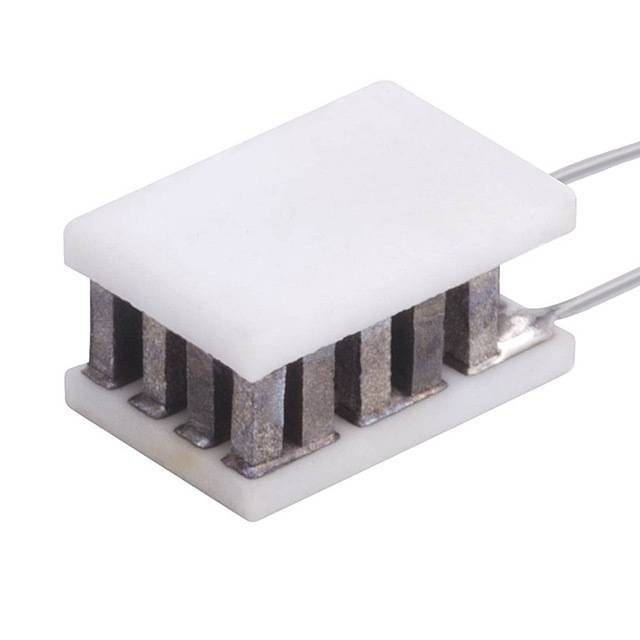

430834-502 430834-502

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : OptoTEC™
Part Status : Active
Outline L x W x H : 4.88mm x 3.25mm x 2.44mm
Qmax @ Th : 0.6W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 0.8A
Voltage - Max : 1.3V
Resistance : 1.43 Ohms
Operating Temperature : 80°C
Features : Lead Wires, Non-Sealed
0
322 in stock
