Laird Thermal Materials

- Laird Thermal Systems is an end-to-end solutions partner offering continuous access to OEMs through its industry leading component and application expertise. An engineering force utilizing the broadest, vertically integrated thermal management product range in the industry, Laird facilitates customer technology development by providing cutting edge solutions coupled with the ability to qualify, manufacture and service globally.

Part Number
Manufacturer
Description
Unit Price
In Stock

387001814 387001814

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : ET
Part Status : Active
Outline L x W x H : -
Qmax @ Th : -
Delta Tmax @ Th : -
Current - Max : -
Voltage - Max : -
Resistance : -
Operating Temperature : -
Features : -
0
20 in stock

387001815 387001815

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : ET
Part Status : Active
Outline L x W x H : 8.78mm x 8.78mm x 2.69mm
Qmax @ Th : 3.2W @ 25°C
Delta Tmax @ Th : 64°C @ 25°C
Current - Max : 1.5A
Voltage - Max : 3.5V
Resistance : 2.93 Ohms
Operating Temperature : 150°C
Features : Lead Wires, Lapped, Sealed
0
13 in stock

387001816 387001816

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : ET
Part Status : Active
Outline L x W x H : 13.16mm x 12.14mm x 2.44mm
Qmax @ Th : 6.8W @ 25°C
Delta Tmax @ Th : 64°C @ 25°C
Current - Max : 1.5A
Voltage - Max : 7.8V
Resistance : 6.15 Ohms
Operating Temperature : 150°C
Features : Lead Wires, Lapped, Sealed
0
26 in stock

387001820 387001820

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : -
Part Status : Active
Outline L x W x H : 3.90mm x 3.90mm x 4.20mm
Qmax @ Th : 0.4W @ 25°C
Delta Tmax @ Th : 87°C @ 25°C
Current - Max : 1.4A
Voltage - Max : 0.8V
Resistance : 580 mOhms
Operating Temperature : -
Features : Lead Wires, Lapped
0
7 in stock

387001821 387001821

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : -
Part Status : Active
Outline L x W x H : 6.10mm x 6.10mm x 4.60mm
Qmax @ Th : 0.9W @ 25°C
Delta Tmax @ Th : 85°C @ 25°C
Current - Max : 1.4A
Voltage - Max : 1.9V
Resistance : 1.37 Ohms
Operating Temperature : -
Features : Lead Wires, Lapped
0
10 in stock

387001823 387001823

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : ET
Part Status : Active
Outline L x W x H : 26.92mm x 24.56mm x 1.96mm
Qmax @ Th : 69.0W @ 25°C
Delta Tmax @ Th : 65°C @ 25°C
Current - Max : 7.8A
Voltage - Max : 16.9V
Resistance : 2.22 Ohms
Operating Temperature : 150°C
Features : Lead Wires, Lapped, Sealed
0
1 in stock

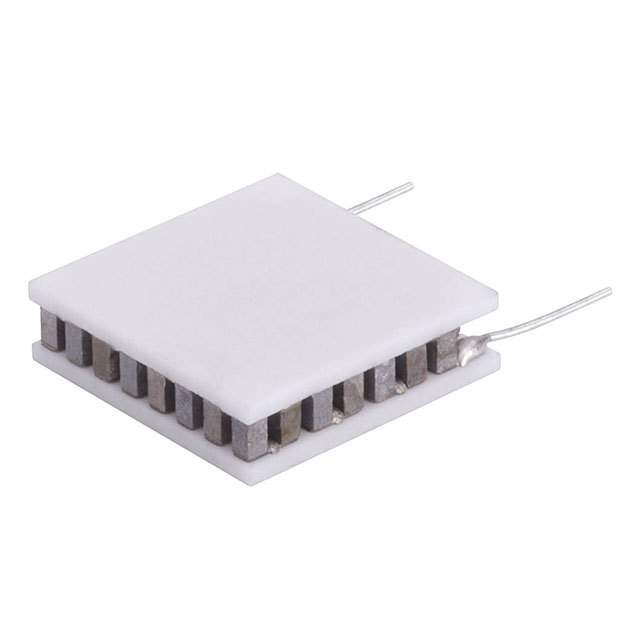

387001824 387001824

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : ET
Part Status : Active
Outline L x W x H : 34.00mm x 30.00mm x 2.41mm
Qmax @ Th : 95.4W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 11.0A
Voltage - Max : 16.9V
Resistance : 1.61 Ohms
Operating Temperature : 150°C
Features : Lead Wires, Lapped, Sealed
0
23 in stock

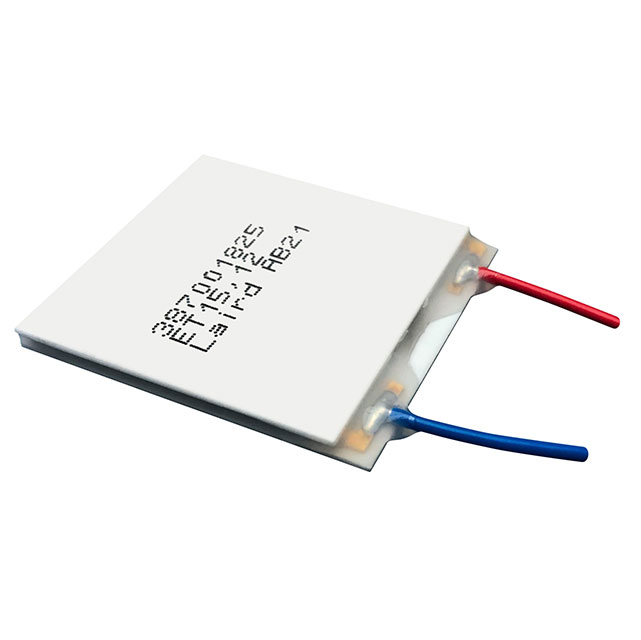

387001825 387001825

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : ET
Part Status : Active
Outline L x W x H : 44.00mm x 40.00mm x 2.85mm
Qmax @ Th : 126.2W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 14.7A
Voltage - Max : 14.5V
Resistance : 1.13 Ohms
Operating Temperature : 150°C
Features : Lead Wires, Lapped, Sealed
0
100 in stock

387001826 387001826

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : ET
Part Status : Active
Outline L x W x H : 56.00mm x 52.00mm x 3.81mm
Qmax @ Th : 163.0W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 8.5A
Voltage - Max : 38.4V
Resistance : 4.62 Ohms
Operating Temperature : 150°C
Features : Lead Wires, Lapped, Sealed
0
7 in stock

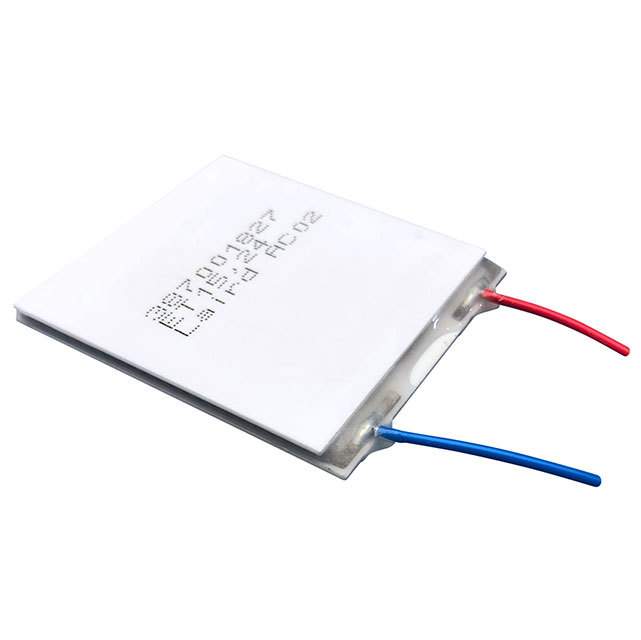

387001827 387001827

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : ET
Part Status : Active
Outline L x W x H : 56.00mm x 52.00mm x 3.30mm
Qmax @ Th : 231.0W @ 25°C
Delta Tmax @ Th : 63°C @ 25°C
Current - Max : 14.6A
Voltage - Max : 27.4V
Resistance : 2.15 Ohms
Operating Temperature : 150°C
Features : Lead Wires, Lapped, Sealed
0
1 in stock

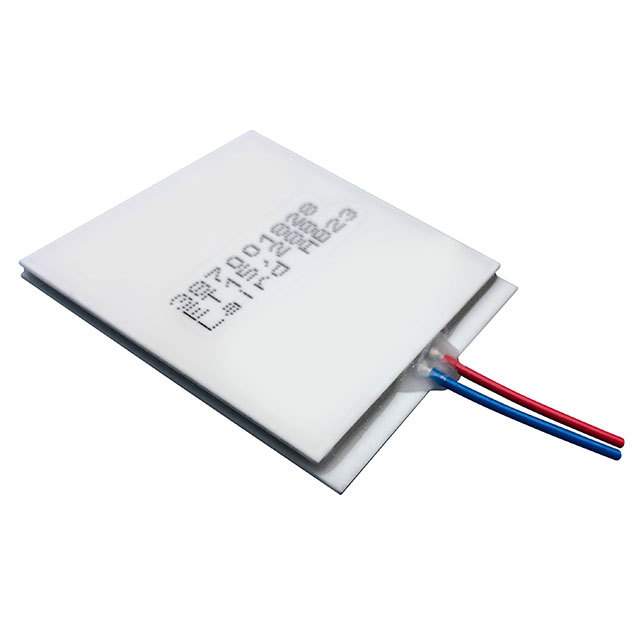

387001828 387001828

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : ET
Part Status : Active
Outline L x W x H : 56.00mm x 52.00mm x 3.30mm
Qmax @ Th : 294.6W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 15.4A
Voltage - Max : 32.7V
Resistance : 2.57 Ohms
Operating Temperature : 150°C
Features : Lead Wires, Lapped, Sealed
0
19 in stock

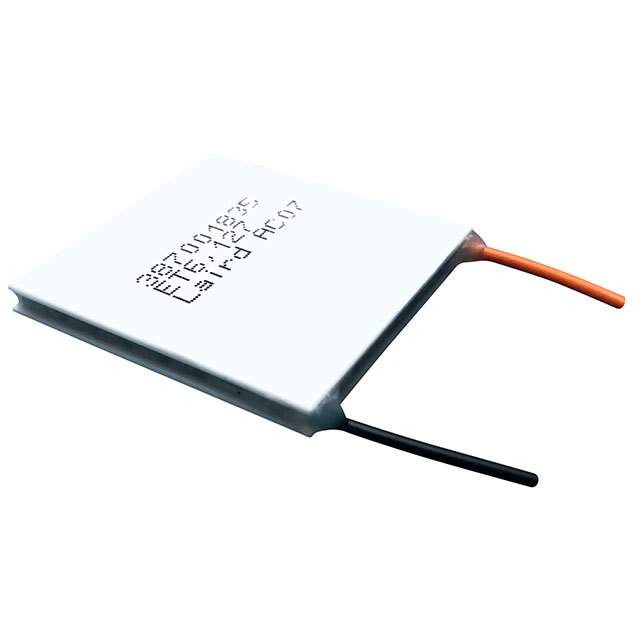

387001835 387001835

Laird Thermal Materials
Manufacturer : Laird Technologies - Engineered Thermal Solutions
Series : ET
Part Status : Active
Outline L x W x H : 40.00mm x 40.00mm x 3.81mm
Qmax @ Th : 53.0W @ 25°C
Delta Tmax @ Th : 67°C @ 25°C
Current - Max : 6.0A
Voltage - Max : 16.9V
Resistance : 2.88 Ohms
Operating Temperature : 150°C
Features : Lead Wires, Lapped, Sealed
0
31 in stock
