Keystone Electronics Corp.
- For more than sixty years, Keystone Electronics has been manufacturing precision electronic interconnect components and hardware, supplying quality products at competitive prices to industry, worldwide.
Our full-line Catalog M65 has products that are engineered specifically for use by OEM Designers and Engineers who create and develop state-of-the-art electronic products, instruments and systems.
While our catalog products meet most standard requirements, modifications as well as custom fabrications can be manufactured to meet your special needs. Design and engineering; precision tool and die capabilities; close tolerance Stamping, Machining, and Assembly; computer-based quality control and responsive customer service are all vital in-house resources which constitute our Custom Manufacturing Division's capabilities.
Keystone's Quality System is ISO 9001-certified by DNV Certification, Inc. under the RAB and RvA accreditations. Our quality assurance program is in accordance with these requirements and applies to all standard and custom interconnect components and hardware.
It is Keystone's quality policy to continuously improve its products to better satisfy the needs of its customers and to deliver quality products, every time and on time. Our Global Distribution Network is your assurance of quick response, service, and dependability, worldwide.
Part Number
Manufacturer
Description
Unit Price
In Stock
Keystone Electronics Corp.
Manufacturer : Keystone Electronics
Packaging : Bulk
Series : -
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.045" (1.14mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.200" (5.08mm)
Length - Below Flange : -
Length - Overall : 0.225" (5.72mm)
Flange Diameter : 0.150" (3.81mm)
Mounting Hole Diameter : 0.113" (2.87mm)
Mounting Type : Through Hole, Bottom Entry
Termination : Press-Fit
Insulation : Insulated
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass
Contact Finish : Tin
Contact Finish Thickness : -
0
390 in stock
Keystone Electronics Corp.
Manufacturer : Keystone Electronics
Series : -
Part Status : Active
Battery Type, Function : Cylindrical, Holder
Style : Holder (Open)
Battery Cell Size : 26650
Number of Cells : 2
Battery Series : -
Mounting Type : Custom
Termination Style : SMD (SMT) Tab
Height Above Board : -
Operating Temperature : -50°C ~ 145°C
0
482 in stock
Keystone Electronics Corp.
Manufacturer : Keystone Electronics
Series : -
Part Status : Active
Battery Type, Function : Cylindrical, Holder
Style : Holder (Open)
Battery Cell Size : 26650
Number of Cells : 2
Battery Series : -
Mounting Type : Custom
Termination Style : Solder Lug
Height Above Board : -
Operating Temperature : -50°C ~ 145°C
0
701 in stock
Keystone Electronics Corp.
Manufacturer : Keystone Electronics
Series : -
Part Status : Active
Battery Type, Function : Coin Cell, Contact
Style : Contact Spring (Leaf)
Battery Cell Size : Multiple
Number of Cells : 1
Battery Series : -
Mounting Type : PCB, Surface Mount
Termination Style : SMD (SMT) Tab
Height Above Board : 0.125" (3.17mm)
Operating Temperature : -
0
101072 in stock

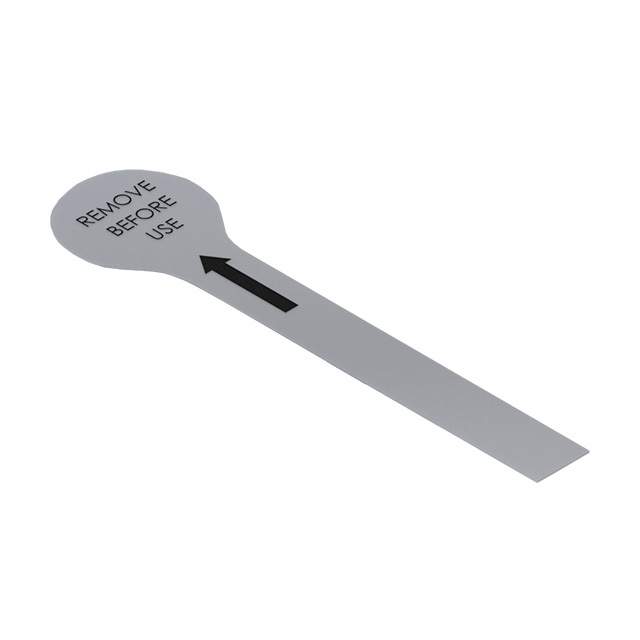

Keystone Electronics Corp.
Manufacturer : Keystone Electronics
Series : 111
Part Status : Active
Accessory Type : Insulator
For Use With/Related Products : Coin Cell Batteries
0
57995 in stock
Keystone Electronics Corp.
Manufacturer : Keystone Electronics
Series : -
Part Status : Active
Terminal Type : Single End, Fork, Hollow
Number of Turrets : Single
Length - Above Board : 0.250" (6.35mm)
Length - Below Flange : 0.125" (3.18mm)
Length - Overall : 0.375" (9.53mm)
Mounting Type : Through Hole
Termination : Press-Fit
Flange Diameter : 0.172" (4.37mm)
Diameter - Turret Head : -
Staking Side OD : -
Staking Side ID : -
Mounting Hole Diameter : 0.136" (3.45mm)
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass
Contact Finish : Tin
Contact Finish Thickness : -
Insulation : Insulated
0
154 in stock
Keystone Electronics Corp.
Manufacturer : Keystone Electronics
Series : -
Part Status : Active
Terminal Type : Single End, Fork, Hollow
Number of Turrets : Single
Length - Above Board : 0.328" (8.33mm)
Length - Below Flange : 0.150" (3.81mm)
Length - Overall : 0.478" (12.14mm)
Mounting Type : Through Hole
Termination : Press-Fit
Flange Diameter : 0.187" (4.75mm)
Diameter - Turret Head : -
Staking Side OD : -
Staking Side ID : -
Mounting Hole Diameter : 0.158" (4.01mm)
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass
Contact Finish : Tin
Contact Finish Thickness : -
Insulation : Insulated
0
197 in stock
Keystone Electronics Corp.
Manufacturer : Keystone Electronics
Series : -
Part Status : Active
Terminal Type : Single End, Fork, Hollow
Number of Turrets : Single
Length - Above Board : 0.390" (9.91mm)
Length - Below Flange : 0.150" (3.81mm)
Length - Overall : 0.540" (13.72mm)
Mounting Type : Through Hole
Termination : Press-Fit
Flange Diameter : 0.187" (4.75mm)
Diameter - Turret Head : -
Staking Side OD : -
Staking Side ID : -
Mounting Hole Diameter : 0.158" (4.01mm)
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass
Contact Finish : Tin
Contact Finish Thickness : -
Insulation : Insulated
0
800 in stock
Keystone Electronics Corp.
Manufacturer : Keystone Electronics
Series : -
Part Status : Active
Terminal Type : Single End, Fork, Hollow
Number of Turrets : Single
Length - Above Board : 0.453" (11.51mm)
Length - Below Flange : 0.150" (3.81mm)
Length - Overall : 0.603" (15.32mm)
Mounting Type : Through Hole
Termination : Press-Fit
Flange Diameter : 0.187" (4.75mm)
Diameter - Turret Head : -
Staking Side OD : -
Staking Side ID : -
Mounting Hole Diameter : 0.158" (4.01mm)
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass
Contact Finish : Tin
Contact Finish Thickness : -
Insulation : Insulated
0
400 in stock
Keystone Electronics Corp.
Manufacturer : Keystone Electronics
Series : -
Part Status : Active
Terminal Type : Double End, Fork
Number of Turrets : Single
Length - Above Board : 0.390" (9.91mm)
Length - Below Flange : 0.212" (5.39mm)
Length - Overall : 0.821" (20.85mm)
Mounting Type : Through Hole
Termination : Press-Fit
Flange Diameter : 0.187" (4.75mm)
Diameter - Turret Head : -
Staking Side OD : -
Staking Side ID : -
Mounting Hole Diameter : 0.158" (4.01mm)
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass
Contact Finish : Tin
Contact Finish Thickness : -
Insulation : Insulated
0
400 in stock
Keystone Electronics Corp.
Manufacturer : Keystone Electronics
Series : -
Part Status : Active
Battery Type, Function : Cylindrical, Holder
Style : Holder (Open)
Battery Cell Size : AA
Number of Cells : 2
Battery Series : -
Mounting Type : Chassis Mount
Termination Style : Solder Lug
Height Above Board : 0.585" (14.86mm)
Operating Temperature : -
0
160 in stock
Keystone Electronics Corp.
Manufacturer : Keystone Electronics
Series : -
Part Status : Active
Battery Type, Function : Cylindrical, Holder
Style : Holder (Open)
Battery Cell Size : AA
Number of Cells : 1
Battery Series : -
Mounting Type : Chassis Mount
Termination Style : Solder Lug
Height Above Board : 0.585" (14.86mm)
Operating Temperature : -
0
258 in stock
