JST
- JST has been dedicated to excellence in connection technology as a global manufacturer of high quality (ISO-9001/QS-9000) sub-miniature connectors since 1957. Our product offering consists of Wire-to-Wire, Wire-to-Board, Board-to-Board, Flex/Flat Cable, memory connectors, solderless terminals, chain terminals, shunts and application tooling. JST's Engineering Centers offer design and development, prototype and pre-production manufacturing, and electrical/environmental testing capabilities. Production flexibility, innovative product development, production engineering, quality assurance, value added solutions and responsiveness to customer needs are what have fueled our growth and resulted in rewarding partnerships with our valued customers.
Part Number
Manufacturer
Description
Unit Price
In Stock

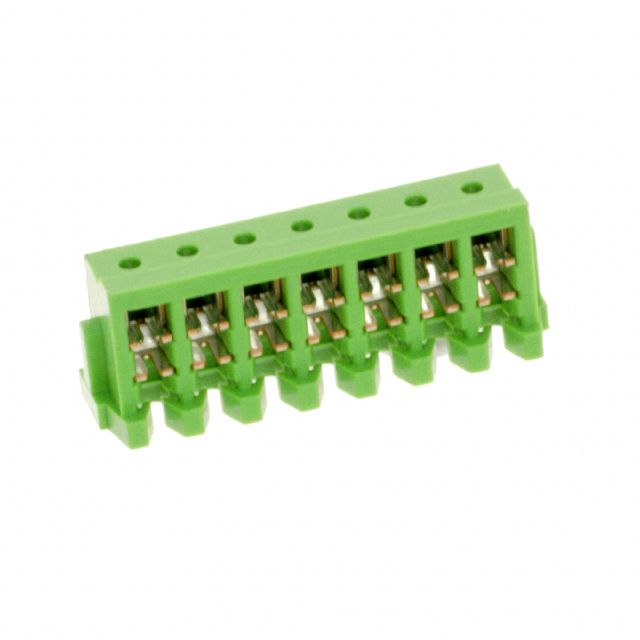

JST
Manufacturer : JST Sales America Inc.
Packaging : Bulk
Series : ZR
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Number of Positions : 7
Pitch : 0.059" (1.50mm)
Number of Rows : 1
Row Spacing : -
Mounting Type : Free Hanging (In-Line)
Fastening Type : -
Cable Termination : IDC
Wire Type : Discrete
Wire Gauge : 28 AWG
Features : Closed End
Contact Finish : Tin
Contact Finish Thickness : -
Color : Green
0
4091 in stock

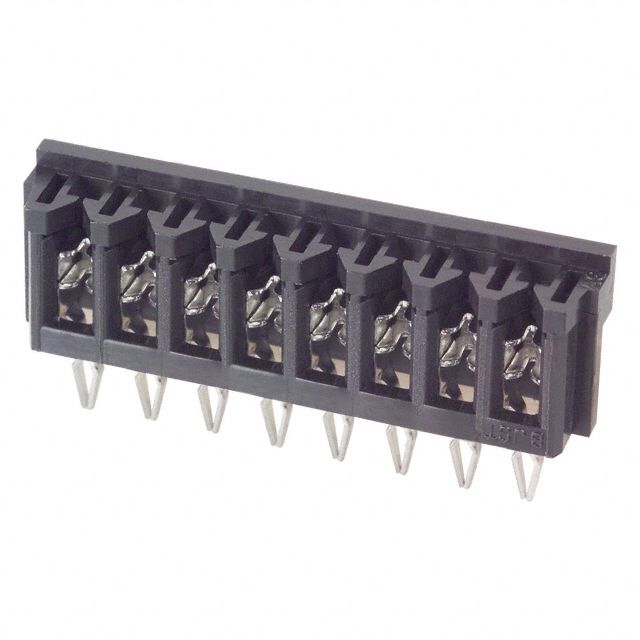

JST
Manufacturer : JST Sales America Inc.
Packaging : Bulk
Series : DB
Part Status : Obsolete
Connector Type : Individual Wires
Number of Positions : 8
Cable Pitch : 0.098" (2.50mm)
Board-Side Pitch : 0.098" (2.50mm)
Number of Rows : 1
Row Spacing : -
Mounting Type : Through Hole, Press-Fit
Cable Termination : IDC
Wire Gauge : 24-28 AWG, Stranded
Features : Closed End
Contact Finish : Tin-Lead
Contact Finish Thickness : -
Color : Black
0
100 in stock
JST
Manufacturer : JST Sales America Inc.
Packaging : Tape & Reel (TR)
Series : FLZ
Part Status : Obsolete
Flat Flex Type : FFC, FPC
Mounting Type : Surface Mount, Right Angle
Connector/Contact Type : Contacts, Bottom
Number of Positions : 8
Pitch : 0.020" (0.50mm)
Termination : Solder
FFC, FCB Thickness : 0.30mm
Height Above Board : 0.079" (2.00mm)
Locking Feature : Slide Lock
Cable End Type : Tapered
Contact Material : Phosphor Bronze
Contact Finish : Tin-Lead
Housing Material : Polyamide (PA46), Nylon 4/6
Actuator Material : Polyamide (PA46), Nylon 4/6
Features : Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating : 50V
Operating Temperature : -25°C ~ 85°C
Material Flammability Rating : UL94 V-0
0
100 in stock
JST
Manufacturer : JST Sales America Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : FLZ
Part Status : Active
Flat Flex Type : FFC, FPC
Mounting Type : Surface Mount, Right Angle
Connector/Contact Type : Contacts, Bottom
Number of Positions : 8
Pitch : 0.020" (0.50mm)
Termination : Solder
FFC, FCB Thickness : 0.30mm
Height Above Board : 0.079" (2.00mm)
Locking Feature : Slide Lock
Cable End Type : Tapered
Contact Material : Phosphor Bronze
Contact Finish : Tin
Housing Material : Polyamide (PA6T), Nylon 6T
Actuator Material : Polyamide (PA6T), Nylon 6T
Features : Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating : 50V
Operating Temperature : -25°C ~ 85°C
Material Flammability Rating : UL94 V-0
0
10857 in stock
JST
Manufacturer : JST Sales America Inc.
Packaging : Tape & Reel (TR)
Series : FLZ
Part Status : Obsolete
Flat Flex Type : FFC, FPC
Mounting Type : Surface Mount, Right Angle
Connector/Contact Type : Contacts, Top
Number of Positions : 8
Pitch : 0.020" (0.50mm)
Termination : Solder
FFC, FCB Thickness : 0.30mm
Height Above Board : 0.079" (2.00mm)
Locking Feature : Slide Lock
Cable End Type : Tapered
Contact Material : Phosphor Bronze
Contact Finish : Tin-Lead
Housing Material : Polyamide (PA46), Nylon 4/6
Actuator Material : Polyamide (PA46), Nylon 4/6
Features : Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating : 50V
Operating Temperature : -25°C ~ 85°C
Material Flammability Rating : UL94 V-0
0
100 in stock
JST
Manufacturer : JST Sales America Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : FLZ
Part Status : Active
Flat Flex Type : FFC, FPC
Mounting Type : Surface Mount, Right Angle
Connector/Contact Type : Contacts, Top
Number of Positions : 8
Pitch : 0.020" (0.50mm)
Termination : Solder
FFC, FCB Thickness : 0.30mm
Height Above Board : 0.079" (2.00mm)
Locking Feature : Slide Lock
Cable End Type : Tapered
Contact Material : Phosphor Bronze
Contact Finish : Tin
Housing Material : Polyamide (PA6T), Nylon 6T
Actuator Material : Polyamide (PA6T), Nylon 6T
Features : Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating : 50V
Operating Temperature : -25°C ~ 85°C
Material Flammability Rating : UL94 V-0
0
8398 in stock
JST
Manufacturer : JST Sales America Inc.
Packaging : Tape & Reel (TR)
Series : FMN
Part Status : Obsolete
Flat Flex Type : FFC
Mounting Type : Surface Mount
Connector/Contact Type : Contacts, Vertical, 1 Sided
Number of Positions : 8
Pitch : 0.039" (1.00mm)
Termination : Solder
FFC, FCB Thickness : 0.30mm
Height Above Board : 0.201" (5.10mm)
Locking Feature : -
Cable End Type : Straight
Contact Material : Phosphor Bronze
Contact Finish : Tin
Housing Material : Polyamide (PA6T), Nylon 6T
Actuator Material : -
Features : Low Insertion Force (LIF)
Voltage Rating : 50V
Operating Temperature : -25°C ~ 85°C
Material Flammability Rating : UL94 V-0
0
100 in stock
JST
Manufacturer : JST Sales America Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : FMN
Part Status : Active
Flat Flex Type : FFC
Mounting Type : Surface Mount
Connector/Contact Type : Contacts, Vertical, 1 Sided
Number of Positions : 8
Pitch : 0.039" (1.00mm)
Termination : Solder
FFC, FCB Thickness : 0.30mm
Height Above Board : 0.201" (5.10mm)
Locking Feature : -
Cable End Type : Straight
Contact Material : Phosphor Bronze
Contact Finish : Tin
Housing Material : Polyamide (PA6T), Nylon 6T
Actuator Material : -
Features : Low Insertion Force (LIF)
Voltage Rating : 50V
Operating Temperature : -25°C ~ 85°C
Material Flammability Rating : UL94 V-0
0
11870 in stock
JST
Manufacturer : JST Sales America Inc.
Packaging : Tape & Reel (TR)
Series : FMN
Part Status : Obsolete
Flat Flex Type : FFC
Mounting Type : Surface Mount
Connector/Contact Type : Contacts, Vertical, 1 Sided
Number of Positions : 8
Pitch : 0.039" (1.00mm)
Termination : Solder
FFC, FCB Thickness : 0.30mm
Height Above Board : 0.201" (5.10mm)
Locking Feature : -
Cable End Type : Straight
Contact Material : Phosphor Bronze
Contact Finish : Tin
Housing Material : Polyamide (PA6T), Nylon 6T
Actuator Material : -
Features : Low Insertion Force (LIF)
Voltage Rating : 50V
Operating Temperature : -25°C ~ 85°C
Material Flammability Rating : UL94 V-0
0
100 in stock
JST
Manufacturer : JST Sales America Inc.
Packaging : Tape & Reel (TR)
Series : FMN
Part Status : Obsolete
Flat Flex Type : FFC
Mounting Type : Surface Mount
Connector/Contact Type : Contacts, Vertical, 1 Sided
Number of Positions : 8
Pitch : 0.039" (1.00mm)
Termination : Solder
FFC, FCB Thickness : 0.30mm
Height Above Board : 0.201" (5.10mm)
Locking Feature : -
Cable End Type : Straight
Contact Material : Phosphor Bronze
Contact Finish : Tin
Housing Material : Polyamide (PA6T), Nylon 6T
Actuator Material : -
Features : Low Insertion Force (LIF)
Voltage Rating : 50V
Operating Temperature : -25°C ~ 85°C
Material Flammability Rating : UL94 V-0
0
100 in stock
JST
Manufacturer : JST Sales America Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : FMN
Part Status : Discontinued at
Flat Flex Type : FFC
Mounting Type : Surface Mount
Connector/Contact Type : Contacts, Vertical, 1 Sided
Number of Positions : 8
Pitch : 0.039" (1.00mm)
Termination : Solder
FFC, FCB Thickness : 0.30mm
Height Above Board : 0.201" (5.10mm)
Locking Feature : -
Cable End Type : Straight
Contact Material : Phosphor Bronze
Contact Finish : Tin
Housing Material : Polyamide (PA6T), Nylon 6T
Actuator Material : -
Features : Low Insertion Force (LIF)
Voltage Rating : 50V
Operating Temperature : -25°C ~ 85°C
Material Flammability Rating : UL94 V-0
0
100 in stock
JST
Manufacturer : JST Sales America Inc.
Packaging : Tape & Reel (TR)
Series : FMN
Part Status : Obsolete
Flat Flex Type : FFC
Mounting Type : Surface Mount
Connector/Contact Type : Contacts, Vertical, 1 Sided
Number of Positions : 8
Pitch : 0.039" (1.00mm)
Termination : Solder
FFC, FCB Thickness : 0.30mm
Height Above Board : 0.201" (5.10mm)
Locking Feature : -
Cable End Type : Straight
Contact Material : Phosphor Bronze
Contact Finish : Tin
Housing Material : Polyamide (PA6T), Nylon 6T
Actuator Material : -
Features : Low Insertion Force (LIF)
Voltage Rating : 50V
Operating Temperature : -25°C ~ 85°C
Material Flammability Rating : UL94 V-0
0
100 in stock
